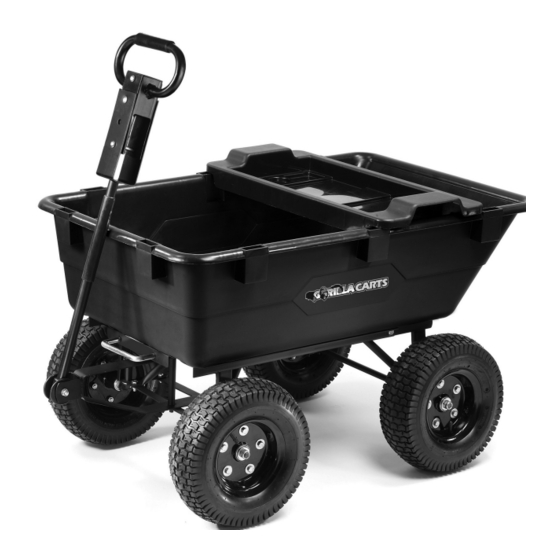

Deluxe Garden Dump Cart
Owners Manual
Model GOR0865D-C
U.S. Patent #'s 6,851,756, 7,210,697,
7,390,065, 7,441,792
Other U.S. and Foreign Patents Pending
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
CAUTION:
Read, understand and follow ALL instructions before using this product.
WARNING:
Not for recreational use. Persons should never ride in the Dump Cart.
Questions, problems, or missing parts? Before returning to your retailer, visit us online at w w w w w w . . t t r r i i c c a a m m . . c c o o m m and
complete the replacement parts submission form or call our customer service department at 1-800-867-6763,
9 a.m. - 4 p.m., CST, Monday-Friday.
For product inquiries:
Tricam
7677 Equitable Drive
Eden Prairie, MN 55344
800-867-6763
www.tricam.com
12/10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gorilla Carts G0R0865D-C
Summary of Contents for Gorilla Carts G0R0865D-C
- Page 1 Deluxe Garden Dump Cart Owners Manual Model GOR0865D-C U.S. Patent #’s 6,851,756, 7,210,697, 7,390,065, 7,441,792 Other U.S. and Foreign Patents Pending • Important Safety Instructions • Assembly Instructions • Parts and Hardware Identification CAUTION: Read, understand and follow ALL instructions before using this product. WARNING: Not for recreational use.
- Page 3 Exploded Drawing for Assembly Parts List A. Tub (1) B. Lock Assembly (1) C. Rear Struts (2) D. Rear Frame (1) E. Rear Axle Assembly (1) F. Front Frame (1) G. Front Struts (2) H. Front Axle Assembly (1) I. Wheels (4) J.
- Page 4 Important Safety Instructions 1. READ ALL INSTRUCTIONS BEFORE USE. If you do not understand these instructions, need further clarification or further explanation, please call our toll free answer line at 1-800-867-6763, Monday through Friday, 9:00 a.m. - 4:00 p.m., CST. 2.
- Page 5 Step 3 Slide rear struts onto the ends of the rear axle assembly. Rear Frame Step 4 FRONT The rear axle attaches to the rear section of the OF TUB rear frame. Double check the rear frame placement before assembling to the tub. As shown in Figure 1 , the side holes on the rear frame must be towards the front of the bed.
- Page 6 Step 4 M8x25 button Attach the rear axle assembly with head bolt rear struts and the rear frame to the tub using M8x25 internal button head bolts (5), M8x20 internal button head bolt (1), M8 flat washers (12), and M8 lock nuts (6).
- Page 7 Step 6 Attach the lock assembly to the tub using M8x20 internal button head bolts (3), M8 flat washers (6) and M8 lock nuts (3). If the lock does not engage when you lower the cart, please double check the placement of the rear frame in Step 4.
- Page 8 Using the Dumping Feature To operate the dumping feature, pull the dumping release handle outward to release the plastic bed from the locking mechanism. Lift up the release handle to rotate cart upward into the dumping position. Returning the Plastic Bed to the Lowered Position Rotate the plastic bed back down to the lowered position.
