gor0865-dManualSE.qxp
11/18/08
11:35 AM
Page 1

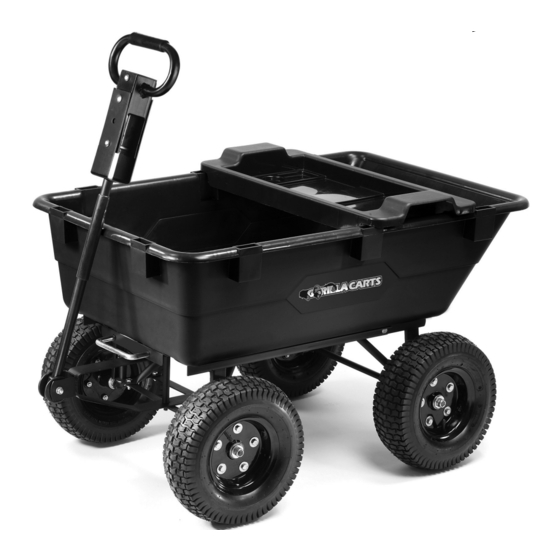

Deluxe Garden Dump Cart
Owner's Manual
Model GOR0865-D
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
CAUTION:
Read, understand and follow ALL instructions before using this product.
For product inquiries:
Tricam
7677 Equitable Drive
Eden Prairie, MN 55344
1-800-867-6763
www.gorillacarts.net
U.S. Patent #'s 6,851,756, 7,390,065, 7,210,697 and 7,441,792
Other U.S. and Foreign Patents Pending
11/08
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gorilla Carts GOR0865-D
Summary of Contents for Gorilla Carts GOR0865-D
- Page 1 11/18/08 11:35 AM Page 1 Deluxe Garden Dump Cart Owner’s Manual Model GOR0865-D • Important Safety Instructions • Assembly Instructions • Parts and Hardware Identification CAUTION: Read, understand and follow ALL instructions before using this product. For product inquiries:...
- Page 2 gor0865-dManualSE.qxp 11/18/08 11:35 AM Page 5 Exploded Drawing for Assembly Parts List A. Tub (1) B. Lock Assembly (1) C. Rear Struts (2) D. Rear Frame (1) E. Rear Axle Assembly (1) F. Front Frame (1) G. Front Struts (2) H.
- Page 3 gor0865-dManualSE.qxp 11/18/08 11:35 AM Page 7 Important Safety Instructions 1. READ ALL INSTRUCTIONS BEFORE USE. If you do not understand these instructions, need clarification or further explanation, please call our toll free answer line for assistance at 1-800-867-6763. 2. Do not load the cart with more than 1,200 lb (544 kg). Do not use the dumping feature of the cart with a load of more than 500 lb (226 kg).
- Page 4 gor0865-dManualSE.qxp 11/18/08 11:35 AM Page 9 Step 3 Slide rear struts onto the ends of the rear axle assembly. Rear Frame Step 4 FRONT The rear axle attaches to the rear section of the OF TUB rear frame. Double check the rear frame placement before assembling to the tub.
- Page 5 gor0865-dManualSE.qxp 11/18/08 11:35 AM Page 11 Step 4 M8x30 truss Attach the rear axle assembly with head bolts rear struts and the rear frame to the tub using M8x30 truss head bolts (5), M8x20 truss head bolt (1), M8 flat washers (6), and M8 lock nuts (6).
- Page 6 gor0865-dManualSE.qxp 11/18/08 11:35 AM Page 13 Step 6 Attach the lock assembly to the tub using M8x20 truss head bolts (3), M8 flat washers (3) and M8 lock nuts (3). If the lock does not engage when you lower the cart, please double check the placement of the rear frame in Step 4.
- Page 7 gor0865-dManualSE.qxp 11/18/08 11:35 AM Page 15 Using the Dumping Feature To operate the dumping feature, pull the dumping release handle outward to release the plastic bed from the locking mechanism. Lift up the release handle to rotate cart upward into the dumping position. Returning the Plastic Bed to the Lowered Position...
