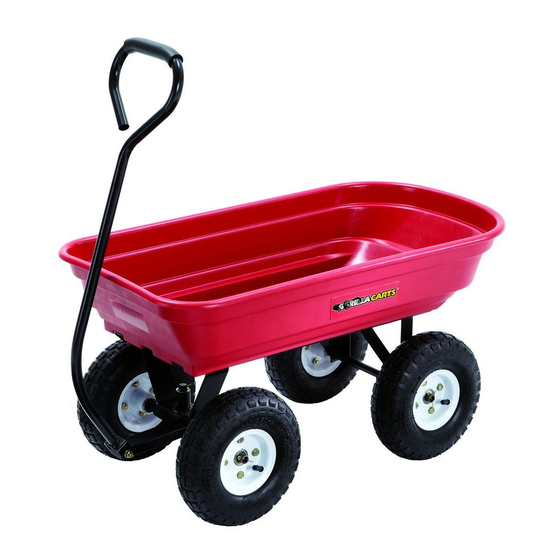

Yard Wagon
Owners Manual
Model GOR100-14
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
CAUTION:
Read, understand and follow ALL instructions before using this product.
WARNING:
Not for recreational use. Persons should never ride in the cart.
Questions, problems, or missing parts? Before returning to your retailer, visit us
online at www.gorillacarts.com and complete the replacement parts submission
form or call our customer service department at 1-800-867-6763, 9 a.m. - 4 p.m., CST,
Monday-Friday.
For product inquiries:
Tricam
7677 Equitable Drive
Eden Prairie, MN 55344
1-800-867-6763
www.gorillacarts.com
9/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOR100-14 and is the answer not in the manual?

Questions and answers

Related Manuals for Gorilla Carts GOR100-14

Summary of Contents for Gorilla Carts GOR100-14

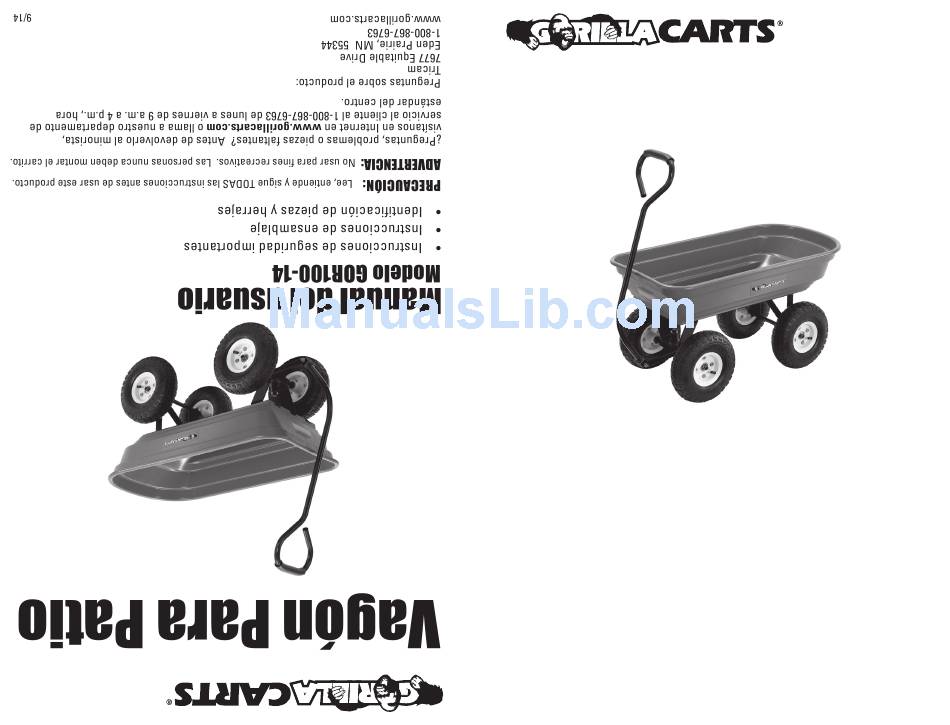

  • Page 1 Yard Wagon Owners Manual Model GOR100-14 • Important Safety Instructions • Assembly Instructions • Parts and Hardware Identification CAUTION: Read, understand and follow ALL instructions before using this product. WARNING: Not for recreational use. Persons should never ride in the cart.
  • Page 3 Exploded Drawing for Assembly Parts List A. Tray (1) B. Frame (2) C. Rear Axle Assembly (1) (includes rear axle and left and right struts) D. Front Axle Bracket (1) E. Front Axle (1) F. 10 inch Wheel (4) G. Handle (1) Hardware List Images are not to scale A.
  • Page 4 Important Safety Instructions 1. READ ALL INSTRUCTIONS CAREFULLY BEFORE USE. If you do notunderstand these instructions, need clarification or further explanation, please call our toll free answer line for assistance at 1-800-867-6763. 2. Do not load cart with more than 400 lbs / 181 kg. 3.
  • Page 5 Step 3 Assemble the front axle assembly using front axle, front axle support bracket, M16 washers (2) and cotter pin. 1. First, place a M16 washer on the front axle steering rod. 2. Next, place the front axle support bracket on the front axle steering rod. 3.

  • Page 6: Parts List

    DO NOT EXCEED MAXIMUM OVERALL LOAD CAPACITY 400 LBS. CAUTION PERSON SHOULD NEVER RIDE IN POLY GARDEN CART. WEIGHT RATING IS BASED ON AN EVENLY DISTRIBUTED LOAD. Step 6 Attach the handle using the M8x60 hex bolt (1), M8 washer (1), and M8 lock nut (1). Tighten securely.
