AMB-A55EG1 v1.0 Quick Manual
Contents
1. Main board illustration.........................................................................................................1
2. Connector pin define...........................................................................................................3
a. DDR3 SO-DIMM Connector .................................................................................... 3
b. SATA & mSATA connector ..................................................................................... 3
c. FAN Connector........................................................................................................ 3
d. CN_COM1_2 (RS-232 ,RS-232/422/485) ,CN_COM1 & ccTalk ............................. 4
e. 5.1CH.Audio out & 2CH Speaker Out ..................................................................... 5
f. VGA, HDMI, USB & LAN connector ........................................................................ 6
g. Other Connector...................................................................................................... 7
h. FPGA & PIC firmware Connector ............................................................................ 8
3. Indicated LED .....................................................................................................................8
4. Other Jumper & Switch setting ...........................................................................................9
5. Edge Connector pin definition...........................................................................................10

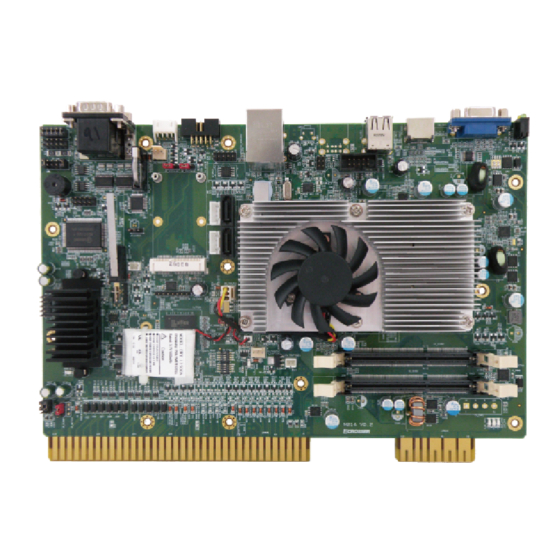

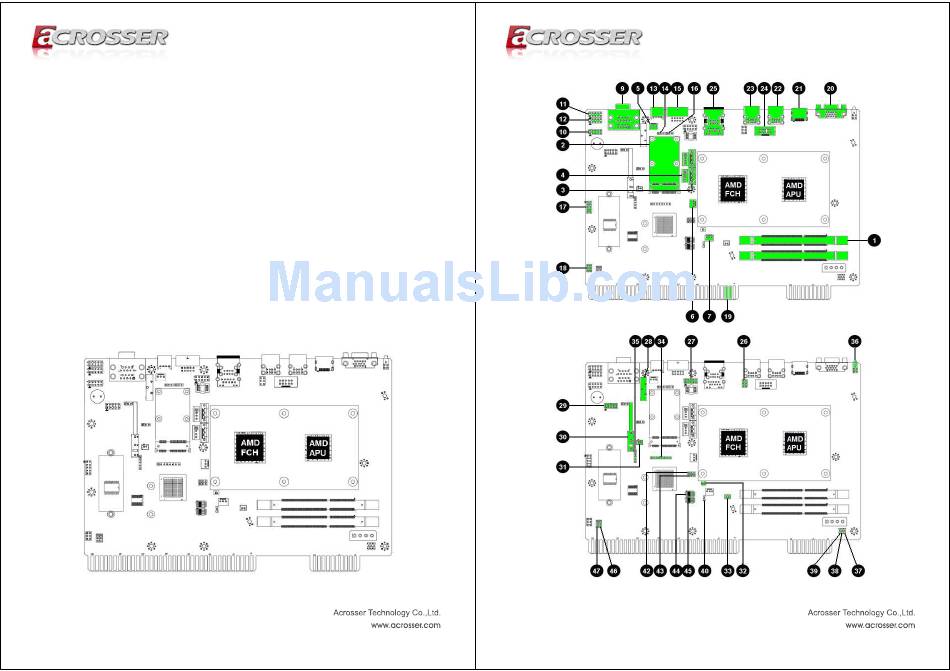

1. Main board illustration
Top Side
P/N:220010435-G
2013.1.18
1
P/N:220010435-G
2013.1.18
2
Advertisement
Related Manuals for Acrosser Technology AMB-A55EG1
Summary of Contents for Acrosser Technology AMB-A55EG1
-
Page 1: Table Of Contents
AMB-A55EG1 v1.0 Quick Manual Contents 1. Main board illustration......................1 2. Connector pin define......................3 a. DDR3 SO-DIMM Connector ..................3 b. SATA & mSATA connector ..................3 c. FAN Connector......................3 d. CN_COM1_2 (RS-232 ,RS-232/422/485) ,CN_COM1 & ccTalk ......4 e. 5.1CH.Audio out & 2CH Speaker Out ..............5 f. -
Page 2: Connector Pin Define
2. Connector pin define d. CN_COM1_2 (RS-232 ,RS-232/422/485) & ccTalk a. DDR3 SO-DIMM Connector CN_DIMM1, CN_DIMM2 Standard DDR3 SO-DIMM connector RS-232, RS-422/485 COM2 connector b. SATA & mSATA connector CN_COM1_2 JP_COM2S1 connector mode setting CN_MPCIE1 (mSATA) D-Sub 9pin Male connector for Standard RS232, RS422/RS485 Mode selection: Standard mini-SATA module... -
Page 3: 5.1Ch.audio Out & 2Ch Speaker Out
f. VGA, HDMI, USB & LAN connector CN_CCTALK1 CN_CCTALK1 ccTalk Type-5 connector JP_VCCTALK1 Vs setting Signal Short Function +12V (Default) /DATA +24V Note: Please reference to Vs setting by ccTalk-Generic-Specification-v4.6 JP_VCCTALK1 CN_CCTALK2 CN_CCTALK2 JP_VCCTALK2 ccTalk Type-7 connector Vs setting Signal PIN Signal Short Function... -
Page 4: Other Connector
g. Other Connector h. FPGA & PIC firmware Connector CN_FPGA1 FPGA firmware recoded JP_FPIO1 Reset Button connector (Reserved) Header Signal 3.3V VCC Function (Reserved) (NC) (Reserved) (NC) 5,6 Reset button connector SPI_CN1 CN_PIC1 PIC firmware recoded SPI Interface connector (Optional) (Reserved) Header Signal... -
Page 5: Other Jumper & Switch Setting
4. Other Jumper & Switch setting 5. Edge Connector pin definition JP_CCMOS1 Clear CMOS IPH: Input (with Internal Pull High & without isolated) (only support GND & Open signal) Short Function OD: Open Drain Output (Maximum external voltage: 24V Normal AO: Analog Output (Default) Clear CMOS... - Page 6 Component Side (A) Solder Side (B) Function I/O Type I/O Type Function Left Speaker Audio Ground Right Speaker Audio Ground Button 1 Button 2 Button 3 Button 4 Button 5 Button 6 Button 7 Button 8 Button 9 Coin-IN Signal A Coin-IN Signal B Button 10 Button 13...
