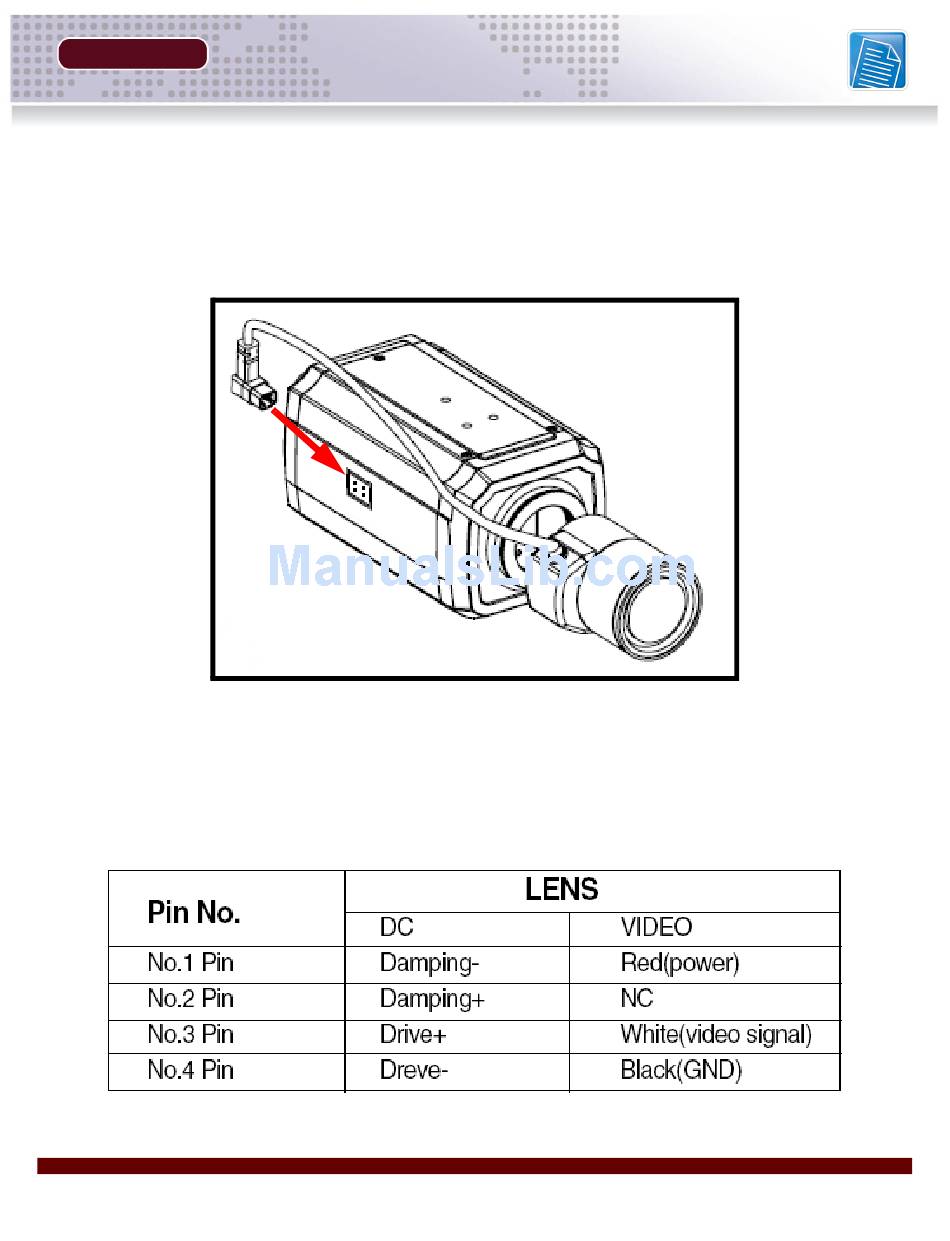

4. Replace the DC Auto Iris lens connection plug cover, and remove the lens protection cap. Attach
the auto iris lens to the camera by screwing it in clockwise.
5. Please insert the connection plug (connected to the auto iris lens cable) into the auto lens
connector port located on the side of the IP Camera.
AES Lens Cable - Pin Configuration
Revision 1.0
Appendix #3 - DC Auto Iris Lens Installation
