Digimerge DNP5220E Hardware Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

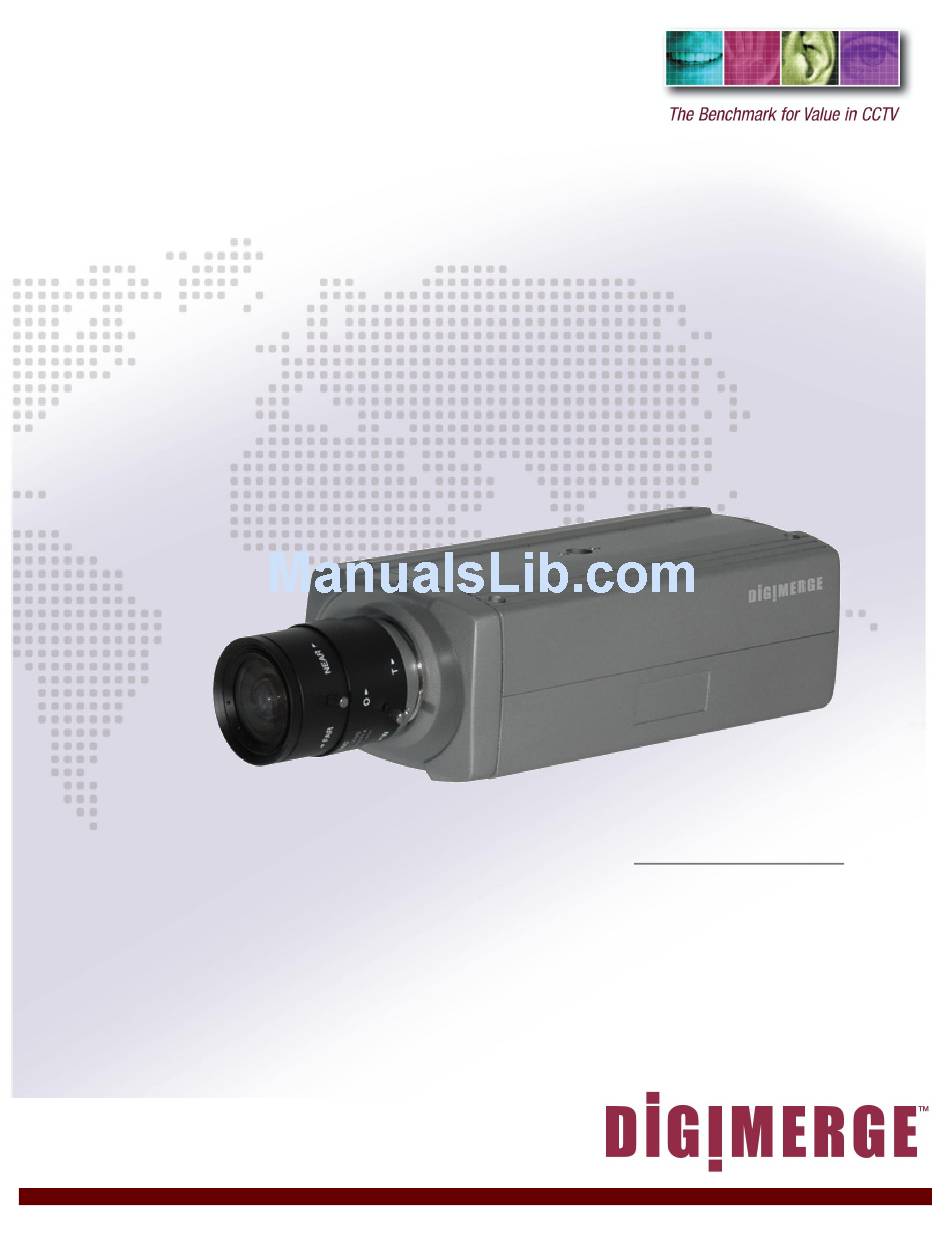

HARDWARE
MANUAL
English version 1.0
DNP5220E
DNP5220E Networkable Camera
©
Copyright
2007 Digimerge Technologies Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DNP5220E and is the answer not in the manual?

Questions and answers

Related Manuals for Digimerge DNP5220E

Summary of Contents for Digimerge DNP5220E

  • Page 1 HARDWARE MANUAL English version 1.0 DNP5220E DNP5220E Networkable Camera © Copyright 2007 Digimerge Technologies Inc.
  • Page 2 The Digimerge DNP5220E network camera captures high resolution images, features rugged construction and ease of use. With advanced features, such as auto detect, dual-codec, Power Over Ethernet (PoE) enabled and compatibility with a variety of video management software applications, the DNP5220E takes network performance to a whole new level.
  • Page 3 Important Safeguards Important Safeguards In addition to the careful attention devoted to quality standards in the manufacture process of your video product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help to assure your enjoyment and proper use of the video product and accessory equipment.
  • Page 4 18. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.
  • Page 5 4. Keep enough space around the unit for ventilation. Slots and openings in the storage cabinet should not be blocked 5. During lightning storms, or when the unit is not used for a long time, disconnect the power supply, antenna, and cables to protect the unit from electrical surge DIGIMERGE TECHNOLOGIES INC. http://www.digimerge.com Revision 1.0...
  • Page 6 DNP5220E Camera Features SECTION 1 DNP5220E Camera Features Technology • Rugged die cast metal construction • Easy set-up / auto discovery • Industry standard IP software and PoE solution compatibility • High Resolution (520TV lines) with real time streaming • Sony Super HAD 1/3” CCD image sensor •...

  • Page 7: Table Of Contents

    Section 1 - GETTING STARTED ............. 9 Package Contents ................10 Section 2 - PRODUCT OVERVIEW............11 DNP5220E - Back ................12 DNP5220E - Front / Side ..............13 Section 3 - INSTALLATION ..............15 Installation Overview ..............16 Hardware Installation ....................16 Software Installation .....................
  • Page 8 PoE Midspan ........................ 37 PoE Enabled Camera Setup ..................38 Appendix #6 - Hardware Reset............39 DigiViewer Reset ......................39 Hardware Reset......................39 Digimerge IP Products ..............40 Digimerge Limited Warranty ............41 © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.

  • Page 9: Section 1 - Getting Started

    SECTION 1 GETTING STARTED Package Contents........10...

  • Page 10: Package Contents

    Package Contents SECTION 1 Package Contents The DNP5220E comes with the following components: DNP5220E Camera Mounting Stand (Lens not included) 12V DC Power Supply Mini DIN to Terminal Block/ BNC Female Adapter Cable 3ft Ethernet Cable Software CD & Quick Installation...

  • Page 11: Section 2 - Product Overview

    SECTION 2 PRODUCT OVERVIEW DNP5220E - Back .......12 DNP5220E - Front / Side .....13...

  • Page 12: Dnp5220E - Back

    DNP5220E - Back SECTION 2 DNP5220E - Back 1. MINI-DIN/TERMINAL BLOCK PORT (Optional) - Connect the Mini-DIN Terminal Block cable to the DIN connector Port. For more details on the available Terminal Block connections, please see Appendix #2 in this manual.

  • Page 13: Dnp5220E - Front / Side

    DNP5220E - Front / Side SECTION 2 DNP5220E - Front / Side 1. DC TYPE AUTO IRIS LENS CONNECTOR - This is the connection terminal for an auto iris lens which does not have an internal circuit to control the Iris (DC Type).

  • Page 15: Section 3 - Installation

    SECTION 3 INSTALLATION Installation Overview ......16 Hardware Installation ......16 Software Installation ......17...

  • Page 16: Installation Overview

    This allows for additional options such as connecting to an external monitor, controlling a PTZ device and/or adding alarm inputs/outputs. For more details on the available Terminal Block connections, please see Appendix #2 in this manual. © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.

  • Page 17: Software Installation

    NOTE: Minimum Quicktime version installed should be 7.1.6. Microsoft Internet Explorer users can use the Digimerge ActiveX Component (automatically installed when you view video) instead of Quicktime to view the Video. • Surveillance / Recording Software - Used for displaying and recording up to 32 channels.

  • Page 19: Section 4 - Network Connectivity

    SECTION 4 NETWORK CONNECTIVITY Network Connectivity Overview ..20 Locating the MAC and IP Address ..21 Router Port Forwarding ......22 Setting Up Your DDNS Account ...23~24 DigiViewer DDNS Setup .....25 Remote Access with Internet Explorer 26 Internet Explorer Security Warnings ...26 Security Warnings - Program Installation27 Security Warnings - Windows Firewall 27...

  • Page 20: Network Connectivity Overview

    DigiViewer to allow DDNS connectivity. Refer to page 25 for details. See the DigiConsole / DigiViewer Software Guide (provided with this Camera) for installation requirements and details on using the software. CAMERA INTERNET ROUTER (Not Included) (Not Included) © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.

  • Page 21: Locating The Mac And Ip Address

    Select the Find Devices button. 2. The DigiConsole automatically locates all available Digimerge IP devices on the network, and displays a snapshot of the results. Click on any available device to display a snapshot image on the right side screen display.

  • Page 22: Router Port Forwarding

    To locate your external IP address, visit http://www.whatismyip.com NOTE: If using multiple IP Devices on the same network, each device will need to be assigned to a different remote access port. © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.

  • Page 23: Setting Up Your Ddns Account

    Setting Up Your DDNS Account Digimerge offers a free DDNS server for use with your IP Camera. A DDNS account allows you to set up a web site address that points back to your Local Network. The following outlines how to set up your free DNS account.

  • Page 24: Setting Up Your Ddns Account

    Domain Name: _______________________________________________ User Name: _________________________________________________ Password: __________________________________________________ NOTE: The information sent to you in E-mail is CASE SENSITIVE. It is important when set- ting up your DDNS information on your device. © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.

  • Page 25: Digiviewer Ddns Setup

    B. Click on the NETWORK SERVICES link. C. Enter the DDNS information received in the DDNS Confirmation Email: Check ‘Enable Digimerge Dynamic DNS Service Enter the DDNS Domain name you chose during the DDNS Registration process Enter the Account Name you setup during the DDNS Registration Process.

  • Page 26: Remote Access With Internet Explorer

    Remote Access with Internet Explorer Open Internet Explorer, and enter the Local IP (i.e. http://192.168.0.104 if inside the Local Network), the Remote IP (i.e. http://72.154.89.164) or DDNS Address (http:// myurl.digimerge.net) for the remote IP Device. http://myurl.digimerge.net Internet Explorer Security Warnings Several security warnings may appear (based on your Internet Explorer settings).

  • Page 27: Internet Explorer Security Warnings - Program Installation

    • Click the Install button to allow the ActiveX controls to be setup on the PC. Internet Explorer Security Warnings - Windows Firewall The Digimerge IP Devices require connectivity across the network, and may be flagged by the Windows Firewall when a connection to your PC is made.

  • Page 29: Section 5 - Appendices

    Appendix #2 - COM / GPIO Terminal Block Appendix #3 - DC Auto Iris Lens Installation Appendix #4 - Changing the Camera Appendix #5 - Power Over Ethernet (PoE) Appendix #6 - Hardware Reset Other Digimerge IP Products Digimerge Limited Warranty...

  • Page 30: Appendix #1 - Camera Specifications

    • Brightness, Contrast, Hue, Saturation, Frame Rate, Bit Rate (Constant Bit Rate (CBR), Variable Bit Rate (VBER) w/quality levels), Frame Sequence (I-Frame, I-Frame/P-Frame), Group of Pictures (GOP) size (Advanced Features). Image Compression 16K~4M bits/sec (CBR/VBR configurable) © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.

  • Page 31: Network

    Appendix #1 - Camera Specifications SECTION 5 Network Network Interface: Network • 10/100 Base-T Ethernet Protocols: • TCP (UDP)/IP, IMCP, HTTP, FTP, SMTP, DHCP, NTP, DNS, DDNS, RTSP, RTP/TCP (UDP). Management Event Management Triggers: Motion Detection Manual Recording Installation DigiConsole Utility (PC) Firmware Upgrade Remote upgrade via network Viewers / Supported...

  • Page 32: Appendix #2 - Com / Gpio Terminal Block / Female Bnc

    8. RS485 (B) - Connect an external PTZ or Alarm device. For PTZ control both pins 4 & 8 must be used. 9. BNC Type (Video Out) - Use the GPIO cable provided with this camera to directly output the video to a monitor. © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.

  • Page 33: Features And Specifications Of The Gpio Solid State Relay

    Appendix #2 - COM / GPIO Terminal Block / SECTION 5 Features and Specifications of the GPIO Solid State Relay • Normally Open, Single Pole Single Throw • Control 350VAC or DC Voltage • Switch 130mA Loads • LED control Current (5mA) •...

  • Page 34: Appendix #3 - Dc Auto Iris Lens Installation

    3. Remove the cover of the DC Auto Iris lens connection plug, and solder the lens cable to the connector pin in the plug. © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.

  • Page 35: Aes Lens Cable - Pin Configuration

    Appendix #3 - DC Auto Iris Lens Installation SECTION 5 4. Replace the DC Auto Iris lens connection plug cover, and remove the lens protection cap. Attach the auto iris lens to the camera by screwing it in clockwise. 5. Please insert the connection plug (connected to the auto iris lens cable) into the auto lens connector port located on the side of the IP Camera.

  • Page 36: Appendix #4 - Changing The Camera Network Settings

    DDNS Service. 5. Domain Name Server 2 - A backup IP address for the Domain Server. This information is necessary when using the DDNS Service © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.

  • Page 37: Appendix #5 - Power Over Ethernet (Poe)

    Appendix #5 - Power Over Ethernet (PoE) SECTION 5 Appendix #5 - Power Over Ethernet (PoE) Power over Ethernet, also known as PoE, is a technology for carrying power along with data on standard CAT5 network cables, allowing devices to be powered via their network ports. It is sup- ported by some devices directly (e.g.

  • Page 38: Poe Enabled Camera Setup

    ⇒ ⇒ Non-PoE Ethernet Switch PoE Injector Active Splitter IP Camera (non-PoE) Digimerge IP Devices are certified for use with Microsemi PoE hardware solutions. Visit www.microsemi.com/PowerDsine for details on all available PoE hardware solutions. © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.

  • Page 39: Appendix #6 - Hardware Reset

    Appendix #6 - Hardware Reset SECTION 5 Appendix #6 - Hardware Reset There are 2 ways to reset the IP Device: DigiViewer Reset To restore Factory Defaults from the DigiViewer Web Browser Interface (Note: This only works if the network browser access to the device is operational): •...

  • Page 40: Digimerge Ip Products

    Digimerge IP Products SECTION 5 Digimerge IP Products © HARDWARE MANUAL | Copyright 2007 Digimerge Technologies Inc.

  • Page 41: Digimerge Limited Warranty

    Digimerge, be repaired or replaced with equal or better product in terms of hard- ware features without charge if all the conditions set forth in this document are met.
  • Page 42 No claims or statements regarding the product, whether written or verbal, by salespeople, retailers, dealers or distribu- tors, that are not contained in this limited warranty or in the owner's manual are authorized by Digimerge and do not modify or expand this warranty. Some countries, states, or provinces do not allow the exclusion or limitation of implied warranties or the limitation of incidental or consequential damages for certain products supplied to consumers or the limitation of liability for personal injury.
  • Page 43 It’s all on the web Product Information Specification Sheets User Manuals Software Upgrades Quick Start Guides Firmware Upgrades VISIT www.digimerge.com www.digimerge.com Digimerge Technologies Inc.
