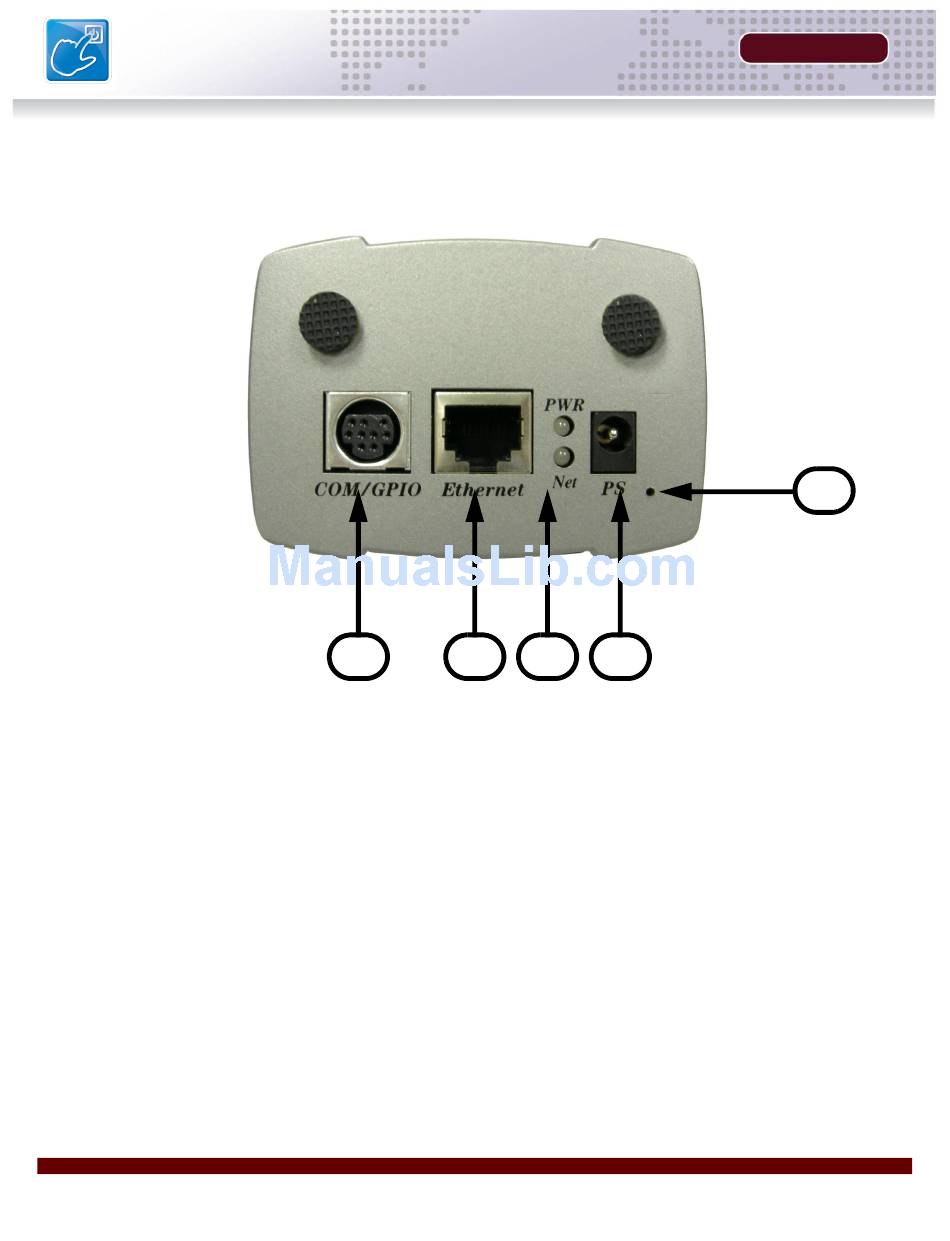

DNP5220E - Back

DNP5220E - Back
1. MINI-DIN/TERMINAL BLOCK PORT (Optional) - Connect the Mini-DIN Terminal Block cable
to the DIN connector Port. For more details on the available Terminal Block connections, please
see Appendix #2 in this manual.
2. ETHERNET PORT - Connect an Ethernet Cable to the RJ-45 Ethernet port to connect the
Camera to the network.
NOTE: This camera is PoE Enabled. If using PoE Equipment, the Ethernet Port will also power
the camera.
3. PWR / NET LED INDICATORS -
• The Red PWR LED indicates the Power state of the camera (ON/OFF).
• The Green NET LED indicates the Network state of the camera. The LED will blink when
network communication occurs.
4. POWER INPUT PORT - Provides power to the Camera when used with the provided Power
Adaptor.
5. FACTORY RESET PINHOLE - Resets the unit to Factory Defaults. See Appendix #6 for details.
