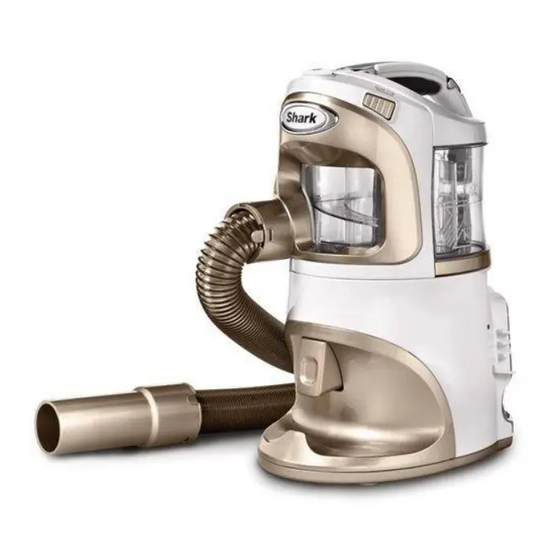

Shark NP320 Series Owner's Manual

Lift-around canister vac.
Hide thumbs

Advertisement

NP320 Series
OWNER'S GUIDE

Advertisement

   Related Manuals for Shark NP320 Series

   Summary of Contents for Shark NP320 Series

  • Page 1

    NP320 Series OWNER’S GUIDE...

  • Page 2: Important Safety Instructions

    TO REDUCE THE RISK OF FIRE, ELECTRIC SHOULD ALWAYS BE OBSERVED, SHOCK OR INJURY: INCLUDING THE FOLLOWING: GENERAL ELECTRICAL SAFETY: READ ALL INSTRUCTIONS BEFORE USING 1. Unplug from electrical outlet when not in use YOUR SHARK LIFT-AROUND CANISTER ® ™ and before servicing. VAC.

  • Page 3

    GENERAL USE: GENERAL CLEANING: 1. DO NOT pick up large-sized objects. 1. Use only as described in this manual. 2. DO NOT put any objects into openings. DO 2. DO NOT pick up hard or sharp objects such as NOT use with any opening blocked; keep free of glass, nails, screws or coins that could damage dust, lint, hair, and anything that may reduce air the vacuum cleaner.

  • Page 4

    They can take this product for environmental safe recycling. This manual covers model number: NP320***** 40 TECHNICAL SPECIFICATIONS Voltage: 220-240V~, 50/60Hz Watts: 550 W Euro-Pro ,Shark and Shark Lift-Around are trademarksof Euro-Pro Operating LLC. TOLL FREE: 1-800-798-7398...

  • Page 5: Table Of Contents

    Contents Getting Started ................6 Thank you for How to Use ...................8 purchasing the Maintenance ................9 Shark ® Checking for Blockages ...............11 Lift-Around ™ Storing ..................12 Canister Vac. Resetting the Motor Thermostat ..........12 Ordering Replacement Parts ............12 Troubleshooting Guide ..............13 Warranty ..................15...

  • Page 6: Getting Started

    Getting Started Use the Shark Lift-Around Canister ® ™ FIRST THING’S FIRST, YOU NEED TO KNOW WHAT’S IN THE BOX YOU JUST OPENED: Vac as a stand alone vacuum for spot- Lift-Around ™ Canister Vac cleaning small areas and large piles of debris,...

  • Page 7

    FLEXIBLE HOSE (I) CANISTER CADDY (C) With the right cleaning tool in place and the Flexible Specially designed to hold the Shark Lift- ® Hose, you can extend your reach into hard-to-clean Around and convert it to a canister vacuum.

  • Page 8: How To Use

    How to Use Align arrows to attach tool caddy Fig. 1 Fig. 2 Pull out to remove tool caddy Power Button Fig. 5 Fig. 4 Fig. 3 ASSEMBLING THE LIFT-AROUND CANISTER VAC ™ Insert the crevice tool, dusting brush, upholstery Insert the end of the flexible hose into the brush or power brush into the openings on the tool connector on the front of the Lift-Around™...

  • Page 9

    Hose Dock Caddy Release Fig. 8 Fig. 6 Fig. 9 Fig. 7 FOR ADDED COMFORT OR FOR AN EXTENDED REACH Attach the floor kit handle to the flexible hose. USE IN CANISTER MODE Push it in until it is secure. (fig. 9) Place the hose in the hose dock.

  • Page 10: Maintenance

    Maintenance To reduce the risk of electric shock, unplug the unit before performing any cleaning, maintenance, or troubleshooting checks. Reassemble all parts securely before operating vacuum. CAUTION: For best results empty the Dust Cup Unplug the vacuum; after each use; empty several times failure to do so might during prolonged usage or when it result in electric shock.

  • Page 11

    COMPONENT MAINTENANCE SCHEDULE Dust Cup Empty each time you vacuum. Pre-Motor Foam Filter Rinse and air dry every month under normal use. Pre-Motor Felt Filter Rinse and air dry every month under normal use. Post-Motor HEPA Filter Clean once every 24 months under normal use. DO NOT operate the vacuum without ALL the filters in place.

  • Page 12: Checking For Blockages

    Checking for Blockages Locking Latch Turbine Wheel Rotating Bristle Brush Fig. 18 Fig. 19 Blockages may cause your vacuum to overheat and shut down. To prevent this from happening, check potential blockage areas after heavy use or if you detect a loss of suction or poor cleaning performance. DUST CUP CLEANING THE POWER BRUSH •...

  • Page 13: Storing

    Storing Resetting the Motor Thermostat Your Shark Lift-Around™ Canister Vac is ® equipped with a protective Motor Thermostat. If the motor should overheat, the thermostat shuts off the power. To reset the Motor Thermostat: Press the Power Button to turn the vacuum off.

  • Page 14: Troubleshooting Guide

    Troubleshooting Guide PROBLEM POSSIBLE REASONS & SOLUTIONS Check Filters to see if they need cleaning. Follow instructions for rinsing and drying the Filters before re-inserting back into the Vacuum. (See “Maintenance” sections for instructions.) Dust Cup may be full; empty Dust Cup. Vacuum is not picking up dirt.

  • Page 15

    Notes www.sharkninjamanuals.com...

  • Page 16: Warranty

    Product Registration Please visit www.sharkninjamanuals.com or call 1-800-798-7398 to register your new Shark ® product within ten (10) days of purchase. You will be asked to provide the store name, date of purchase and model number along with your name and address.

  • Page 17

    Product Registration Please visit www.sharkninjamanuals.com or call 1-800-798-7398 to register your new Shark ® product within ten (10) days of purchase. You will be asked to provide the store name, date of purchase and model number along with your name and address.

  • Page 18

    Technical Details Model number: NP320***** 40 Input: 550 Watts Main unit voltage: 220-240 V~., 50/60Hz Euro-Pro ,Shark and Shark Lift-Around are trademarks of Euro-Pro Operating LLC. COPYRIGHT© EURO-PRO OPERATING LLC 2013 PRINTED IN CHINA NP320***** .E. 131111.1 Illustrations may differ from actual product.
