OWNER'S GUIDE
NV750REF
®
8 0 0 . 7 9 8 . 7 3 9 8
w w w . P o w e r e d L i f t A w a y. c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rotator and is the answer not in the manual?

Questions and answers

Related Manuals for Shark Rotator

Summary of Contents for Shark Rotator

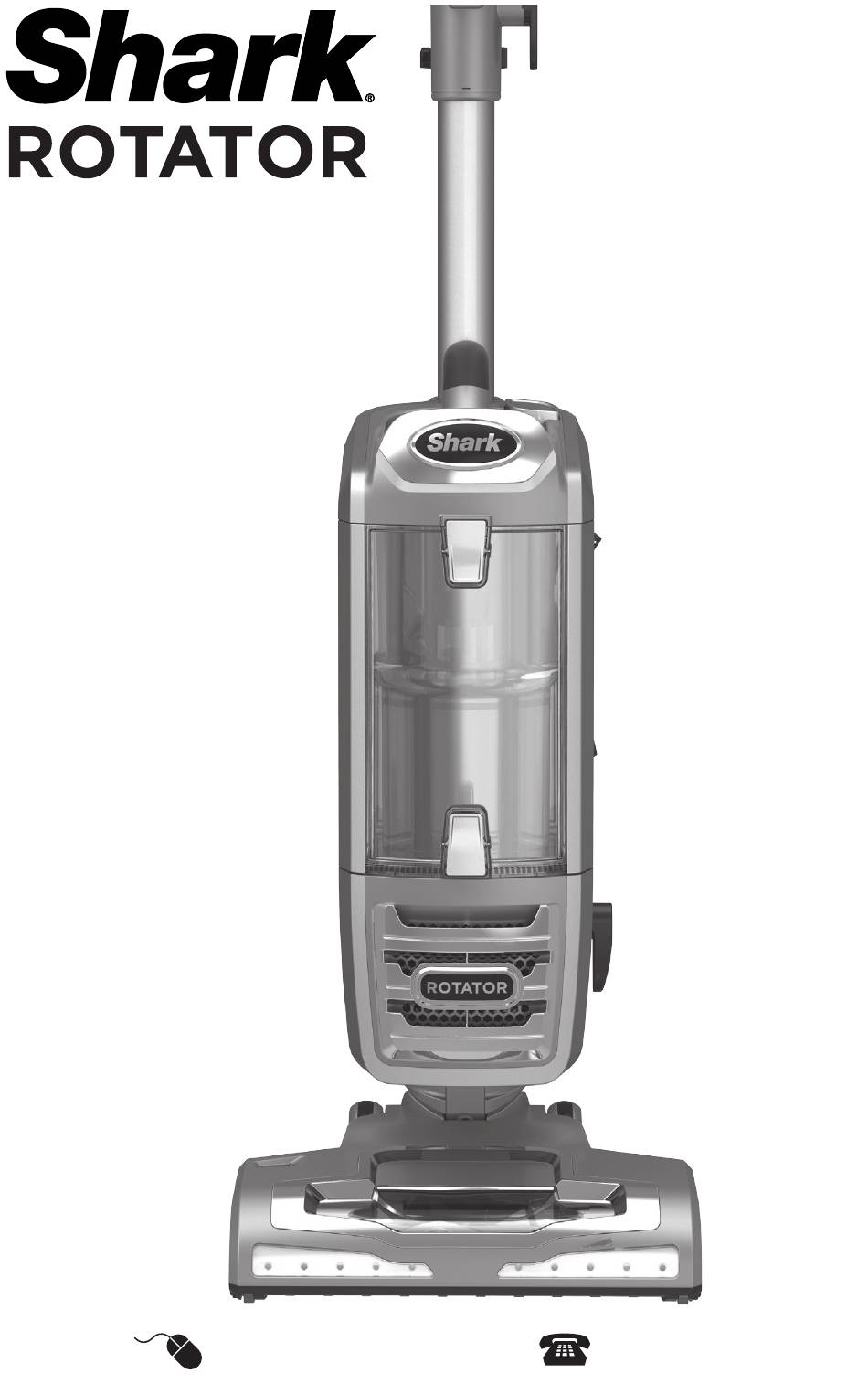

  • Page 1 OWNER’S GUIDE NV750REF ® 8 0 0 . 7 9 8 . 7 3 9 8 w w w . P o w e r e d L i f t A w a y. c o m...

  • Page 2: Register Your Purchase

    Thank you for purchasing the Shark Rotator If you should have a question about your Shark Rotator, ® ® Powered Lift-Away please call the Shark Customer service line at 800-798-7398. ® This Owner’s Guide is designed to help you get a complete understanding of your new vacuum cleaner.

  • Page 3: Important Safeguards

    READ ALL INSTRUCTIONS BEFORE USE IMPORTANT SAFEGUARDS When using an electrical appliance, basic safety 19 DO NOT allow young children to operate the vacuum precautions should always be observed, including the cleaner or use as a toy. Close attention is necessary when used near children.
  • Page 4 ASSEMBLY Place the nozzle on the floor and insert the wand. Insert the handle into the wand. Slide the POD onto the wand. Attach the hose to the back of the pod. Insert the duster crevice tool and upholstery tool into the accessory clips as shown. w w w.

  • Page 5: Upright Cleaning

    UPRIGHT CLEANING Press POWER and push the surface selector to THICK CARPET/AREA RUG for the best setting for High Pile and Thick Carpets, Area Rugs, and Specialty Carpets if the vacuum is difficult to push or pull due to high suction. This setting produces reduced suction with motorized brush roll.

  • Page 6: Above Floor Cleaning

    ABOVE FLOOR CLEANING To clean with the hose, press the WAND or HANDLE release button (depending on the amount of reach required) then lift handle up. Insert wand or handle directly into desired tool. Handle Release Wand w w w. P o w e r e d L i f t A w a y. c o m...

  • Page 7: Lift-Away ™ Cleaning

    LIFT-AWAY CLEANING ™ Use for portable cleaning on stairs or anywhere Press LIFT-AWAY to lift the pod off the wand. To clean with hose, press the WAND or HANDLE release button then lift handle up. Attach desired cleaning tool. For best suction, push the surface selector to HARD FLOOR setting. NOTE: Select cleaning accessories are included with this model.

  • Page 8: Power Brush

    150FLI340 XCAD650 Designed for removal of pet hair and ground Transform your Rotator into a fully powered canister, giving you the freedom to roll the pod along while keep- in dirt from carpeted stairs and upholstery. ing cleaning tools close by.

  • Page 9: Helpful Tips

    HELPFUL TIPS POWER BUTTON The POWER button turns the vacuum on. SURFACE SELECTOR Selecting the Hard Floor setting will stop the brushroll from spinning and allow you to clean bare floor and above floor surfaces with ease. Thick Carpet/Area Rug and Carpet/Low Pile settings refer to the strength of the suction power. “Carpet/ Low Pile”...

  • Page 10: Maintenance

    MAINTENANCE EMPTY THE DUST CUP Pull up on the dust cup release latch and lift the dustcup off the pod. Holding the dust cup over a garbage bag or can, press the bottom empty release latch. Press the top dust cup release latch to access the dust screen and remove built-up debris as required. w w w.

  • Page 11: Clean The Filters

    MAINTENANCE CLEAN THE FILTERS See cleaning schedule on page 2 With the dust cup removed, remove and rinse the foam and felt filters every 3 months. Let air dry completely before replacing. Hand wash only. Tap loose dirt off filters between washes as needed. Once a year open the filter grill and remove and rinse the HEPA filter.

  • Page 12: Bottom Of Floor Nozzle

    MAINTENANCE CHECK FOR BLOCKAGES REMOVE AND INSPECT: HOSE AND TUBES Remove floor nozzle and extension wand and shine a flashlight up from the bottom to check for possible blockage. Remove dustcup and hose to check intake opening and hose elbow. BOTTOM OF FLOOR NOZZLE Using a coin, turn the locking screws to the unlock position and pull up to expose the airway.

  • Page 13: Troubleshooting Guide

    TROUBLE-SHOOTING GUIDE Vacuum is not picking up dirt. No suction or light suction • Check filters to see if they need cleaning. Follow instructions for rinsing and drying the filters before re-inserting back into the vacuum. • Dust cup may be full; empty dust cup. •...
  • Page 14 NOTES w w w. P o w e r e d L i f t A w a y. c o m...
  • Page 15 ONE HUNDRED EIGHTY (180) DAY REFURBISHED PRODUCT LIMITED WARRANTY SharkNinja Operating LLC warrants this product to be free from material defects and workmanship for a period of one hundred eighty (180) days from the date of purchase when utilized for normal household use, subject to the following conditions, exclusions and exceptions.

  • Page 16: Join The Conversation

    © 2016 SharkNinja Operating LLC therefore the specifications contained herein Lift-Away, Rotator and Shark are registered are subject to change without notice. trademarks of SharkNinja Operating LLC. 8 0 0 . 7 9 8 . 7 3 9 8...
