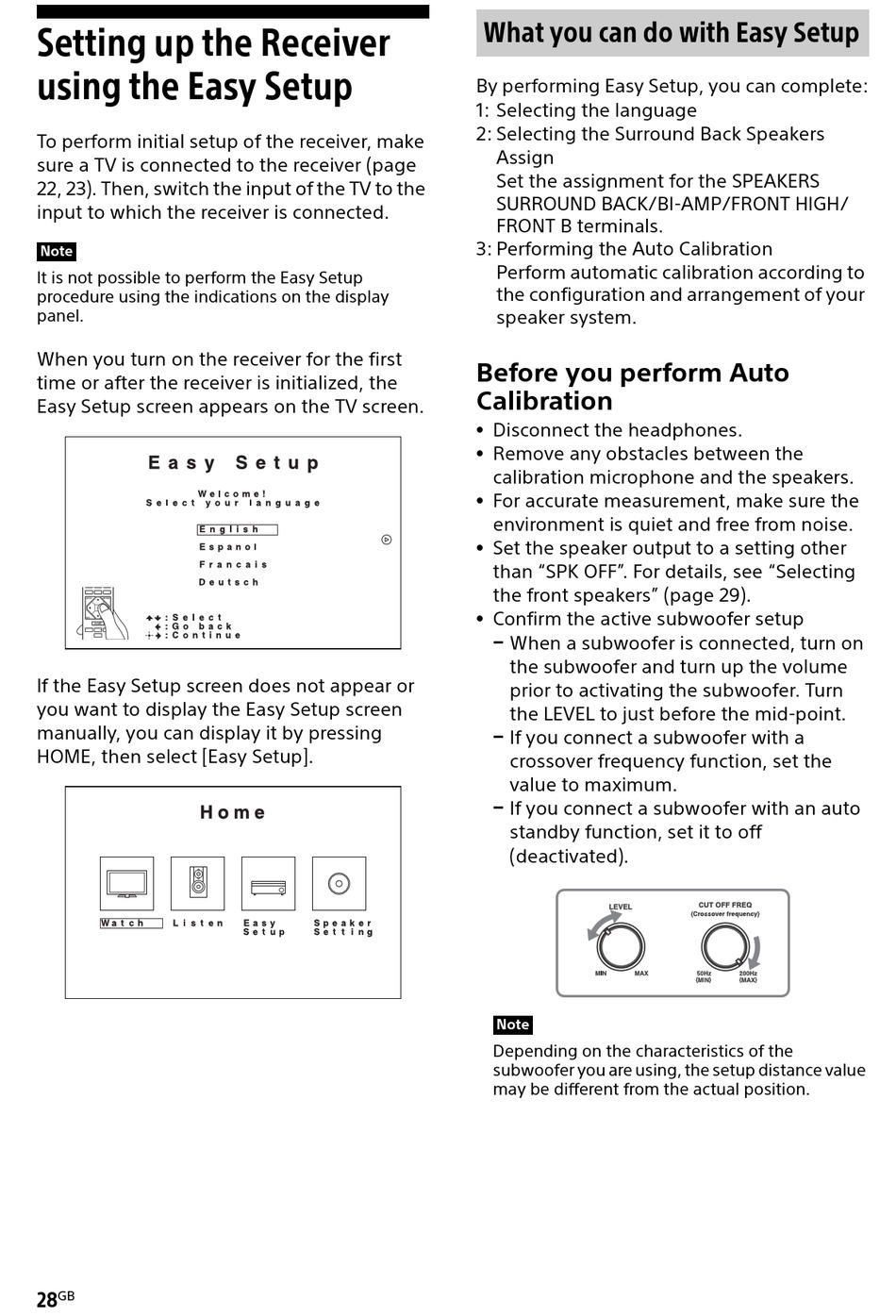

Setting up the Receiver
using the Easy Setup
To perform initial setup of the receiver, make
sure a TV is connected to the receiver (page
22, 23). Then, switch the input of the TV to the
input to which the receiver is connected.
Note
It is not possible to perform the Easy Setup
procedure using the indications on the display
panel.
When you turn on the receiver for the first
time or after the receiver is initialized, the
Easy Setup screen appears on the TV screen.
If the Easy Setup screen does not appear or
you want to display the Easy Setup screen
manually, you can display it by pressing
HOME, then select [Easy Setup].
GB
28
What you can do with Easy Setup
By performing Easy Setup, you can complete:
1: Selecting the language
2: Selecting the Surround Back Speakers
Assign
Set the assignment for the SPEAKERS
SURROUND BACK/BI-AMP/FRONT HIGH/
FRONT B terminals.
3: Performing the Auto Calibration
Perform automatic calibration according to
the configuration and arrangement of your
speaker system.
Before you perform Auto
Calibration
 Disconnect the headphones.
Remove any obstacles between the

calibration microphone and the speakers.
 For accurate measurement, make sure the
environment is quiet and free from noise.
 Set the speaker output to a setting other
than "SPK OFF". For details, see "Selecting
the front speakers" (page 29).
 Confirm the active subwoofer setup
 When a subwoofer is connected, turn on
the subwoofer and turn up the volume
prior to activating the subwoofer. Turn
the LEVEL to just before the mid-point.
 If you connect a subwoofer with a
crossover frequency function, set the
value to maximum.
 If you connect a subwoofer with an auto
standby function, set it to off
(deactivated).
Note
Depending on the characteristics of the
subwoofer you are using, the setup distance value
may be different from the actual position.
