Page 1 FD8136 Ultra-Mini Dome Network Camera User’s Manual 1MP • Stylish Design • PoE Rev. 1.0...
Page 1 FD8136 Mini Dome Network Camera User’s Manual 1MP • Stylish Design • Easy Installation Rev. 1.0...
Page 2: Table Of Contents
Ready to Use �� 13 Accessing the Network Camera Using Web Browsers �� 16 Using RTSP Players �� 19 Using 3GPP-compatible Mobile Devices �� 20 Using VIVOTEK Recording Software �� 21 Main Page ..........................22 Client Settings ........................26 Configuration ........................
Page 2: Table Of Contents
Ready to Use �� 13 Accessing the Network Camera Using Web Browsers �� 16 Using RTSP Players �� 19 Using 3GPP-compatible Mobile Devices �� 20 Using VIVOTEK Recording Software �� 21 Main Page ..........................22 Client Settings ........................26 Configuration ........................
Page 3 VIVOTEK Technical Specifications �� 202 Technology License Notice �� 203 Electromagnetic Compatibility (EMC) �� 204 User's Manual - 3...
Page 3 VIVOTEK Technical Specifications �� 202 Technology License Notice �� 203 Electromagnetic Compatibility (EMC) �� 204 User's Manual - 3...
Page 4: Overview

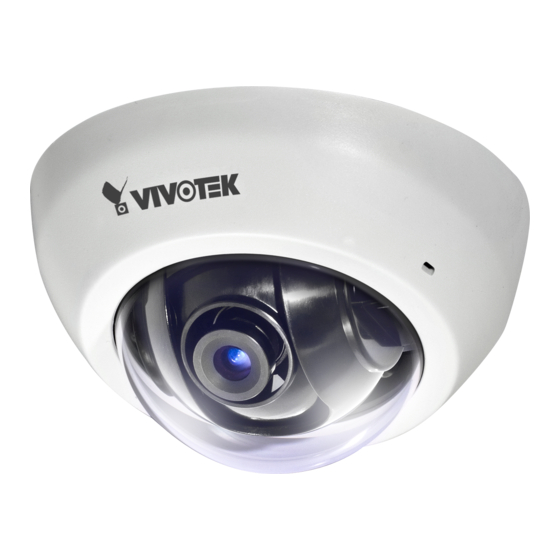

At the size of only 90 mm in diameter, VIVOTEK FD8136 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance� The package also includes VIVOTEK’s 32-channel recording software�...
Page 4: Overview
At the size of only 90 mm in diameter, VIVOTEK FD8136 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance� The package also includes VIVOTEK’s 32-channel recording software�...
Page 5: Read Before Use
Network Camera and ensure proper operations� For creative and professional developers, the URL Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server� Package Contents ■ FD8136 ■ Screws / Plastic Anchors ■ Alignment sticker ■ Quick Installation Guide ■...
Page 5: Read Before Use
Network Camera and ensure proper operations� For creative and professional developers, the URL Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server� Package Contents ■ FD8136 ■ Screws / Plastic Anchors ■ Focus adjustment tool ■ Software CD ■...
Page 6: Physical Description
VIVOTEK Physical Description Outer View Leave the slide cover in place if you route cables through the bottom and then through a hole on the ceiling or wall� Inner View Side View RJ-45 Socket Slide cover Release tab Lens Tilt adjustment...
Page 6: Physical Description
VIVOTEK Physical Description Outer View Leave the slide cover in place if you route cables through the bottom and then through a hole on the ceiling or wall� Inner View Side View RJ-45 Socket Slide cover Release tab Lens Tilt adjustment...
Page 7: Digital Input Diagram
VIVOTEK Digital Input Diagram Please refer to the following illustration for the connection method� Max. voltage: 40V 3.3V Digital input DI-: Ground Hardware Reset Reset Button The reset button is used to reset the system or restore the factory default settings� Sometimes resetting the system can return the camera to normal operation�...
Page 7: Digital Input Diagram
VIVOTEK Digital Input Diagram Please refer to the following illustration for the connection method� Max. voltage: 40V 3.3V Digital input DI-: Ground Hardware Reset Reset Button The reset button is used to reset the system or restore the factory default settings� Sometimes resetting the system can return the camera to normal operation�...
Page 8: Installation
VIVOTEK Installation Removing Dome Cover Slide cover 1� Use one hand to hold the camera Semi-circular bottom and another hand to hold the cut-out dome cover� Press the release button� 2� Remove the dome cover� 3� Remove the slide cover if you want to route cables from the side of camera instead of a hole on the ceiling or wall�...
Page 8: Installation
VIVOTEK Installation Removing Dome Cover Slide cover 1� Use one hand to hold the camera Semi-circular bottom and another hand to hold the cut-out dome cover� Press the release button� 2� Remove the dome cover� 3� Remove the slide cover if you want to route cables from the side of camera instead of a hole on the ceiling or wall�...
Page 9: Restoring Defaults
VIVOTEK Mounting the Network Camera - Ceiling or Wall Mount 1� Use the curved slots on the camera as a template to mark where holes will be drilled on the ceiling� Drill two holes into the ceiling; and hammer in the plastic anchors�...
Page 9: Restoring Defaults
VIVOTEK Mounting the Network Camera - Ceiling or Wall Mount 1� Use the curved slots on the camera as a template to mark where holes will be drilled on the ceiling� Drill two holes into the ceiling; and hammer in the plastic anchors�...
Page 10: Network Deployment
VIVOTEK Network Deployment General Connection (without PoE) Power over Ethernet (PoE) When using a PoE-enabled switch This Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable� Follow the below illustration to connect the camera to a PoE-enabled switch via Ethernet cable�...
Page 10: Network Deployment
VIVOTEK Network Deployment General Connection (without PoE) Power over Ethernet (PoE) When using a PoE-enabled switch This Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable� Follow the below illustration to connect the camera to a PoE-enabled switch via Ethernet cable�...
Page 11 VIVOTEK Internet connection via a router Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below� 1� Connect your Network Camera behind a router, the Internet environment is illustrated below�...
Page 11 VIVOTEK Internet connection via a router Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below� 1� Connect your Network Camera behind a router, the Internet environment is illustrated below�...
Page 12: Software Installation
After your network environment is analyzed, please click Next to continue the program� 3� The program will search for all VIVOTEK network devices on the same LAN� 4� After a brief search, the installer window will prompt� Click on the MAC and model name that matches the one printed on the product label�...
Page 12: Software Installation
After your network environment is analyzed, please click Next to continue the program� 3� The program will search for all VIVOTEK network devices on the same LAN� 4� After a brief search, the installer window will prompt� Click on the MAC and model name that matches the one printed on the product label�...
Page 13: Ready To Use
VIVOTEK Ready to Use 1� A browser session with the Network Camera should prompt as shown below� 2� You should be able to see live video from your camera� You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras� For its installation details, please refer to its related documents�...
Page 13: Ready To Use
VIVOTEK Ready to Use 1� A browser session with the Network Camera should prompt as shown below� 2� You should be able to see live video from your camera� You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras� For its installation details, please refer to its related documents�...
Page 14: Adjusting The Lens
VIVOTEK Adjusting the Lens WARNING! Do not use your hands to tune the lens module's tilt angle� Doing so will damage the delicate tilt mechanism� 1� There is a tilt adjustment screw near the lens module� Use a #0, #1, or #2 Phillips screwdriver to turn the screw and the lens will move upwards or downwards�...
Page 14: Adjusting The Lens
VIVOTEK Adjusting the Lens WARNING! Do not use your hands to tune the lens module's tilt angle� Doing so will damage the delicate tilt mechanism� 1. There is a tilt adjustment screw near the lens module� Use a #0, #1, or #2 Phillips screwdriver to turn the screw and the lens will move upwards or downwards�...
Page 15 VIVOTEK 4� With a live video feed, you can place the included focus adjustment tool carefully on the lens, and use it to turn the lens clockwise or counter- clockwise to adjust to the best image focus� You may try tuning the focus slightly closer due to the concern that focus might be changed when the dome cover is installed�...
Page 15 VIVOTEK 4� With a live video feed, you can place the included focus adjustment tool carefully on the lens, and use it to turn the lens clockwise or counter- clockwise to adjust to the best image focus� You may try tuning the focus slightly closer due to the concern that focus might be changed when the dome cover is installed�...
Page 16: Accessing The Network Camera
3� The live video will be displayed in your web browser� 4. If it is the first time installing the VIVOTEK network camera, an information bar will pop up as shown below� Follow the instructions to install the required plug-in on your computer�...
Page 16: Accessing The Network Camera
3� The live video will be displayed in your web browser� 4. If it is the first time installing the VIVOTEK network camera, an information bar will pop up as shown below� Follow the instructions to install the required plug-in on your computer�...
Page 17 VIVOTEK ► By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera� For more information about how to enable password protection, please refer to Security on page 72�...
Page 17 VIVOTEK ► By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera� For more information about how to enable password protection, please refer to Security on page 72�...
Page 18 VIVOTEK IMPORTANT! • Currently the Network Camera utilizes 32-bit ActiveX plugin. You CAN NOT open a management/view session with the camera using a 64-bit IE browser� • If you encounter this problem, try execute the Iexplore.exe program from C:\ Windows\SysWOW64. A 32-bit version of IE browser will be installed.
Page 18 VIVOTEK IMPORTANT! • Currently the Network Camera utilizes 32-bit ActiveX plugin. You CAN NOT open a management/view session with the camera using a 64-bit IE browser� • If you encounter this problem, try execute the Iexplore.exe program from C:\ Windows\SysWOW64. A 32-bit version of IE browser will be installed.
Page 19: Using Rtsp Players
VIVOTEK Using RTSP Players To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming� Quick Time Player Real Player VLC media player 1� Launch the RTSP player� mpegable Player 2�...
Page 19: Using Rtsp Players
VIVOTEK Using RTSP Players To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming� Quick Time Player Real Player VLC media player 1� Launch the RTSP player� mpegable Player 2�...
Page 20: Using 3Gpp-Compatible Mobile Devices
VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet� For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 10�...
Page 20: Using 3Gpp-Compatible Mobile Devices
VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet� For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 10�...
Page 21: Using Vivotek Recording Software
Network Camera to the Channel list� For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www.vivotek.com� User's Manual - 21...
Page 21: Using Vivotek Recording Software
Network Camera to the Channel list� For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www.vivotek.com� User's Manual - 21...
Page 22: Main Page
VIVOTEK Main Page This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC� Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window� Resize Buttons VIVOTEK INC. Host Name...
Page 22: Main Page
VIVOTEK Main Page This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC� Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window� Resize Buttons VIVOTEK INC. Host Name...
Page 23 VIVOTEK Configuration Area Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 26� Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera.
Page 23 VIVOTEK Configuration Area Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 26� Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera.
Page 24 VIVOTEK Global View: Click on this item to display the Global View window� The Global View window contains a full view image (the largest frame size of the captured video) and a floating frame (the viewing region of the current video stream). The floating frame allows users to control the e-PTZ function (Electronic Pan/ Tilt/Zoom)�...
Page 24 VIVOTEK Global View: Click on this item to display the Global View window� The Global View window contains a full view image (the largest frame size of the captured video) and a floating frame (the viewing region of the current video stream). The floating frame allows users to control the e-PTZ function (Electronic Pan/ Tilt/Zoom)�...
Page 25 VIVOTEK ■ The following window is displayed when the video mode is set to MJPEG: Video Title Time 2011/02/25 17:08:56 Video (HTTP-V) Title and Time Video 17:08:56 2011/06/25 Video Control Buttons Video Title: The video title can be configured. For more information, please refer to Media > Image on page 43�...
Page 25 VIVOTEK ■ The following window is displayed when the video mode is set to MJPEG: Video Title Time 2011/02/25 17:08:56 Video (HTTP-V) Title and Time Video 17:08:56 2011/06/25 Video Control Buttons Video Title: The video title can be configured. For more information, please refer to Media > Image on page 43�...
Page 26: Client Settings
VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer� When completed with the settings on this page, click Save on the page bottom to enable the settings� H.264 / MPEG-4 Media Options H.264/MPEG-4 Media Options...
Page 26: Client Settings
VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer� When completed with the settings on this page, click Save on the page bottom to enable the settings� H.264 / MPEG-4 Media Options H.264/MPEG-4 Media Options...
Page 27: Mp4 Saving Options
VIVOTEK MP4 Saving Options Users can record live video as they are watching it by clicking Start MP4 Recording on the main page. Here you can specify the storage destination and file name. Folder: Specify a storage destination for the recorded video files.
Page 27: Mp4 Saving Options
VIVOTEK MP4 Saving Options Users can record live video as they are watching it by clicking Start MP4 Recording on the main page. Here you can specify the storage destination and file name. Folder: Specify a storage destination for the recorded video files.
Page 28: Joystick Settings
VIVOTEK Joystick settings Enable Joystick Connect a joystick to a USB port on your management computer� Supported by the plug-in (Microsoft’s DirectX), once the plug-in for the web console is loaded, it will automatically detect if there is any joystick on the computer� The joystick should work properly without installing any other driver or software�...
Page 28: Joystick Settings
VIVOTEK Joystick settings Enable Joystick Connect a joystick to a USB port on your management computer. Supported by the plug-in (Microsoft’s DirectX), once the plug-in for the web console is loaded, it will automatically detect if there is any joystick on the computer. The joystick should work properly without installing any other driver or software�...
Page 29 VIVOTEK Buttons Configuration Click the Configure Buttons button, a window will prompt as shown below� Please follow the steps below to configure your joystick buttons: 1� Select a button number from the Button # pull-down menu� Tips If you are not sure of the locations of each button, use the Properties window in the Game Controllers utility�...
Page 29 VIVOTEK Buttons Configuration Click the Configure Buttons button, a window will prompt as shown below� Please follow the steps below to configure your joystick buttons: 1� Select a button number from the Button # pull-down menu� Tips If you are not sure of the locations of each button, use the Properties window in the Game Controllers utility�...
Page 30: Configuration
Click Configuration on the main page to enter the camera setting pages� Note that only Administrators can access the configuration page. VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with minimal effort. To simplify the setting procedure, two types of user interfaces are available: Advanced Mode for professional users and Basic Mode for entry-level users�...
Page 30: Configuration
Click Configuration on the main page to enter the camera setting pages� Note that only Administrators can access the configuration page. VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with minimal effort. To simplify the setting procedure, two types of user interfaces are available: Advanced Mode for professional users and Basic Mode for entry-level users�...
Page 31: System > General Settings
VIVOTEK Advanced Mode Navigation Area Configuration List Click to switch to Basic Mode Firmware Version Each function on the configuration list will be explained in the following sections. Those functions that are displayed only in Advanced Mode are marked with Advanced Mode � If you want to set up advanced...
Page 31: System > General Settings
VIVOTEK Advanced Mode Navigation Area Configuration List Click to switch to Basic Mode Firmware Version Each function on the configuration list will be explained in the following sections. Those functions that are displayed only in Advanced Mode are marked with Advanced Mode � If you want to set up advanced...
Page 32 VIVOTEK System time Keep current date and time: Select this option to preserve the current date and time of the Network Camera� The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off�...
Page 32 VIVOTEK System time Keep current date and time: Select this option to preserve the current date and time of the Network Camera� The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off�...
Page 33: System > Homepage Layout
Theme Options (the second tab on this page)� The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: ■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage. Logo graph Here you can change the logo at the top of your homepage�...
Page 33: System > Homepage Layout
Theme Options (the second tab on this page)� The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: ■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage. Logo graph Here you can change the logo at the top of your homepage�...
Page 34 VIVOTEK Theme Options Here you can change the color of your homepage layout� There are three types of preset patterns for you to choose from� The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings�...
Page 34 VIVOTEK Theme Options Here you can change the color of your homepage layout� There are three types of preset patterns for you to choose from� The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings�...
Page 35 VIVOTEK ■ Follow the steps below to set up the customed homepage: 1� Click Custom on the left column� 2. Click the field where you want to change the color on the right column. Color Selector Custom Pattern 3� The palette window will pop up as shown below�...
Page 35 VIVOTEK ■ Follow the steps below to set up the customed homepage: 1� Click Custom on the left column� 2. Click the field where you want to change the color on the right column. Color Selector Custom Pattern 3� The palette window will pop up as shown below�...
Page 36: System > Logs
VIVOTEK System > Logs Advanced Mode This section explains how to configure the Network Camera to send the system log to a remote server as backup� Log server settings Follow the steps below to set up the remote log: 1� Select Enable remote log�...
Page 36: System > Logs
VIVOTEK System > Logs Advanced Mode This section explains how to configure the Network Camera to send the system log to a remote server as backup� Log server settings Follow the steps below to set up the remote log: 1� Select Enable remote log�...
Page 37 You can install the included ST7501 recording software, which provides an Event Management function group for delivering event messages via emails, GSM short messages, onscreen event panel, or to trigger an alarm, etc� For more information, refer to the ST7501 User Manual� VIVOTEK Network Cameras Internet 3G Cell phone HTTP...
Page 37 You can install the included ST7501 recording software, which provides an Event Management function group for delivering event messages via emails, GSM short messages, onscreen event panel, or to trigger an alarm, etc� For more information, refer to the ST7501 User Manual� VIVOTEK Network Cameras Internet 3G Cell phone HTTP...
Page 38: System > Parameters
VIVOTEK Access log Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order� The access log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain limit�...
Page 38: System > Parameters
VIVOTEK Access log Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order� The access log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain limit�...
Page 39: System > Maintenance
Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2� Click Browse… and specify the firmware file.
Page 39: System > Maintenance
Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2� Click Browse… and specify the firmware file.
Page 40 VIVOTEK General settings > Restore This feature allows you to restore the Network Camera to factory default settings� Network: Select this option to retain the Network Type settings (please refer to Network Type on page 55)� Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).
Page 40 VIVOTEK General settings > Restore This feature allows you to restore the Network Camera to factory default settings� Network: Select this option to retain the Network Type settings (please refer to Network Type on page 55)� Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).
Page 41 VIVOTEK ® 3. Open the file with Microsoft Notepad and locate your time zone; set the start and end time of DST. When completed, save the file. In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m.
Page 41 VIVOTEK ® 3. Open the file with Microsoft Notepad and locate your time zone; set the start and end time of DST. When completed, save the file. In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m.
Page 42 VIVOTEK The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文 � Update custom language file: Click Browse… and specify your own custom language file to upload.
Page 42 VIVOTEK The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文 � Update custom language file: Click Browse… and specify your own custom language file to upload.
Page 43: Media > Image
VIVOTEK Media > Image Advanced Mode This section explains how to configure the image settings of the Network Camera� It is composed of the following four columns: General settings, Picture settings, Exposure, and Privacy mask� General settings Video title: Enter a name that will be displayed on the title bar of the live video as the picture shown below�...
Page 43: Media > Image
VIVOTEK Media > Image Advanced Mode This section explains how to configure the image settings of the Network Camera� It is composed of the following four columns: General settings, Picture settings, Exposure, and Privacy mask� General settings Video title: Enter a name that will be displayed on the title bar of the live video as the picture shown below�...
Page 44: Picture Settings
VIVOTEK Picture settings On this page, you can tune the White balance, Image adjustment and low light compensation� Picture Setting 1: For normal situations Picture Setting 2: For special situations White balance: Adjust the value for the best color temperature.
Page 44: Picture Settings
VIVOTEK Picture settings On this page, you can tune the White balance, Image adjustment and low light compensation. Picture Setting 1: For normal situations Picture Setting 2: For special situations White balance: Adjust the value for the best color temperature.
Page 45 VIVOTEK You can click Restore to recall the original settings without incorporating the changes� When completed with the settings on this page, click Save to enable the setting� You can also click on Profile to adjust all settings above in a pop-up window for special lighting conditions�...
Page 45 VIVOTEK You can click Restore to recall the original settings without incorporating the changes� When completed with the settings on this page, click Save to enable the setting� You can also click on Profile to adjust all settings above in a pop-up window for special lighting conditions.
Page 46 VIVOTEK Measurement Window: This function allows user to set measurement window(s) for low light compesation� ■ Full view: Calculate the full range of view and offer appropriate light compesation� ■ BLC (Back Light Compensation): This option allows you to use the center of the current view as the measuring area�...
Page 46 VIVOTEK Measurement Window: This function allows user to set measurement window(s) for low light compesation� ■ Full view: Calculate the full range of view and offer appropriate light compesation� ■ BLC (Back Light Compensation): This option allows you to use the center of the current view as the measuring area�...
Page 47 VIVOTEK You can click Restore to recall the original settings without incorporating the changes� When completed with the settings on this page, click Save to enable the settings� If you want to configure another sensor setting for the schedule mode, please click Profile to open the Profile of exposure settings page as shown below.
Page 47 VIVOTEK You can click Restore to recall the original settings without incorporating the changes� When completed with the settings on this page, click Save to enable the settings� If you want to configure another sensor setting for the schedule mode, please click Profile to open the Profile of exposure settings page as shown below.
Page 48 VIVOTEK Advanced Mode Privacy mask Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to address privacy concerns� 2010/12/09 17:08:56 2010/12/09 17:08:56 ■ To set the privacy mask windows, follow the steps below: 1�...
Page 48 VIVOTEK Advanced Mode Privacy mask Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to address privacy concerns� 2010/12/09 17:08:56 2010/12/09 17:08:56 ■ To set the privacy mask windows, follow the steps below: 1�...
Page 49: Media > Video
VIVOTEK Media > Video Advanced Mode Stream settings This Network Camera supports multiple streams with a frame size ranging from 176 x144 to 1280 x 800� The definition of multiple streams: ■ Stream 1: Users can define the "Region of Interest" (viewing region) and the "Output Frame Rate"...
Page 49: Media > Video
VIVOTEK Media > Video Advanced Mode Stream settings This Network Camera supports multiple streams with a frame size ranging from 176 x144 to 1280 x 800� The definition of multiple streams: ■ Stream 1: Users can define the "Region of Interest" (viewing region) and the "Output Frame Rate"...
Page 50: Media > Video
VIVOTEK Media > Video NOTE: ► All the items in the “Region of Interest” should not be larger than the “Output Frame Size“ (current maximum resolution)� ■ The parameters of the multiple streams: Region of Interest Output frame size Stream 1...
Page 50: Media > Video
VIVOTEK Media > Video NOTE: ► All the items in the “Region of Interest” should not be larger than the “Output Frame Size“ (current maximum resolution)� ■ The parameters of the multiple streams: Region of Interest Output frame size Stream 1...
Page 51 VIVOTEK Click the stream item to display the detailed information. The maximum frame size will follow your settings in the above Viewing Window sections� This Network Camera offers real-time H.264, MPEG-4, and MJPEG compression standards (Triple H.264 / MPEG-4 Codec) for real-time viewing� If mode is selected, the video is streamed via RTSP protocol.
Page 51 VIVOTEK Click the stream item to display the detailed information. The maximum frame size will follow your settings in the above Viewing Window sections� This Network Camera offers real-time H.264, MPEG-4, and MJPEG compression standards (Triple H.264 / MPEG-4 Codec) for real-time viewing� If mode is selected, the video is streamed via RTSP protocol.
Page 52 VIVOTEK The frame rate will decrease if you select a higher resolution� ■ Intra frame period Determine how often to plant an I frame� The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption� Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds�...
Page 52 VIVOTEK The frame rate will decrease if you select a higher resolution� ■ Intra frame period Determine how often to plant an I frame� The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption� Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds�...
Page 53 VIVOTEK JPEG mode is selected, the Network Camera sends consecutive JPEG images to the client, producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage� Because the media contents are a combination of JPEG images, no audio data is transmitted to the client.
Page 53 VIVOTEK JPEG mode is selected, the Network Camera sends consecutive JPEG images to the client, producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage� Because the media contents are a combination of JPEG images, no audio data is transmitted to the client.
Page 54: Media > Audio
VIVOTEK Media > Audio Advanced Mode Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if muted, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page.
Page 54: Media > Audio
VIVOTEK Media > Audio Advanced Mode Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if muted, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page.
Page 55: Network > General Settings
Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera. 1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN� Please refer to Software Installation on page 12 for details�...
Page 55: Network > General Settings
Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera. 1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN� Please refer to Software Installation on page 12 for details�...
Page 56 VIVOTEK Primary DNS: The primary domain name server that translates hostnames into IP addresses. Secondary DNS: Secondary domain name server that backups the Primary DNS. Primary WINS server: The primary WINS server that maintains the database of computer names and IP addresses�...
Page 56 VIVOTEK Primary DNS: The primary domain name server that translates hostnames into IP addresses. Secondary DNS: Secondary domain name server that backups the Primary DNS. Primary WINS server: The primary WINS server that maintains the database of computer names and IP addresses�...
Page 57 VIVOTEK NOTE: NOTE ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera� ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
Page 57 VIVOTEK NOTE: NOTE ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera� ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
Page 58 VIVOTEK 4� In the Networking Services dialog box, select Universal Plug and Play and click OK� 5� Click Next in the following window� 6� Click Finish� UPnP is enabled� ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
Page 58 VIVOTEK 4� In the Networking Services dialog box, select Universal Plug and Play and click OK� 5� Click Next in the following window� 6� Click Finish� UPnP is enabled� ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
Page 59 VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings� Please note that this only works if your network environment and hardware equipment support IPv6� The ® browser should be Microsoft Internet Explorer 6.5, Mozilla Firefox 3.0 or above.
Page 59 VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings� Please note that this only works if your network environment and hardware equipment support IPv6� The ® browser should be Microsoft Internet Explorer 6.5, Mozilla Firefox 3.0 or above.
Page 60 VIVOTEK Please follow the steps below to link to an IPv6 address: 1� Open your web browser� 2� Enter the link-global or link-local IPv6 address in the address bar of your web browser� 3. The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4�...
Page 60 VIVOTEK Please follow the steps below to link to an IPv6 address: 1� Open your web browser� 2� Enter the link-global or link-local IPv6 address in the address bar of your web browser� 3. The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4�...
Page 61 1025 and 65535� FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21. The FTP port can also be assigned to another port number between 1025 and 65535�...
Page 61 1025 and 65535� FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21. The FTP port can also be assigned to another port number between 1025 and 65535�...
Page 62: Network > Streaming Protocols
VIVOTEK Network > Streaming protocols Advanced Mode HTTP streaming To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 72 for details� Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.
Page 62: Network > Streaming Protocols
VIVOTEK Network > Streaming protocols Advanced Mode HTTP streaming To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 72 for details� Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.
Page 63 VIVOTEK URL command -- http://<ip address>:<http port>/<access name for stream 1 or 2> For example, when the Access name for stream 2 is set to video2�mjpg: 1. Launch Mozilla Firefox or Netscape. 2� Type the above URL command in the address bar� Press Enter�...
Page 63 VIVOTEK URL command -- http://<ip address>:<http port>/<access name for stream 1 or 2> For example, when the Access name for stream 2 is set to video2.mjpg: 1. Launch Mozilla Firefox or Netscape. 2� Type the above URL command in the address bar� Press Enter�...
Page 64 VIVOTEK Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest. basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted�...
Page 64 VIVOTEK Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest. basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted�...
Page 65 VIVOTEK Multicast settings for stream 1 & 2: Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for stream 1 or 2� Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address�...
Page 65 VIVOTEK Multicast settings for stream 1 & 2: Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for stream 1 or 2� Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address�...
Page 66 IP address, to have a fixed host and domain name. Express link Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device� One URL can only be mapped to one MAC address�...
Page 66 IP address, to have a fixed host and domain name. Express link Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device� One URL can only be mapped to one MAC address�...
Page 67 DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting. Provider: Select a DDNS provider from the provider drop-down list. VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers� It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the...
Page 67 DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting. Provider: Select a DDNS provider from the provider drop-down list. VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers� It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the...
Page 68 4� Select Enable DDNS and click Save to enable the setting� ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators� You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services�...
Page 68 4� Select Enable DDNS and click Save to enable the setting� ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators� You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services�...
Page 69 VIVOTEK Network > QoS (Quality of Service) Advanced Mode Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network� Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications.
Page 69 VIVOTEK Network > QoS (Quality of Service) Advanced Mode Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network� Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications.
Page 70 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer)� The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint)� This is a 6-bit field that provides 64 different class IDs�...
Page 70 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer)� The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint)� This is a 6-bit field that provides 64 different class IDs�...
Page 71: Network > Snmp (Simple Network Management Protocol)
VIVOTEK Network > SNMP (Simple Network Management Protocol) Advanced Mode This section explains how to use the SNMP on the network camera� The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices� It helps network administrators to remotely manage network devices and find, solve network problems with ease.
Page 71: Network > Snmp (Simple Network Management Protocol)
VIVOTEK Network > SNMP (Simple Network Management Protocol) Advanced Mode This section explains how to use the SNMP on the network camera� The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices� It helps network administrators to remotely manage network devices and find, solve network problems with ease.
Page 72: Security > User Account
VIVOTEK Security > User Account This section explains how to enable password protection and create multiple accounts� Root Password The administrator account name is “root”, which is permanent and can not be deleted� If you want to add more accounts in the Manage User column, please apply the password for the “root”...
Page 72: Security > User Account
VIVOTEK Security > User Account This section explains how to enable password protection and create multiple accounts� Root Password The administrator account name is “root”, which is permanent and can not be deleted� If you want to add more accounts in the Manage User column, please apply the password for the “root”...
Page 73: Security > Https (Hypertext Transfer Protocol Over Ssl)
VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL) Advanced Mode This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer)� It helps protect streaming data transmission over the Internet on higher security level� Create and Install Certificate Method Before using HTTPS for communication with the Network Camera, a Certificate must be created first.
Page 73: Security > Https (Hypertext Transfer Protocol Over Ssl)
VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL) Advanced Mode This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer)� It helps protect streaming data transmission over the Internet on higher security level� Create and Install Certificate Method Before using HTTPS for communication with the Network Camera, a Certificate must be created first.
Page 74 VIVOTEK 5� Click Home to return to the main page� Change the address from “http://” to “https://“ in the ad- dress bar and press Enter on your keyboard� Some Security Alert dialogs will pop up� Click OK or Yes to enable HTTPS�...
Page 74 VIVOTEK 5� Click Home to return to the main page� Change the address from “http://” to “https://“ in the ad- dress bar and press Enter on your keyboard� Some Security Alert dialogs will pop up� Click OK or Yes to enable HTTPS�...
Page 75 VIVOTEK Create certificate and install : Select this option if you want to create a certificate from a certi- fication authority. 1� Select this option from a method pull-down menu� 2� Click Create certificate to generate the certificate. 3� The following information will appear in a pop-up window after clicking Create� If you see the fol- lowing Information bar, click OK and click on the Information bar at the top of the page to allow pop-ups�...
Page 75 VIVOTEK Create certificate and install : Select this option if you want to create a certificate from a certi- fication authority. 1� Select this option from a method pull-down menu� 2� Click Create certificate to generate the certificate. 3� The following information will appear in a pop-up window after clicking Create� If you see the fol- lowing Information bar, click OK and click on the Information bar at the top of the page to allow pop-ups�...
Page 76 VIVOTEK 4. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to see detailed information about the certificate. 5. Copy the contents of the Certificate request (in PEM format). Use the contents to apply for a 3rd-party certification authority such as Symantec VeriSign.
Page 76 VIVOTEK 4. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to see detailed information about the certificate. 5. Copy the contents of the Certificate request (in PEM format). Use the contents to apply for a 3rd-party certification authority such as Symantec VeriSign.
Page 77 VIVOTEK NOTE: ► How do I cancel the HTTPS settings? 1� Click on the Remove certificate button� 2� If you are currently running a secure connection The webpage will redirect to a non-HTTPS page automatically� Enable HTTPS Check this item to enable HTTPS communication, then select a connection option: "HTTP &...
Page 77 VIVOTEK NOTE: ► How do I cancel the HTTPS settings? 1� Click on the Remove certificate button� 2� If you are currently running a secure connection The webpage will redirect to a non-HTTPS page automatically� Enable HTTPS Check this item to enable HTTPS communication, then select a connection option: "HTTP &...
Page 78: Security > Access List
VIVOTEK Security > Access List Advanced Mode This section explains how to control access permission by verifying the client PC’s IP address� General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream 1 and stream 2). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explore or Quick Time Player)�...
Page 78: Security > Access List
VIVOTEK Security > Access List Advanced Mode This section explains how to control access permission by verifying the client PC’s IP address� General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream 1 and stream 2). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explore or Quick Time Player)�...
Page 79 VIVOTEK ■ Refresh: Click this button to refresh all current connections. ■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access� Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player)�...
Page 79 VIVOTEK ■ Refresh: Click this button to refresh all current connections. ■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access� Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player)�...
Page 80 VIVOTEK There are three types of rules: Single: This rule allows the user to add an IP address to the Allowed/Denied list. For example: 192.168.2.1 Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List�...
Page 80 VIVOTEK There are three types of rules: Single: This rule allows the user to add an IP address to the Allowed/Denied list. For example: 192.168.2.1 Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List�...
Page 81 Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request� ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP- PEAP and EAP-TLS� Please follow the steps below to enable 802.1x settings: 1�...
Page 81 Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request� ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP- PEAP and EAP-TLS� Please follow the steps below to enable 802.1x settings: 1�...
Page 82 VIVOTEK 3� When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802�1x enabled switch� The devices will then start the authentication automatically� NOTE: ► The authentication process for 802.1x: 1� The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server)�...
Page 82 VIVOTEK 3� When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802�1x enabled switch� The devices will then start the authentication automatically� NOTE: ► The authentication process for 802.1x: 1� The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server)�...
Page 83: Ptz > Ptz Settings
VIVOTEK PTZ > PTZ settings Advanced Mode This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation� There are two ways to enable the function: The Digital name tag refers to the e-PTZ operation� It allows users to quickly move the focus to a target area for close-up viewing when the current field of view is smaller than the camera’s maximum output frame size.
Page 83: Ptz > Ptz Settings
VIVOTEK PTZ > PTZ settings Advanced Mode This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation� There are two ways to enable the function: The Digital name tag refers to the e-PTZ operation� It allows users to quickly move the focus to a target area for close-up viewing when the current field of view is smaller than the camera’s maximum output frame size.
Page 84 VIVOTEK Home page in E-PTZ Mode x3.1 x3.1 ■ The e-Preset Positions will also be displayed on the home page� Select one from the drop-down list, and the Network Camera will move to the selected e-preset position� ■ If you have set up different e-preset positions for different streams, you can select one of the video streams to display its separate e-preset positions�...
Page 84 VIVOTEK Home page in E-PTZ Mode x3.1 x3.1 ■ The e-Preset Positions will also be displayed on the home page� Select one from the drop-down list, and the Network Camera will move to the selected e-preset position� ■ If you have set up different e-preset positions for different streams, you can select one of the video streams to display its separate e-preset positions�...
Page 85 VIVOTEK Patrol settings You can select some preset positions for the Network Camera to patrol� Please follow the steps below to set up a patrol schedule: 1� Select the preset locations on the list, and click � 2� The selected preset locations will be displayed on the Patrol locations list�...
Page 85 VIVOTEK Patrol settings You can select some preset positions for the Network Camera to patrol� Please follow the steps below to set up a patrol schedule: 1� Select the preset locations on the list, and click � 2� The selected preset locations will be displayed on the Patrol locations list�...
Page 86 VIVOTEK Home page in the e-PTZ Mode The Preset positions will also be displayed on the home page� Select one from the Go to drop-down list, and the Network Camera will move to the selected preset position� Patrol button: Click this button, then the Network Camera will patrol among the selected preset positions continuously�...
Page 86 VIVOTEK Home page in the e-PTZ Mode The Preset positions will also be displayed on the home page� Select one from the Go to drop-down list, and the Network Camera will move to the selected preset position� Patrol button: Click this button, then the Network Camera will patrol among the selected preset positions continuously�...
Page 87: Event > Event Settings
VIVOTEK Event > Event settings Advanced Mode This section explains how to configure the Network Camera to responds to particular situations (event)� A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications� Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices�...
Page 87: Event > Event Settings
VIVOTEK Event > Event settings Advanced Mode This section explains how to configure the Network Camera to responds to particular situations (event)� A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications� Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices�...
Page 88 VIVOTEK ■ Event name: Enter a name for the event setting. ■ Enable this event: Select this option to enable the event setting. ■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
Page 88 VIVOTEK ■ Event name: Enter a name for the event setting. ■ Enable this event: Select this option to enable the event setting. ■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
Page 89 VIVOTEK ■ Camera tampering detection This option allows the Network Camera to trigger when the camera detects that is is being tampered with� To enable this function, you need to configure the Tampering Detection option first. Please refer to page 103 for detailed information�...
Page 89 VIVOTEK ■ Camera tampering detection This option allows the Network Camera to trigger when the camera detects that is is being tampered with� To enable this function, you need to configure the Tampering Detection option first. Please refer to page 103 for detailed information�...
Page 90 VIVOTEK Add server To set an event that will be recorded in videos or snapshots, it is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send Add server the media files to) when a trigger is activated�...
Page 90 VIVOTEK Add server To set an event that will be recorded in videos or snapshots, it is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send Add server the media files to) when a trigger is activated�...
Page 91 VIVOTEK To verify if the email settings are correctly configured, click Test� The result will be shown in a pop-up window� If successful, you will also receive an email indicating the result� Click Save server to enable the settings� Note that after you set up the first event server, the new event server will automatically display on the Server list�...
Page 91 VIVOTEK To verify if the email settings are correctly configured, click Test� The result will be shown in a pop-up window� If successful, you will also receive an email indicating the result� Click Save server to enable the settings� Note that after you set up the first event server, the new event server will automatically display on the Server list�...
Page 92 VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests� If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. The firmware default has the Passive mode checkbox selected.
Page 92 VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests� If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. The firmware default has the Passive mode checkbox selected.
Page 93 VIVOTEK Network storage: Select to send the media files to a network storage location when a trigger is activated� Please refer to NAS server on page 107 for details� Click Save server to enable the settings� ■ SD Test: Click to test your SD card. The system will display a message indicating success or failure. If you want to use your SD card for local storage, please format it before use�...
Page 93 VIVOTEK Network storage: Select to send the media files to a network storage location when a trigger is activated� Please refer to NAS server on page 107 for details� Click Save server to enable the settings� ■ SD Test: Click to test your SD card. The system will display a message indicating success or failure. If you want to use your SD card for local storage, please format it before use�...
Page 94 VIVOTEK Click 20110220 to open the directory: The format is: HH (24r) Click to open the file list for that hour 2011/02/20 2011/02/20 Click to go back to the previous Click to delete level of the directory selected items Click to delete all...
Page 94 VIVOTEK Click 20110220 to open the directory: The format is: HH (24r) Click to open the file list for that hour 2011/02/20 2011/02/20 Click to go back to the previous Click to delete level of the directory selected items Click to delete all...
Page 95 VIVOTEK Add media Add media Click to open the media setting window� You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log.
Page 95 VIVOTEK Add media Add media Click to open the media setting window� You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log.
Page 96 VIVOTEK ■ Add date and time suffix to the file name Select this option to add a date/time suffix to the file name. For example: Snapshot_20101213_100341 File name preﬁx Date and time sufﬁx The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings�...
Page 96 VIVOTEK ■ Add date and time suffix to the file name Select this option to add a date/time suffix to the file name. For example: Snapshot_20101213_100341 File name preﬁx Date and time sufﬁx The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings�...
Page 97 VIVOTEK ■ Maximum file size Specify the maximum file size allowed. ■ File name prefix Enter the text that will be appended to the front of the file name. For example: Video_20101213_100341 File name preﬁx Date and time sufﬁx The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings�...
Page 97 VIVOTEK ■ Maximum file size Specify the maximum file size allowed. ■ File name prefix Enter the text that will be appended to the front of the file name. For example: Video_20101213_100341 File name preﬁx Date and time sufﬁx The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings�...
Page 98 VIVOTEK In the Event settings column, the Servers and Medias you configured will be listed; please make sure the Event -> Status is indicated as ON, in order to enable the event triggering action� When completed, click Save event to enable the settings and click Close to exit Event Settings page�...
Page 98 VIVOTEK In the Event settings column, the Servers and Medias you configured will be listed; please make sure the Event -> Status is indicated as ON, in order to enable the event triggering action� When completed, click Save event to enable the settings and click Close to exit Event Settings page�...
Page 99 Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt. If you need more information, please contact VIVOTEK technical support� Click to upload a file...
Page 99 Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt. If you need more information, please contact VIVOTEK technical support� Click to upload a file...
Page 100: Applications > Motion Detection
VIVOTEK Applications > Motion detection This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured. 2010/12/10 17:08:56 Motion Detection Setting 1: For normal situations Motion Detection Setting 2:...
Page 100: Applications > Motion Detection
VIVOTEK Applications > Motion detection This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured. 2010/12/10 17:08:56 Motion Detection Setting 1: For normal situations Motion Detection Setting 2:...
Page 101 VIVOTEK A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold. Percentage = 30% If you want to configure other motion detection settings for a different time period within a day, please click Profile to open the Motion Detection Profile Settings page as shown below.
Page 101 VIVOTEK A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold. Percentage = 30% If you want to configure other motion detection settings for a different time period within a day, please click Profile to open the Motion Detection Profile Settings page as shown below.
Page 102 VIVOTEK NOTE: NOTE ► How does motion detection work? There are two motion detection parameters: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images� Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting� Sensitivity is a value that expresses the sensitivity to moving objects�...
Page 102 VIVOTEK NOTE: NOTE ► How does motion detection work? There are two motion detection parameters: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images� Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting� Sensitivity is a value that expresses the sensitivity to moving objects.
Page 103: Applications > Digital Input
VIVOTEK Applications > Digital Input Advanced Mode Connect a DI device to the camera's push-in type terminal block, the camera will automatically detect the current connection state as pulled-high or pulled-low� You may then define the triggering condition� Normal status: Select High or Low to define the "Normal status" for the digital input. The Network Camera will report the current status below�...
Page 103: Applications > Digital Input
VIVOTEK Applications > Digital Input Advanced Mode Connect a DI device to the camera's push-in type terminal block, the camera will automatically detect the current connection state as pulled-high or pulled-low� You may then define the triggering condition� Normal status: Select High or Low to define the "Normal status" for the digital input. The Network Camera will report the current status below�...
Page 104: Recording > Recording Settings
VIVOTEK Recording > Recording settings Advanced Mode This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: NOTE ► Please remember to format your SD card when using it for the first time. Please refer to page 109 for detailed information�...
Page 104: Recording > Recording Settings
VIVOTEK Recording > Recording settings Advanced Mode This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: NOTE ► Please remember to format your SD card when using it for the first time. Please refer to page 109 for detailed information�...
Page 105 VIVOTEK If you enable adaptive recording on Camera A, only when an event is triggered on Camera A will the server record the full frame rate streaming data; otherwise, it will only request the I frame data during normal monitoring, thus effectively save lots of bandwidth and storage space�...
Page 105 VIVOTEK If you enable adaptive recording on Camera A, only when an event is triggered on Camera A will the server record the full frame rate streaming data; otherwise, it will only request the I frame data during normal monitoring, thus effectively save lots of bandwidth and storage space�...
Page 106 VIVOTEK 2� Destination You can select the SD card or network storage (NAS) for the recorded video files. NAS server If you have not configured a NAS server, click Add NAS server to open the server setting window and follow the steps below to set up: 1�...
Page 106 VIVOTEK 2� Destination You can select the SD card or network storage (NAS) for the recorded video files. NAS server If you have not configured a NAS server, click Add NAS server to open the server setting window and follow the steps below to set up: 1�...
Page 107 VIVOTEK If successful, you will receive a test.txt file on the network storage server. NOTE: To edit or remove an existing NAS setting, you have to turn OFF all related event or recording configuration. 3� Enter a server name� 4� Click Save to complete the settings and click Close to exit the page�...
Page 107 VIVOTEK If successful, you will receive a test.txt file on the network storage server. NOTE: To edit or remove an existing NAS setting, you have to turn OFF all related event or recording configuration. 3� Enter a server name� 4� Click Save to complete the settings and click Close to exit the page�...
Page 108 VIVOTEK Recording file management ■ Maximum duration (minutes): Specifies the length of each of the recorded videos. ■ Maximum file size: (MB - Megabytes): Specifies the file size limitation of each recorded video. The duration and size are the upper thresholds. The limitation is imposed when either the length or the file size is reached.
Page 108 VIVOTEK Recording file management ■ Maximum duration (minutes): Specifies the length of each of the recorded videos. ■ Maximum file size: (MB - Megabytes): Specifies the file size limitation of each recorded video. The duration and size are the upper thresholds. The limitation is imposed when either the length or the file size is reached.
Page 109: Local Storage > Sd Card Management
VIVOTEK Local storage > SD card management Advanced Mode This section explains how to manage the local storage on the Network Camera� Here you can view SD card status, and implement SD card control� SD card staus This column shows the status and reserved space of your SD card� Please remember to format the SD card when using for the first time.
Page 109: Local Storage > Sd Card Management
VIVOTEK Local storage > SD card management Advanced Mode This section explains how to manage the local storage on the Network Camera� Here you can view SD card status, and implement SD card control� SD card staus This column shows the status and reserved space of your SD card� Please remember to format the SD card when using for the first time.
Page 110: Local Storage > Content Management
VIVOTEK Local storage > Content management Advanced Mode This section explains how to manage the content of recorded videos on the Network Camera� Here you can search and view the records and view the searched results� Searching and Viewing the Records This column allows the user to set up search criteria for recorded data�...
Page 110: Local Storage > Content Management
VIVOTEK Local storage > Content management Advanced Mode This section explains how to manage the content of recorded videos on the Network Camera� Here you can search and view the records and view the searched results� Searching and Viewing the Records This column allows the user to set up search criteria for recorded data�...
Page 111: Search Results
VIVOTEK Search Results The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked� Click to sort the search results in either direction� Enter a key word to filter the Numbers of entries displayed...
Page 111: Search Results
VIVOTEK Search Results The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked� Click to sort the search results in either direction� Enter a key word to filter the Numbers of entries displayed...
Page 112 VIVOTEK ■ Lock/Unlock: Select the desired search results, then click this button. The selected items will become Locked, which will not be deleted during cyclic recording� You can click again to unlock the selections� For example: Click to switch pages ■...
Page 112 VIVOTEK ■ Lock/Unlock: Select the desired search results, then click this button. The selected items will become Locked, which will not be deleted during cyclic recording� You can click again to unlock the selections� For example: Click to switch pages ■...
Page 113: Appendix
VIVOTEK Appendix URL Commands for the Network Camera 1. Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax� This section specifies the external HTTP-based application programming interface�...
Page 113: Appendix
VIVOTEK Appendix URL Commands for the Network Camera 1. Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax� This section specifies the external HTTP-based application programming interface�...
Page 114: General Cgi Url Syntax And Parameters
VIVOTEK 3. General CGI URL Syntax and Parameters When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server. The CGIs are organized in functionally-related directories under the cgi-bin directory. The file extension .cgi is required.
Page 114: General Cgi Url Syntax And Parameters
VIVOTEK 3. General CGI URL Syntax and Parameters When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server. The CGIs are organized in functionally-related directories under the cgi-bin directory. The file extension .cgi is required.
Page 115: Security Level
VIVOTEK 4. Security Level SECURITY SUB-DIRECTORY DESCRIPTION LEVEL anonymous Unprotected. 1 [view] anonymous, viewer, 1. Can view, listen, talk to camera. dido, camctrl 2. Can control DI/DO, PTZ of the camera. 4 [operator] anonymous, viewer, Operator access rights can modify most of the camera’s...
Page 115: Security Level
VIVOTEK 4. Security Level SECURITY SUB-DIRECTORY DESCRIPTION LEVEL anonymous Unprotected. 1 [view] anonymous, viewer, 1. Can view, listen, talk to camera. dido, camctrl 2. Can control DI/DO, PTZ of the camera. 4 [operator] anonymous, viewer, Operator access rights can modify most of the camera’s...
Page 116: Get Server Parameter Values
VIVOTEK 5. Get Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>]. If you do not specify any parameters, all the parameters on the server will be returned.
Page 116: Get Server Parameter Values
VIVOTEK 5. Get Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>]. If you do not specify any parameters, all the parameters on the server will be returned.
Page 117 VIVOTEK Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network_ipaddress=192.168.0.123\r\n User's Manual - 117...
Page 117 VIVOTEK Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network_ipaddress=192.168.0.123\r\n User's Manual - 117...
Page 118: Set Server Parameter Values
VIVOTEK 6. Set Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] PARAMETER VALUE DESCRIPTION <group>_<name> value to assigned Assign <value>...
Page 118: Set Server Parameter Values
VIVOTEK 6. Set Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] PARAMETER VALUE DESCRIPTION <group>_<name> value to assigned Assign <value>...
Page 119 VIVOTEK Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network_ipaddress=192.168.0.123\r\n User's Manual - 119...
Page 119 VIVOTEK Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network_ipaddress=192.168.0.123\r\n User's Manual - 119...
Page 120: Available Parameters On The Server
VIVOTEK 7. Available parameters on the server This chapter defines all the parameters which can be configured or retrieved from VIVOTEK network camera or video server. The general format of description is listed in the table below Valid values: VALID VALUES DESCRIPTION string[<n>]...
Page 120: Available Parameters On The Server
VIVOTEK 7. Available parameters on the server This chapter defines all the parameters which can be configured or retrieved from VIVOTEK network camera or video server. The general format of description is listed in the table below Valid values: VALID VALUES DESCRIPTION string[<n>]...
Page 121 VIVOTEK NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) hostname string[64] Mega-Pixel Host name of server Network (Network Camera, Camera Wireless Network Camera, Video Server, Wireless Video Server). ledoff <boolean> Turn on (0) or turn off (1) all led indicators. date <YYYY/MM/ <current...
Page 121 VIVOTEK NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) hostname string[64] Mega-Pixel Host name of server Network (Network Camera, Camera Wireless Network Camera, Video Server, Wireless Video Server). ledoff <boolean> Turn on (0) or turn off (1) all led indicators. date <YYYY/MM/ <current...
Page 122 VIVOTEK -200: GMT-05:00 Eastern Time, New York, Toronto -201: GMT-05:00 Bogota, Lima, Quito, Indiana -180: GMT-04:30 Caracas -160: GMT-04:00 Atlantic Time, Canada, La Paz, Santiago -140: GMT-03:30 Newfoundland -120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland -80: GMT-02:00 Mid-Atlantic -40: GMT-01:00 Azores, Cape_Verde_IS.
Page 122 VIVOTEK -200: GMT-05:00 Eastern Time, New York, Toronto -201: GMT-05:00 Bogota, Lima, Quito, Indiana -180: GMT-04:30 Caracas -160: GMT-04:00 Atlantic Time, Canada, La Paz, Santiago -140: GMT-03:30 Newfoundland -120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland -80: GMT-02:00 Mid-Atlantic -40: GMT-01:00 Azores, Cape_Verde_IS.
Page 123 VIVOTEK 200: GMT 05:00 Ekaterinburg, Islamabad, Karachi, Tashkent 220: GMT 05:30 Calcutta, Chennai, Mumbai, New Delhi 230: GMT 05:45 Kathmandu 240: GMT 06:00 Almaty, Novosibirsk, Astana, Dhaka, Sri Jayawardenepura 260: GMT 06:30 Rangoon 280: GMT 07:00 Bangkok, Hanoi, Jakarta, Krasnoyarsk...
Page 123 VIVOTEK 200: GMT 05:00 Ekaterinburg, Islamabad, Karachi, Tashkent 220: GMT 05:30 Calcutta, Chennai, Mumbai, New Delhi 230: GMT 05:45 Kathmandu 240: GMT 06:00 Almaty, Novosibirsk, Astana, Dhaka, Sri Jayawardenepura 260: GMT 06:30 Rangoon 280: GMT 07:00 Bangkok, Hanoi, Jakarta, Krasnoyarsk...
Page 124 VIVOTEK -140,-120, -80,-40,0, 40,41,80, 81,82,83, 120,140, 380,400,48 updateinterval 0 to Disable automatic time 3600, adjustment, otherwise, it 86400, indicates the seconds between 604800, NTP automatic update 2592000 intervals. Restore the system restore <positive parameters to default values integer> after <value> seconds.
Page 124 VIVOTEK -140,-120, -80,-40,0, 40,41,80, 81,82,83, 120,140, 380,400,48 updateinterval 0 to Disable automatic time 3600, adjustment, otherwise, it 86400, indicates the seconds between 604800, NTP automatic update 2592000 intervals. Restore the system restore <positive parameters to default values integer> after <value> seconds.
Page 125 Subgroup of system: info (The fields in this group are unchangeable.) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) modelname string[40] FD8136 Internal model name of the server (eg. IP7139) extendedmodelname string[40] FD8136 ODM specific model name of server (eg. DCS-5610). If it is not an ODM model, this field will be equal to “modelname”...
Page 125 Subgroup of system: info (The fields in this group are unchangeable.) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) modelname string[40] FD8136 Internal model name of the server (eg. IP7139) extendedmodelname string[40] FD8136 ODM specific model name of server (eg. DCS-5610). If it is not an ODM model, this field will be equal to “modelname”...
Page 126 VIVOTEK dependent> customlanguage_maxcount <integer> <product Maximum number of custom dependent> languages supported on the server. customlanguage_count <integer> Number of custom languages which have been uploaded to the server. customlanguage_i<0~(max string Custom language name. count-1)> 7.2 status Group: status NAME VALUE...
Page 126 VIVOTEK dependent> customlanguage_maxcount <integer> <product Maximum number of custom dependent> languages supported on the server. customlanguage_count <integer> Number of custom languages which have been uploaded to the server. customlanguage_i<0~(max string Custom language name. count-1)> 7.2 status Group: status NAME VALUE...
Page 127 VIVOTEK Group: di_i<0~(ndi-1)> (capability.ndi > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) normalstate high, high Indicates open circuit or closed circuit (inactive status) 7.4 digital output behavior define Group: do_i<0~(ndo-1)> (capability.ndo > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) normalstate...
Page 127 VIVOTEK Group: di_i<0~(ndi-1)> (capability.ndi > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) normalstate high, high Indicates open circuit or closed circuit (inactive status) 7.4 digital output behavior define Group: do_i<0~(ndo-1)> (capability.ndo > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) normalstate...
Page 128 VIVOTEK 7.6 network Group: network NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) preprocess <positive NULL An 32-bit integer, each bit can be set separately as integer> follows: Bit 0 => HTTP service; Bit 1=> HTTPS service; Bit 2=> FTP service; Bit 3 => Two way audio and RTSP Streaming service;...
Page 128 VIVOTEK 7.6 network Group: network NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) preprocess <positive NULL An 32-bit integer, each bit can be set separately as integer> follows: Bit 0 => HTTP service; Bit 1=> HTTPS service; Bit 2=> FTP service; Bit 3 => Two way audio and RTSP Streaming service;...
Page 129 VIVOTEK address> dns2 <ip <blank> Secondary DNS server. address> wins1 <ip <blank> Primary WINS server. address> wins2 <ip <blank> Secondary WINS server. address> 7.6.1 802.1x Subgroup of network: ieee8021x (capability.protocol.ieee8021x > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean>...
Page 129 VIVOTEK address> dns2 <ip <blank> Secondary DNS server. address> wins1 <ip <blank> Primary WINS server. address> wins2 <ip <blank> Secondary WINS server. address> 7.6.1 802.1x Subgroup of network: ieee8021x (capability.protocol.ieee8021x > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean>...
Page 130 VIVOTEK (get/set) enable <boolean> Enable/disable CoS (IEEE 802.1p) vlanid 1~4095 VLAN ID video Video channel for CoS audio Audio channel for CoS (capability.naudio > 0) eventalarm Event/alarm channel for CoS management Management channel for CoS eventtunnel Event/Control channel for CoS Subgroup of network: qos_dscp (capability.protocol.qos.dscp >...
Page 130 VIVOTEK (get/set) enable <boolean> Enable/disable CoS (IEEE 802.1p) vlanid 1~4095 VLAN ID video Video channel for CoS audio Audio channel for CoS (capability.naudio > 0) eventalarm Event/alarm channel for CoS management Management channel for CoS eventtunnel Event/Control channel for CoS Subgroup of network: qos_dscp (capability.protocol.qos.dscp >...
Page 131 VIVOTEK port 21, 1025~65535 Local ftp server port. 7.6.5 HTTP Subgroup of network: http NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 80, 1025 ~ HTTP port. 65535 alternateport 1025~65535 8080 Alternate HTTP port. authmode basic, basic HTTP authentication mode. digest...
Page 131 VIVOTEK port 21, 1025~65535 Local ftp server port. 7.6.5 HTTP Subgroup of network: http NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 80, 1025 ~ HTTP port. 65535 alternateport 1025~65535 8080 Alternate HTTP port. authmode basic, basic HTTP authentication mode. digest...
Page 132 VIVOTEK anonymousviewing <boolean> Enable anoymous streaming viewing. authmode disable, disable RTSP authentication mode. basic, (capability.protocol.rtsp=1) digest s0_accessname string[32] live.sdp RTSP access name for stream1. (capability.protocol.rtsp=1 and capability.nmediastream > 0) s1_accessname string[32] live2.sdp RTSP access name for stream2. (capability.protocol.rtsp=1 and capability.nmediastream > 1) 7.6.7.1 RTSP multicast...
Page 132 VIVOTEK anonymousviewing <boolean> Enable anoymous streaming viewing. authmode disable, disable RTSP authentication mode. basic, (capability.protocol.rtsp=1) digest s0_accessname string[32] live.sdp RTSP access name for stream1. (capability.protocol.rtsp=1 and capability.nmediastream > 0) s1_accessname string[32] live2.sdp RTSP access name for stream2. (capability.protocol.rtsp=1 and capability.nmediastream > 1) 7.6.7.1 RTSP multicast...
Page 133 VIVOTEK (get/set) videoport 1025 ~ 65535 5556 Video channel port for RTP. (capability.protocol.rtp_unicast=1) audioport 1025 ~ 65535 5558 Audio channel port for RTP. (capability.protocol.rtp_unicast=1) 7.6.10 PPPoE Subgroup of network: pppoe (capability.protocol.pppoe > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) user string[128] <blank>...
Page 133 VIVOTEK (get/set) videoport 1025 ~ 65535 5556 Video channel port for RTP. (capability.protocol.rtp_unicast=1) audioport 1025 ~ 65535 5558 Audio channel port for RTP. (capability.protocol.rtp_unicast=1) 7.6.10 PPPoE Subgroup of network: pppoe (capability.protocol.pppoe > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) user string[128] <blank>...
Page 134: Video Input
VIVOTEK address - end ip address> ipv6list_i<0~9> String[44] <blank> IPv6 address list. 7.8 video input Group: videoin NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) cmosfreq 50, 60 CMOS frequency. (capability.videoin.type=2) whitebalance auto, auto “auto” indicates auto white manual, balance. “manual” indicates keep current value.
Page 134: Video Input
VIVOTEK address - end ip address> ipv6list_i<0~9> String[44] <blank> IPv6 address list. 7.8 video input Group: videoin NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) cmosfreq 50, 60 CMOS frequency. (capability.videoin.type=2) whitebalance auto, auto “auto” indicates auto white manual, balance. “manual” indicates keep current value.
Page 135 VIVOTEK ptzstatus <integer> A 32-bit integer, each bit can be set separately as follows: Bit 0 => Support camera control function; 0(not support), 1(support) Bit 1 => Built-in or external camera; 0 (external), 1(built-in) Bit 2 => Support pan operation; 0(not support), 1(support) Bit 3 =>...
Page 135 VIVOTEK ptzstatus <integer> A 32-bit integer, each bit can be set separately as follows: Bit 0 => Support camera control function; 0(not support), 1(support) Bit 1 => Built-in or external camera; 0 (external), 1(built-in) Bit 2 => Support pan operation; 0(not support), 1(support) Bit 3 =>...
Page 136 VIVOTEK enableblc Enable backlight compensation s<0~(m-1)>_codectype mpeg4, mjpeg, h264 Video codec type. svc is only supported with h264 stream 0. s<0~(m-1)>_resolution "176~1280"x"1 1280x800 Video resolution in pixels. 44~800" s<0~(m-1)>_mpeg4_intraperi 250, 500, 1000, 1000 Intra frame period in 2000, 3000, milliseconds.
Page 136 VIVOTEK enableblc Enable backlight compensation s<0~(m-1)>_codectype mpeg4, mjpeg, h264 Video codec type. svc is only supported with h264 stream 0. s<0~(m-1)>_resolution "176~1280"x"1 1280x800 Video resolution in pixels. 44~800" s<0~(m-1)>_mpeg4_intraperi 250, 500, 1000, 1000 Intra frame period in 2000, 3000, milliseconds.
Page 137 VIVOTEK lmode vbr, fix quality s<0~(m-1)>_h264_quant 1~5,99,100 Quality of video when choosing vbr in “ratecontrolmode”. 99,100 is the customized manual input setting. 1 = worst quality, 5 = best quality. s<0~(m-1)>_h264_qpercent 1~100 Set quality by percentage. 1: Worst quality 100: Best quality (s<0~(m-1)>_h264_quant =...
Page 137 VIVOTEK lmode vbr, fix quality s<0~(m-1)>_h264_quant 1~5,99,100 Quality of video when choosing vbr in “ratecontrolmode”. 99,100 is the customized manual input setting. 1 = worst quality, 5 = best quality. s<0~(m-1)>_h264_qpercent 1~100 Set quality by percentage. 1: Worst quality 100: Best quality (s<0~(m-1)>_h264_quant =...
Page 138 VIVOTEK s<0~(m-1)>_mjpeg_qpercent 1~100 Set quality by percentage. 1: Worst quality 100: Best quality (s<0~(m-1)>_mjpeg_quant = 100) s<0~(m-1)>_forcei Force I frame. maxgain 1~100 Manual set maximum gain value mingain 1~100 Manual set minimum gain value 7.8.1.1 Alternative video input profiles per channel In addition to the primary setting of video input, there can be alternative profile video input setting for each channel which might be for different scene of light (daytime or nighttime).
Page 138 VIVOTEK s<0~(m-1)>_mjpeg_qpercent 1~100 Set quality by percentage. 1: Worst quality 100: Best quality (s<0~(m-1)>_mjpeg_quant = 100) s<0~(m-1)>_forcei Force I frame. maxgain 1~100 Manual set maximum gain value mingain 1~100 Manual set minimum gain value 7.8.1.1 Alternative video input profiles per channel In addition to the primary setting of video input, there can be alternative profile video input setting for each channel which might be for different scene of light (daytime or nighttime).
Page 139 VIVOTEK 480,500,1000,20 00,4000,8000,16 000,32000 maxgain 0~100 Manual set maximum gain value. mingain 0~100 Manual set minimum gain value. enableblc <boolean> Enable backlight compensation. whitebalance auto, manual “auto” indicates auto white manual balance. “manual” indicates keep current value. irismode fixed fixed Video Iris mode for DC Iris.
Page 139 VIVOTEK 480,500,1000,20 00,4000,8000,16 000,32000 maxgain 0~100 Manual set maximum gain value. mingain 0~100 Manual set minimum gain value. enableblc <boolean> Enable backlight compensation. whitebalance auto, manual “auto” indicates auto white manual balance. “manual” indicates keep current value. irismode fixed fixed Video Iris mode for DC Iris.
Page 140 VIVOTEK Group: image_c<0~(n-1)> for n channel products NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) brightness -5 ~ 5 Adjust brightness of image according to mode settings. saturation -5~5,100 Adjust saturation of image according to mode settings. 100 means using the parameter “saturationpercent”.
Page 140 VIVOTEK Group: image_c<0~(n-1)> for n channel products NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) brightness -5 ~ 5 Adjust brightness of image according to mode settings. saturation -5~5,100 Adjust saturation of image according to mode settings. 100 means using the parameter “saturationpercent”.
Page 141 VIVOTEK sharpness -3~3,100 Preview of sharpness adjustment of image according to mode settings. 100 means using the parameter “sharpnesspercent” saturationpercent 0 ~ 100 Adjust saturation of image by percentage. Less 0 <-> 100 More saturation sharpnesspercent 0~100 Adjust sharpness of image by percentage.
Page 141 VIVOTEK sharpness -3~3,100 Preview of sharpness adjustment of image according to mode settings. 100 means using the parameter “sharpnesspercent” saturationpercent 0 ~ 100 Adjust saturation of image by percentage. Less 0 <-> 100 More saturation sharpnesspercent 0~100 Adjust sharpness of image by percentage.
Page 142: Motion Detection Settings
VIVOTEK 7.12 Audio input per channel Group: audioin_c<0~(n-1)> for n channel products (capability.audioin>0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) source linein,micin micin micin => use built-in microphone input. linein => use external microphone input. mute 0, 1 Enable audio mute.
Page 142: Motion Detection Settings
VIVOTEK 7.12 Audio input per channel Group: audioin_c<0~(n-1)> for n channel products (capability.audioin>0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) source linein,micin micin micin => use built-in microphone input. linein => use external microphone input. mute 0, 1 Enable audio mute.
Page 143 VIVOTEK win_i<0~2>_left 0 ~ 320 Left coordinate of window position. win_i<0~2>_top 0 ~ 240 Top coordinate of window position. win_i<0~2>_width 0 ~ 320 Width of motion detection window. win_i<0~2>_height 0 ~ 240 Height of motion detection window. win_i<0~2>_objsize 0 ~ 100 Percent of motion detection window.
Page 143 VIVOTEK win_i<0~2>_left 0 ~ 320 Left coordinate of window position. win_i<0~2>_top 0 ~ 240 Top coordinate of window position. win_i<0~2>_width 0 ~ 320 Width of motion detection window. win_i<0~2>_height 0 ~ 240 Height of motion detection window. win_i<0~2>_objsize 0 ~ 100 Percent of motion detection window.
Page 144 VIVOTEK i<0~(m-1)>_win_i<0~2>_height 0 ~ 240 Height of motion detection window. i<0~(m-1)>_win_i<0~2>_objsize 0 ~ 100 Percent of motion detection window. i<0~(m-1)>_win_i<0~2>_sensitivity 0 ~ 100 Sensitivity of motion detection window. 7.15 Tampering detection settings Group: tampering_c<0~(n-1)> for n channel product (capability.tampering > 0)
Page 144 VIVOTEK i<0~(m-1)>_win_i<0~2>_height 0 ~ 240 Height of motion detection window. i<0~(m-1)>_win_i<0~2>_objsize 0 ~ 100 Percent of motion detection window. i<0~(m-1)>_win_i<0~2>_sensitivity 0 ~ 100 Sensitivity of motion detection window. 7.15 Tampering detection settings Group: tampering_c<0~(n-1)> for n channel product (capability.tampering > 0)
Page 145 VIVOTEK <provider>_use string[64] <blank> Your user name or email to login to rnameemail the DDNS service provider <provider>_pas string[64] <blank> Your password or key to login to the swordkey DDNS service provider. string[128] <provider>_ser <blank> The server name for safe100.
Page 145 VIVOTEK <provider>_use string[64] <blank> Your user name or email to login to rnameemail the DDNS service provider <provider>_pas string[64] <blank> Your password or key to login to the swordkey DDNS service provider. string[128] <provider>_ser <blank> The server name for safe100.
Page 146: System Log
VIVOTEK enable <boolean> Enable or disable the UPnP port forwarding service. upnpnatstatus The status of UPnP port forwarding, used internally. 0 = OK, 1 = FAIL, 2 = no IGD router, 3 = no need for port forwarding 7.19 System log...
Page 146: System Log
VIVOTEK enable <boolean> Enable or disable the UPnP port forwarding service. upnpnatstatus The status of UPnP port forwarding, used internally. 0 = OK, 1 = FAIL, 2 = no IGD router, 3 = no need for port forwarding 7.19 System log...
Page 147 VIVOTEK 7.20 SNMP Group: snmp (capability.snmp > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) SNMP v2 enabled. 0 for disable, 1 for enable SNMP v3 enabled. 0 for disable, 1 for enable secnamerw string[31] Private Read/write security name secnamero string[31]...
Page 147 VIVOTEK 7.20 SNMP Group: snmp (capability.snmp > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) SNMP v2 enabled. 0 for disable, 1 for enable SNMP v3 enabled. 0 for disable, 1 for enable secnamerw string[31] Private Read/write security name secnamero string[31]...
Page 148: Privacy Mask
VIVOTEK vivotek logo 1 => hide the power by vivotek logo theme_option 1~3: One of the default themes. 4: Custom definition. theme_color_font string[7] #000000 Font color theme_color_configfont string[7] #ffffff Font color of configuration area. theme_color_titlefont string[7] #098bd6 Font color of video title.
Page 148: Privacy Mask
VIVOTEK vivotek logo 1 => hide the power by vivotek logo theme_option 1~3: One of the default themes. 4: Custom definition. theme_color_font string[7] #000000 Font color theme_color_configfont string[7] #ffffff Font color of configuration area. theme_color_titlefont string[7] #098bd6 Font color of video title.
Page 149 VIVOTEK 7.23 Capability Group: capability NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) api_httpversion 0100a 0100a The HTTP API version. bootuptime <positive Server bootup time. integer> Number of IR <positive interfaces. integer> (Recommand to use ir for built-in IR and extir for external npir Number of PIRs.
Page 149 VIVOTEK 7.23 Capability Group: capability NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) api_httpversion 0100a 0100a The HTTP API version. bootuptime <positive Server bootup time. integer> Number of IR <positive interfaces. integer> (Recommand to use ir for built-in IR and extir for external npir Number of PIRs.
Page 150 VIVOTEK nmediastream <positive Number of media integer> stream per channels. nvideosetting <positive Number of video integer> settings per channel. naudiosetting <positive Number of audio integer> settings per channel. nuart Number of UART <positive interfaces. integer> nmotionprofile 0, <positive Number of motion integer>...
Page 150 VIVOTEK nmediastream <positive Number of media integer> stream per channels. nvideosetting <positive Number of video integer> settings per channel. naudiosetting <positive Number of audio integer> settings per channel. nuart Number of UART <positive interfaces. integer> nmotionprofile 0, <positive Number of motion integer>...
Page 151 VIVOTEK 0(not support), 1(support) Bit 7 => External or built-in PT; 0(built-in), 1(external) Bit 8 => Invalidate bit 1 ~ 7; 0(bit 1 ~ 7 are valid), 1(bit 1 ~ 7 are invalid) Bit 9 => Reserved bit; Invalidate lens_pan, Lens_tilt, lens_zoon, lens_focus, len_iris.
Page 151 VIVOTEK 0(not support), 1(support) Bit 7 => External or built-in PT; 0(built-in), 1(external) Bit 8 => Invalidate bit 1 ~ 7; 0(bit 1 ~ 7 are valid), 1(bit 1 ~ 7 are invalid) Bit 9 => Reserved bit; Invalidate lens_pan, Lens_tilt, lens_zoon, lens_focus, len_iris.
Page 152 VIVOTEK Bit 1 => Support pan in UI. Bit 2 => External or built-in pan function; 0(built-in), 1(external). lens_tilt 0, <positive A 32-bit integer, integer> each bit can be set separately as follows: Bit 0 => Support tilt. Bit 1 => Support tilt in UI.
Page 152 VIVOTEK Bit 1 => Support pan in UI. Bit 2 => External or built-in pan function; 0(built-in), 1(external). lens_tilt 0, <positive A 32-bit integer, integer> each bit can be set separately as follows: Bit 0 => Support tilt. Bit 1 => Support tilt in UI.
Page 153 VIVOTEK function; 0(built-in), 1(external). Bit 3 => Support auto focus in UI. lens_iris 0, <positive A 32-bit integer, integer> each bit can be set separately as follows: Bit 0 => Support iris. Bit 1 => Support iris in UI. Bit 2 => External or build-in iris function;...
Page 153 VIVOTEK function; 0(built-in), 1(external). Bit 3 => Support auto focus in UI. lens_iris 0, <positive A 32-bit integer, integer> each bit can be set separately as follows: Bit 0 => Support iris. Bit 1 => Support iris in UI. Bit 2 => External or build-in iris function;...
Page 154 VIVOTEK protocol_rtp_multicast_ <boolean> Indicate whether to scalable support scalable multicast. protocol_rtp_multicast_ <boolean> Indicate whether to backchannel support backchannel multicast. protocol_rtp_tcp <boolean> Indicate whether to support RTP over TCP. protocol_rtp_http <boolean> Indicate whether to support RTP over HTTP. protocol_spush_mjpeg <boolean> Indicate whether to support server push MJPEG.
Page 154 VIVOTEK protocol_rtp_multicast_ <boolean> Indicate whether to scalable support scalable multicast. protocol_rtp_multicast_ <boolean> Indicate whether to backchannel support backchannel multicast. protocol_rtp_tcp <boolean> Indicate whether to support RTP over TCP. protocol_rtp_http <boolean> Indicate whether to support RTP over HTTP. protocol_spush_mjpeg <boolean> Indicate whether to support server push MJPEG.
Page 155 VIVOTEK by commas) audioin_codec g711 g711 Available codec list for audio input. uart_httptunnel <boolean> Indicate whether to support HTTP tunnel for UART transfer. camctrl_httptunnel <boolean> The attribute indicates whether sending camera control commands through HTTP tunnel is supported. 0: Not supported...
Page 155 VIVOTEK by commas) audioin_codec g711 g711 Available codec list for audio input. uart_httptunnel <boolean> Indicate whether to support HTTP tunnel for UART transfer. camctrl_httptunnel <boolean> The attribute indicates whether sending camera control commands through HTTP tunnel is supported. 0: Not supported...
Page 156 VIVOTEK wireless_s802dot11b <boolean> Indicate whether to support wireless 802.11b+. wireless_s802dot11g <boolean> Indicate whether to support wireless 802.11g. wireless_encrypt_wep <boolean> Indicate whether to support wireless WEP. wireless_encrypt_wpa <boolean> Indicate whether to support wireless WPA. wireless_encrypt_wpa2 <boolean> Indicate whether to support wireless WPA2.
Page 156 VIVOTEK wireless_s802dot11b <boolean> Indicate whether to support wireless 802.11b+. wireless_s802dot11g <boolean> Indicate whether to support wireless 802.11g. wireless_encrypt_wep <boolean> Indicate whether to support wireless WEP. wireless_encrypt_wpa <boolean> Indicate whether to support wireless WPA. wireless_encrypt_wpa2 <boolean> Indicate whether to support wireless WPA2.
Page 157 VIVOTEK <boolean> Indicate whether to support Intelligent Video analysis <boolean> Indicate whether to support built-in IR led. tampering <boolean> Indicate whether to support tampering detection. image_wdrc <Boolean> Indicate whether to support WDRC image_ iristype <string> dciris Indicate iris type. image_ focusassist <Boolean>...
Page 157 VIVOTEK <boolean> Indicate whether to support Intelligent Video analysis <boolean> Indicate whether to support built-in IR led. tampering <boolean> Indicate whether to support tampering detection. image_wdrc <Boolean> Indicate whether to support WDRC image_ iristype <string> dciris Indicate iris type. image_ focusassist <Boolean>...
Page 158: Event Setting
VIVOTEK 7.25 Event setting Group: event_i<0~2> PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry. enable 0, 1 Enable or disable this event. priority 0, 1, 2 Indicate the priority of this event: “0” = low priority “1”...
Page 158: Event Setting
VIVOTEK 7.25 Event setting Group: event_i<0~2> PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry. enable 0, 1 Enable or disable this event. priority 0, 1, 2 Indicate the priority of this event: “0” = low priority “1”...
Page 159 VIVOTEK mdwin <integer> Indicate the source window id of motion detection. This field is required when trigger condition is “md”. One bit represents one window. The LSB indicates the 1 window. For example, to detect the 1 and 3 windows, set mdwin as 5.
Page 159 VIVOTEK mdwin <integer> Indicate the source window id of motion detection. This field is required when trigger condition is “md”. One bit represents one window. The LSB indicates the 1 window. For example, to detect the 1 and 3 windows, set mdwin as 5.
Page 160 VIVOTEK action_cf_datefolder <boolean> Enable this to create folders by date, time, and hour automatically. action_cf_backup <boolean> Enable the capability of backing up recorded files to the SD card when network is lost. 0: Disabled 1: Enabled action_server_i<0~4>_en 0, 1 Enable or disable this server action.
Page 160 VIVOTEK action_cf_datefolder <boolean> Enable this to create folders by date, time, and hour automatically. action_cf_backup <boolean> Enable the capability of backing up recorded files to the SD card when network is lost. 0: Disabled 1: Enabled action_server_i<0~4>_en 0, 1 Enable or disable this server action.
Page 161 VIVOTEK email_sslmode 0, 1 Enable support SSL. email_port 0~65535 Port to connect to the server. email_username string[64] NULL Username to log in to the server. email_passwd string[64] NULL Password of the user. email_senderemail string[128] NULL Email address of the sender.
Page 161 VIVOTEK email_sslmode 0, 1 Enable support SSL. email_port 0~65535 Port to connect to the server. email_username string[64] NULL Username to log in to the server. email_passwd string[64] NULL Password of the user. email_senderemail string[128] NULL Email address of the sender.
Page 162 VIVOTEK videoclip_source <integer> Indicate the source of media stream. 0 means the first stream. 1 means the second stream and etc. 2 means the third stream and etc. 3 means the fourth stream and etc. videoclip_prefix string[16] NULL Indicate the prefix of the filename.
Page 162 VIVOTEK videoclip_source <integer> Indicate the source of media stream. 0 means the first stream. 1 means the second stream and etc. 2 means the third stream and etc. 3 means the fourth stream and etc. videoclip_prefix string[16] NULL Indicate the prefix of the filename.
Page 163 VIVOTEK notifyserver 0~31 Indicate which notification server is scheduled. One bit represents one application server (server_i0~i4). bit0 (LSB) = server_i0. bit1 = server_i1. bit2 = server_i2. bit3 = server_i3. bit4 = server_i4. For example, enable server_i0, server_i2, and server_i4 as notification servers;...
Page 163 VIVOTEK notifyserver 0~31 Indicate which notification server is scheduled. One bit represents one application server (server_i0~i4). bit0 (LSB) = server_i0. bit1 = server_i1. bit2 = server_i2. bit3 = server_i3. bit4 = server_i4. For example, enable server_i0, server_i2, and server_i4 as notification servers;...
Page 164 VIVOTEK dest The destination to store the recorded data. “cf” means local storage (CF or SD card). “0” means the index of the network storage. cffolder string[128] NULL Folder name. maxsize 100~900 Unit: Mega bytes. When this condition is reached, recording file is truncated.
Page 164 VIVOTEK dest The destination to store the recorded data. “cf” means local storage (CF or SD card). “0” means the index of the network storage. cffolder string[128] NULL Folder name. maxsize 100~900 Unit: Mega bytes. When this condition is reached, recording file is truncated.
Page 165: Region Of Interest
VIVOTEK install manual => Create self-signed certificate manually. install => Create certificate request and install. status -3 ~ 1 Specify the https status. -3 = Certificate not installed -2 = Invalid public key -1 = Waiting for certificate 0 = Not installed...
Page 165: Region Of Interest
VIVOTEK install manual => Create self-signed certificate manually. install => Create certificate request and install. status -3 ~ 1 Specify the https status. -3 = Certificate not installed -2 = Invalid public key -1 = Waiting for certificate 0 = Not installed...
Page 166: Eptz Setting
VIVOTEK Group: roi_c<0~(n-1)> for n channel product, and m is the number of streams which support ROI. (capability.eptz > 0) PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) s<0~(m-1)>_home "0~1104","0~6 ROI left-top corner coordinate. 56" s<0~(m-1)>_size "176~1280"x"1 1280x800 ROI width and height. The width 44~800"...
Page 166: Eptz Setting
VIVOTEK Group: roi_c<0~(n-1)> for n channel product, and m is the number of streams which support ROI. (capability.eptz > 0) PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) s<0~(m-1)>_home "0~1104","0~6 ROI left-top corner coordinate. 56" s<0~(m-1)>_size "176~1280"x"1 1280x800 ROI width and height. The width 44~800"...
Page 167 VIVOTEK patroldwelling string[160] <blank> The dwelling time (unit: second) of each patrol point, separated by “,”. preset_i<0~19>_name string[40] <blank> Name of ePTZ preset. (It should be set by ePreset.cgi rather than by setparam.cgi.) preset_i<0~19>_pos <coordinate> <blank> Left-top corner coordinate of the preset.
Page 167 VIVOTEK patroldwelling string[160] <blank> The dwelling time (unit: second) of each patrol point, separated by “,”. preset_i<0~19>_name string[40] <blank> Name of ePTZ preset. (It should be set by ePreset.cgi rather than by setparam.cgi.) preset_i<0~19>_pos <coordinate> <blank> Left-top corner coordinate of the preset.
Page 168 VIVOTEK 8. Useful Functions 8.1 Drive the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>] Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
Page 168 VIVOTEK 8. Useful Functions 8.1 Drive the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>] Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
Page 169 VIVOTEK Example: Query the status of digital input 1 . Request: http://myserver/cgi-bin/dido/getdi.cgi?di1 Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n di1=1\r\n 8.3 Query Status of the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]...
Page 169 VIVOTEK Example: Query the status of digital input 1 . Request: http://myserver/cgi-bin/dido/getdi.cgi?di1 Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n di1=1\r\n 8.3 Query Status of the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]...
Page 170: Capture Single Snapshot
VIVOTEK \r\n do1=1\r\n 8.4 3D Privacy Mask Note: This request requires admin user privilege <SD81X1> You can set privacy mask only at zoom 1x. To go back to zoom 1x directly, please send this cgi command: "/cgi-bin/camctrl/camposition.cgi?setzoom=0" Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/setpm3d.cgi?method=<value>&name=<value>&[maskheight=<v...
Page 170: Capture Single Snapshot
VIVOTEK \r\n do1=1\r\n 8.4 3D Privacy Mask Note: This request requires admin user privilege <SD81X1> You can set privacy mask only at zoom 1x. To go back to zoom 1x directly, please send this cgi command: "/cgi-bin/camctrl/camposition.cgi?setzoom=0" Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/setpm3d.cgi?method=<value>&name=<value>&[maskheight=<v...
Page 171: Account Management
VIVOTEK resolution <available The resolution of the image. resolution> quality The quality of the image. streamid 0~(m-1) <product The stream number. dependent> The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format. The size and quality of the image will be set according to the video settings on the server.
Page 171: Account Management
VIVOTEK resolution <available The resolution of the image. resolution> quality The quality of the image. streamid 0~(m-1) <product The stream number. dependent> The server will return the most up-to-date snapshot of the selected channel and stream in JPEG format. The size and quality of the image will be set according to the video settings on the server.
Page 172: System Logs
VIVOTEK userpass <value> The password of the new user to add or that of the old user to modify. The default value is an empty string. Privilege <value> The privilege of the user to add or to modify. viewer Viewer privilege.
Page 172: System Logs
VIVOTEK userpass <value> The password of the new user to add or that of the old user to modify. The default value is an empty string. Privilege <value> The privilege of the user to add or to modify. viewer Viewer privilege.
Page 173 VIVOTEK \r\n <multipart encoded form data> Server will accept the file named <file name> to upgrade the firmware and return with <return page> if indicated. 8.9 Camera Control (capability.ptzenabled) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/camctrl.cgi?[channel=<value>][&camid=<value>] [&move=<value>] – Move home, up, down, left, right [&focus=<value>] –...
Page 173 VIVOTEK \r\n <multipart encoded form data> Server will accept the file named <file name> to upgrade the firmware and return with <return page> if indicated. 8.9 Camera Control (capability.ptzenabled) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/camctrl.cgi?[channel=<value>][&camid=<value>] [&move=<value>] – Move home, up, down, left, right [&focus=<value>] –...
Page 174 VIVOTEK left Move camera left. right Move camera right. speedpan -5 ~ 5 Set the pan speed. speedtilt -5 ~ 5 Set the tilt speed. speedzoom -5 ~ 5 Set the zoom speed. speedfocus -5 ~ 5 Set the focus speed.
Page 174 VIVOTEK left Move camera left. right Move camera right. speedpan -5 ~ 5 Set the pan speed. speedtilt -5 ~ 5 Set the tilt speed. speedzoom -5 ~ 5 Set the zoom speed. speedfocus -5 ~ 5 Set the focus speed.
Page 175 VIVOTEK Focus on further distance. near Focus on closer distance. iris auto Let the Network Camera control iris size. open Manually control the iris for bigger size. close Manually control the iris for smaller size. speedlink 0 ~ 4 Issue speed link command.
Page 175 VIVOTEK Focus on further distance. near Focus on closer distance. iris auto Let the Network Camera control iris size. open Manually control the iris for bigger size. close Manually control the iris for smaller size. speedlink 0 ~ 4 Issue speed link command.
Page 176 VIVOTEK PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of video source. stream <0~(m-1)> Stream. move home Move to home ROI. Move up. down Move down. left Move left. right Move right. auto Auto pan. patrol Auto patrol. stop Stop auto pan/patrol.
Page 176 VIVOTEK PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of video source. stream <0~(m-1)> Stream. move home Move to home ROI. Move up. down Move down. left Move left. right Move right. auto Auto pan. patrol Auto patrol. stop Stop auto pan/patrol.
Page 177 VIVOTEK return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according to the current path. 8.11 Recall (capability.ptzenabled) Note: This request requires Viewer privileges.
Page 177 VIVOTEK return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according to the current path. 8.11 Recall (capability.ptzenabled) Note: This request requires Viewer privileges.
Page 178 VIVOTEK 8.12 ePTZ Recall (capability.eptz > 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>& recall=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of the video source. stream <0~(m-1)> Stream. recall Text string less than One of the present positions to recall.
Page 178 VIVOTEK 8.12 ePTZ Recall (capability.eptz > 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>& recall=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of the video source. stream <0~(m-1)> Stream. recall Text string less than One of the present positions to recall.
Page 179 VIVOTEK relative path according to the current path. If you omit this parameter, it will redirect to an empty page. 8.14 ePTZ Preset Locations (capability.eptz > 0) Note: This request requires Operator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/operator/ePreset.cgi?channel=<value>&stream=<value> [&addpos=<value>][&delpos=<value>][&return=<return page>] PARAMETER...
Page 179 VIVOTEK relative path according to the current path. If you omit this parameter, it will redirect to an empty page. 8.14 ePTZ Preset Locations (capability.eptz > 0) Note: This request requires Operator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/operator/ePreset.cgi?channel=<value>&stream=<value> [&addpos=<value>][&delpos=<value>][&return=<return page>] PARAMETER...
Page 180 VIVOTEK adddeny Add denied IP address range to the server. Start and end parameters must be specified. If the index parameter is specified, it will try to add starting from the index position. deleteallow Remove allowed IP address range from server. If start and end parameters are specified, it will try to remove the matched IP address.
Page 180 VIVOTEK adddeny Add denied IP address range to the server. Start and end parameters must be specified. If the index parameter is specified, it will try to add starting from the index position. deleteallow Remove allowed IP address range from server. If start and end parameters are specified, it will try to remove the matched IP address.
Page 181 VIVOTEK <IP address> Single address: <IP address> Network address: <IP address / network mask> Range address:<start IP address - end IP address> index <value> The start position to add or to delete. Redirect to the page <return page> after the parameter is return <return page>...
Page 181 VIVOTEK <IP address> Single address: <IP address> Network address: <IP address / network mask> Range address:<start IP address - end IP address> index <value> The start position to add or to delete. Redirect to the page <return page> after the parameter is return <return page>...
Page 182 VIVOTEK channel 0 ~ (n-1) The channel number of UART. 8.17 Event/Control HTTP Tunnel Channel (capability. evctrlchannel > 0) Note: This request requires Administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/ctrlevent.cgi ------------------------------------------------------------------------- GET /cgi-bin/admin/ctrlevent.cgi x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache...
Page 182 VIVOTEK channel 0 ~ (n-1) The channel number of UART. 8.17 Event/Control HTTP Tunnel Channel (capability. evctrlchannel > 0) Note: This request requires Administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/ctrlevent.cgi ------------------------------------------------------------------------- GET /cgi-bin/admin/ctrlevent.cgi x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache...
Page 183 VIVOTEK 8.18 Get SDP of Streams Note: This request requires Viewer access privileges. Method: GET Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP.
Page 183 VIVOTEK 8.18 Get SDP of Streams Note: This request requires Viewer access privileges. Method: GET Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP.
Page 184 VIVOTEK 8.20 Senddata (capability.nuart > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/senddata.cgi? [com=<value>][&data=<value>][&flush=<value>] [&wait=<value>] [&read=<value>] PARAMETER VALUE DESCRIPTION 1 ~ <max. com port The target COM/RS485 port number. number> data <hex decimal The <hex decimal data> is a series of digits from 0 ~ 9, A ~ data>[,<hex decimal...
Page 184 VIVOTEK 8.20 Senddata (capability.nuart > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/senddata.cgi? [com=<value>][&data=<value>][&flush=<value>] [&wait=<value>] [&read=<value>] PARAMETER VALUE DESCRIPTION 1 ~ <max. com port The target COM/RS485 port number. number> data <hex decimal The <hex decimal data> is a series of digits from 0 ~ 9, A ~ data>[,<hex decimal...
Page 185 VIVOTEK 8.21 Storage managements (capability.storage.dbenabled > 0) Note: This request requires administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…] The commands usage and their input arguments are as follows. PARAMETER VALUE DESCRIPTION cmd_type <string> Required. Command to be executed, including search, insert, delete, update, and queryStatus.
Page 185 VIVOTEK 8.21 Storage managements (capability.storage.dbenabled > 0) Note: This request requires administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…] The commands usage and their input arguments are as follows. PARAMETER VALUE DESCRIPTION cmd_type <string> Required. Command to be executed, including search, insert, delete, update, and queryStatus.
Page 186 VIVOTEK Indicate if the file is locked or not. 0: file is not locked. 1: file is locked. A locked file would not be removed from UI or cyclic storage. triggerTime <text> Optional. Indicate the event trigger time. (not the file created time) Format is “YYYY-MM-DD HH:MM:SS”...
Page 186 VIVOTEK Indicate if the file is locked or not. 0: file is not locked. 1: file is locked. A locked file would not be removed from UI or cyclic storage. triggerTime <text> Optional. Indicate the event trigger time. (not the file created time) Format is “YYYY-MM-DD HH:MM:SS”...
Page 187 VIVOTEK PARAMETER VALUE DESCRIPTION label <integer primary key> Required. Identify the designated record. Ex. label=1 isLocked <boolean> Required. Indicate if the file is locked or not. Ex. Update records whose key numbers are 1 and 5 to be locked status.
Page 187 VIVOTEK PARAMETER VALUE DESCRIPTION label <integer primary key> Required. Identify the designated record. Ex. label=1 isLocked <boolean> Required. Indicate if the file is locked or not. Ex. Update records whose key numbers are 1 and 5 to be locked status.
Page 188 VIVOTEK Element name Type Description label <Integer Primary Key> A unique integer. triggerType <Text> Indicate the event trigger type. mediaType <Text> Indicate the file media type. destPath <Text> Indicate the file location in camera. resolution <Text> Indicate the media file resolution.
Page 188 VIVOTEK Element name Type Description label <Integer Primary Key> A unique integer. triggerType <Text> Indicate the event trigger type. mediaType <Text> Indicate the file media type. destPath <Text> Indicate the file location in camera. resolution <Text> Indicate the media file resolution.
Page 189 VIVOTEK </i0> <i1> <label>2</label> <triggerType>di</triggerType> <mediaType>snapshot</mediaType> <destPath>/mnt/auto/NCMF/123/123.jpg</destPath> <resolution>800x600</resolution> <isLocked>0</isLocked> <triggerTime>2009-01-24 12:01:00</triggerTime> <backup>0</backup> </i1> </stormgr> Ex. Local storage status in XML format. <?xml version="1.0" encoding="ISO-8859-1" ?> <stormgr version="0.0.0.1"> <disk> <i0> <name>SDcard</name> <status>ready</status> <totalSize>7824444</totalSize> <freeSize>7824388</freeSize> <usedSize>56</usedSize> </i0> </disk> </stormgr> Ex. Local storage status in javascript format.
Page 189 VIVOTEK </i0> <i1> <label>2</label> <triggerType>di</triggerType> <mediaType>snapshot</mediaType> <destPath>/mnt/auto/NCMF/123/123.jpg</destPath> <resolution>800x600</resolution> <isLocked>0</isLocked> <triggerTime>2009-01-24 12:01:00</triggerTime> <backup>0</backup> </i1> </stormgr> Ex. Local storage status in XML format. <?xml version="1.0" encoding="ISO-8859-1" ?> <stormgr version="0.0.0.1"> <disk> <i0> <name>SDcard</name> <status>ready</status> <totalSize>7824444</totalSize> <freeSize>7824388</freeSize> <usedSize>56</usedSize> </i0> </disk> </stormgr> Ex. Local storage status in javascript format.
Page 190 VIVOTEK Ex. retype=javascript The default return message is in XML format. Ex. Query local storage status and call for javascript format return message. http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=queryStatus&retType=javascript There are two cgi commands for download and composing jpegs to avi format. For download single selected file, you can use “/cgi-bin/admin/downloadMedias.cgi”. Just assign the request file path to this cgi.
Page 190 VIVOTEK Ex. retype=javascript The default return message is in XML format. Ex. Query local storage status and call for javascript format return message. http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=queryStatus&retType=javascript There are two cgi commands for download and composing jpegs to avi format. For download single selected file, you can use “/cgi-bin/admin/downloadMedias.cgi”. Just assign the request file path to this cgi.
Page 191 VIVOTEK Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>] [&return=<return page>] PARAMETER VALUE DESCRIPTION vi<num> state[(duration)nstate] Ex: vi0=1 Setting virtual input 0 to trigger state Where "state" is 0, 1. “0” Ex: vi0=0(200)1 means inactive or Setting virtual input 0 to normal state, waiting 200 normal state while “1”...
Page 191 VIVOTEK Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>] [&return=<return page>] PARAMETER VALUE DESCRIPTION vi<num> state[(duration)nstate] Ex: vi0=1 Setting virtual input 0 to trigger state Where "state" is 0, 1. “0” Ex: vi0=0(200)1 means inactive or Setting virtual input 0 to normal state, waiting 200 normal state while “1”...
Page 192 VIVOTEK 8.23 Open Timeshift Stream (capability.timeshift > 0, timeshift_enable=1, timeshift_c<n>_s<m>_allow=1) Note: This request requires Viewer access privileges. Syntax: For HTTP push server (MJPEG): http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&refti me=<value>&forcechk&minsft=<value>] For RTSP (MP4 and H264), the user needs to input the URL below into an RTSP compatible player.
Page 192 VIVOTEK 8.23 Open Timeshift Stream (capability.timeshift > 0, timeshift_enable=1, timeshift_c<n>_s<m>_allow=1) Note: This request requires Viewer access privileges. Syntax: For HTTP push server (MJPEG): http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&refti me=<value>&forcechk&minsft=<value>] For RTSP (MP4 and H264), the user needs to input the URL below into an RTSP compatible player.
Page 193 VIVOTEK integer> accept at least. (Used by forcechk) Return Code Description 400 Bad Request Request is rejected because some parameter values are illegal. 415 Unsupported Media Type Returned, if forcechk appears, when minsft is not achievable or the timeshift feature of the target stream is not enabled.
Page 193 VIVOTEK integer> accept at least. (Used by forcechk) Return Code Description 400 Bad Request Request is rejected because some parameter values are illegal. 415 Unsupported Media Type Returned, if forcechk appears, when minsft is not achievable or the timeshift feature of the target stream is not enabled.
Page 194 VIVOTEK mjpeg_qvalue 10~200 Manual video quality level 2~97 <product input. <product dependent> dependent> (This must be present if mjpeg_quant is equal to 0, 99) <product dependent> mjpeg_maxframe 1~25, Set maximum frame rate in fps 26~30 (only for NTSC or (for JPEG).
Page 194 VIVOTEK mjpeg_qvalue 10~200 Manual video quality level 2~97 <product input. <product dependent> dependent> (This must be present if mjpeg_quant is equal to 0, 99) <product dependent> mjpeg_maxframe 1~25, Set maximum frame rate in fps 26~30 (only for NTSC or (for JPEG).
Page 195 VIVOTEK input setting. 1 = worst quality, 5 = best quality. <product dependent> h264_qvalue 0~51 Manual video quality level <product dependent> <product input. dependent> (This must be present if h264_quant is equal to 0, 99) <product dependent> h264_bitrate 1000~8000000 512000...
Page 195 VIVOTEK input setting. 1 = worst quality, 5 = best quality. <product dependent> h264_qvalue 0~51 Manual video quality level <product dependent> <product input. dependent> (This must be present if h264_quant is equal to 0, 99) <product dependent> h264_bitrate 1000~8000000 512000...
Page 196 VIVOTEK position 0 ~ 150 if Motor’s position. function=zoom. It works only if function=zoom | focus and 0 ~ 300 if direction=direct. function=focus. steps 1 ~ 5 Motor’s moving steps. It works only if function=zoom | focus and direction=forward | backward.
Page 196 VIVOTEK position 0 ~ 150 if Motor’s position. function=zoom. It works only if function=zoom | focus and 0 ~ 300 if direction=direct. function=focus. steps 1 ~ 5 Motor’s moving steps. It works only if function=zoom | focus and direction=forward | backward.
Page 197 VIVOTEK filename =<file name>\r\n \r\n <multipart encoded form data> For language file: http://<servername>/cgi-bin/admin/upload_lan.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data> For setting backup file: http://<servername>/cgi-bin/admin/upload_backup.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upload this one to camera.
Page 197 VIVOTEK filename =<file name>\r\n \r\n <multipart encoded form data> For language file: http://<servername>/cgi-bin/admin/upload_lan.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data> For setting backup file: http://<servername>/cgi-bin/admin/upload_backup.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upload this one to camera.
Page 198 VIVOTEK file <string> The media file to be played. tsmode <positive integer> Timeshift mode, the unit is second. stime etime length file Description Play recordings between stime and etime rtsp://10.10.1.2/mod.sdp?stime=20110312_040400.000&etim e=2011_0312_040510.000 Play recordings for length seconds which start from stime rtsp://10.10.1.2/mod.sdp?stime=20110312_040400.000&leng...
Page 198 VIVOTEK file <string> The media file to be played. tsmode <positive integer> Timeshift mode, the unit is second. stime etime length file Description Play recordings between stime and etime rtsp://10.10.1.2/mod.sdp?stime=20110312_040400.000&etim e=2011_0312_040510.000 Play recordings for length seconds which start from stime rtsp://10.10.1.2/mod.sdp?stime=20110312_040400.000&leng...
Page 199: Technical Specifications
Outdoor wireless access point Outdoor wireless access point PoE injector, 802.3af compliant All speci cations are subject to change without notice. Copyright © 2012 VIVOTEK INC. All rights reserved. Distributed by: VIVOTEK INC. 6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
Page 199: Technical Specifications
VIVOTEK Technical Specifications Technical Specifications Network Models FD8136-F2 (Lens f = 2.5 mm) Users Live viewing for up to 10 clients FD8136-F3 (Lens f = 3.6 mm) Protocols IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, UPnP, FD8136-F6 (Lens f = 6 mm)
Page 200: Technology License Notice
VIVOTEK Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE� THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES� FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM�...
Page 200: Technology License Notice
VIVOTEK Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE� THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES� FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM�...
Page 201 取扱説明書に従って正しい取り扱いをして下さい Liability VIVOTEK Inc� cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice� VIVOTEK Inc� makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose�...
Page 201 取扱説明書に従って正しい取り扱いをして下さい Liability VIVOTEK Inc� cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice� VIVOTEK Inc� makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose�...

This manual is also suitable for:

Fd8136-f2

Vivotek FD8136 User Manual

Overview

Restoring Defaults

Accessing the Network Camera

Main Page

Client Settings

Configuration

Appendix

Quick Links

Related Manuals for Vivotek FD8136

Summary of Contents for Vivotek FD8136

This manual is also suitable for:

Table of Contents
