Vivotek FD8131 Quick Installation Manual

Vivotek FD8131 Quick Installation Manual

Fixed dome network camera
Hide thumbs Also See for FD8131:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

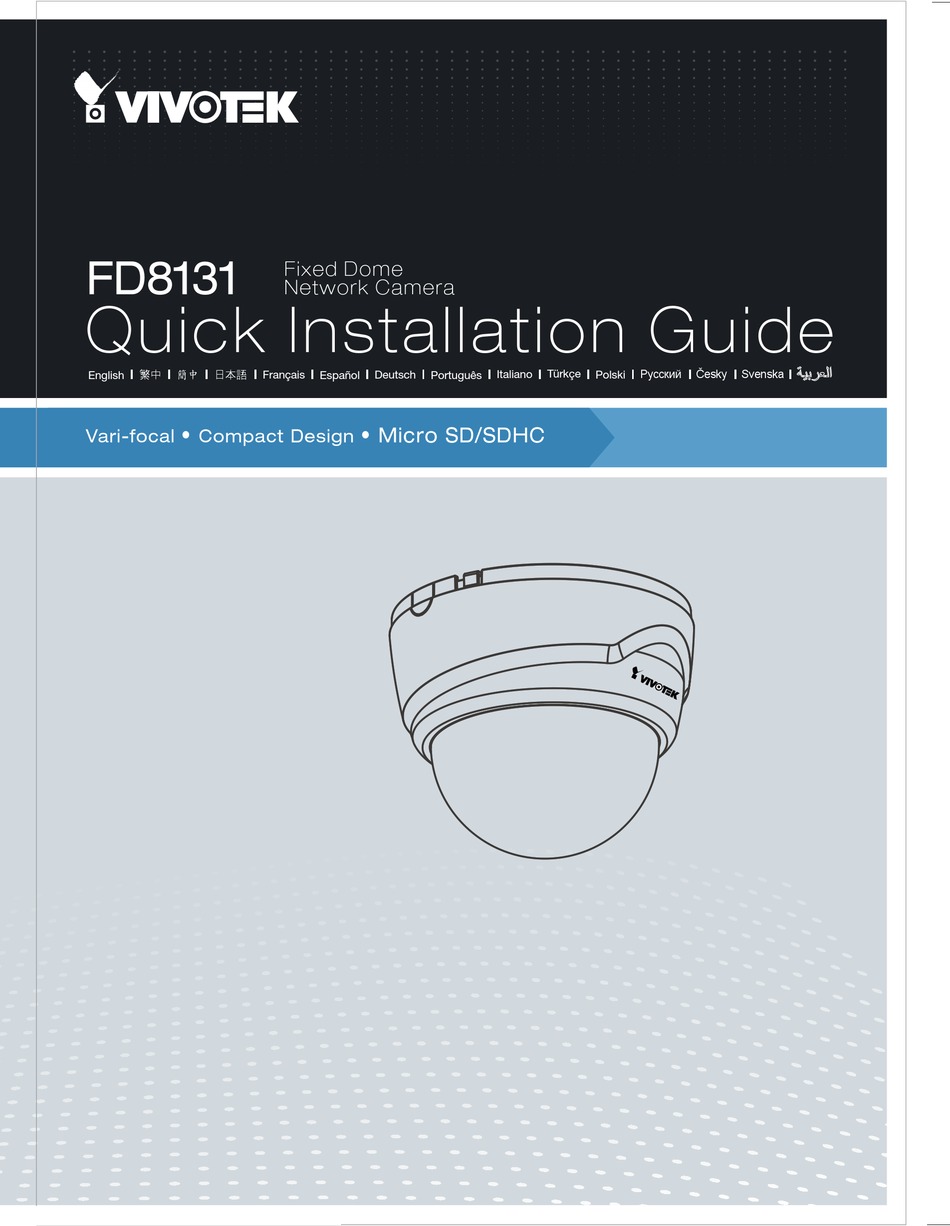

FD8131
Quick Installation Guide
繁中
簡中
日本語
English
•
Vari-focal
Compact Design
Fixed Dome
Network Camera
Deutsch
Français
Español
• Micro SD/SDHC
Italiano
Türkçe
Português
Русский
Česky
Svenska
Polski

Advertisement

Table of Contents
loading

Related Manuals for Vivotek FD8131

Summary of Contents for Vivotek FD8131

  • Page 1 FD8131 Fixed Dome Network Camera Quick Installation Guide Русский Česky Svenska 繁中 簡中 日本語 Deutsch Italiano Türkçe English Français Español Português Polski • • Micro SD/SDHC Vari-focal Compact Design...
  • Page 2 Warning Before Installation Power off the Network Camera as Keep the Network Camera away soon as smoke or unusual odors are from water. If the Network Camera detected. becomes wet, power off immediately. Contact your distributor in the event of Contact your distributor in the event of occurrence.
  • Page 3 Do not place the Network Camera on Do not touch the Network Camera unsteady surfaces. during a lightning storm. Do not disassemble the Network Do not drop the Network Camera. Camera. Do not insert sharp or tiny objects into the Network Camera. EN - 2...

  • Page 4: Package Contents

    Package Contents FD8131 Alignment Sticker Drill hole Cable hole Drill hole RJ45 Female / Female Coupler / Software CD Screws / Clamp Core Quick Installation Guide / Warranty Card FD8131 Fixed Dome Network Camera Quick Installation Guide Русский Česky Svenska English 繁中...

  • Page 5: Physical Description

    First, follow the instructions below to remove the dome cover. Flip the black retention tabs in the counter-clockwise direction to release the dome cover (clockwise if you look from the bottom up.) Dome Cover Network Camera Model No: FD8131 Record the MAC address before MAC:0002D107258A installing the camera. RoHS This device complies with part 15 of the FCC rules.
  • Page 6 Then remove the black cover as shown below. Tilt Adjustment Screws Ceiling Mount Wall Mount 1. Attach the alignment sticker to the ceilling/wall. 2. Through the two circles on the sticker, drill two pilot holes into the ceilling/wall. 3. The Network Camera can be mounted with the cable routed through the ceiling/wall or from the side.

  • Page 7: Network Deployment

    6. Buckle the supplied clamp core onto the cable to prevent EMI radiation. The clamp core should be installed at least 5cm away from the camera. 5 cm 7. Connect the ground wire to grounded conduit or a grounded metallic surface. Network Deployment General Connection (without PoE) 1.

  • Page 8: Power Over Ethernet (Poe)

    Power over Ethernet (PoE) When using a PoE-enabled switch This Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. PoE Switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and a...

  • Page 9: Assigning An Ip Address

    “Next” button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After a brief search, the main installer window will pop up. Double-click on the MAC address that matches the one printed on the camera label or the serial number on the package box label to open a browser management session with the Network Camera.

  • Page 10: Ready To Use

    Ready to Use 1. A browser session with the Network Camera should prompt as shown below. 2. You should be able to see live video from your camera. You may also install the 32-channel recording software from the software CD in a deployment consisting of mul- tiple cameras.

  • Page 11: Adjusting The Lens

    Adjusting the Lens Based on the live image retrieved from the camera, adjust the camera lens to the desired viewing angle: 1. Turn the lens module left and right. 2. Loosen the tilt adjustment screws on both sides of the camera and then turn the lens module up and down.

  • Page 12: To Adjust The Zoom Factor And Focus Range

    To adjust the zoom factor and focus range 1. Loosen the zoom controller and then adjust zoom factor by moving the controller left and right. Upon completion, tighten the zoom controller screw. 2. Loosen the focus controller and then adjust focus range by moving the controller left and right.
  • Page 13 P/N:625018300G Rev. 1.0 All specifications are subject to change without notice. Copyright 2012 VIVOTEK INC. All rights reserved. VIVOTEK INC. VIVOTEK USA, INC. 6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. 2050 Ringwood Avenue, San Jose, CA 95131 |T: +886-2-82455282| F: +886-2-82455532| E: sales@vivotek.com...
