Summary of Contents for Vivotek FD8135H

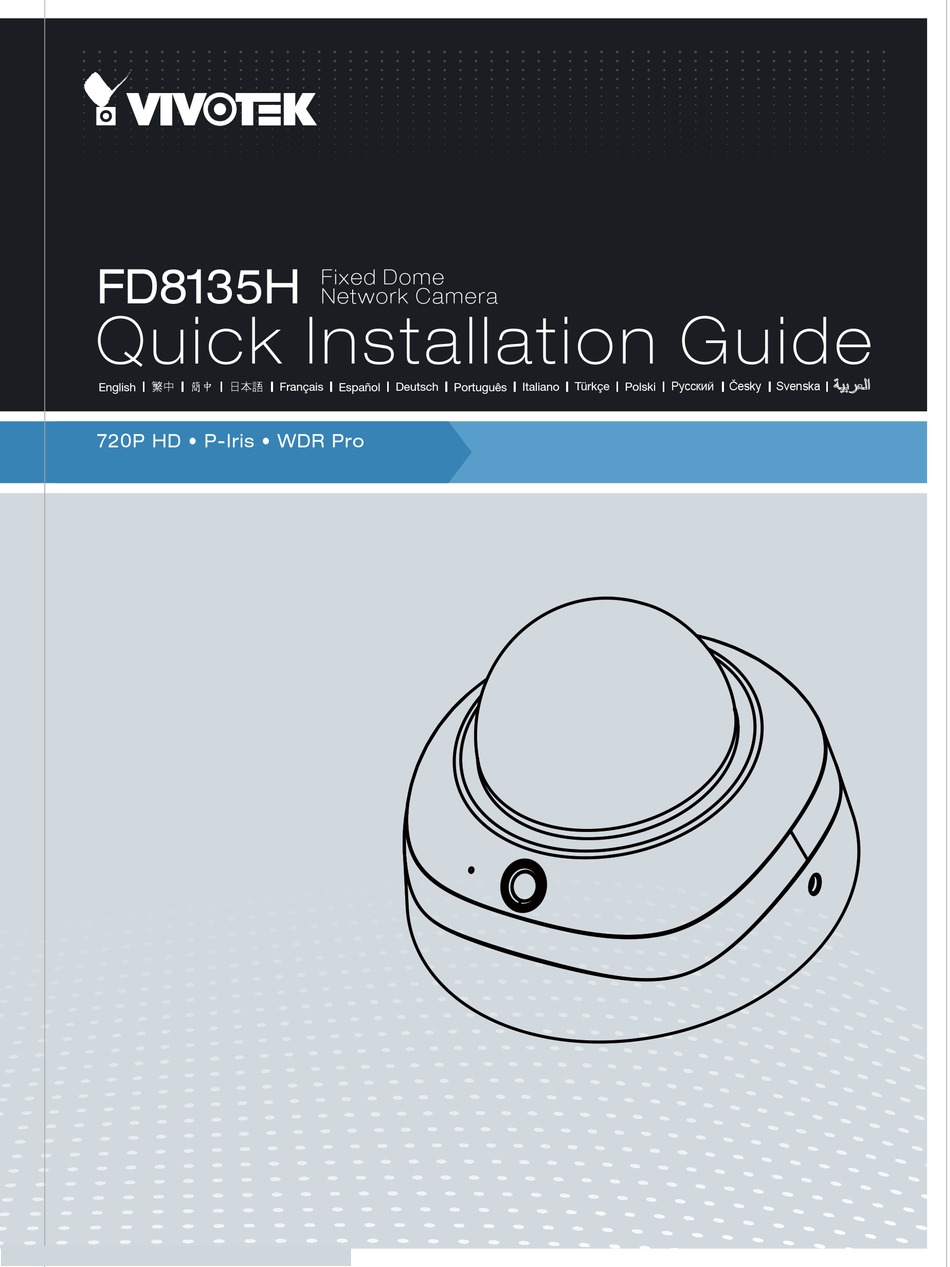

- Page 1 FD8135H Fixed Dome Network Camera Quick Installation Guide Русский Česky Svenska 繁中 簡中 日本語 Türkçe English Français Español Deutsch Português Italiano Polski 720P HD • P-Iris • WDR Pro...
- Page 2 Warning Before Installation Power off the Network Camera as Keep the Network Camera away soon as smoke or unusual odors are from water. If the Network Camera detected. becomes wet, power off immediately. Contact your distributor in the event of Contact your distributor in the event of occurrence.
- Page 3 Do not place the Network Camera on Do not touch the Network Camera unsteady surfaces. during a lightning storm. Do not disassemble the Network Do not drop the Network Camera. Camera. Do not insert sharp or tiny objects into the Network Camera. EN - 2...
-
Page 4: Package Contents
Package Contents FD8135H Alignment Sticker T10 Torx Screwdriver/ Screws / Software CD Plastic Anchors / AV Cable Quick Installation Guide / Warranty Card EN - 3... -
Page 5: Physical Description
Physical Description Camera Front View Light Sensor Black Cover Lens IR LEDs (18 units, effective up to 15m) Focus Assist Button Built-in Reserved Microphone PIR Sensor Camera Rear View NOTE: The max. output load from pins #7 and 8 is 50mA. Micro SD/ SDHC Card Slot... -
Page 6: Hardware Installation
Hardware Installation Side View Top View Before installing your camera, make sure the built-in PIR (Passive Infrared Sensor) can be directed toward the area of interest, where possible intrusion may occur. (The sensitivity of PIR sensor depends on the object size and temperature differences between the object and the background environment.) Bottom of the... -
Page 7: General Connection (Without Poe)
Wall Mount Ceiling Mount 1. Attach the alignment sticker to the ceilling/wall. 2. Through the two circles on the sticker, drill two pilot holes into the ceilling/wall. 3. The Network Camera can be mounted with the cable routed through the ceiling/wall or from the side. -
Page 8: Power Over Ethernet (Poe)
Power over Ethernet (PoE) When using a PoE-enabled switch This Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. NOTE: 1. -
Page 9: Assigning An Ip Address
“Next” button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After a brief search, the main installer window will pop up. Double-click on the MAC address that matches the one printed on the camera label or the S/N number on the package box label to open a browser management session with the Network Camera. -
Page 10: Ready To Use
Ready to Use 1. A browser session with the Network Camera should prompt as shown below. 2. You should be able to see live video from your camera. You may also install the 32- channel recording software from the software CD in a deployment consisting of multiple cameras. -
Page 11: Adjusting The Lens
Adjusting the Lens Based on the live image retrieved from the camera, adjust the camera lens to the desired view angle: 1. Turn the lens module left and right. 2. Loosen the tilt adjustment screws on both sides of the camera and then turn the lens module up and down. - Page 12 NOTE: 1. The Focus Assist button takes effect when using a hand-held monitor or camera tester with a BNC connector. Press the button and use the focus and zoom adjustment pullers to tune the image until the "BEST FOCUS" message is shown. Focus Assist Button LCD Monitor/...
- Page 13 Completion 1. Align the notches on the inner side of the black cover with the rivets on the sides of the lens, and then fix the black cover. 2. If you choose to feed the cable through the ceiling/wall, arrange the cables neatly through the cable hole A (not shown in the drawing).
- Page 14 P/N:625016800G Rev. 1.0 All specifications are subject to change without notice. Copyright 2012 VIVOTEK INC. All rights reserved. VIVOTEK INC. VIVOTEK USA, INC. 6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. 2050 Ringwood Avenue, San Jose, CA 95131 |T: +886-2-82455282| F: +886-2-82455532| E: sales@vivotek.com...
