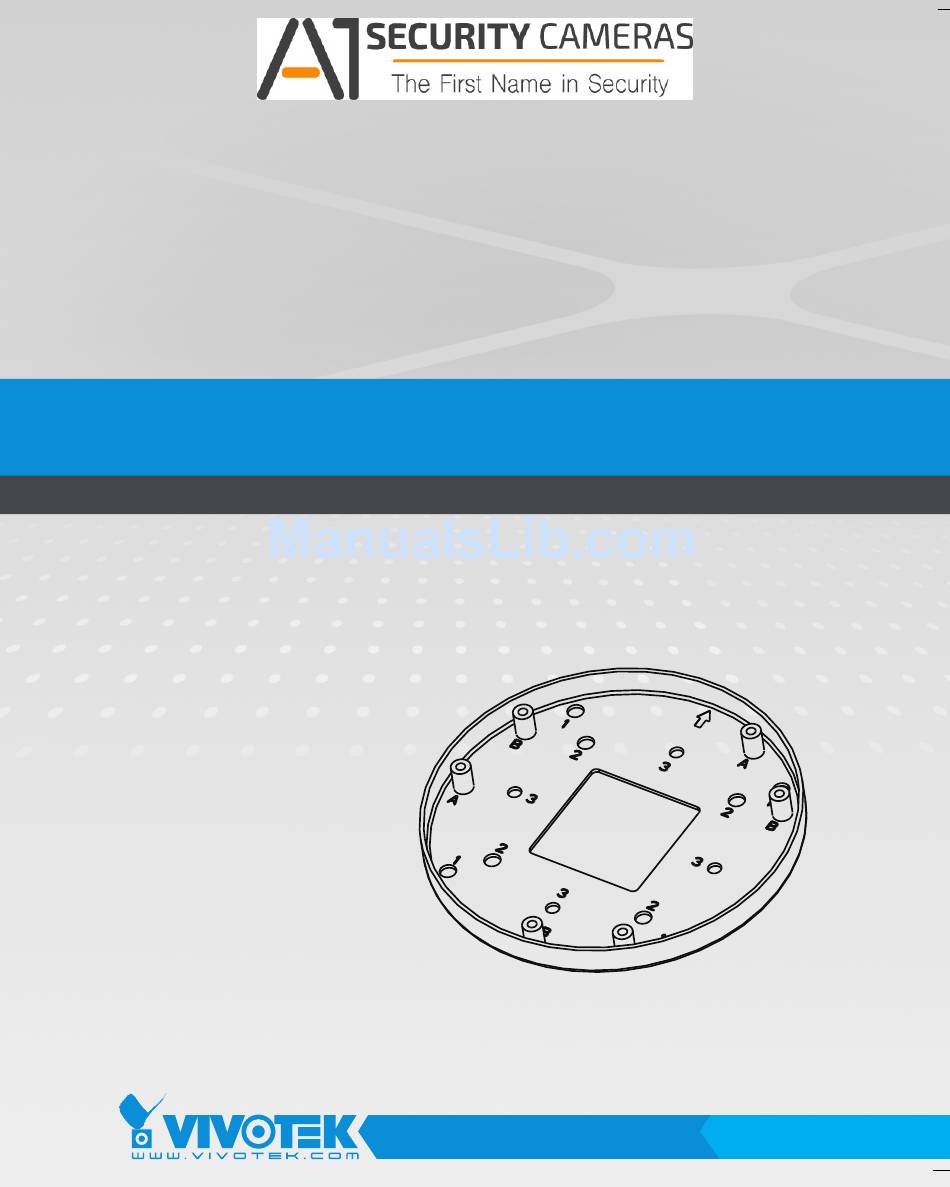

Mounting Cap
Installation Guide
Using AM-514 mounting cap
and compatible accessories
Ordering part no.:
100138800G ASS'Y KIT,AM-514_V01
Part no.: 625031700G
Rev. 1.0
IP Sur veillance

Advertisement

loading

Summary of Contents for Vivotek FD9171

  • Page 1 VIVOTEK Fixed Dome & Fisheye Series Mounting Cap Installation Guide Using AM-514 mounting cap and compatible accessories Rev. 1.0 Ordering part no.: 100138800G ASS'Y KIT,AM-514_V01 Part no.: 625031700G IP Sur veillance Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
  • Page 2 FD8167 / FD8138-H / FD9171 / FD816B / FD8182 Fisheye FE8174 You may also refer to VIVOTEK's website for the list of supported models. Support for other models can be available through time. Package Contents: AM-514, Installation Guide, 4x panhead M4x7, 2x copper spacer, Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
  • Page 3: Installation

    Installation Mounting Hole Definitions User a hammer and screwdriver to open the knock out holes you prefer to use. Above are the locations of different groups of mounting holes for matching different junction boxes: Hole Applicable Box Drawings Screw No. of Type screws 4"...
  • Page 4 Hole Applicable Cameras Screw No. of screws Type FD9171, FD816B, #8-32, L15 (User-supplied) FD8182 FD8167, FD8138-H #8-32, L15 (User-supplied) FE8174 #6-32, L15 (User-supplied) + copper spacers NOTE: 1. Route cables before you secure the accessories to a wall. 2. For details on the cable connections with network cameras, please refer to their Quick Installation Guide.
  • Page 5 2. If installing FE8174 fisheye camera, install two copper spacers to holes 1's. 3. Install the mount cap to the junction box. Use screw holes specified on page 3 depending on the type of junction box. Hole 1 Hole 1 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
  • Page 6 4-1. FE8174. 4-1-1. Install the camera to the mount cap by fastening two screws to the threaded holes on the copper spacers. 4-1-2. Connect the cables and install the top cover. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
  • Page 7 4-2. FD9171/FD816B/FD8182. 4-2-1. Install the camera to the mount cap by fastening three screws. You will need to remove the plastic tab on the routing hole in order to pass the cables. 4-2-2. Connect the cables and install the top cover.
  • Page 8 4-3. FD8167/FD8138H. 4-3-1. Fasten screws to the mounting cap. Do not completely tighten the screws. Leave part of the screws out. 4-3-2. Install the camera to the mounting cap by turning it counter-clockwise so that the screw heads fit in the keyhole slots. Fasten the screws, and then connect the cables. 4-3-3.
