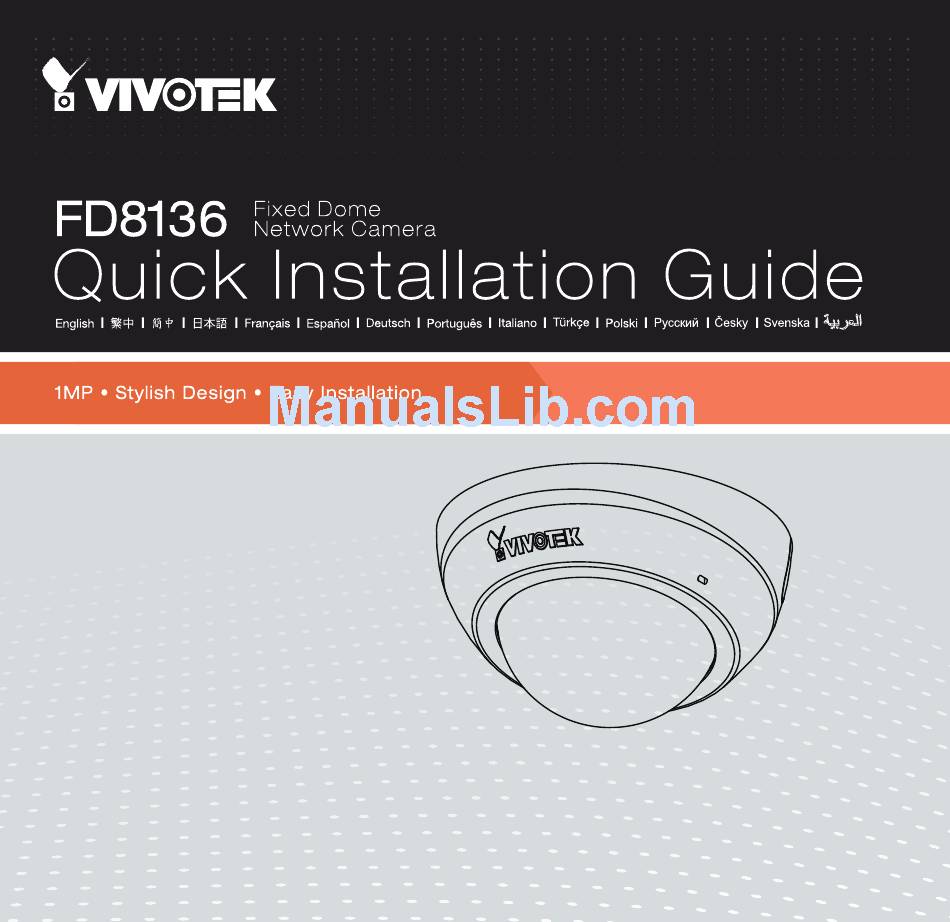

Vivotek FD8136 Quick Installation Manual

Vivotek FD8136 Quick Installation Manual

Fixed dome network camera
Hide thumbs Also See for FD8136:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for Vivotek FD8136

Summary of Contents for Vivotek FD8136

  • Page 2 Warning Before Installation Power off the Network Camera as soon as Keep the Network Camera away from water. smoke or unusual odors are detected. If the Network Camera becomes wet, power off immediately. Contact your distributor in the event of Contact your distributor in the event of occurrence.

  • Page 3: Package Contents

    Package Contents FD8136 Screws Quick Installation Guide / Software CD Warranty Card Focus Adjustment Tool NOTE: All cables are user-supplied. Use a CAT5 standard UTP or better quality cable. In order to pass the Ethernet cable through the routing path, the maximum cable diameter allowed is 5.2mm.

  • Page 4: Physical Description

    Physical Description Outer View Leave the slide cover in place if you route cables through the bottom and then through a hole on the ceiling or wall. Inner View Side View Slide cover Release tab RJ-45 Socket Lens Tilt adjustment screw Digital input DI+ DI-...

  • Page 5: Hardware Installation

    Hardware Installation Slide cover Semi-circular cut-out Removing the Dome Cover 1. Use one hand to hold the camera bottom and another hand to hold the dome cover. Press the release button. 2. Remove the dome cover. 3. Remove the slide cover if you want to route cables from the side of camera instead of a hole on the ceiling or wall.
  • Page 6 Mounting the Network Camera - Ceiling or Wall Mount 1. Use the curved slots on the camera as a template to mark where holes will be drilled on the ceiling. Drill two holes into the ceiling; and hammer in the plastic anchors. 2.

  • Page 7: Network Deployment

    Network Deployment Power over Ethernet (PoE) When using a PoE-enabled switch This Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the camera to a PoE-enabled switch via Ethernet cable. PoE Switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch.

  • Page 8: Assigning An Ip Address

    “Next” button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After a brief search, the main installer window will pop up. Double-click on the MAC address that matches the one printed on the camera label or the S/N number on the package box label to open a browser management session with the Network Camera.

  • Page 9: Ready To Use

    Ready to Use 1. A browser session with the Network Camera should prompt as shown below. 2. You should be able to see live video from your camera. You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras. For its installation details, please refer to its related documents.

  • Page 10: Adjusting The Lens

    Adjusting the Lens WARNING Do not use your hands to tune the lens module's tilt angle. Doing so will damage the delicate tilt mechanism. 1. There is a tilt adjustment screw near the lens module. Use a #0, #1, or #2 Phillips screwdriver to turn the screw and the lens will move upwards or downwards.
  • Page 11 4. With a live video feed, you can place the included focus adjustment tool carefully on the lens, and use it to turn the lens clockwise or counter-clockwise to adjust to the best image focus. You may try tuning the focus slightly closer due to the concern that focus might be changed when the dome cover is installed.
