Gorilla Carts G0R209-W Owner's Manual

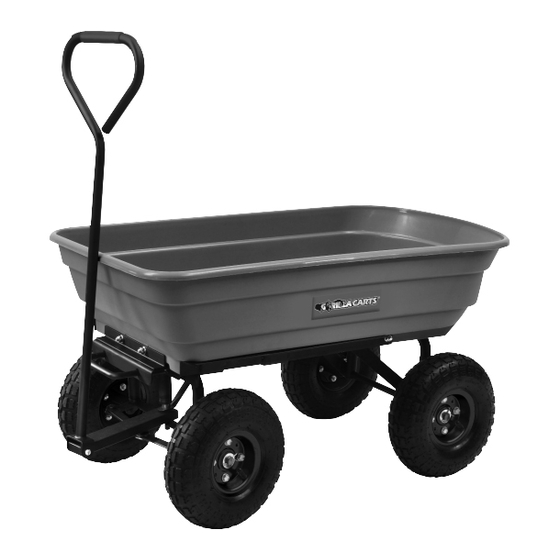

Garden dump cart

Enlarged version

GOR209-W_se_manual

11/6/09

11:48 AM

Page 1

Garden

Dump

Cart

Owners Manual

Model GOR209-W

• Important Safety Instructions

• Assembly Instructions

• Parts and Hardware Identification

CAUTION:

Read, understand and follow ALL instructions before using this product.

For product inquiries:

Tricam

7677 Equitable Drive

Eden Prairie, MN 55344

800-867-6763

www.gorillacarts.net

U.S. Patent #s 6,851,756 and 7,390,065

Other U.S. and Foreign Patents Pending

11/09

Table of Contents

Need help?

Do you have a question about the G0R209-W and is the answer not in the manual?

Page 1 GOR209-W_se_manual 11/6/09 11:48 AM Page 1 Garden Dump Cart U.S. Patent #s 6,851,756 and 7,390,065 Other U.S. and Foreign Patents Pending Owners Manual Model GOR209-W • Important Safety Instructions • Assembly Instructions • Parts and Hardware Identification CAUTION: Read, understand and follow ALL instructions before using this product. For product inquiries: Tricam 7677 Equitable Drive...
Page 2: Parts List
GOR209-W_se_manual 11/6/09 11:48 AM Page 3 Exploded Drawing for Assembly Parts List A.Tray (1) B. Lock Assembly (1) C. Front Frame (1) D. Rear Axle Assembly (1) (includes rear axle and left and right struts) E. Rear Axle Support Bar (1) F.
Page 3 GOR209-W_se_manual 11/6/09 11:48 AM Page 5 Important Safety Instructions 1. READ ALL INSTRUCTIONS CAREFULLY BEFORE USE. If you do not understand these instructions, need clarification or further explanation, please call our toll free answer line for assistance at 1-800-867-6763. 2. Do not load the cart with more than 600lb (272kg). Do not use the dumping feature of the cart with more than 300lb (136kg).
Page 4 GOR209-W_se_manual 11/6/09 11:48 AM Page 7 Step 6 Step 7 Attach the wheels by first placing the wheel spacers Attach the handle to the yoke using M8x60 bolt (1pc), M8 (4pcs) onto each axle, then placing the wheel (4pcs) onto lock nut (1pc) and M8 washer (1pc).
