GOR200-dmanual
8/3/07
10:53 AM
Page 1

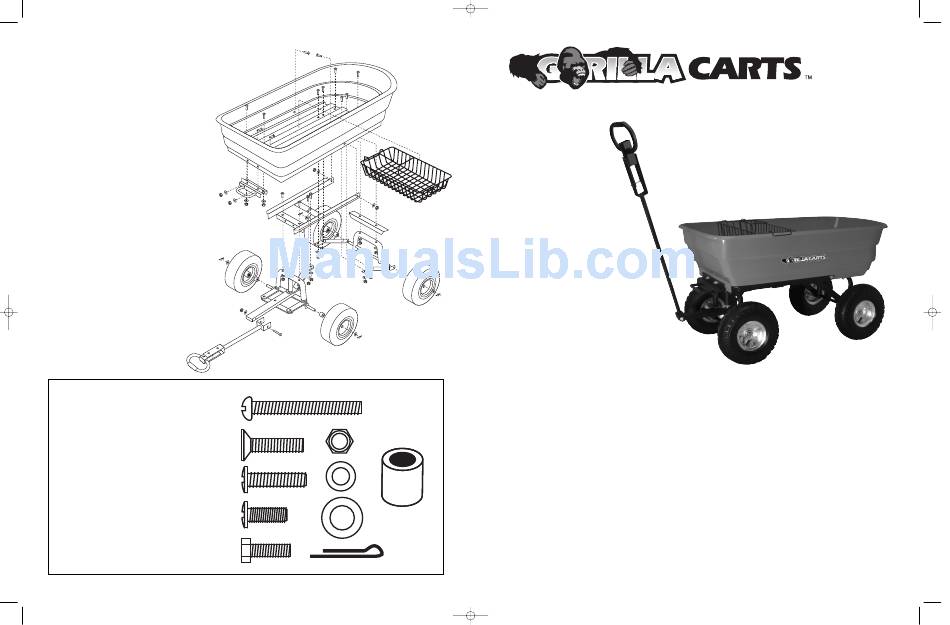

Exploded Drawing for Assembly
Parts List
A. Tub (1)
B. Lock (1)
C. Front Frame (1)
D. Rear Axle Assembly (1)
includes left and right rear
struts and rear axle frame
E. Rear Axle Support Bar (1)
F. Front Axle Assembly (1)
G. 10 inch Wheel
H. Handle (1)
I. Accessory Tray (1)
H.
Hardware List
A. M8x60 Bolt (1)
B. M8x40 Phillips Flat Head Bolt (2)
C. M8x40 Truss Head Bolt (2)
D. M8x20 Truss Head Bolt (10)
E. M8x20 Hex Head Bolt (2)
F. M8 Lock Nut (17)
G. M8 Washer (17)
H. Bushing (4)
I. 15mm Washers (4)
J. Cotter Pin (4)
A.
B.
C.
D.
F.
G.
Images are
A.
not to scale
F.
B.
G.
C.
D.
I.
E.
I.

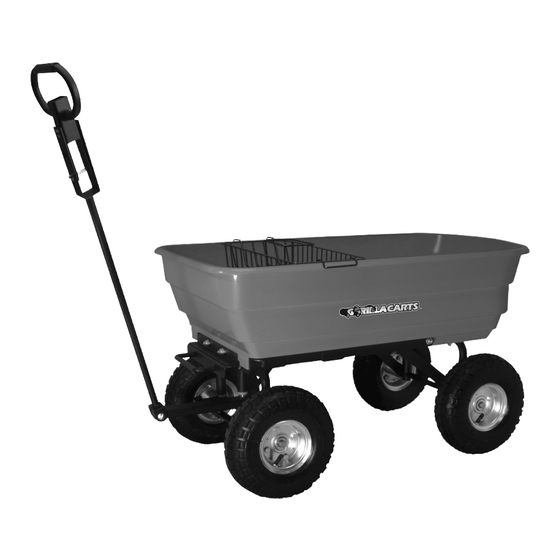

Garden
E.
Dump
Cart
With Accessory Tray
Owners Manual
Model GOR200-D
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
H.
CAUTION:
Read, understand and follow ALL instructions before using this product.
For product inquiries:
Tricam
7677 Equitable Drive
J.
Eden Prairie, MN 55344
800-867-6763
www.gorillacarts.net
U.S. Patent #'s 6,851,756 and 7,210,697
Other U.S. and Foreign Patents Pending
08/07
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Gorilla Carts GOR200-D
Summary of Contents for Gorilla Carts GOR200-D
- Page 1 U.S. Patent #'s 6,851,756 and 7,210,697 Other U.S. and Foreign Patents Pending Owners Manual Hardware List Images are Model GOR200-D A. M8x60 Bolt (1) not to scale B. M8x40 Phillips Flat Head Bolt (2) • Important Safety Instructions C. M8x40 Truss Head Bolt (2) •...
- Page 2 GOR200-dmanual 8/3/07 10:53 AM Page 2 Important Safety Instructions Step 6 Step 7 Assemble the wheels using bushings (4pcs.), washers Assemble the handle to the yoke using M8X60 bolt (1pc.), (4pcs.), and cotter pins (4pcs.). M8 lock nut (1pc.) and washer (1pc.). 1.
