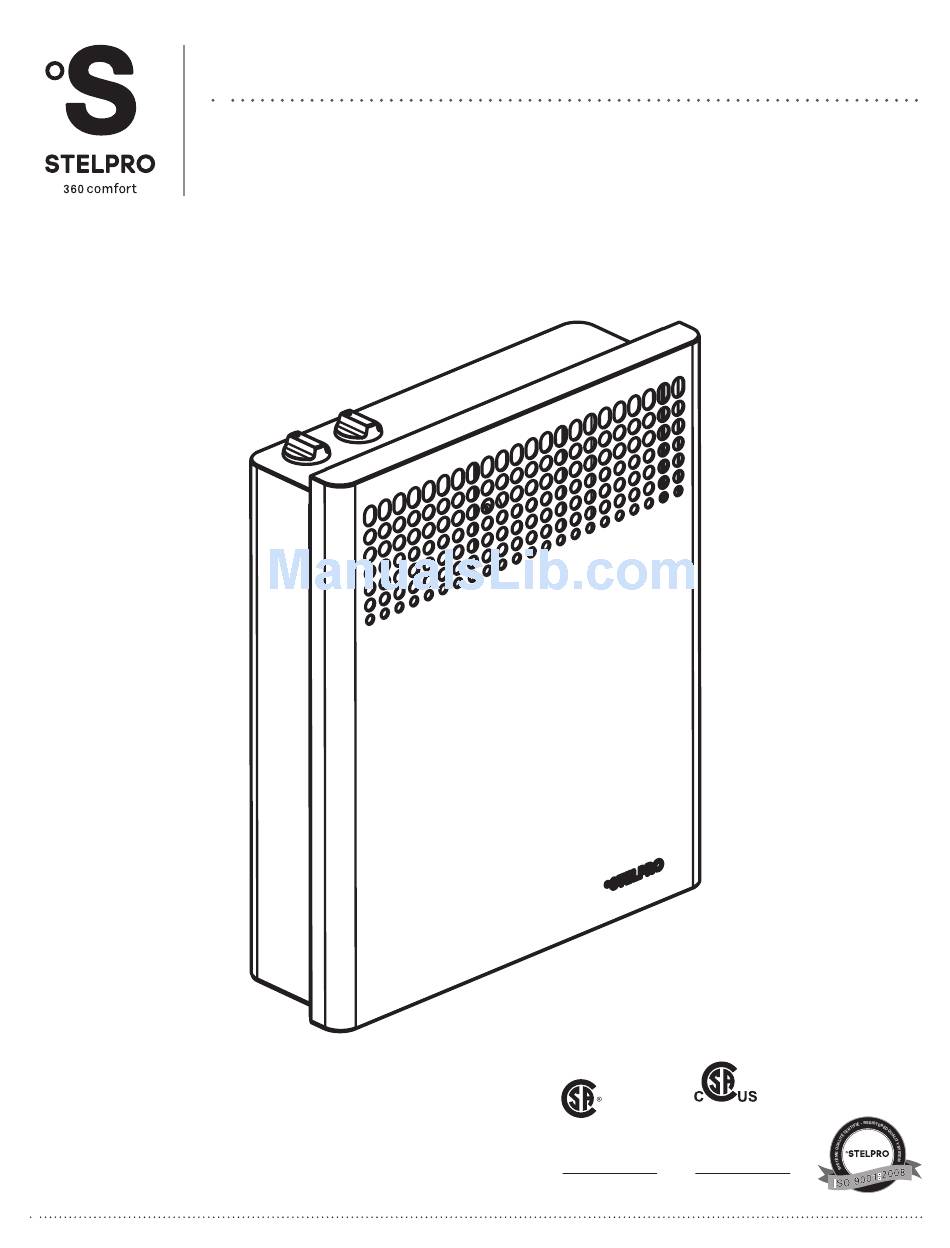

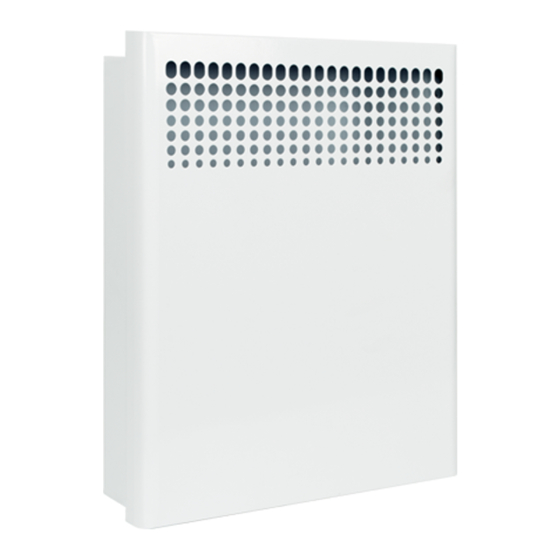

- Page 1 SHCB SERIES BATHROOM FAN HEATER REPLACEMENT COMPONENT LIST INCLUDED This unit complies with This unit CSA and UL complies with CSA standards standards SHCB ASHCB For further information or to consult this guide online, please visit our website at www.stelpro.com INSSHCB1215...
-
Page 2: Important Instructions
If needed, refer to a specialist (industrial and commercial buildings) who will be able to calculate these heat losses and optimize the required capacity or consult the “Online heating calculation” section of the Stelpro Design web site (residential buildings). To heat a large room and to increase your comfort, it is recommended to install several units instead of one. -
Page 3: Installation
TECHNICAL DRAWINGS & INSTALLATION TECHNICAL DRAWINGS 9/16" 14.2mm 11 5/16" 287.5mm 4 1/16" 5 1/4" 3 9/16" 12 7/16" 7/8" 4 7/16" 103.7mm 133.4mm 91.2mm 315.8mm 22.2mm 113.5mm 5 1/16" 128.1mm 2 9/16" 64.7mm 14 1/8" 14 15/16" 5 13/16" 358.1mm 379.3mm 147mm... -
Page 4: Maintenance
OPERATING INSTRUCTIONS & MAINTENANCE OPERATING INSTRUCTIONS WARNING: the heater must be properly installed before it is used. THERMOSTAT FEATURES • Maintains a stable room temperature. • Highest setting offers continuous operation of heater. • Thermostat settings correspond to desired room temperatures and ensure the cycling of the heater. •... -
Page 5: Troubleshooting
TROUBLESHOOTING & REPLACEMENT COMPONENT LIST TROUBLESHOOTING PROBLEM DEFECTIVE PART OR PART TO CHECK - Defective thermostat or wrong thermostat setting - Open circuit breaker or fuse The unit does not work - Thermal protection activated - Faulty connections - Defective thermostat or wrong thermostat setting The unit runs continuously - Heat losses greater than the unit capacity - Defective thermal protection... -
Page 6: Limited Warranty
Moreover, it does not cover the cost of disconnection, transport, and installation. The warranty is limited to the repair or the replacement of the unit or the refund of its purchase price, at the discretion of Stelpro. Any parts replaced or repaired within the warranty period with the written authorization of Stelpro will be warranted for the remainder of the original warranty period.
