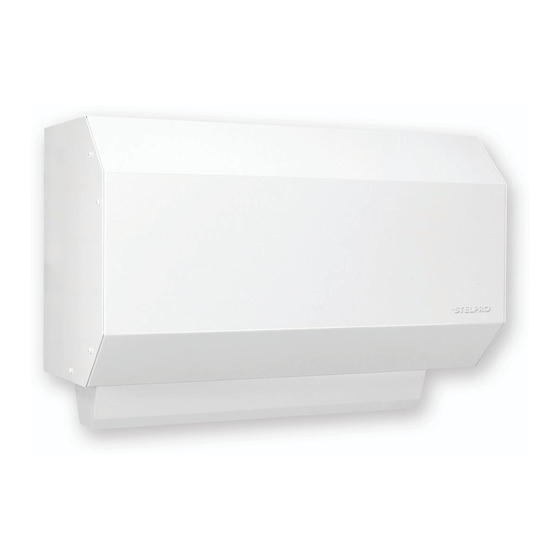

Stelpro SDC Series User Manual

USER'S gUidE
SdC SERiES
CommerCial air Curtain
waRning
Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future refer-
ence. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this product.
This product must be installed by a qualified person and connected by a
in your region.
The following instructions must be adhered to in order to avoid personal injuries or property damages, serious injuries and potentially fatal electric shocks.
Make sure that all screws and electrical terminal connections are tightly secured before operating the unit in case they would have loosened during trans-
portation.
Protect the heating unit with the appropriate circuit breaker or fuse, in accordance with the nameplate.
Make sure the line voltage (volt) is consistent with that indicated on the unit's nameplate.
This unit must be grounded .
Switch off the power at the circuit breaker/fuse before installing, repairing and cleaning the unit.
Make sure the unit is appropriate for the intended use (if needed, refer to the product catalog or a representative).
Recommended heating capacity:
1.25 W/cubic foot (0.03 m³).
It corresponds to 10 W/square foot (0.09 m²)
Do not install the unit where objects or pieces of furniture could be heat damaged.
If the unit's capacity is insufficient for the size of the room, it will be in operation continuously, and may become defective earlier and turn yellow.
Respect distances and positions
If the installer or user modifies the unit, they will be held responsible for any damage resulting from this modification, and the CSA certification could be void.
This unit must not come into contact with a water source and must be protected from splashes (e.g. a wet mop). Do not use it if any part has been immersed.
Moreover, do not turn it on or off when standing in water or if your hands are wet.
When cutting or drilling into a wall, do not damage electrical wiring and other hidden utilities.
Do not install this product on walls made of synthetic material such as, but not limited to, carpet and wallpaper.
For further information or to consult this guide online, please visit our website at www.stelpro.com
replaCement Component liSt inCluded
based on a standard ceiling height of 8 feet (2.44 m).
indicated in the installation section.
DESSIN TECHNIQUE / TECHNICAL DRAWING
APPARE IL
30/11/2011
DATE:
/ UNIT:
DESSINATEUR MIS À JOUR
A. DESMARAIS
/ DRAFTER: UPDATED:
certified electrician , according to the
this unit
complies with
the CSa
standards
SDC
AD_25/10/2013
electrical and building codes effective
INSSDC1213
