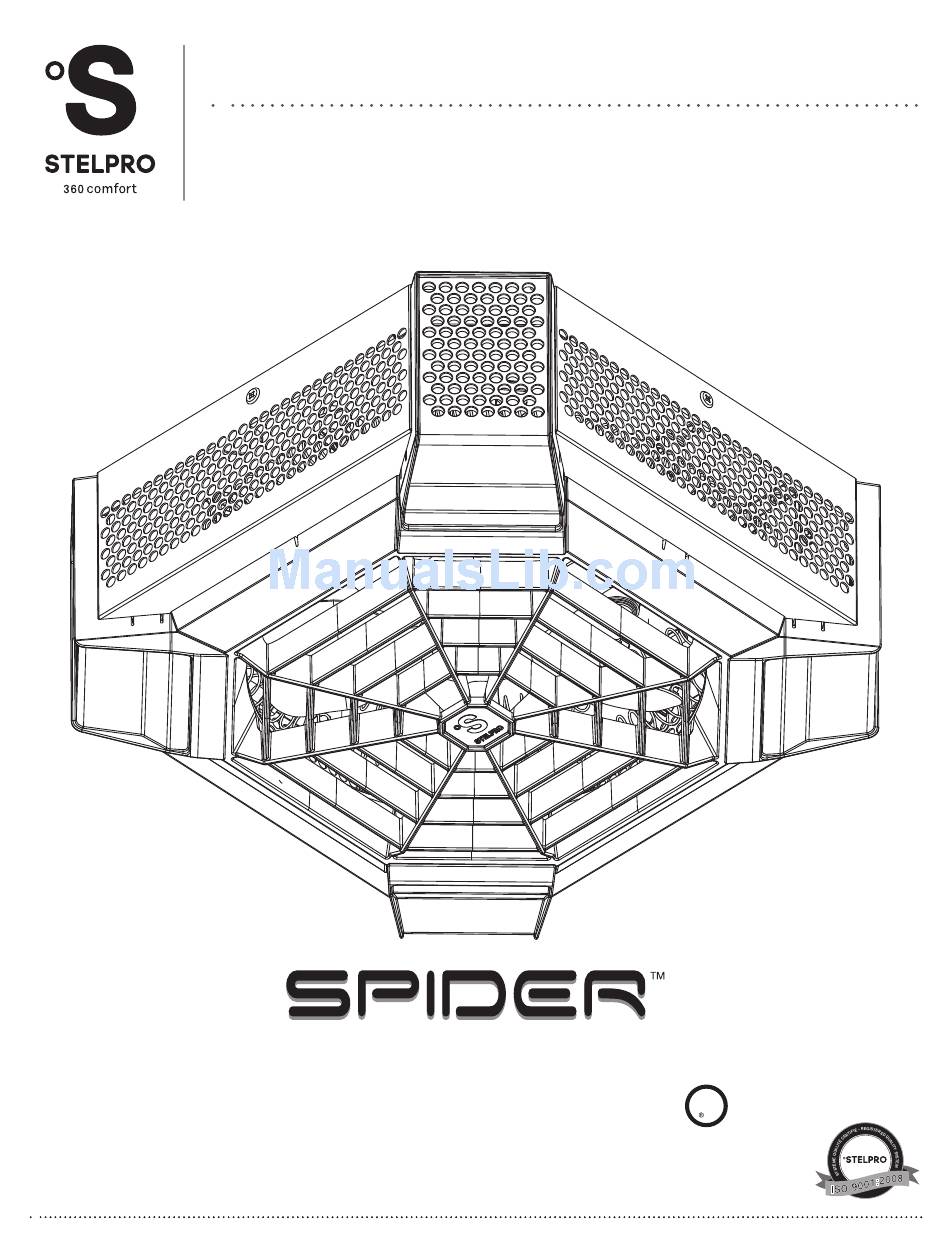

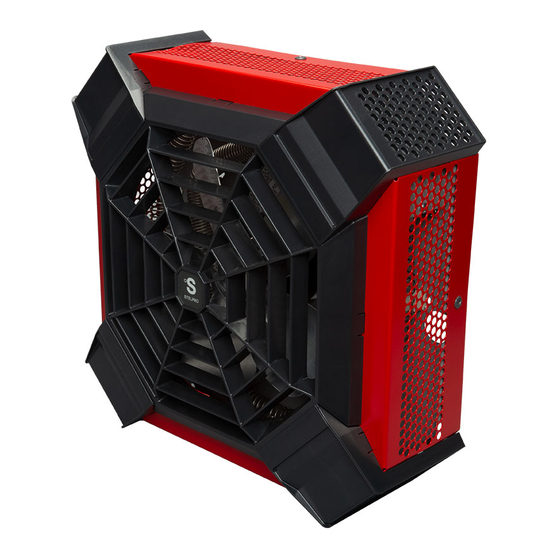

- Page 1 USER’S GUIDE ASGH SERIES CEILING FAN HEATER REPLACEMENT COMPONENT LIST INCLUDED LISTED This unit complies with CSA and UL standards For further information or to consult this guide online, please visit our website at www.stelpro.com INSASGH1015...
-
Page 2: Important Instructions
If needed, refer to a specialist (industrial and commercial buildings) who will be able to calculate these heat losses and optimize the required capacity or consult the “Online heating calculation” section of the Stelpro Design Web site (residential buildings). To heat a large room and to increase your comfort, it is recommended to install several units instead of one. -
Page 3: Installation
INSTALLATION SPECIFICATIONS CEILING FAN HEATER VOLTS 240/208 WATTS 4000/3000 AMPERAGE COLOR RED, YELLOW OR STAINLESS STEEL WEIGHT 10 LB / 4.5 KG TECHNICAL DRAWINGS 11 3/4" 5 1/2" 298.5mm 140mm 13 3/4" 349.7mm KO 7/8'' BACK FRONT SIDE INSTALLATION This unit is designed to be installed on the surface of a finished ceiling,. - Page 4 INSTALLATION FIGURE 1 FIGURE 2 MOUNTING BRACKET HOOK SUSPENSION SLOT INTERNAL ASSEMBLY 12 in. MIN. 12 in. MIN. (305 MM) (305 mm) COVER FIGURE3 FIGURE 4 BACK WIRING COVER -WARNING- USE THIS KO FOR FINISHED CEILING -WARNING- KEEP BARE WIRE INSIDE THE BACK WIRING COVER BLACK...
-
Page 5: Maintenance
MAINTENANCE, TROUBLESHOOTING AND REPLACEMENT COMPONENTS MAINTENANCE N.B. In order for the warranty to be valid, the unit must be Do not use cleaning products identified with these symbols: cleaned regularly. Cut off power supply at circuit breaker/fuse before cleaning the unit. Use a soft rag for dusting. -
Page 6: Limited Warranty
Moreover, it does not cover the cost of disconnection, transport, and installation. The warranty is limited to the repair or the replacement of the unit or the refund of its purchase price, at the discretion of Stelpro. Any parts replaced or repaired within the warranty period with the written authorization of Stelpro will be warranted for the remainder of the original warranty period.
