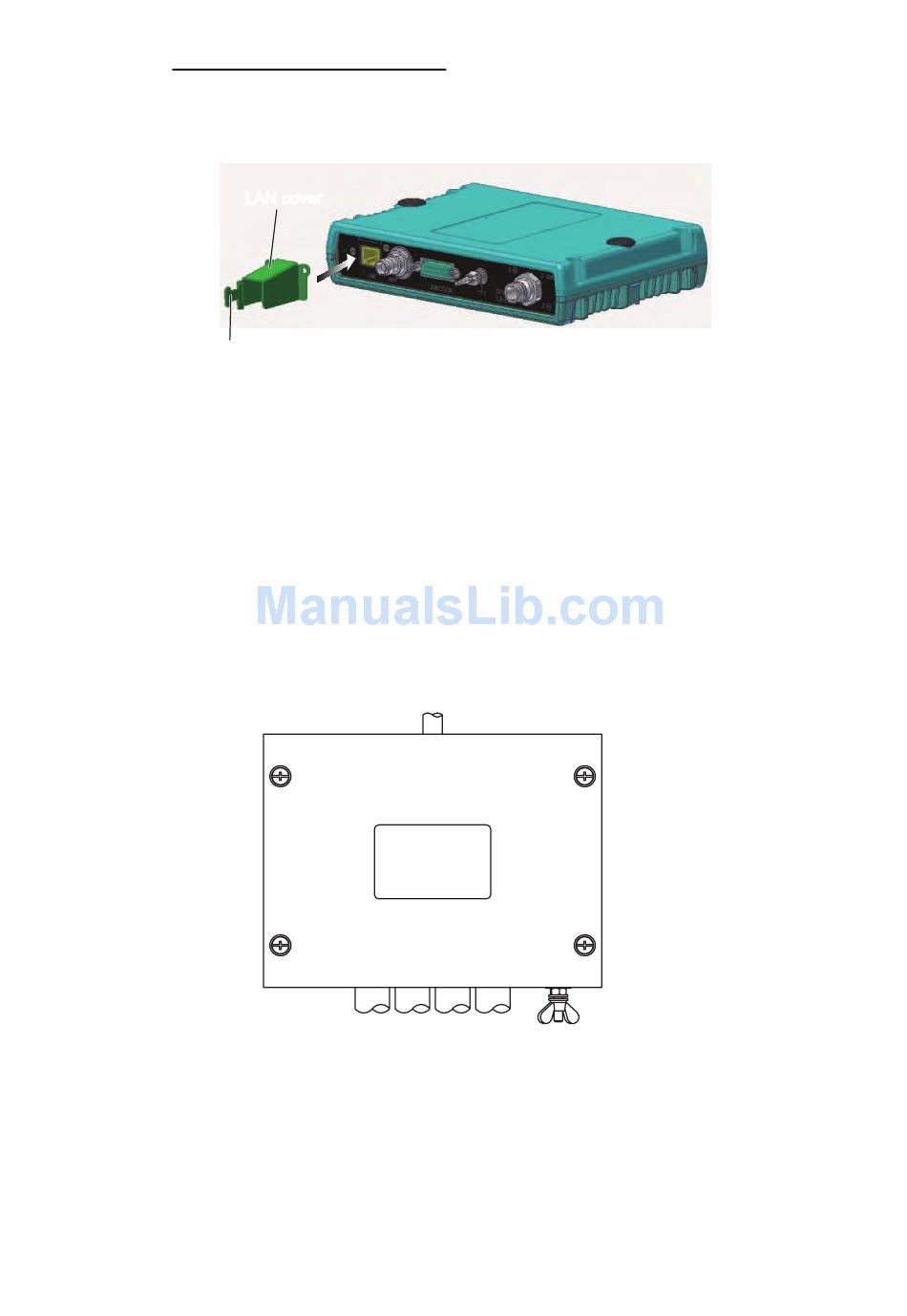

How to connect the LAN cable
Use two binding screws (pre-attached) and the LAN cover to connect the LAN cable
to the communication unit. Use the cable tie (supplied) to fix the cable.
LAN cover
Fix the cable here with a cable tie.
1.3
Junction Box IC-318
The junction box IC-318 is connected to the communication unit by using the cable
assy 16S0344 (2 m, attached to the junction box). Install the junction box within 2 m
from the communication unit.
1. Remove four screws from the unit to separate the bottom chassis from the top
chassis.
2. Fix the bottom chassis to the mounting location with four self-tapping screws
(4x16, supplied).
3. Connect the cables referring to Chapter 2.
Junction box IC-318
1. MOUNTING
1-3
