2. WIRING
2.1
Antenna Cable Connector at the Communication
Unit
5D-FB-CV-NP (30 m)
Outer Sheath
Inner Sheath
Armor
50
Cover with heat-shrink tubing and heat.
Washer
30
Gasket
Nut
Cut braided shield here.
Nut
2-2
Braided Shield
15
Clamp
3.5
Insulator
Core
5
Center Pin
Solder here.
Insulator Ring
Ring
Shell

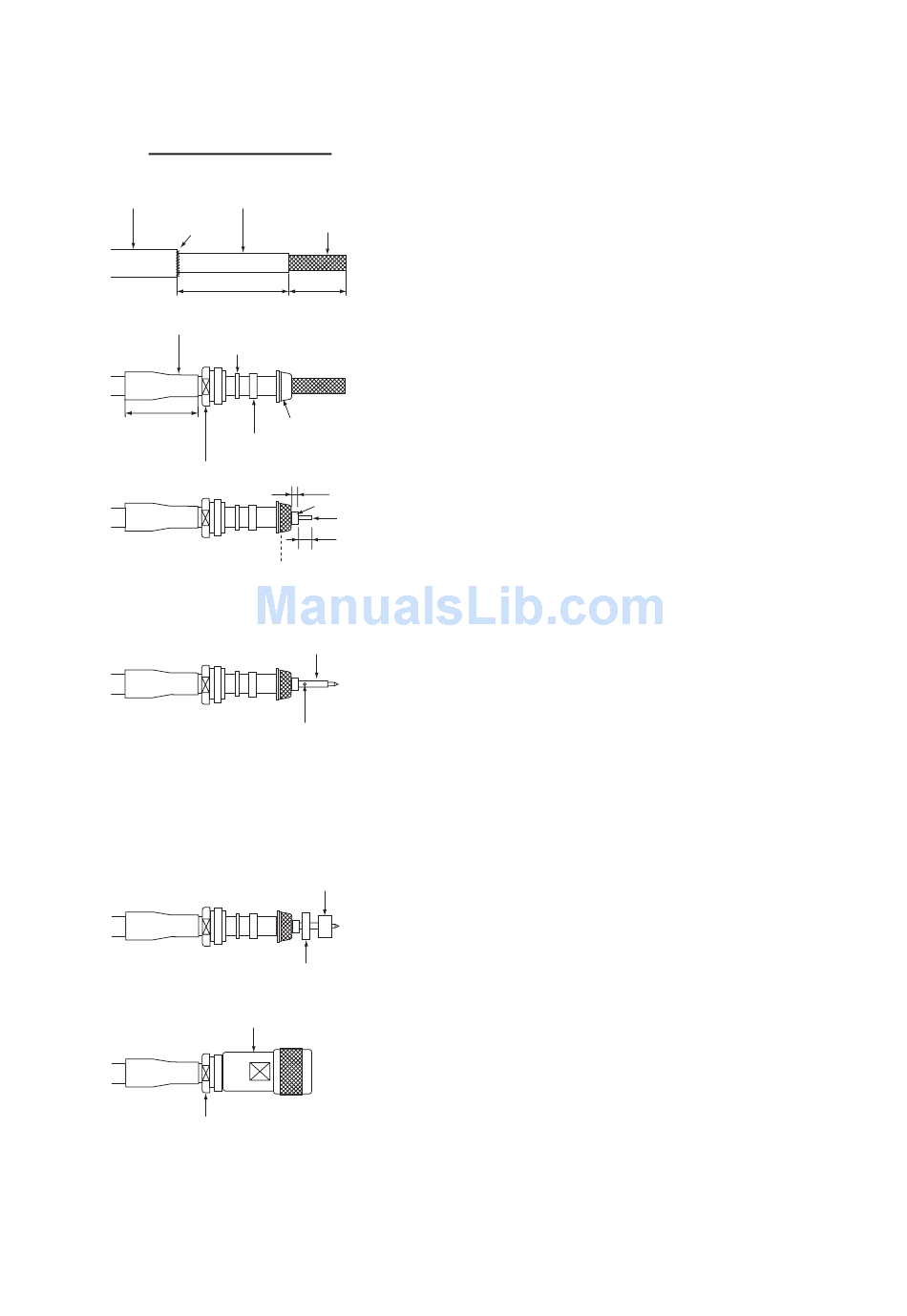

How to fabricate antenna cable 5D-FB-CV-NP
Remove the outer sheath, armor and inner-
sheath by the dimensions shown.
Set the nut, washer, gasket, clamp onto
cable as shown.
- Be careful not to damage the braided
shield.
Fold back the braided shield onto the clamp
and trim the shield as shown.
Make the length of insulator 3.5 mm and the
length of the core 5 mm.
- Be careful not to damage the core.
Set the center pin to the core and solder the
pin from the hole in the pin.
(Pull the pin with approx. 1 kg of force to
check strength of solder joint.)
- Be sure the solder is flush with surface of
pin.
- Be sure there is no gap between center
pin and insulator. Do not push the center pin
into the insulator.
- Do the soldering as quickly as possible so
as not to deform the insulator.
Set the ring and insulator ring onto the
cable.
Set the shell to the cable then turn the nut to
tighten. (Do not tighten by turning shell.) -
Use a wrench or the like to tighten the nut
securely.
