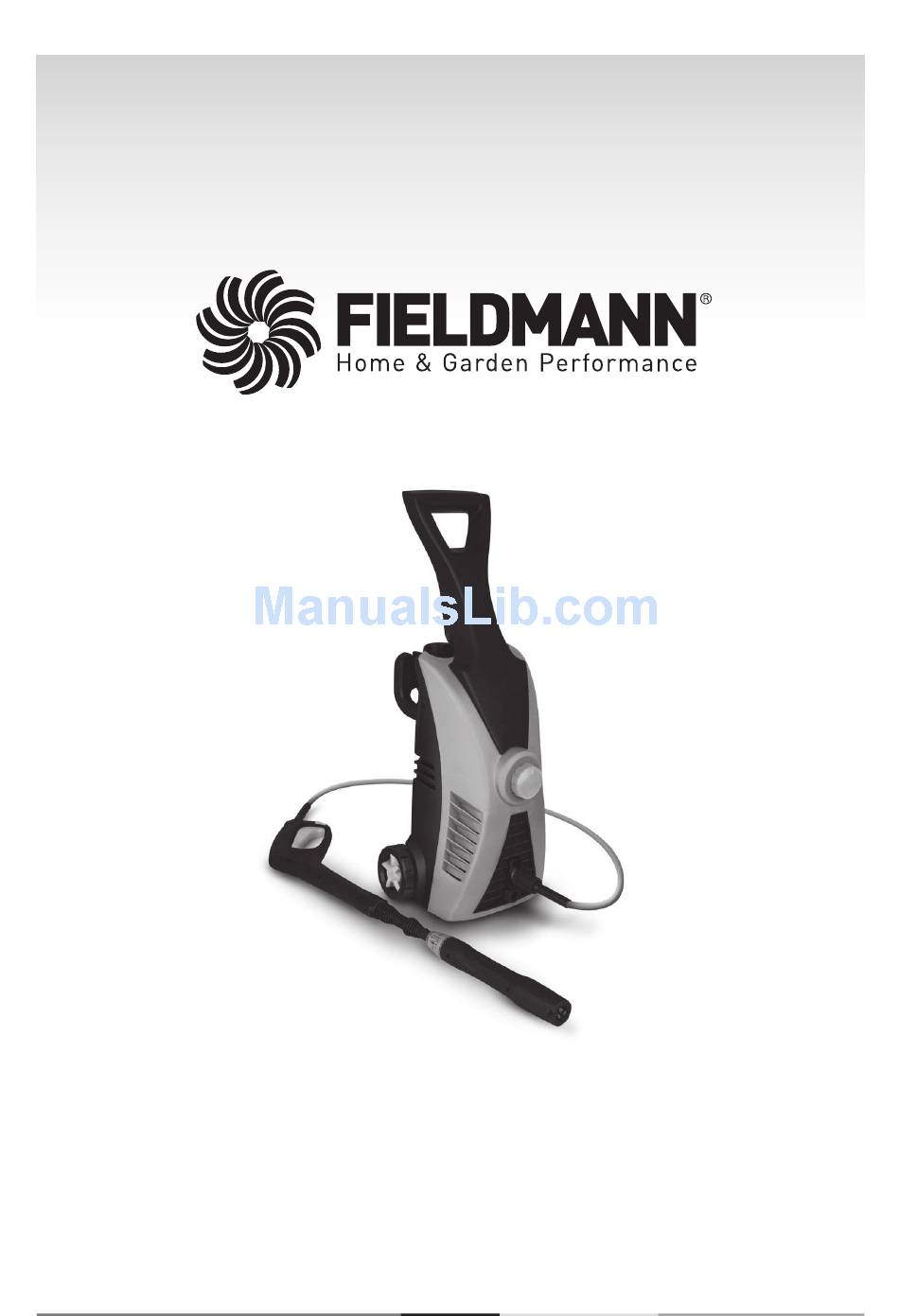

- Page 1 FDW 2002-E...
-
Page 2: Table Of Contents
Table of contents High-pressure washer OPERATING INSTRUCTIONS TABLE OF CONTENTS GENERAL SAFETY REGULATIONS Important safety notices Packaging Instructions for use SYMBOLS GENERAL DESCRIPTION SAFETY INSTRUCTIONS ASSEMBLY INSTRUCTIONS STARTING STORAGE TROUBLESHOOTING GUIDE TECHNICAL SPECIFICATION DECLARATION OF CONFORMITY DISPOSAL WARRANTY CERTIFICATE, WARRANTY TERMS 296 - 301 HIGH-PRESSURE WASHER USER‘S MANUAL... -
Page 3: Instructions For Use
General safety instructions 1. GENERAL SAFETY INSTRUCTIONS Important safety warnings Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product. Keep the product in a dry place out of reach of children. Read all cautions and instructions. -
Page 4: Symbols
Symbols 2. SYMBOLY To ensure your own safety as well as safety of other persons, read the Instruction Manual attentively prior to the first startup of the high-pressure washer. Keep the Instruction Manual in a safe and practical place to be available when needed. - Page 5 Symbols The appliance is not intended for connection to the potable water feeding system Class of protection High-pressure washers can be dangerous if handled inappropriately. Never direct the high-pressure jet to other persons, pets, live electrical equipment or to the washer itself. Electrical appliances shall not be disposed in the household waste.
-
Page 6: General Description
General description 3. GENERAL DESCRIPTION The final product can differ from the depicted device. HIGH-PRESSURE WASHER USER‘S MANUAL... -
Page 7: Safety Instructions
General description | Safety instructions p2006 Gun High Pressure Outlet 3 IN 1 Lance Wheel Soap Bottle Handle High-Pressure Hase Accessories Holder Safety Lock Water Inlet Motor and Pump in Case Power Cord Storage Location Power Supply Cord Water Filter ON/OFF Switch Water Inlet Filter Screen (factory EU Garden hose... - Page 8 Safety instructions ATTENTION! WARNING Inappropriate extension cables can be dangerous. Should an extension cable be used, both the socket and the plug shall be of a waterproof design and the coupled parts shall be kept dry and with no connection with earth. We recommend using of an extension cable drum keeping the socket 60 mm above the ground as minimum.
- Page 9 Safety instructions Never leave the running product unattended. Allow the product to cool down properly before storing. Pay special attention if the product is used near children. Always keep the product away from children. Supervise the children to be sure they will not use the product as a toy. To increase safety, the electrical installations shall be connected by a qualified electrical engineer.
-
Page 10: Assembly Instructions
Assembly instructions 5. ASSEMBLY INSTRUCTIONS Locate and remove all loose parts from the carton. With wheel oriented as shown, and push them into place. With cord wrap oriented as shown, secure in place with screw. Tighten screw. With handle oriented as shown, secure in place with screw. Tighten screw. HIGH-PRESSURE WASHER USER‘S MANUAL... - Page 11 Assembly instructions PRESSURE WASHER OPERATING FEATURES HOW TO USE 3IN1 LANCE ATTENTION! NOTICE: The powerful spray from your pressure washer Is capable of causing damage to surfaces such aa wood, glass, automobile paint, auto striping and trim and delicate objects such as flowers and shrubs.
-
Page 12: Cleaning Techniques
Assembly instructions Fill the detergent bottle with suitable cleaning solution and replace the soap nozzle.. Attach the detergent bottle assembly to the gun. Squeeze the trigger and the detergent will automatically be mixed with the water and dispensed from the nozzle. When you have completed use of the detergent bottle, flush clean water though bottle and suction lube until clean. -
Page 13: Starting
Assembly instructions | Starting ATTENTION! CAUTION: Damage may occur to painted surface if soap is allowed to dry on the surface. Wash and rinse a small section at a time. .Apply the solution to a DRY work surface. Note: WETTING THE SURFACE FIRST IS NOT RECOMMENDED, AS IT DILUTES THE DETERGENT AND REDUCES ITS CLEANING ABILITY. - Page 14 Starting Connect the garden hose to the connector on the back of the machine. Before connecting, run water through the garden hose {not supplied) to flush cut any foreign matter. Note: If your water source is a well, the garden hose length can only be 9m as maximum.
- Page 15 Starting | Storage Plug the unit into the appropriate electrical outlet. Note: The power supply must be 130V, 50 Hz and a minimum 15 amp dedicated circuit. Ensure the gun safety is unlocked and squeeze the trigger until the air has escaped and a steady flow of low pressure water Is coming from the nozzle.
-
Page 16: Storage
Storage 7. STORAGE ATTENTION! CAUTION: Prior to moving the unit, always disconnect the garden hose via the garden hose connector. ATTENTION! CAUTION: Always store your pressure washer in a location where the temperature will not fall below 40 °F (4 °C). The pump in this machine is susceptible to permanent damage if frozen. FREEZE DAMAGE IS NOT COVERED BY THE WARRANTY. -
Page 17: Troubleshooting Guide
Troubleshooting guide 8. TROUBLESHOOTING GUIDE OPERATIONAL POSSIBLE CAUSE SOLUTION ISSUE Detergent is not Detergent is not Use only detergents, degreasers, waxes and dispensing pressure washer other cleaning solutions that are designed approved specifically for pressure washers. Cleaners in this category will clearly state on the label that they are meant for use in pressure washers. - Page 18 Troubleshooting guide Circuit breaker trips Circuit overload Verify that the circuit is rated at 15 amps or or fuse blown in greater. Ensure no other appliance is drawing fuse box power from the same circuit [dedicated circuit). Extensor Cord too We do not recommend using of extension long or wire gauge too cords with your high-pressure washer.
- Page 19 Troubleshooting guide No water coming Nozzle is clogged Clean the nozzle according to the instructions out of nozzle provided in the Nozzle paragraph under Maintenance section of this manual. Water inlet filter Remove filter screen (O) from the water inlet screen is clogged (M) and clean it thoroughly.
- Page 20 Troubleshooting guide Connecting and To attach the Lance - apply steady Disconnecting the downward pressure on the lance (in the Spray Lance direction of the trigger) while simultaneously Note: Due twisting the lance 90° counter clockwise. It to the high may help if you set the gun vertically on a flat pressures produced surface with the lance pointing upwards.
-
Page 21: Technical Specification
Technical specifications 9. TECHNICAL SPECIFICATIONS Nominal voltage 230 V Nominal frequency 50 Hz Nominal power input 1500 W Nominal pressure 8 MPa Maximum pressure 12 Mpa Nominal flow rate 5,7 L/ min. Maximum flow rate 8 L/ min. Maximum feed water temperature 40°C Hose length Operating range... -
Page 22: Declaration Of Conformity
Declaration of conformity 10. DECLARATION OF CONFORMITY Product / brand: High-pressure Washer / FIELDMANN Type / model: FDW 2002E ..................230V 50Hz / 1500W The product is inline with regulations listed below: The Directive of the European Parliament and the Council No. 2006/95/EC dated 12 December 2006 on the harmonisation of the laws of the Member States relating to the electrical appliances designed for use within certain voltage limits. -
Page 23: Disposal
Disposal 11. DISPOSAL INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING. Put any used package material to the place determined by the municipality for waste disposal. DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste.
