Summary of Contents for Fieldmann FDW 202202-E

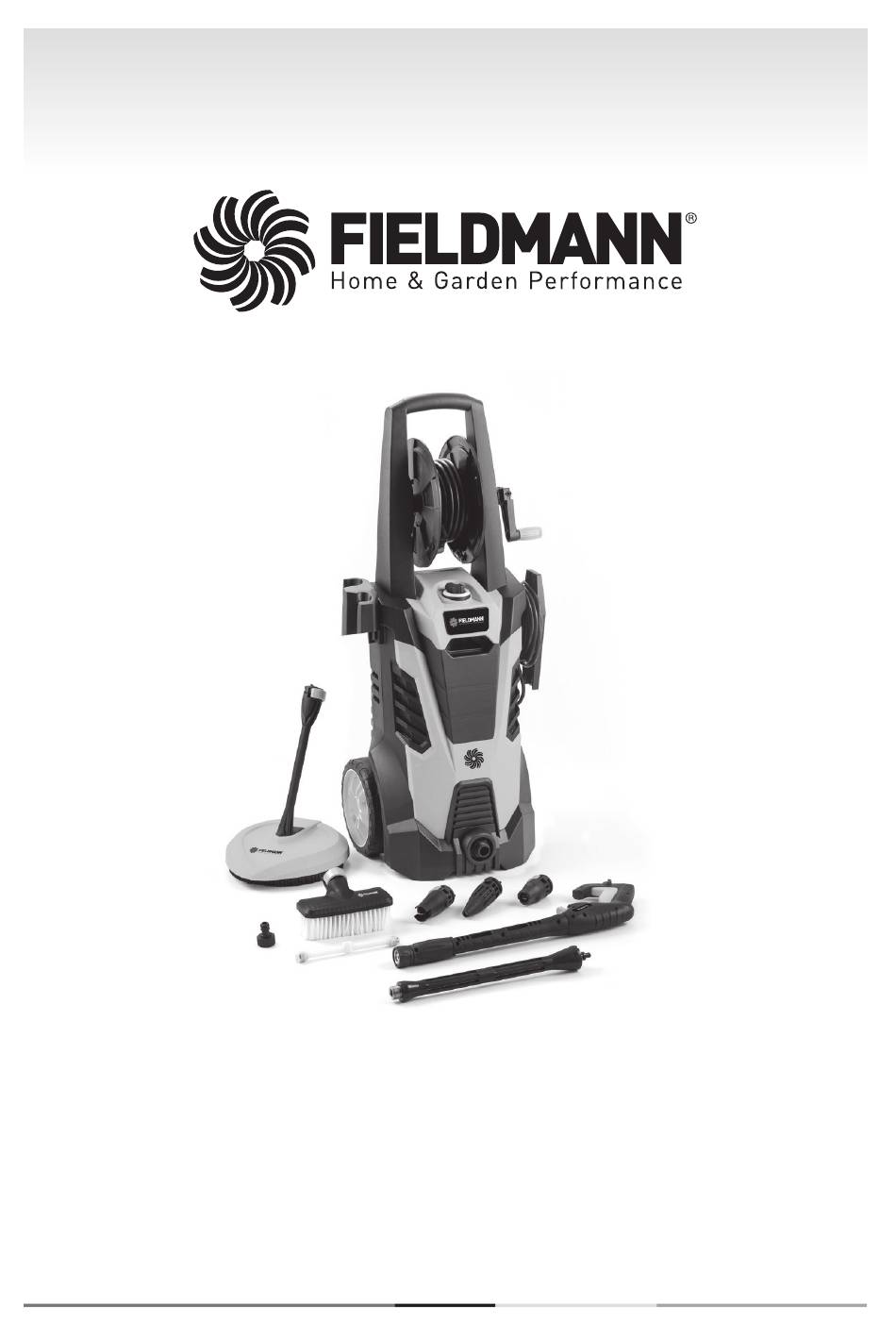

  • Page 1 FDW 202202-E...
  • Page 2 English ....................................4-24 Čeština ....................................25-44 Slovenčina ..................................45-64 Magyarul ..................................65-84 Polski ....................................85-104 FDW 202202-E...
  • Page 3 HIGH PRESSURE CLEANER USER’S MANUAL...
  • Page 4 FDW 202202-E...

  • Page 5: Table Of Contents

    Table of contents HIGH PRESSURE CLEANER USER’S MANUAL Thank you for purchasing this HIGH PRESSURE CLEANER. Before you start using it, please carefully read this user’s manual and save it for possible future use. TABLE OF CONTENTS 1. IMPORTANT SAFETY TIPS ............................6 2.

  • Page 6: Important Safety Tips

    10. The work area should have adequate drainage to reduce the possibility of a fall due to slippery surfaces. 11. Follow the maintenance instructions specified in the manual. 12. To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch plug with wet hands. FDW 202202-E...

  • Page 7: General Safety Precautions

    General safety precautions 3. GENERAL SAFETY PRECAUTIONS 1. Intended for outdoor household use only. 2. High-pressure hose can develop leaks from wear, abuse, kinking etc. Do not use a damaged hose. 3. Do not use the pressure cleaner in areas near combustible materials, combustible fumes, or dust. 4.

  • Page 8: Symbols

    To reduce the risk of injection or injury, never direct a water stream towards people or pets or place any body part in the stream. Leaking hoses and fittings are also capable of causing injection injury. Do not hold hoses or fittings. FDW 202202-E...
  • Page 9 Symbols To reduce the risk of injury from kickback, hold the spray lance securely with both hands when the machine is on. Failure to use in dry conditions and to observe safe practices can result in electric shock. Warning! Never point the gun to human, animals, the machine body, power supply or any electric appliances Machine not intended to be connected to the...

  • Page 10: Servicing Of A Double-Insulated Appliance

    If an extension cord is used, the plug and socket must be of watertight construction. WARNING! Inadequate extension cords can be dangerous. Remove the plug from the socket-outlet during cleaning or maintenance and when replacing parts or converting the machine to another function. FDW 202202-E...

  • Page 11: Proper Use Of The Pressure Cleaner

    Proper use of the pressure cleaner 7. PROPER USE OF THE PRESSURE CLEANER THIS UNIT IS INTENDED FOR USE WITH COLD WATER ONLY! DO NOT USE HOT WATER IN THIS PRESSURE CLEANER. 1. Operate the pressure cleaner at no more than the fluid pressure rated for the pressure cleaner. Never run the pressure cleaner without a water supply.

  • Page 12: Assembly Instructions

    5. Adjustable Spray Nozzle 13. Output thread 6. Turbo nozzle 14. Wheels 7. Shampoo nozzle 15. Gun holder 8. Water gun Due to transportation and packaging, some of the accessories may be supplied disassembled. Please follow the assembly instructions. FDW 202202-E...
  • Page 13 Assembly instructions Mounting of Patio Cleaner 1. Insert the extension lance into to the housing 2. Fix the extension lance with the two screws to the housing 3. Insert the rotor arm into the extension lance 4. Insert the U-pin to fix the rotor arm. NOTE : Make sure the rotor arm is properly fixed to the extension lance with the U-pin Step 1 Attach the high pressure hose to the gun .
  • Page 14 Check before activating the trigger that the nozzle is properly fixed. ATTENTION! All accessories nozzle can be installed as above instruction. Step 3 A) Gun hook assembly B) Quick connector structure on the machine body. All the Accessories can be storaged on the machine FDW 202202-E...
  • Page 15 Assembly instructions Step 4 Screw the water inlet coupling (No. 11 in Fig . 1 ) tight on to the water inlet (No. 13 in Fig . 1 ) NOTE: The inlet filter (A) must always be fitted in the water inlet pipe to filter out sand, lime stone and other impurities as these will damage the pump valves.

  • Page 16: Operating Instructions

    Continue holding trigger for approximately one minute to allow any excess air out of the unit. Water will flow through the gun at low pressure during this procedure. For more bleeding tips, see the section titled “Operating Instructions.” FDW 202202-E...
  • Page 17 Operating instructions Gun Safety Lock This pressure cleaner is equipped with a gun trigger safety lock. When not using the pressure cleaner, use the safety lock to keep from accidentally engaging the high pressure spray. Adjustable Spray Nozzle The adjustable nozzle will allow you to use any variety of spray patterns from a full fan spray to a direct stream spray.When using the pressure washer to clean wood decks, siding, vehicles etc., always start using the fan spray and begin spraying from a minimum 36”...

  • Page 18: Using Detergents

    NEVER USE PRODUCTS WITH BLEACH OR CHLORINE OR ANY OTHER CORROSIVE MATERIALS, INCLUDING LIQUIDS CONTAINING SOLVENTS (I.E. GAS, OILS ETC), TRI-SODIUM PHOSPHATE PRODUCTS, AMMONIA, OR ACID-BASED CLEANERS. THESE CHEMICALS WILL HARM THE UNIT AND CAUSE DAMAGE TO THE SURFACE BEING CLEANED. ALWAYS READ THE LABEL. FDW 202202-E...

  • Page 19: Clean-Up And Storage

    Clean-up and storage 11. CLEAN-UP AND STORAGE Shutting Down the Pressure Cleaner WHEN FINISHED USING THE PRESSURE CLEANER, FOLLOW THESE STEPS TO SHUT DOWN THE UNIT: Turn the pressure cleaner to the OFF position. Turn off the water supply. Before disconnecting high-pressure hose connection, point the gun in a safe direction and discharge the high-pressure water.

  • Page 20: Maintenance

    Rinse at high pressure using the fan spray keeping the tip of the spray nozzle at least 1-3 inches from the cleaning surface. Maintain a further distance from the cleaning area when using a direct spray. FDW 202202-E...

  • Page 21: Technical Data

    Technical data 13. TECHNICAL DATA Rated voltage AC 220 - 240 V Rated frequency 50 Hz Rated power input 2200 W Rated pressure 110 bar (11 MPa) Maximum pressure 165 bar (16.5 Mpa) Rated flow 5.8 l/min Maximum flow rate 6.8 l/min Max.

  • Page 22: Troubleshooting Tips

    Valves are worn, dirty, or clogged Check, clean or replace valves Filter is dirty Check, clean, or replace filter THE MOTOR STOPS RUNNING WHILE IN USE PROBABLE CAUSE SOLUTION Net voltage lower than suggested Check whether the voltage is adequate FDW 202202-E...

  • Page 23: Disposal

    Disposal 15. DISPOSAL The machine, rechargeable batteries, accessories and packaging should be sorted for environmentalfriendly recycling. Do not dispose of power tools and batteries/rechargeable batteries into household waste! Only for EC countries: According to the European Guideline 2012/19/EU, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.
  • Page 24 16. DECLARATION OF CONFORMITY EU DECLARATION OF CONFORMITY Product/ brand: Electric High Pressure Cleaner / FIELDMANN Type/ model: FDW 202202-E as factory model BCMR-110 AC 220–240 V, 50 Hz, 2200 W, 5,8 l/min, 11Mpa, IPX5, Class II LpA 84 dB(A), LwA 98dB(A)
