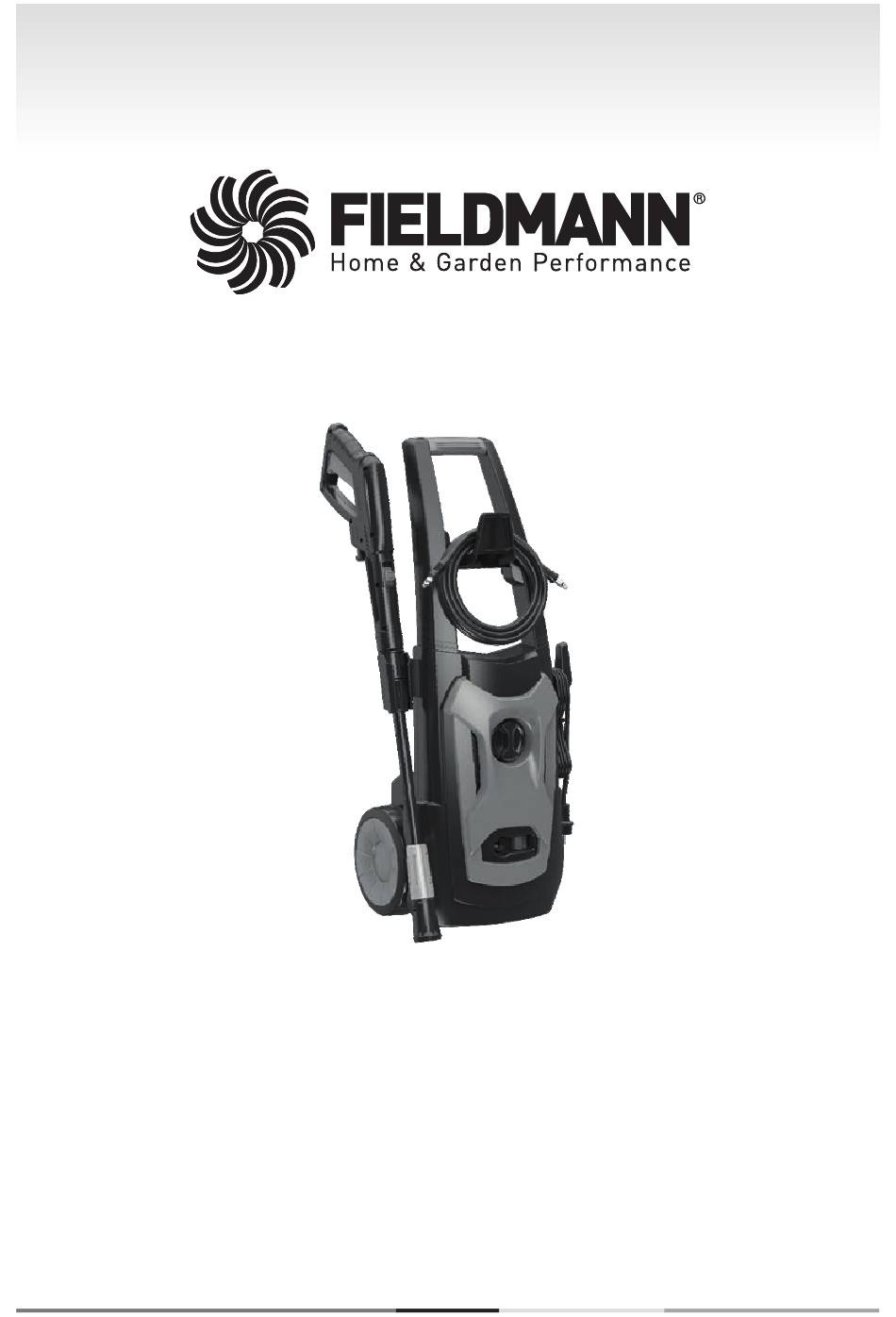

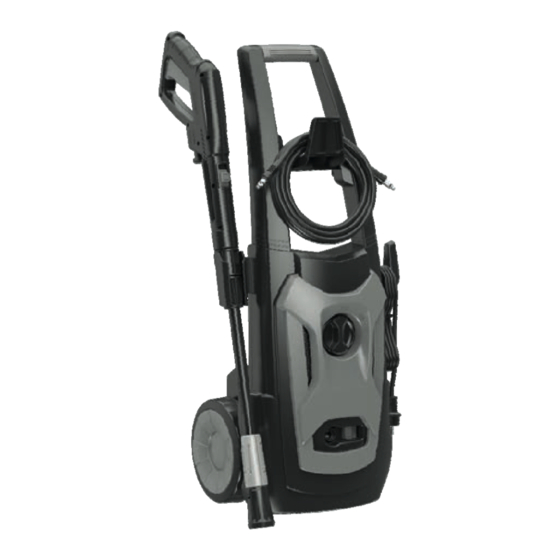

- Page 1 FDW 201602-E...
- Page 2 English ....................................4-24 Čeština ....................................25-46 Slovenčina ..................................47-68 Magyarul ..................................69-90 Polski ....................................91-112 FDW 201602-E...
- Page 3 HIGH PRESSURE CLEANER UŽIVATELSKÁ PŘÍRUČKA...
-
Page 4: Table Of Contents
7. PROPER USE OF THE PRESSURE CLEANER .....................10 8. ASSEMBLY INSTRUCTIONS ............................11 9. OPERATING INSTRUCTIONS ..........................15 10. USING DETERGENTS ..............................18 11. CLEAN-UP AND STORAGE .............................19 12. MAINTENANCE ................................20 13. TECHNICAL DATA ...............................21 14. TROUBLESHOOTING TIPS ............................22 15. DISPOSAL ..................................23 FDW 201602-E... -
Page 5: Important Safety Tips
Important safety tips | Important safety precautions 1. IMPORTANT SAFETY TIPS Never point the high-pressure nozzle at people or animals. Never drink alcohol or use drugs while operating the pressure cleaner. Never operate the pressure cleaner while standing in water. Never touch the electrical plug with wet hands. -
Page 6: General Safety Precautions
Disconnecting the hose while the unit is pressurized is dangerous, and may cause injury. 8. Do not leave the pressure cleaner unattended while the power switch is ON. 9. Keep water spray away from electrical wiring or fatal electric shock may result. FDW 201602-E... -
Page 7: Symbols
Symbols 4. SYMBOLS The labels on your tools and manual may show symbols. These represent important information about the product or instruction on its use. Indicates a potential personal injury hazard. Double-insulated construction Do not expose to rain or use in damp locations. To reduce the risk of injury, user must read and understand owner’s manual before using this product. - Page 8 Machine not intended to be connected to the potable water mains. Waste electrical products should not be disposed of with household waste, please recycle where facilities exist. Check with your local authority or retailer for recycling advice. FDW 201602-E...
-
Page 9: Servicing Of A Double-Insulated Appliance
Servicing of a double-insulated appliance| Use of extension cords 5. SERVICING OF A DOUBLE-INSULATED APPLIANCE In a double-insulated product, two systems of insulation are provided instead of grounding. No means of grounding is provided on a double-insulated product, nor should a means for grounding be added to the product. Servicing a double-insulated product requires extreme care and knowledge of the system, and should be done only by qualified service personnel. -
Page 10: Proper Use Of The Pressure Cleaner
(see diagram). 6. When dispensing detergent, the pressure cleaner applies detergent to the cleaning area at low pressure only. Once the detergent has been applied, spray the detergent off of the work area by using the adjustable nozzle. FDW 201602-E... -
Page 11: Assembly Instructions
Assembly instructions 8. ASSEMBLY INSTRUCTIONS Unpacking The Carton After opening the carton, please remove all parts and check them against the following list of components that are included: A. High Pressure Cleaner Main Body J. Gun B. Quick Connector&filter(C) K. Adjustable Nozzle L. - Page 12 Push the trigger lock button, then you can pull out high pressure hose. Step 2 Screw the washer handle tight to the main body as below fig. The screws will be packed together with the main body, pls kindly check and find it when unpacked. FDW 201602-E...
- Page 13 Assembly instructions Step 3 Insert the adjustable spray nozzle(K) into the gun. Push and turn the adjustable nozzle clockwise onto the gun(J) until hand tight to lock it in place. When the pieces are joined properly, you cannot separate the two components by pulling straight out on the adjustable nozzle.
- Page 14 This plastic cap can be discarded once removed. After both components have been installed, attach the garden hose with connector screw on the pressure washer. Connect the garden hose to the waterspout. FDW 201602-E...
-
Page 15: Operating Instructions
Operating instructions 9. OPERATING INSTRUCTIONS THIS UNIT IS INTENDED TO BE USED WITH COLD WATER ONLY! DO NOT USE HOT WATER IN THIS PRESSURE CLEANER! Starting Up After connecting the pressure cleaner to your cold water supply, proceed as follows: Make sure that the ON/OFF switch is in the OFF position. - Page 16 Warning! High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment or the appliance itself. Do not direct the jet against yourself or others in order to clean clothes or foot-wear. FDW 201602-E...
- Page 17 Operating instructions Rotate The Gun The gun rotating will adjust your cleaning angle during a full fan spray pattern, to make every user find its most comfortable and efficient cleaning position. Push the button to “unlock” side, the rotating function will be opened. And push the button to “unlock”...
-
Page 18: Using Detergents
NEVER USE PRODUCTS WITH BLEACH OR CHLORINE OR ANY OTHER CORROSIVE MATERIALS, INCLUDING LIQUIDS CONTAINING SOLVENTS (I.E. GAS, OILS ETC), TRI-SODIUM PHOSPHATE PRODUCTS, AMMONIA, OR ACID-BASED CLEANERS. THESE CHEMICALS WILL HARM THE UNIT AND CAUSE DAMAGE TO THE SURFACE BEING CLEANED. ALWAYS READ THE LABEL. FDW 201602-E... -
Page 19: Clean-Up And Storage
Clean-up and storage 11. CLEAN-UP AND STORAGE Shutting Down the Pressure Cleaner WHEN FINISHED USING THE PRESSURE CLEANER, FOLLOW THESE STEPS TO SHUT DOWN THE UNIT: Turn the pressure cleaner to the OFF position. Turn off the water supply. Before disconnecting high-pressure hose connection, point the gun in a safe direction and discharge the high-pressure water. -
Page 20: Maintenance
Rinse at high pressure using the fan spray keeping the tip of the spray nozzle at least 1-3 inches from the cleaning surface. Maintain a further distance from the cleaning area when using a direct spray. FDW 201602-E... -
Page 21: Technical Data
Technical data 13. TECHNICAL DATA Rated voltage AC 220-240V Rated frequency 50/60Hz Rated power input 1600W Rated pressure 90bar (9MPa) Maximum pressure 130bar (13Mpa) Rated flow 6l/min Maximum flow rate 7l/min Max. water inlet temperature 50°C Protection class Weight 7.3kg Maximum water input pressure in pascals 1.2Mpa Acoustic pressure level (K = 3dB (A)): L... -
Page 22: Troubleshooting Tips
Valves are worn, dirty, or clogged Check, clean or replace valves Filter is dirty Check, clean, or replace filter THE MOTOR STOPS RUNNING WHILE IN USE PROBABLE CAUSE SOLUTION Net voltage lower than suggested Check whether the voltage is adequate FDW 201602-E... -
Page 23: Disposal
Disposal 15. DISPOSAL The machine, rechargeable batteries, accessories and packaging should be sorted for environmentalfriendly recycling. Do not dispose of power tools and batteries/rechargeable batteries into household waste! Only for EC countries: According to the European Guideline 2012/19/EU, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner. - Page 24 16. DECLARATION OF CONFORMITY EU DECLARATION OF CONFORMITY Product/ brand: Electric High Pressure Cleaner / FIELDMANN Type/ model: FDW 201602-E as factory model LT502-1600B AC 220–240 V, 50/60 Hz, 1600 W, 6 l/min, 9Mpa, IPX5, Class II LpA 88,3 dB(A), LwA 90dB(A) Manufacturer: FAST ČR, a.s.
- Page 26 Záruční podmínky Záručné podmienky Conditions of guarantee Prodávající poskytuje kupují c ímu na výrobek zá Predávajúci poskytuje kupujúcemu na výrobok This product is warranted for the period of 24 mon ruku trvání 24 měsíců od převzetí výrobku kupu 24 mesiacov záruku od jeho prevzatia kupujúcim. ths from the date of purchase to the end-user.
- Page 27 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) jogáról másikra térhet át. Az áttéréssel okozott határozott tartós fogyasztási cikk meghibáso- A FAST Hungary Kft.
- Page 28 A kereskedő tölti ki Megnevezés:................................Típus:................ Gyártási szám: ……………………………………………. A termék azonosításra alkalmas részeinek meghatározása (ha alkalmazható):…………………………………… Vásárlást igazoló bizonylat száma:………………………………………………………………………………. A vásárlás (üzembe helyezés) időpontja: 20......hó.....nap. Kereskedő bélyegzője: Kereskedő aláírása: ………………………………… Kereskedő címe: ……………………………………………… Javítás esetén alkalmazandó A kereskedő vagy szerviznél történő közvetlen bejelentés esetén a szerviz tölti ki A jótállási igény bejelentésének időpontja: ……………………………………………………………………….
