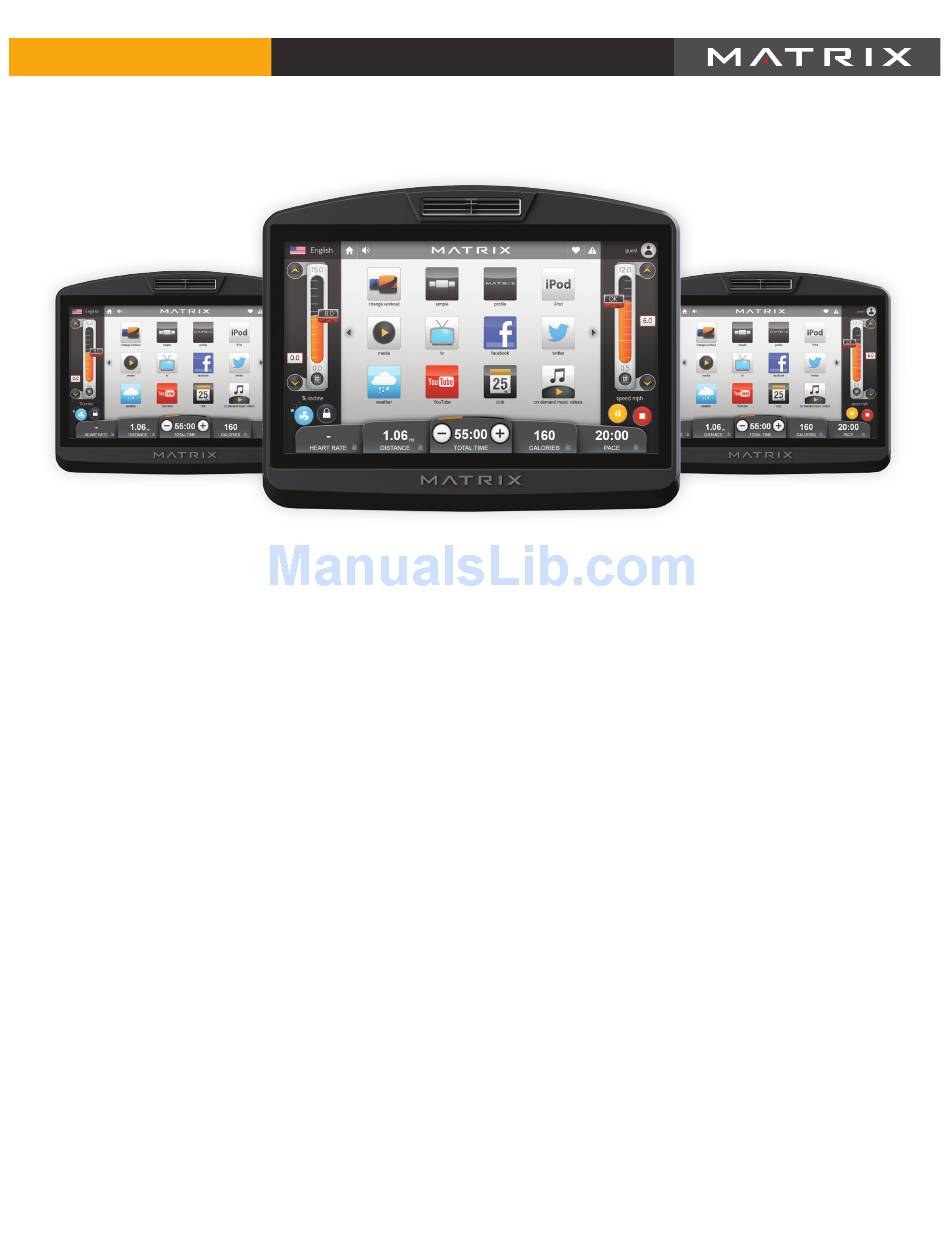

Matrix Fitness 7xi – Setup and Network Connection guide
Introduction: Please note that this guide is meant to provide an overview on the configuration and setup steps that are unique to
the 7xi product. The equipment itself is assembled and installed almost identically to the Matrix Fitness 7xe product line. What
sets the Matrix Fitness 7xi equipment apart is our new 'app' interface, personalized logins for each user, social media access, on
demand content, and network connectivity. This guide will cover the initial setup of the 7xi console by Matrix Fitness.
For more information about Matrix Fitness: matrixfitness.com | Toll-Free 866.693.4863
Rev 1.0
