LVDS/CMOS OUTPUT DRIVER WINDOW

The LVDS/CMOS Output 6 Settings window shown
in Figure 21 is accessed by clicking the OUT6 through
OUT9 output driver symbols on the lower right side of
the main window.

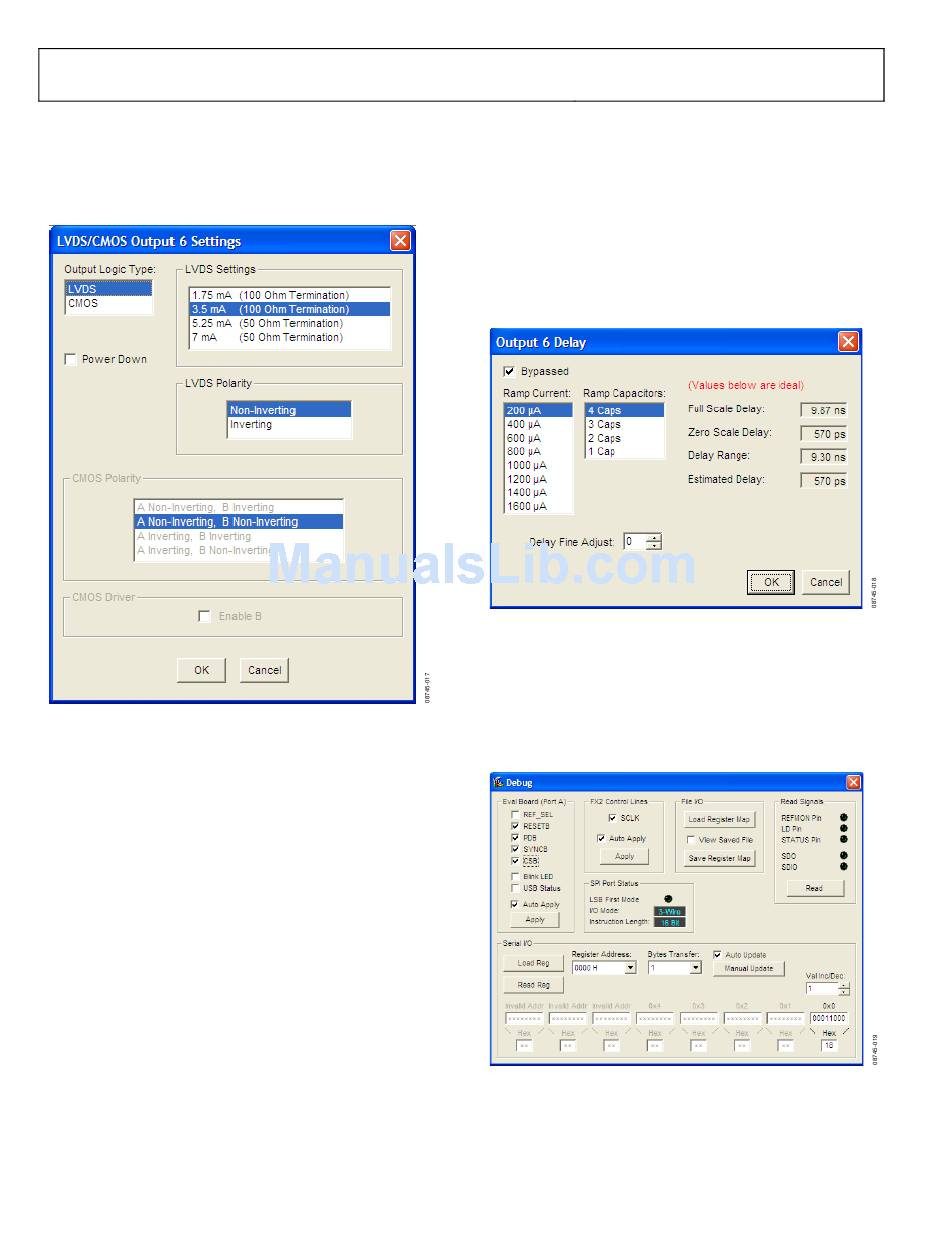

Figure 21. LVDS/CMOS Output 6 Settings Window
If LVDS mode is selected, the bottom (CMOS) portion of the
window is grayed out. Likewise, if CMOS mode is selected, the
top (LVDS) portion of the window is grayed out.
It is important to power down unused outputs on the evaluation
board because they can be a major source of unwanted spurs.
This is especially true of the CMOS drivers.
www.BDTIC.com/ADI
Rev. 0 | Page 12 of 16
Evaluation Board User Guide

LVDS/CMOS OUTPUT DELAY WINDOW

The Output 6 Delay window shown in Figure 22 is accessed
by clicking the ΔT OUT 6 button on the right of the main
screen. To access any other output delay window, click the
appropriate ΔT OUT x button.
Selecting the various combinations of ramp current and
ramp capacitors changes the amount of delay for that driver,
and the estimated amount of delay is shown in the right half
of the window. The feature is described in detail in the AD951x
data sheet.
Figure 22. Output 6 Delay Window

DEBUG WINDOW

The Debug window shown in Figure 23 is accessed by clicking
Debug from the View menu from on the main window menu
bar (see Figure 24).
The Serial I/O section of this window is a convenient way to
read and write registers directly.
Figure 23. Debug Window
