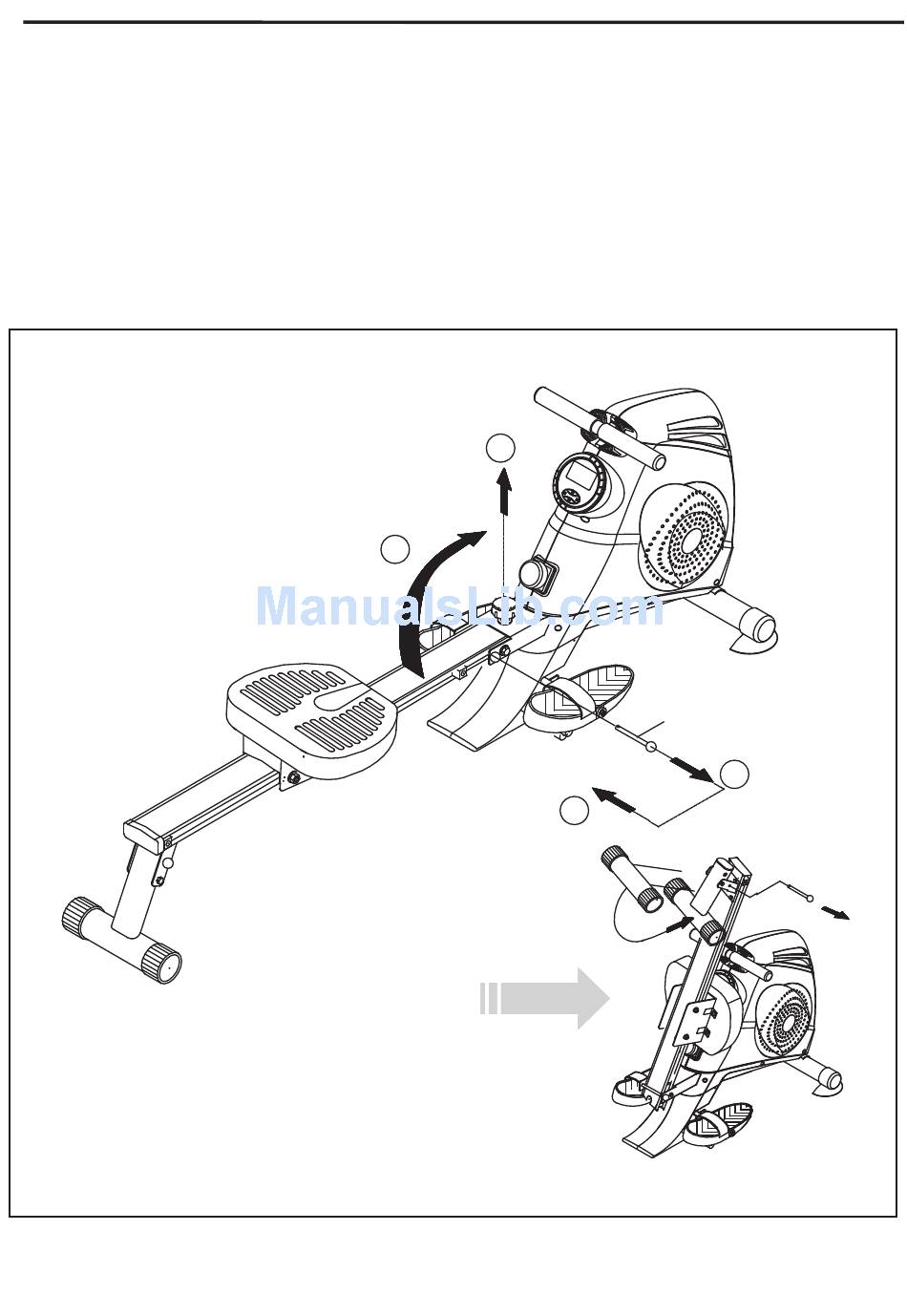

FOLDING INSTRUCTIONS
1.
Remove the locking pin (#26) and unscrew the fixing pin.
2.
Pull the Aluminum Rail (#5) in towards the main frame and replace the locking pin to keep the Rail in a
folded position;
3.
Remove the pull pin located on the rear bracket of the rail.
4.
Swing the Rear Stabilizer in towards the main frame and replace the pin to keep the Rear Stabilier in a
folded position.
1
3
5
26
2
4
