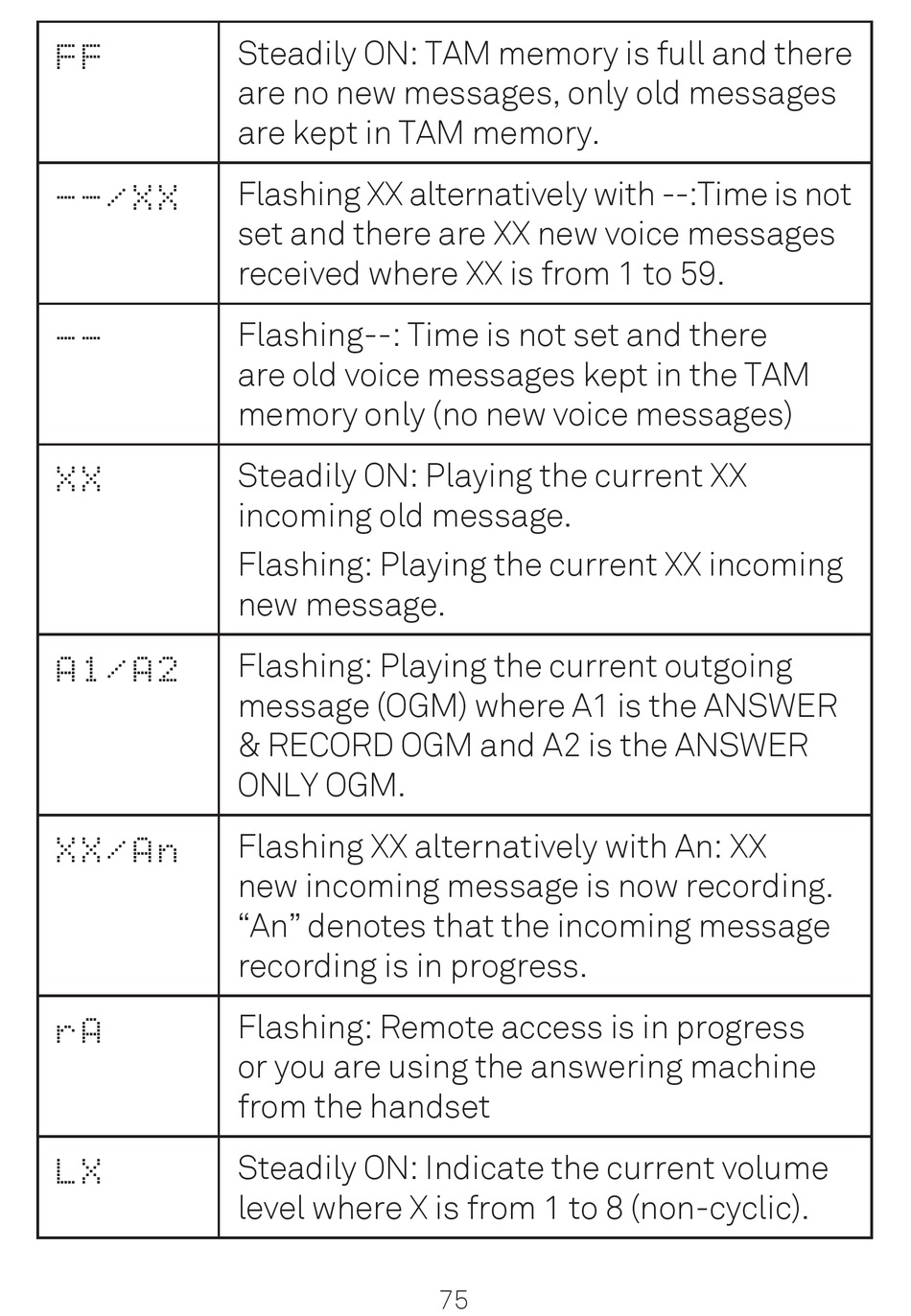

VTech 15200 User Guidance page 75

F F
- - / X X
- -
X X
A 1 / A 2
X X / A n
r A
L X
Steadily ON: TAM memory is full and there
are no new messages, only old messages
are kept in TAM memory.
Flashing XX alternatively with --:Time is not
set and there are XX new voice messages
received where XX is from 1 to 59.
Flashing--: Time is not set and there
are old voice messages kept in the TAM
memory only (no new voice messages)
Steadily ON: Playing the current XX
incoming old message.
Flashing: Playing the current XX incoming
new message.
Flashing: Playing the current outgoing
message (OGM) where A1 is the ANSWER
& RECORD OGM and A is the ANSWER
ONLY OGM.
Flashing XX alternatively with An: XX
new incoming message is now recording.
"An" denotes that the incoming message
recording is in progress.
Flashing: Remote access is in progress
or you are using the answering machine
from the handset
Steadily ON: Indicate the current volume
level where X is from 1 to  (non-cyclic).
75
