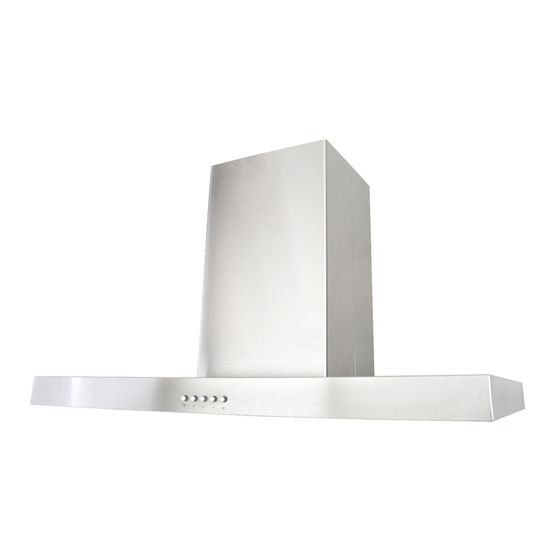

- Page 1 KOBE Range Hoods Brillia Series Model No. OVS-ISX2130SQB-40 (30”) OVS-ISX2136SQB-40 (36”) OVS-ISX2142SQB-40 (42”) INSTALLATIONS INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE....................3 INSTALLATION .......................... 4 OPERATION INSTRUCTIONS....................8 MAINTENANCE ......................... 9 SPECIFICATIONS ........................10 MEASUREMENTS & DIAGRAMS .....................11 PARTS LIST ..........................12 CIRCUIT DIAGRAM ........................14 TROUBLE SHOOTING ......................15 WARRANTY ..........................16 WARRANTY INFORMATION FORM ..................18 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING –... -
Page 4: Important Safety Instructions
Any repair carried out without the supervision of KOBE authorized agents will automatically void the warranty. KOBE will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
{L} Wire Cap – 3 3/16” x 3/8” (8PCS) 4 x 8mm (14PCS) M4 x 1-1/2” (10) Knobs attached to baffle filter Wire caps (3) FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Recommended 30”... - Page 8 Preparations of Ductwork and Location Figure 1 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VET OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. A straight, short venting run will allow the hood to perform more efficiently.
- Page 9 Telescopic Stack Figure 4 6. Adjust the telescopic stack with the screws provided to the desired height. Refer to Table 1 and Figure 4. (Lower screws must be drilled into the metal motor housing.) 7. Place only the inner duct cover over top of the telescopic stack prior to mounting to the ceiling and let it rest on the bottom flanges.
- Page 10 Hood Installation Figure 6 15. Align the hood with the telescopic stack so that the motor harness is on the same side as the control unit harness. Refer to Figure 6. 16. Fasten the hood body to the telescopic stack using 8 screws (provided).
-
Page 11: Operation Instructions
OPERATION INSTRUCTIONS Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function • Press button to choose from speed. o Q = QuietMode™ speed o L = Low speed o H = High speed •... -
Page 12: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. Regular care will help preserve its fine appearance. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the hood. -
Page 13: Specifications
SPECIFICATIONS MODEL / SIZE OVS-ISX2130SQB-40 (30”) OVS-ISX2136SQB-40 (36”) OVS-ISX2142SQB-40 (42”) COLOR Commercial Grade Stainless Steel CONSUMPTION / AMPERE 180W / 1.5A VOLTAGE 120V 60Hz ENUMBER OF BLOWER DESIGN Seamless / Satin Finish BLOWER TYPE Single Horizontal Squirrel Cage EXHAUST Top 6" Round... -
Page 14: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All measurements in () are millimeters. ***All inch measurements are converted from millimeters. Inch measurements are estimated. FRONT OF HOOD... -
Page 15: Parts List
PART LIST MODEL NO.: OVS-ISX2130SQB-40 (30”) OVS-ISX2136SQB-40 (36”) OVS-ISX2142SQB-40 (42”) BOX 1 of 2 DESCRIPTION MODEL / SIZE PART NO. L1-0505-0003 6” Round Plastic Exhaust L1-0403-0301 LED Light (3W) x 4 PCS Control Switch L1-0405-0301 LED Light Driver L1-0402-D001 Capacitor... - Page 16 MODEL NO.: OVS-ISX2130SQB-40 (30”) OVS-ISX2136SQB-40 (36”) OVS-ISX2142SQB-40 (42”)
-
Page 17: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: OVS-ISX2130SQB-40 (30”) OVS-ISX2136SQB-40 (36”) OVS-ISX2142SQB-40 (42”) -
Page 18: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check the both motors power supply. and lights are The wire connection is not secure. Check and tighten wire connection. not working. -
Page 19: Warranty
TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM / BRILLIA SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 20 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER (USA ONLY)
-
Page 21: Warranty Information Form
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada and to report a problem, please contact:... - Page 22 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
