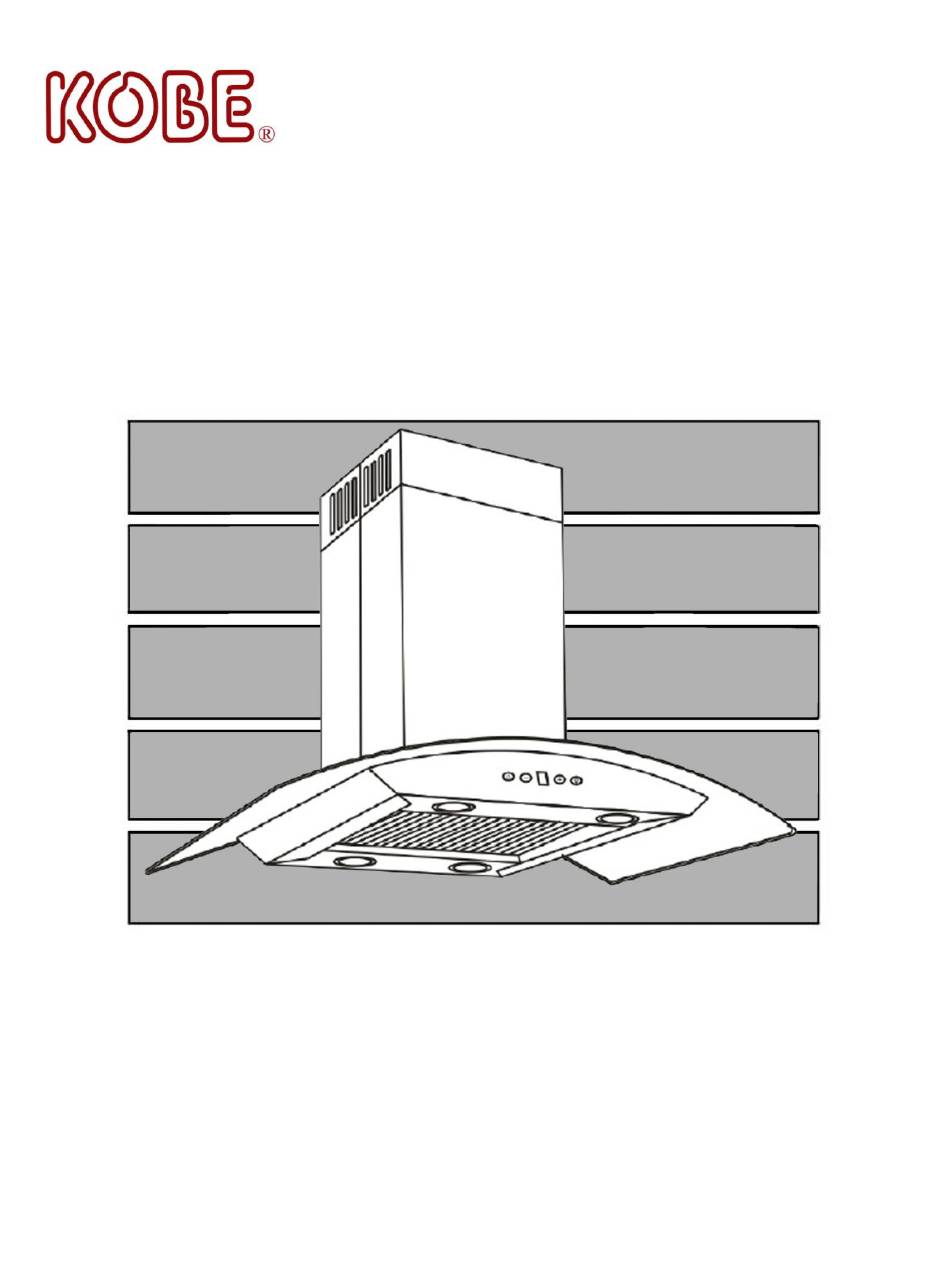

- Page 1 KOBE Brand Range Hood Model No. OVS-ISX2430GSQB-40 (30”) OVS-ISX2436GSQB-40 (36”) OVS-ISX2442GSQB-40 (42”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL PACKAGING MATERIAL. 2. Have your original invoice as proof of purchase and product serial number ready. 3. Call 1-877-BUY-KOBE (289-5623); or e-mail to info@koberangehoods.com to report the problem. NO RETURN, NO REFUND, NO EXCHANGE IF: 1.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE....................3 INSTALLATION .......................... 4 OPERATING INSTRUCTIONS....................8 MAINTENANCE ......................... 9 SPECIFICATIONS ........................10 MEASUREMENTS & DIAGRAMS .....................11 CIRCUIT DIAGRAM ........................14 TROUBLE SHOOTING ......................15 WARRANTY ..........................16 PRODUCT REGISTRATION .....................18 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING - A L L W I R I N G M U S T B E D O N E B Y A P R O F E S S I O N A L A N D I N... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
{K} Adjustable Duct Cover For the operation manual, please refer to our website: KOBERangehoods.com 4mm x 8mm (20PCS) Washer (20PCS) 4mm x 8mm (2PCS) FOR MORE INFORMATION, PLEASE VISIT OUR W EBS ITE www.KOBERangeHoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Recommended 30”... - Page 8 Preparation before Installation Figure 1 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside (Figure 1). A straight, short vent run will allow the hood to perform more efficiently.
- Page 9 Figure 6 Telescopic Stack Installation 6. Adjust the telescopic stack with sixteen screws and washer (pre-installed). Refer to Figure 5. 7. Align the telescopic stack to the mounting screws on the ceiling and lock the telescopic stack in place. Fasten the mounting screws as shown in Figure 6.
- Page 10 Wiring to Power Supply THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH APPLICABLE NATIONAL LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. Power Control Press Power Control to turn On/Off the range hood. Speed Control ”-” “+” The fan will start on previous speed. -
Page 12: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 13: Specifications
SPECIFICATIONS OVS-ISX2430GSQB-40 (30”) MODEL / SIZE OVS-ISX2436GSQB-40 (36”) OVS-ISX2442GSQB-40 (42”) COLOR Commercial Grade Stainless Steel CONSUMPTION / AMPERE 180W / 1.5A NUMBER OF BLOWER DESIGN Seamless / Satin Finish BLOWER TYPE Single Horizontal Squirrel Cage Top – EXHAUST 6" Round Electronic Control (4 Buttons) with LED Display –... -
Page 14: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. - Page 15 PARTS LIST OVS-ISX2430GSQB-40 (30”) MODEL NO.: OVS-ISX2436GSQB-40 (36”) OVS-ISX2442GSQB-40 (42”) MODEL NO. OVS-ISX2430GSQB-40 MODEL NO. OVS-ISX2436GSQB-40 MODEL NO. OVS-ISX2442GSQB-40 DESCRIPTION MODEL PART NO. Inner Duct Cover IS24-0001 Outer Duct Cover IS24-0002 Control Panel Bracket IS24-0003 Exhaust Plate IS24-0004 Processor Board...
- Page 16 MODEL NO.: OVS-ISX2430GSQB-40 OVS-ISX2436GSQB-40 OVS-ISX2442GSQB-40...
-
Page 17: Circuit Diagram
CIRCUIT DIAGRAM OVS-ISX2430GSQB-40 (30”) MODEL NO.: OVS-ISX2436GSQB-40 (36”) OVS-ISX2442GSQB-40 (42”) -
Page 18: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution Make sure the circuit breaker and the unit’s After The power is not on. Installation, power is ON. Use a voltage meter to check the both motors power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 19: Warranty
KOBE PREMIUM/BRILLIA SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 20 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER...
-
Page 21: Product Registration
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada and to report a problem, please contact: Phone: 1-626-775-8880 Email: customer.service@koberangehoods.com... - Page 22 Arcadia, CA 91006 USA http://www.KOBERangeHoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
