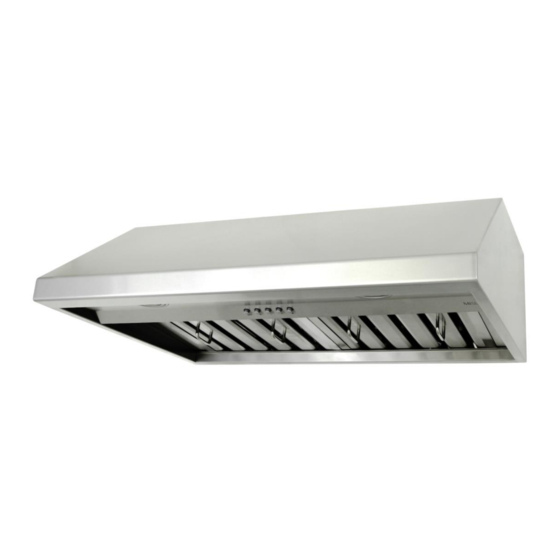

- Page 1 KOBE Range Hoods Brillia Series Model No. CHX7930SQB-1 (30”) CHX7936SQB-1 (36”) USER MANUAL INSTALLATION GUIDE...
- Page 2 1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL PACKAGING MATERIAL. 2. Have your original invoice as proof of purchase and product serial number ready. 3. Call 1-877-BUY-KOBE (289-5623); or e-mail to info@koberangehoods.com to report the problem. NO RETURN, NO REFUND, NO EXCHANGE IF: 1.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE....................3 INSTALLATION .......................... 4 OPERATING INSTRUCTIONS....................13 MAINTENANCE ........................14 SPECIFICATIONS ........................15 MEASUREMENTS & DIAGRAMS .....................16 PARTS LIST ..........................18 CIRCUIT DIAGRAM ........................20 TROUBLE SHOOTING ......................21 WARRANTY ..........................22 PRODUCT REGISTRATION .....................24 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -... -
Page 4: Important Safety Instructions
Any repair carried out without the supervision of KOBE authorized agents will automatically void the warranty. KOBE will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
{H} 6” Round Plastic Exhaust x 1 {I} Oil Tunnel x 1 For the operation manual, please refer to our website: KOBERangehoods.com FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.KOBERangeHoods.com OR CONTACT KOBE RANGE HOODS AT (626) 775 -8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Preferred Height of Counter Top to Hood Bottom (Minimum... -
Page 8: Safety Warning
SAFETY WARNING HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. Installation Contents UNDER THE CABINET ………………………………..……………………………………………………… WALL MOUNT ..…..……………………………..…...………………………………………….……... - Page 9 UNDER CABINET INSTALLATION Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT Figure 1 DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. A straight, short vent run will allow the hood to perform more efficiently.
- Page 10 Align and secure Top Vent Cover {B} and 3-1/4” x 10” Exhaust {C} using 14 screws (13 screws Figure 4 taken from 6” exhaust. (Figure 4) 4. For Rear 3-1/4” x 10” vent installation only: Remove attached 6” exhaust and discard. (Figure 3) Keep 13 screws to install vent covers.
- Page 11 Ductwork Installation Figure 7 10. Use steel pipe to connect the exhaust on the hood to the ductwork. Use duct tape to make all joints secure and air tight. Install Accessories 11. Install the Oil Tunnel {G} into recess support near rear of hood.
-
Page 12: Wall Mount Installation
WALL MOUNT INSTALLATION ***This installation ONLY applied with the purchase of a duct cover. Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the Figure 9 hood to the outside. - Page 13 4. For Rear 3-1/4” x 10” vent installation only: Figure 13 Remove attached 6” exhaust and discard. (Figure 11) Keep 13 screws to install vent covers. Remove duct knockout from back of the hood and discard. (Figure 13) Unscrew 3- 1/4”...
- Page 14 Wiring to Power Supply Figure 17 CAUTION If moving the cooking range is necessary to install the hood, turn off the power in an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE. RISK OF ELECTRICAL SHOCK.
- Page 15 Figure 19 Install Accessories 15. Install the Oil Tunnel {G} into recess support near rear of hood. Refer to Figure 19. 16. Install Baffle Filters {H} and Stainless Steel Angle baffle filter toward Spacers {I}. back of hood. Push the baffle filter up ...
-
Page 16: Operating Instructions
OPERATING INSTRUCTIONS Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function Press button to choose from speed. o Q = QuietMode™ speed o L = Low speed o H = High speed ... -
Page 17: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 18: Specifications
3-1/4" x 10" Rectangular CONTROLS Mechanical Push Button LIGHTS 3-watt LED light x 2 (CHX7930SQB-1) 29-3/4” x 22” x 9-1/16” HOOD DIMENSION (CHX7936SQB-1) 35-3/4” x 22” x 9-1/16” (W x D x H) OPTIONAL ACCESSORIES 1) Two-Piece Adjustable Duct Cover (W x D x H) (CH1120DC-1) 11-13/16"... -
Page 19: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. CHX7930SQB-1 (30”) MODEL NO.: CHX7936SQB-1 (36”) -FOR UNDER THE CABINET- 30" = Knockout Holes "A" 36” = Knockout Holes "A" & "B"... - Page 20 ***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket ***Duct Cover Support...
-
Page 21: Parts List
PARTS LIST CHX7930SQB-1 (30”) MODEL NO.: CHX7936SQB-1 (36”) DESCRIPTION MODEL /SIZE PART NO. L1-0241-0001-A 6” Exhaust Plate Vent Cover (Top) L1-0241-0001-B L1-0241-0002-A 3-1/4” x10” Exhaust Plate 3-1/4” x10” Vent Cover L1-0241-0002-B L1-0505-0002 6” Round Plastic Collar LED Light Fixture (3W) - Page 22 CHX7930SQB-1 (30”) MODEL NO.: CHX7936SQB-1 (36”)
-
Page 23: Circuit Diagram
CIRCUIT DIAGRAM CHX7930SQB-1 (30”) MODEL NO.: CHX7936SQB-1 (36”) -
Page 24: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution Make sure the circuit breaker and the unit’s After The power is not on. Installation, power is ON. Use a voltage meter to check the both motors power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 25: Warranty
KOBE PREMIUM/BRILLIA SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 26 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER (USA ONLY)
-
Page 27: Product Registration
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada and to report a problem, please... - Page 28 KOBE Range Hoods 11775 Clark Street Arcadia, CA 91006 USA www.KOBERangeHoods.com This range hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country.
