Summary of Contents for J-Power Nano warbirds FW-190

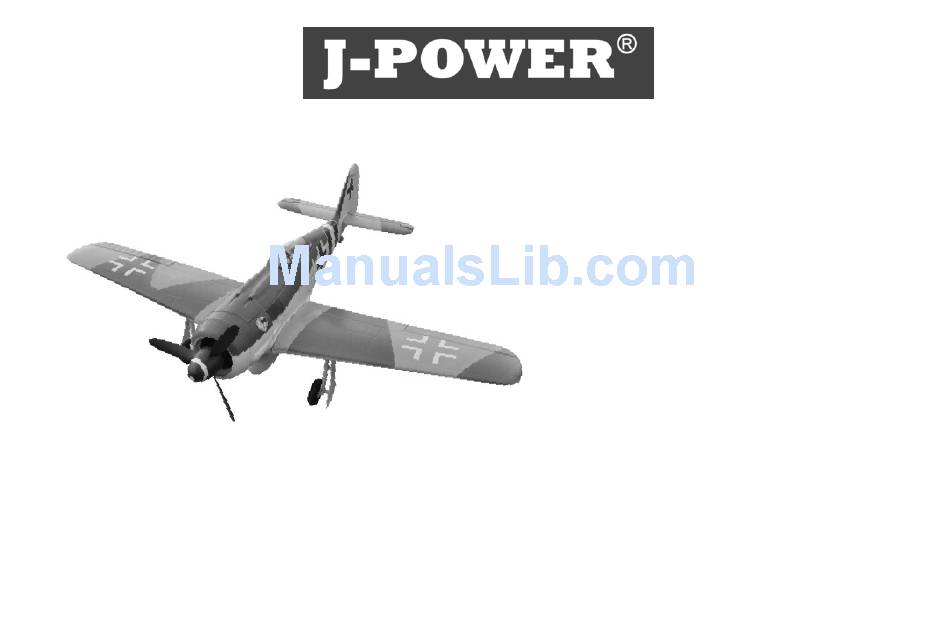

- Page 1 Assembly and Operating Manual Nano warbirds FW‐190 Specification: *Length: 18‐1/2"(470mm) *Wing Span: 21‐7/10"(550mm) *Flying Weight: 6‐1/2 oz (185g)
- Page 2 Assembly and Operating Manual Nano fw-190 warbirds Dear customer, with at least four channels. We particularly Kit contents recommend 2.4 GHz systems. Fuselage with vertical fin, complete with motor, Congratulations on your choice of a The receiving system is powered by the speed speed controller and servos.
- Page 3 Assembly and Operating Manual Nano fw-190 warbirds Fig. 1 - Glue the control rod to Horizontal tail. (glue not included) Fig. 2 - Remove any excess glue and hold in position until glue sets. The photo shows the finished view. Fig.
- Page 4 Assembly and Operating Manual Nano fw-190 warbirds Fig. 5 - Reverse the procedure to the right side. The photo shows the finished view. Fig. 6 - Glue the control rod to vertical tail. (glue not included) Fig. 7 - Remove any excess glue and hold in position until glue sets.
- Page 5 Assembly and Operating Manual Nano fw-190 warbirds Fig. 9 - Photo shows the fixed vertical tail. Figs. 10 - Connect the control rod to the vertical tail. Figs. 11 - Tighten the control rod with screw. Figs. 12 - Connect the control rod to the horizon tail.
- Page 6 Assembly and Operating Manual Nano fw-190 warbirds Figs.13 - Tighten the control rod with screw. Figs. 14 - Connect the wing panel push rod to the servo arm at third hole. Figs. 15 - Assemble the elevator push rod to the wing set. Figs.
- Page 7 Assembly and Operating Manual Nano fw-190 warbirds Figs. 17 - The photo shows the finished view. Figs. 18 - Reverse the procedure to the left wing. The photo shows the finished view. Figs.19 - Assemble the main wing to the fuselage. Photo shows the finished view .
- Page 8 Assembly and Operating Manual Nano fw-190 warbirds Figs.21 - Apply glue to the fuel tank. Figs.22 - Apply glue to the wing. Figs.23 - Assemble the fuel tank to the wing ,photo shows the finished view. Figs.24 - Fix the main landing gear with screw.
- Page 9 Assembly and Operating Manual Nano fw-190 warbirds Figs.25 - Photo shows the finished view. Figs.26 - Reverse the procedure to the left side. The photo shows the finished view. Figs.27 - Photo shows the finished vie w. Figs.28 - Apply A little glue to the nose cone.
- Page 10 Assembly and Operating Manual Nano fw-190 warbirds Figs.29 - Assemble the spinner to fuselage, photo shows the finished view. Figs.30 - Assemble the propeller to motor. Figs.31 - Fix the propeller with screw. Figs.32 - Connect to the receiver and place the receiver in the middle of the fuselage.
- Page 11 Assembly and Operating Manual Nano fw-190 warbirds Figs.33 - Photo shows battery leads connected to the speed controller. Figs.34 - Place the flight battery in the fuselage. Figs. 35 - Opening and closing the canopy: The canopy is retained by the cowl at the front, and by a tongue at the rear - To open the canopy, slide it forward, raise it at the rear and lift it off...
- Page 12 Assembly and Operating Manual Nano fw-190 warbirds Fig.37 - Place the battery in the model of balancing; do not connect it. - Make the Centre of Gravity on both sides. - Support the model at the marked C.G. and allow it to hang freely.
- Page 13 Assembly and Operating Manual Nano fw-190 warbirds Fig.40 - Switch the transmitter on, and move the throttle stick to the “Motor OFF” position. (Diagram MODE 1 right throttle control stick) Fig.41 and 42 - Check the channel assignment of the control surfaces, and swap over the connectors at the - Check the neutral position of the control surfaces.
- Page 14 Assembly and Operating Manual Nano fw-190 warbirds the aileron and elevator functions. Fig.43checking the electric power system Caution: position the throttle stick in such a way that the motor cannot possibly start running.
- Page 15 Assembly and Operating Manual Nano fw-190 warbirds - Switch the transmitter on, and connect the Test-flying, flying notes - With the motor running at full-throttle, give the flight pack aeroplane a firm launch directly into any breeze, Read the sections in the Safety - Check the direction of rotation of the motor: with the fuselage and wings level.
- Page 16 Assembly and Operating Manual J-POWER GROUP CO.,LTD 5th Floor, A3 Building, Xinjianxing Technology Industrial Park, Fengxin Road, Guangming Town, Bao'an, Shenzhen City, 518107 China Phone: +86 755 33699201 Fax: +86 755 33699203 www.jpower.hk...
