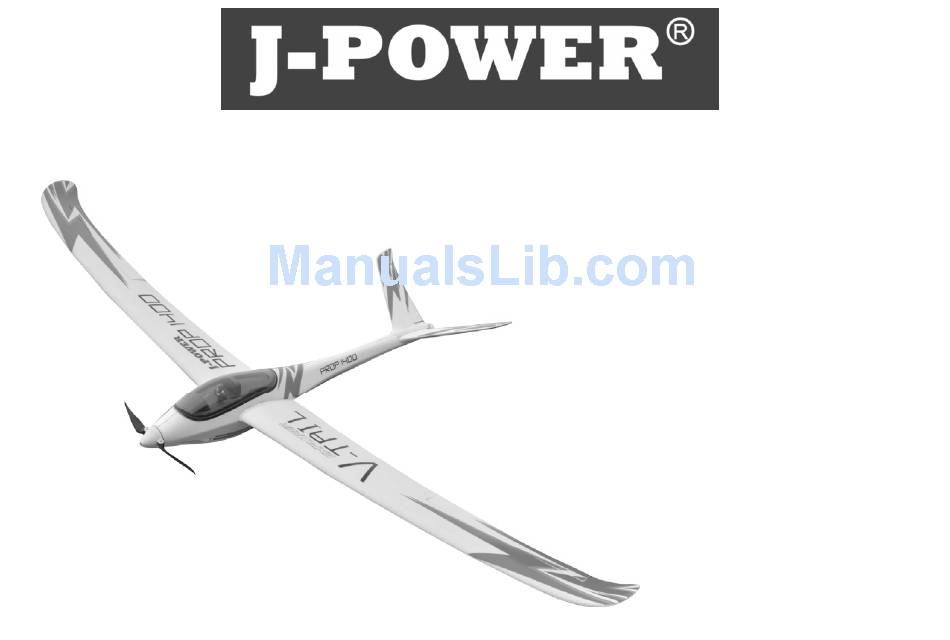

- Page 1 Assembly and Operating Manual Explorer Prop Specification: *Length: 27‐1/2"(698mm) *Wing span: 55‐1/10"(1400MM） ...
- Page 2 Explorer prop Dear customer, by the glue manufacturer. Allow the glue to fully To fly the Explorer Prop you will need a radio cure (harden) to the point where the joint can be Congratulations on your choice of a control system with at least four channels. 2.4GHz placed under stress.
- Page 3 Assembly and Operating Manual Explorer prop Fig. 1 -Assemble the V-tail Fig. 2 - Install V-tail on fuselage, Fig. 3 -Photo shows the finished view Fig. 4 - Lock the V-tail with screws...
- Page 4 Assembly and Operating Manual Explorer prop Fig. 5 -Connect the control rods and control horns . Fig. 6 - Assemble the control rods to the servo .and connect the rods with servo arms and control horns. Fig. 7 - Put the servo cover on the wings .
- Page 5 Assembly and Operating Manual Explorer prop Fig. 9 -Install the wing support bar into the main wings Fig.10 -Lock the main wings with screws. Fig. 11 -Connect the channel wire leads to the receiver Fig. 12 - located the battery...
- Page 6 Assembly and Operating Manual Explorer prop Fig. 13 - Connect the battery and ESC Fig. 14 - Congratulations, have completed assembly process. We hope you enjoy flying your new model! Fig. 15 Photo shows the balancing weight. - Place the canopy on the fuselage.
- Page 7 Assembly and Operating Manual Explorer prop Fig. 16 - Charge the flight battery; connect the Equalizer lead using and adapter lead matching your charger (adapter lead not included). -Controller and then switch the transmitter off. Fig. 17 - Switch the transmitter on, and move the throttle stick to the “Motor OFF”...
- Page 8 Assembly and Operating Manual Explorer prop Fig. 18 Function test - Check the channel assignment at the receiver, and if necessary swap the plugs as necessary. - Set the transmitter sticks and trims to centre. - The control surfaces should now also be at centre (neutral).
- Page 9 - Check the direction of rotation of the motor: when viewed from the front, the output shaft must - Allow the Explorer Prop to fly straight ahead initially; don’t initiate turns close to the ground.
