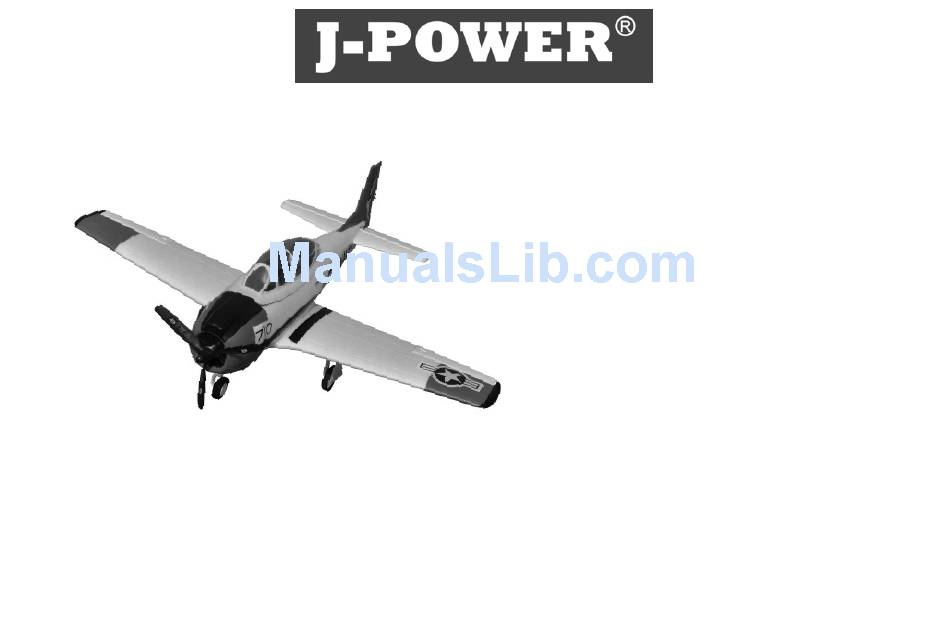

- Page 1 Assembly and Operating Manual Nano Wabirds T‐28 Specification: *Length: 17‐1/2"(445mm) *Wing Span: 21‐7/10"(550mm) *Flying Weight: 6‐1/10 oz (173g)
- Page 2 Assembly and Operating Manual Nano Warbirds T-28 Dear customer, For this model you require a radio control system Kit contents with at least four channels. We particularly Congratulations on your choice of a recommend 2.4 GHz systems. Fuselage with vertical fin, complete with motor,...
-
Page 3: Figs
Assembly and Operating Manual Nano Warbirds T-28 Fig. 1 - Apply glue to the horizontal tail control rod. (glue not included) Fig. 2 - Photo shows the fixed horizontal tail control rod. Fig. 3 - Apply glue to the main wing control rod. (glue not included) Fig. - Page 4 Assembly and Operating Manual Nano Warbirds T-28 Fig. 5 - Reverse the procedure to the other side of main wing control rod. And make sure no extra glue on the surface. Fig. 6 - Apply glue to the vertical fin control rod. (glue not included) Fig.
- Page 5 Assembly and Operating Manual Nano Warbirds T-28 Fig. 9 - Photo shows the fixed horizontal tail. Figs. 10-11 - Connect the elevator push rod to the horizontal tail control rod, then fixed it with screw.. Figs. 12 - Connect the control rod to the vertical tail.
- Page 6 Assembly and Operating Manual Nano Warbirds T-28 Figs. 13 Tighten the control rod with screw. Figs. 14-15 - Connect the push rod to the main wing servo arm, and then connect it to the main wing control rod. Figs. 16...
- Page 7 Assembly and Operating Manual Nano Warbirds T-28 Figs. 17 The photo shows the finished view. Figs. 18 - Reverse the procedure to the other side of main wing control rod. Figs. 19 - Insert the main wing set to the fuselage.
- Page 8 Assembly and Operating Manual Nano Warbirds T-28 Figs. 21 - Fixed the landing gear with screws Figs. 22 - Photo shows the fixed landing gear with screws. Figs. 23 - Reverse the procedure to the other side of the landing gear.
- Page 9 Assembly and Operating Manual Nano Warbirds T-28 Figs. 25 - Apply A little glue to the nose cone. Figs. 26 - Apply glue to the fuselage Figs. 27 - Assemble the foam nose cone to the fuselage, and hold it in position until glue is hardening.
- Page 10 Assembly and Operating Manual Nano Warbirds T-28 Figs. 29 - According to the channel, then connect to the receiver. Figs. 30 - Connect the battery to the speed controller. Figs. 31 - Clear up the cables and make sure they won’t...
- Page 11 Assembly and Operating Manual Nano Warbirds T-28 Figs. 32 - Opening and closing the canopy: The canopy is retained by the cowl at the front, and by a tongue at the rear - To open the canopy, slide it forward, raise it at the rear and lift it off - Reverse the procedure to replace the canopy.
- Page 12 Assembly and Operating Manual Nano Warbirds T-28 Fig. 34 - Charge the flight battery; connect the Equalizer lead using and adapter lead matching your charger (adapter lead not included). Fig. 35 - Switch the transmitter on, and move the throttle stick to the “Motor OFF”...
-
Page 13: Nano Warbirds T
Assembly and Operating Manual Nano Warbirds T-28 Fig. 38 checking the electric power system - Caution: position the throttle stick in such a way that the motor cannot possibly start running. - Switch the transmitter on, and connect the flight... - Page 14 - Switch the transmitter on, and connect the - With the motor running at full-throttle, give the flight pack Test-flying, flying notes aeroplane a firm launch directly into any breeze, Read the sections in the Safety - Check the direction of rotation of the motor: with the fuselage and wings level.
- Page 15 J-POWER GROUP CO.,LTD 5th Floor, A3 Building, Xinjianxing Technology Industrial Park, Fengxin Road, Guangming Town, Bao'an, Shenzhen City, 518107 China Phone: +86 755 33699201 Fax: +86 755 33699203 www.jpower.hk...
