Sargent and Greenleaf 3006 PivotBolt Installation Instructions

Installation Instructions for:
Model 3006 PivotBolt
• Für Anweisungen auf Deutsh besuchen Sie bitte die folgende Website:
• Pour obtenir les instructions en français, veuillez consulter le site ci-dessous: www.sargentgreenleaf.com/OPinstr.php
Step 1: Open the Box

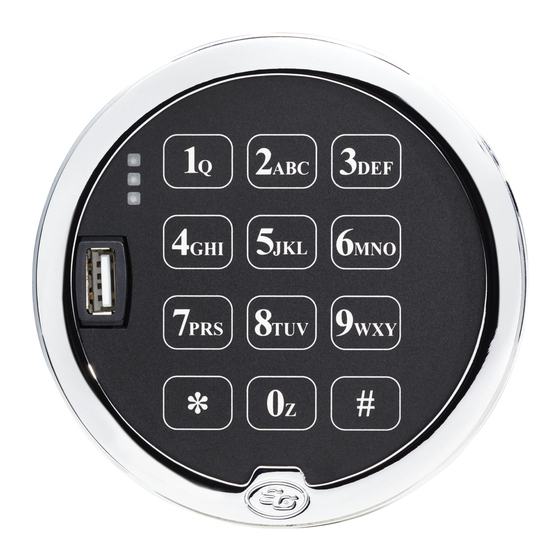

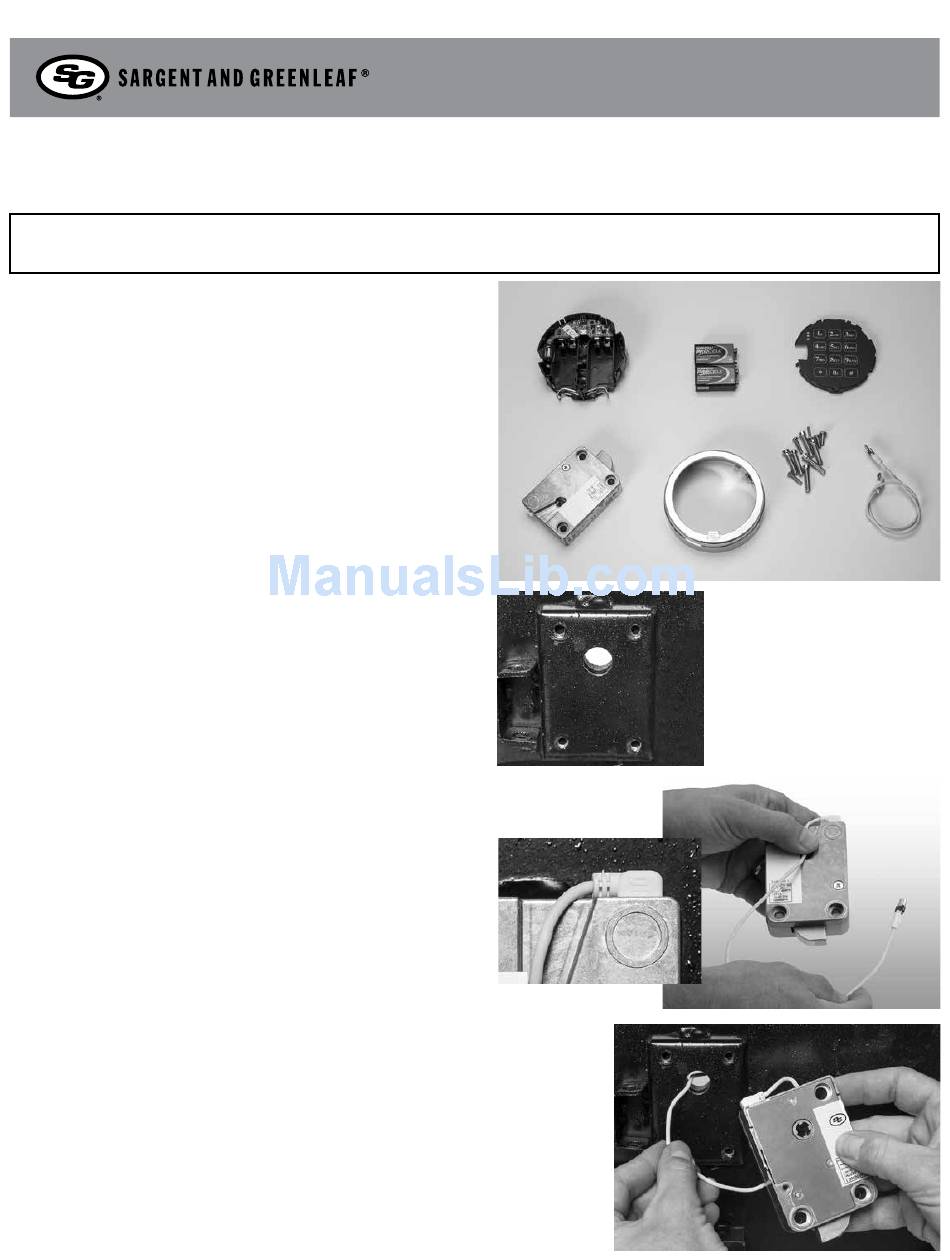

Open the S&G USB Audit Lock and make sure that you have the
following parts.
• Base • (2) 9V batteries • Keypad • PivotBolt lock
• Chrome Ring • Screws • Cable
Step 2: Check Mounting Location
This lock can be mounted to storage unit of any materal as
•
long as the lock is electrically grounded and the mouting
surface is sufficiently sturdy.
• The mounting surface should be smooth and flat, with either ¼ - 20 or M6
mounting screw holes.
• The wire channel (spindle hole) through the safe door must be at least
.312 inch (7,9 mm) in diameter.
• The holes should clear of sharp edges or burrs which could damage the
lock cable.
Step 3: Place the Cable in the Recessed Channel
The cable runs through the opening of the case and on through the safe's
spindle hole to the keypad.
No matter which side of the case is placed against the safe's mounting plate,
the lock cable needs to be routed in the recessed channel in the lock's cover.
The cable is routed around the end of the lock and through the recessed
channel, where it will make a 90 degree bend before running through the
safe's spindle hole to the keypad.
Plug the Cable into the Lock
• The USB audit lock is a reversible, non-handed electronic safe lock.
• It is necessary to plug the provided cable into the lock. This is a connector
that will only insert one way. Make sure it is fully inserted and locked into
the lock case receptacle.
Step 5: Determine Which Direction Lock is to be Mounted
Either side of the lock case can be mounted against the safe door to
accommodate the direction of movement of the blocking bar or cam plate of
the safe's boltwork.
USB Audit Lock
TM
Document # 630-889
Revision 10/02/15
