Sargent and Greenleaf 6124 Set Up And Operation Manual

Multiple user access electronic safe lock

Hide thumbs Also See for 6124:

Installation instructions manual (7 pages)

Management manual (5 pages)

Operating instructions (2 pages)

page of 19

/ 19
Bookmarks

Available languages

Quick Links

Download this manual

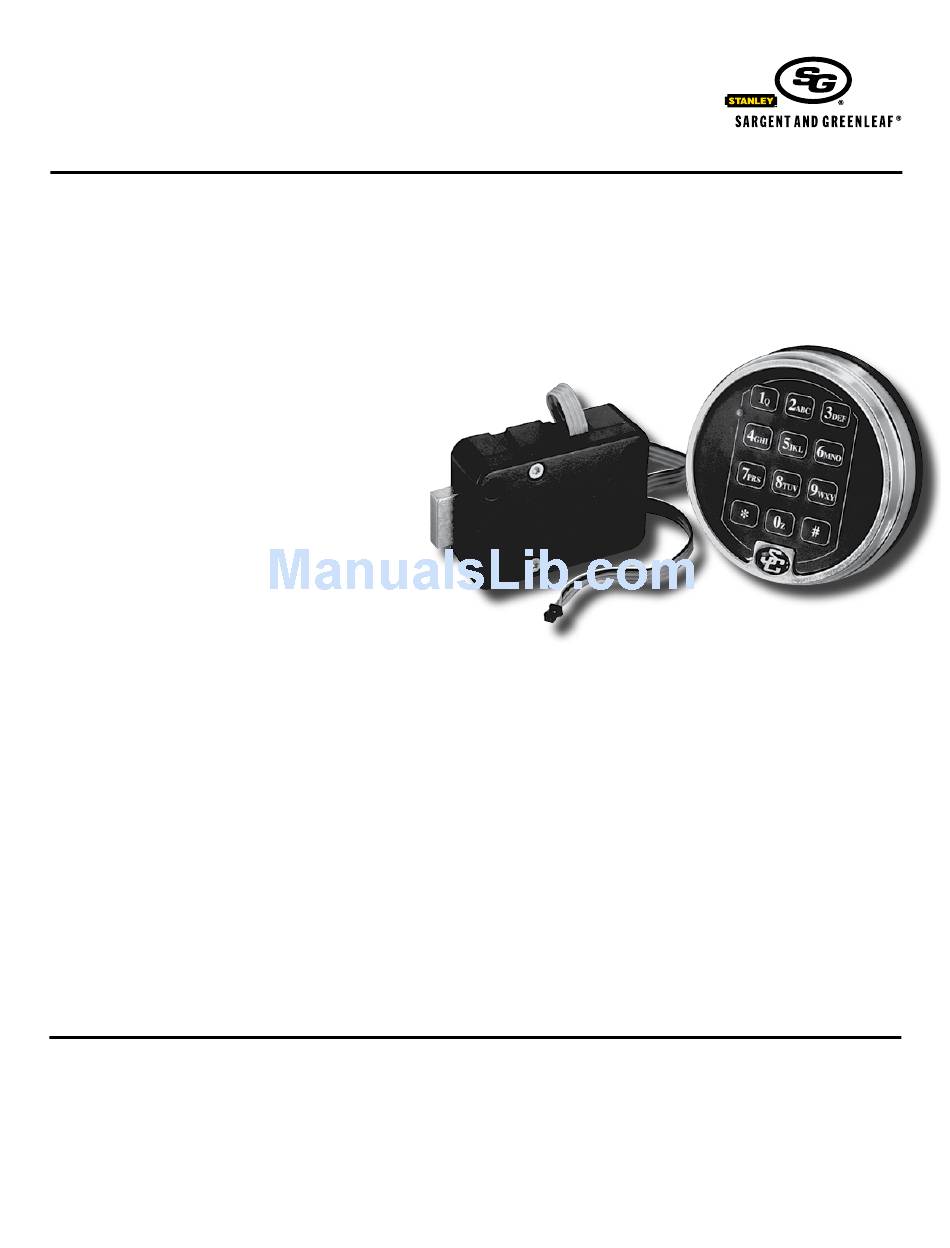

Model 6124 / 6125 Multiple User Access

Electronic Safe Lock

Setup and Operations Guide

General Information

a. About Your Lock

b. PIN Positions

c. Changing the Batteries

d. Quick Reference Tables

e. Keypad Tamper Indicator (Optional)

II. M anagement Reset Code (MRC) and Master Code (MC)

a. Management Reset Code

b. Master Code

III. Creating, Changing and Deleting Codes

a. Creating Supervisor Code

b. Creating User Codes

c. Changing Codes

d. Deleting Codes

e. Detecting Active User Positions

IV. Time Delay

a. Time Delay Duration

b. Opening Window Duration

c. Time Delay Override

d. Creating, Changing, Deleting the TDO Code

V. Management/Employee Access

VI. Duress Function

VII. Audit Trail Options

a. Event Audit Trail

VIII. Codes—General Information

VIII. Specifications and Warranty

Sargent & Greenleaf, Inc.

A Wholly Owned Subsidiary of Stanley Security Solutions, Inc.

PO Box 930

Nicholasville, KY 40356

Phone: (800)-826-7652 Fax: (800)-634-4843

Phone: (859)-885-9411 Fax: (859)-887-2057

2006, Sargent & Greenleaf, Inc.

Note: This lock has been Listed by Underwriters Laboratories for use with the following

S&G keypad(s):

6120-0XX, 6120-2XX, 6160-2XX (IP Series), 61KP-1XX, 61KP-2XX

page

Sargent & Greenleaf S.A.

9, chemin du Croset

1024 Ecublens, Switzerland

Phone: +41-21 694 34 00

Fax: +41-21 694 34 09

Document 630-656ENG

Revised 5/25/06

Need help?

Do you have a question about the 6124 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sargent and Greenleaf 6124

Page 1 Model 6124 / 6125 Multiple User Access Electronic Safe Lock Setup and Operations Guide General Information a. About Your Lock b. PIN Positions c. Changing the Batteries d. Quick Reference Tables e. Keypad Tamper Indicator (Optional) II. M anagement Reset Code (MRC) and Master Code (MC) a. Management Reset Code b. Master Code III. Creating, Changing and Deleting Codes a. Creating Supervisor Code b.
Page 2 I. General Information a. About Your Lock Each time you press a number, letter, or other character on the keypad of your Model 624 or 625 electronic safe lock, it beeps and the red LED flashes. If it doesn’t, check your batteries to make sure they are fresh and connected properly, then try again.
Page 3 d. Quick Reference Tables Command Reference: Each of the following commands (CMD) begins a code sequence to perform a specific function. Function 2 2 * Change six-digit user code. 2 8 * Download the event audit trail. 3 2 * Set up the Management/Employee enabling/disabling of user codes. 3 8 * Enable/disable the duress function 4 3 *...
Page 4 e. Keypad Tamper Indicator—Required for VdS rating ptiOnal amper indicating keypad must be Ordered If a tamper-indicating keypad is installed, the lock records each time the lock keypad housing is unseated or removed from the base. If the housing is disturbed, the Keypad Tamper Indicator beeps an SOS warning signal the next time you attempt to enter a valid access code.
Page 5 For example, to use the MRC of 9, /0, 8, 9, 2, 7 and create a Master Code of 6, 5, 4, 3, 2, : 6 7 * 9 /0 8 9 2 7 #  6 5 4 3 2 #  6 5 4 3 2 # ...
Page 6 b. Creating User Codes Using the Master or Supervisor Code, create new User Codes. For each user, create a unique 6-digit code and assign a PIN position (2 through 8). PIN position 9 is also available as a normal User Code if the Time Delay Override feature is turned off.
Page 7 a. Time Delay Duration If the time delay parameter has been set and you want to change it, enter a user code to start the time delay. When Time Delay expires (the lock emits 0 rapid beeps) and the opening window period has begun, set your Time Delay minutes.
Page 8 c. Time Delay Override With Time Delay Override (TDO), you define whether or not you can override Time Delay, in case you need to open the lock before the time delay expires - for example, by a cash carrier. If time delay has been programmed, the following steps must be performed during the opening window period.
Page 9 V. Management/Employee Access During everyday operation of the lock, the Manager or Supervisor ‘enables’ the lock, and the lock can then be opened by User Codes until it is “disabled”. There are two versions of the enable/disable function: • In the first version, only the Master and the Supervisor can both enable and disable the lock. •...
Page 10 VI. Duress Function rder uress Odule eparately Your lock has duress capability (a silent alarm option). Installation of a duress signal box (duress module) is required for proper connection to your existing alarm system. Use the instructions provided with the module to ensure accurate installation and connection. a. Enabling the Duress Feature When the lock is installed with the duress module, you need to enable duress feature.
Page 11: Specifications And Warranty
Note: This lock has been Listed by Underwriters Laboratories for use with the following S&G keypad(s): 6120-0XX, 6120-2XX, 6160-2XX (IP Series), 61KP-1XX, 61KP-2XX Models 6124 and 6125 Electronic Safe Lock and Model 61KP Keypad Limited Warranty Seller warrants that for two (2) years from the date of shipment from Seller’s point of manufacture, the goods will be free from defects in material and workmanship, provided the goods are normally and properly used according to the Seller’s written instructions.
Page 12 Programmeringsguide Sargent & Greenleaf Titan Pivot Bolt/Titan Direct Drive & 6124/6125 ASSA ABLOY, the global leader in door opening solutions.
Page 13 LÄS IGENOM HELA PROGRAMMERINGSGUIDEN INNAN Felslagsräknare PROGRAMMERING PÅBÖRJAS. Vid inslagning av 5 felaktiga koder eller felaktig program- mering i rad, kommer låset att stängas av i 10 minuter. Om PROVA ALLTID NY KOD 3 GÅNGER INNAN DU ytterligare felaktiga koder slås in under denna 10-minuters- STÄNGER/LÅSER SKÅPDÖRREN.
Page 14 För att öppna låset slår Du Din 6-siffriga kod följt av #. Vänta • Fäst det nya batteriet på batterihållaren en sekund, vrid sedan skåpets handtag till olåst läge, Vrid- ning måste ske inom 6 sekunder för modell 6124 och 15 • Sätt i batteriet i knappsatsen sekunder för modell 6125.
Page 15 #, och öppna sedan låset. måste ske inom 6 sekunder för modell 6124 och 15 sekun- Perioden är från fabrik programmerad till 2 minuter, men der för modell 6125.
Page 16 Aktivera Väktarkodfunktion Aktivering/deaktivering av lås (Manager/Employee Ac- cess). OBS! Denna funktion är endast tillgänglig om låset 4 6 * Huvudkod # ( ) slå 1 för Dubbelkommando eller är programmerat i Enkelkommando, ej i Dubbelkom- 2 för Enkelkod # ( ) slå...
Page 17 PIN-position (2–8). I exemplet används PIN- position 3, slå: Titan Pivot Bolt 2006/Titan D-Drive 7 4 * Huvudkod eller Gruppkod # ( ) Gruppkod eller 2007/6124/6125 Användarkod # ( ) 3 # ( ) Användarkod # ( Användarkod # ( OBS! Programmering till Dubbelkommando måste göras...
Page 18 Skapa Väktarkod (Time Delay Override) Ditt lås är förberett med Väktarkod så att t.ex. en värde transportör kan ”gå förbi” tidsfördröjningen, med hjälp av dubbelkommando (användarkod + väktarkod). Väktarko- dens adressplats är PIN-position 9 och ändras eller raderas på samma sätt som användarkoderna. (Är funktionen Tidsför¬dröjning ej aktiverad kommer denna kod att fungera som en vanlig användarkod).
Page 19 ASSA OEM AB P.O. Box 371 SE-631 05 Eskilstuna Sweden phone +46 (0)16 17 70 00 fax +46 (0)16 17 74 51 Customer support: phone +46 (0)16 17 79 50 fax +46 (0)16 17 70 18 e-mail: csg@assaoem.se ASSA ABLOY, the global leader in door opening solutions.
