THE WORLD MODELS Clipped Wing Cub EP Instruction Manual page 6

5
Tail Landing Gear
PA2x8mm Screw
2
PM2x8mm Screw
1
M2 Nut
1
6
PB2x8mm Screw
2
Horn
PB2x8mm
7
Clevis
E139CSXMPO25951108
Plastic Collar
M2 Nut
PM2x8mm

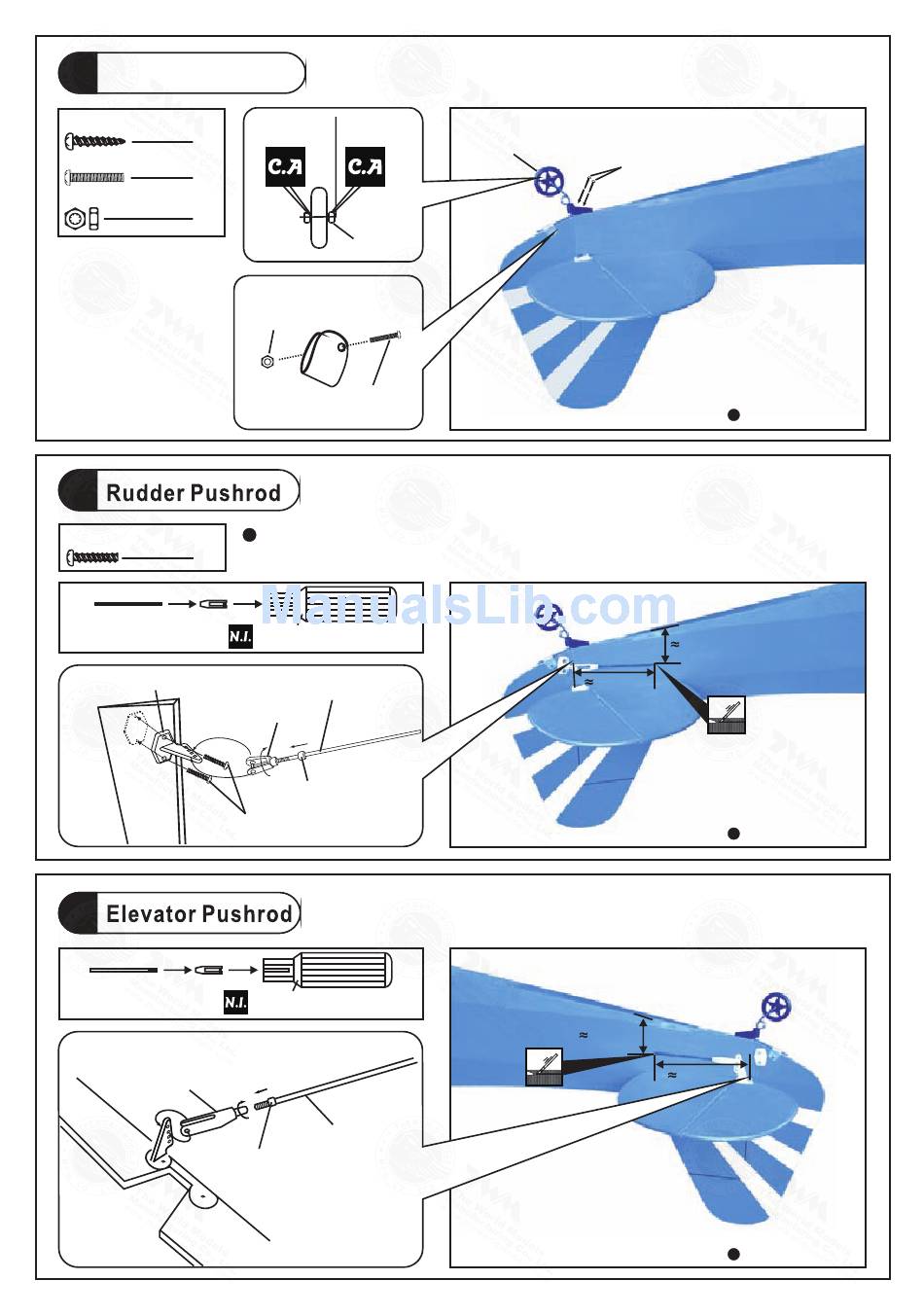

Ø1mm pilot holes for World Models tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
TWM PL8210010
CLEVIS WRENCH
Pushrod
Ø1.4x413mm
Clevis
Fuel Tube
d2xD4x4mm
TWM PL8210010
CLEVIS WRENCH
Pushrod
Ø1.4x403mm
Fuel Tube
d2xD4x4mm
TAIL WHEEL
Ø23mm
65mm
24mm
P.5
PA2x8mm
Bottom View
20mm
Bottom View
67mm
Bottom View
