Pro'sKit mt-2017 User Manual

Protective Function

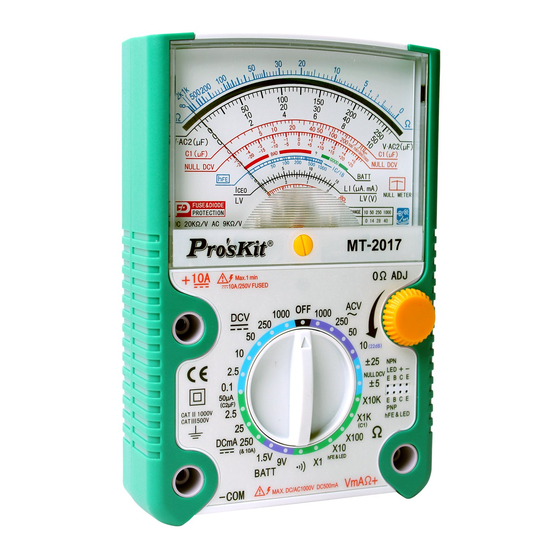

MT-2017
Analog Multimeter
User's Manual
st ,
1 Edition 2011
©2011 Copyright by Prokit's Industries Co., Ltd.
Test
Range
Functions
DC V 0-0.1-2.5-10-50-2
50 V-1000V
Null DCV ±-5V, ±25V
AC V 0-10-50-250V
-1000V
DC mA 0-0.05-2.5-25-25
0 mA, 10A
Ω X 1: 0.2 ~ 2KΩ
Midscale at 20Ω
X 10: 2 ~ 20KΩ
Midscale at 200Ω
X 100: 20~
200KΩ Midscale
at 2000Ω X1K:
200~ 2MΩ
Remarks
Accuracy
 3%
Input Impendence:
FSD. 20KΩ/V Overload
 4%
Protection: Max.
FSD. 1000V AC/DC
For BUT 0.1V/2.5V/10V
1000V 250V Max.
 5%
Input Impedance: 40KΩ/V
FSD. Overload 1000V Max.
 4%
Input Impendence:
FSD. 9KΩ/V Overload
 5%
Protection: Max.
FSD. 1000V AC/DC
For But 10V/50V only
1000V 250V Max. Band
width: 40 ~10K Hz
 3%
Drop Voltage: 250 mV
FSD. Overload protected by
 4%
Fuses 0.5A/250V &
FSD. 10A / 250V at 10A
For 10A range, and Oxide
Varactor.<250V AC/
DC(5s). Max. test time
1min. for 10A.
 4% of
Overload protected by
ARC of the Oxide Varactor &
Scale Fuse <250V AC/DC
Length (5s).
2
INTRODUCTION
This Multi-meter is an accurate, safe, battery operated, rear
tilt-stand, easy to operate handheld instrument with robust
protective holster alongside and the adjustable back tilt device
with hook-up design. It can offer accurate, reliable measurement
of DC/AC Voltage, +/-DCV, DC Current, Resistance and Diode,
LED, Transistor, Decibels, Continuity test and Capacitance with
very high sensitive quality movement, double-sided glass-epoxy
PCB & good-designed circuit, as well as mirrored Aluminum dial
plate etc. It has the perfect full overload & mis-used protection via
two Fuses, Oxide Varactor & Diodes. It is an ideal instrument for
indoor use in the laboratory, school, workshop, hobby and home
applications.
SPECIFICATION
Safety Category: IEC61010-1, CAT II 1000V, CAT III 500V and
Pollution Degree 2.
Common Environment: 23C5C, less than 75% RH.
Temperature Ranges:
0C to 40C, 32 F to 104 F for operating condition.
-10 C to 50C, 14 F to 122F for storage condition.
Humidity Scope: Operating condition less than 90% RH.
Storage condition: less than 80% RH.
Size: 160(W) x 105(D) x 40(H) MM
Weight: 390g approx. (including batteries 3pcs)
Accessories: One set of Test Leads;
Two Spare Fuses: 0.5A/250V & 10A/250V,
Additional Option Accessory: MT2007-C special for capacitance
measurements 1 set
Midscale at 0KΩ
X10K: 2K ~20MΩ
Midscale at
200KΩ
Capacitance 0.025-0.25-25uF(
(uF) C2), 2000uF(C1)
BATT Check 0 ~ 1.5V: GOOD
- ? – BAD
0 ~ 9V: GOOD
- ? – BAD
Transistor hFE: 0-1000 via
Check special hFE
socket
LED, Diode via special hFE
Check socket
Decibel -22 dB ~ + 62 dB
(0dB=1mW at
600Ω)
Continuity Beeper sounding
Check under 200 Ohm
POWER Internal Battery:
Source R6P, AA, 1.5V
2pcs, 6F22,
NEDA1604, 9V
1pc
1
 3%
Use the optional
FSD. Accessory Kit
Approx. (MT-2007-C) Use the R
Value x 1K range
 5% of
Load Current:
ARC of 270mA for 1.5V
Scale 25mA for 9V
Length Overload protected by
Fuse & Oxide
Varactor .<250V
AC/DC(5s).
Approx. At Ω X 10 Range
Value
Approx. At Ω X 10 Range
Value
Approx. At ACV ranges
Value
Overload protected by
Fuse & Oxide
Varactor .<250V
AC/DC(5s).
3
