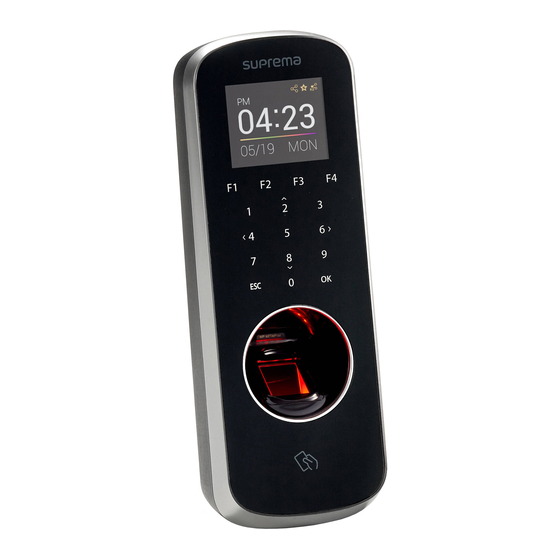

- Page 1 BioStation L2 INSTALLATION GUIDE Version 1.14 English EN 101.00.BSL2 V1.14A...
-
Page 2: Table Of Contents
Contents Safety instructions ................. 3 Introduction .................... 5 Components ..............................5 Name and function of each part ....................... 6 Cables and connectors ..............................7 How to enroll a fingerprint ........................9 Selecting a finger for fingerprint input ........................9 Fingerprint enroll method ..............................9 Installation ................... -
Page 3: Safety Instructions
If installing the product outside where the product is completely exposed, it is recommended to install the product together with the enclosure. Use a separate power supply for Secure I/O 2, electric lock and BioStation L2 respectively. • If connecting and using the power supply to these devices together, the devices may malfunction. - Page 4 Otherwise, a product failure may occur. • BioStation L2 uses capacitive buttons. If the environment is moist from wet weather or the product surface is smeared with a lot of water, wipe off the product with a dry towel before using it.
-
Page 5: Introduction
Introduction Introduction Components BioStation L2 Wall Bracket Drilling Template Diode 120 Ω resistor Connection Cable PVC Anchor x2 Ferrite Core (2 pins 1 EA, 3 pins 1 EA, 4 pins 4 EA) Fixing Screw x2 Bracket Fixing Screw Open Source Software Guide... -
Page 6: Name And Function Of Each Part
Introduction Name and function of each part LCD screen Function buttons Keypad s) ESC button OK button Fingerprint authentication unit RF card authentication unit TTL input (4 pins) Ethernet Power supply (2 pins) Relay (3 pins) RS-485 (4 pins) Wiegand input/output (4 pin Speaker Name Description... -
Page 7: Cables And Connectors
Introduction Cables and connectors Power supply Name Color PWR +VDC Red (White stripe) PWR GND Black (White stripe) Relay Name Color RLY NO White RLY COM Blue RLY NC Orange RS-485 Name Color 485 TRXP Blue 485 TRXN Yellow 485 GND Black SH GND Gray... - Page 8 Introduction Ethernet Name Color ENET RXN Yellow ENET RXP Green ENET TXN ENET TXP Black...
-
Page 9: How To Enroll A Fingerprint
When the fingerprint recognition fails BioStation L2 can recognize a fingerprint regardless of a change of season or finger condition. However, the authentication rate may vary according to the external environment or fingerprint input method. -
Page 10: Installation
BioStation L2 will be installed. NOTE • If installing BioStation L2 on a concrete wall, drill holes, insert PVC anchors, and fix them with fixing screws. • To avoid RF interference, a minimum separation distance must be maintained. - Page 11 Installation Install BioStation L2 onto the fixed bracket. Connect BioStation L2 to the bracket by rotating the product fixing screw of BioStation L2.
-
Page 12: Power Supply Connection
• Use a separate power supply for Secure I/O 2, the electric lock, and the BioStation L2 respectively. If connecting and using the power supply to these devices together, the devices may malfunction. -
Page 13: Ttl Connection
Installation LAN connection (connecting to a PC directly) BioStation L2 has an automatic MDI/MDIX function so that it can be connected to a PC directly using a normal straight type CAT-5 cable, not a cross cable. BioStation L2 TTL connection... -
Page 14: Relay Connection
Take caution of the installation direction of the diode. Install the diode close to the door lock. • Use a separate power supply for BioStation L2 and the door lock. • Fail Secure Lock In order to use the Fail Secure Lock, connect N/O relay as shown in the figure below There is normally no current flowing through the relay for the Fail Secure Lock. -
Page 15: Automatic Door Connection
Installation Automatic door connection 1 - RLY NO White 2 - RLY COM Blue Door button Detection sensor Automatic door control device Door lock BioStation L2... -
Page 16: Connecting As A Standalone
NOTE • BioStation L2 can be used as a multi-door controller with the slave devices with the RS485 cable. The slave devices are used as dummy readers and authentication is performed in the master device. If Xpass is connected to the master device, only card authentication can be used. -
Page 17: Connecting To Secure I/O 2
Connecting to Secure I/O 2 Secure I/O 2 is an I/O device, can be connected to BioStation L2 with the RS-485 cable. Security can be maintained even if the connection between BioStation L2 and Secure I/O 2 has been lost or the power supply to BioStation L2 has been shut off due to external factors. -
Page 18: Wiegand Connection
Installation Wiegand connection Use as a Wiegand input/output device Cable shield (optional) RFID reader/ Control device 1 - WG D0 Green 2 - WG D1 White 3 - WG GND Black 4 - SH GND Gray BioStation L2... -
Page 19: Product Specifications
Image dimension 272 x 320 pixels Image bit depth 8bit, 256 grayscale Resolution 500 dpi Fingerprint Template SUPREMA / ISO 19794-2 / ANSI 378 Extractor / Matcher MINEX certified and compliant Supported Max. User (1:1) 500,000 Max. User (1:N) 100,000 Capacity Max. -
Page 20: Dimensions
Product specifications Dimensions (Unit: mm) 171.7... -
Page 21: Fcc Compliance Information
FCC compliance information FCC compliance information THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 22: Appendices
Suprema's products. Do not use the product of Suprema under the situations related to medical, rescue of human lives, or maintenance of life, as a •... - Page 23 Appendices When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for them if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs, and that you know you can do these things.
- Page 24 Appendices case of interfaces specified for a particular programming language, one that is widely used among developers working in that language. The “System Libraries” of an executable work include anything, other than the work as a whole, that (a) is included in the normal form of packaging a Major Component, but which is not part of that Major Component, and (b) serves only to enable use of the work with that Major Component, or to implement a Standard Interface for which an implementation is available to the public in source code form.
- Page 25 Appendices regardless of how they are packaged. This License gives no permission to license the work in any other way, but it does not invalidate such permission if you have separately received it. d) If the work has interactive user interfaces, each must display Appropriate Legal Notices; however, if the Program has •...
- Page 26 Appendices 7. Additional Terms. “Additional permissions” are terms that supplement the terms of this License by making exceptions from one or more of its conditions. Additional permissions that are applicable to the entire Program shall be treated as though they were included in this License, to the extent that they are valid under applicable law.
- Page 27 Appendices organization, or merging organizations. If propagation of a covered work results from an entity transaction, each party to that transaction who receives a copy of the work also receives whatever licenses to the work the party's predecessor in interest had or could give under the previous paragraph, plus a right to possession of the Corresponding Source of the work from the predecessor in interest, if the predecessor has it or can get it with reasonable efforts.
-
Page 28: Gnu Lesser General Public License
Appendices The Free Software Foundation may publish revised and/or new versions of the GNU General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. - Page 29 Appendices 1. Exception to Section 3 of the GNU GPL. You may convey a covered work under sections 3 and 4 of this License without being bound by section 3 of the GNU GPL. 2. Conveying Modified Versions. If you modify a copy of the Library, and, in your modifications, a facility refers to a function or data to be supplied by an Application that uses the facility (other than as an argument passed when the facility is invoked), then you may convey a copy of the modified version: a) under this License, provided that you make a good faith effort to ensure that, in the event an Application does not supply...
-
Page 30: Openssl License
Appendices version for the Library. OpenSSL License Copyright (c) 1998-2017 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Page 31 Appendices LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]...
- Page 32 Tel: +82 31 783 4502 I Fax: +82 31 783 4503 I Inquiry: sales@supremainc.com ©2018 Suprema Inc. Suprema and identifying product names and numbers herein are registered trade marks of Suprema, Inc. All non-Suprema brands and product names are trademarks or registered trademarks of their respective companies. Product appearance, build status and/or specifications are subject to change without notice.
