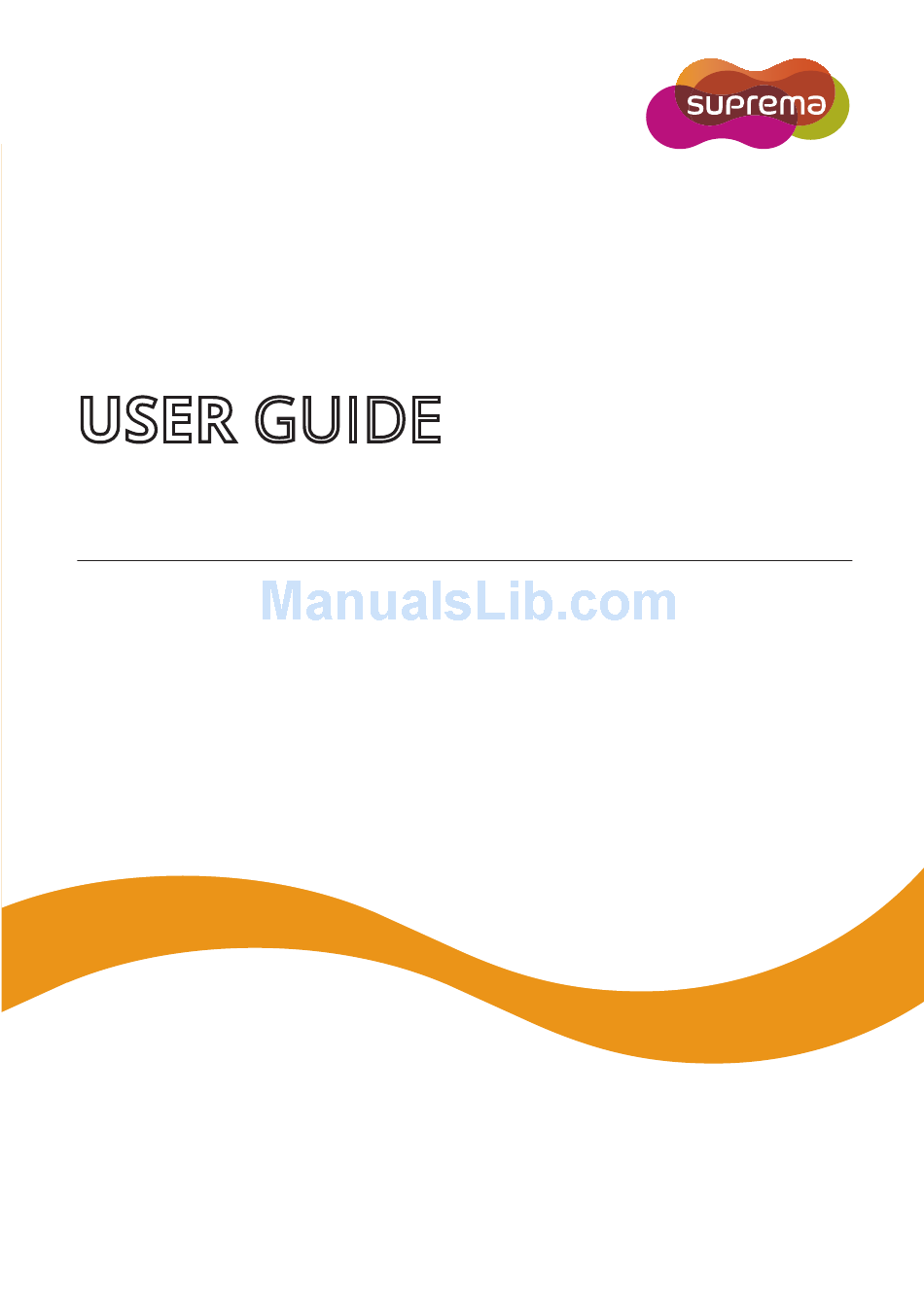

- Page 1 USER GUIDE BioStation L2 English Version 1.10 EN 102.00.BSL2 V1.10A...
-
Page 2: Table Of Contents
Contents Safety Instructions ..................4 Introduction ...................... 6 Components ..............................6 Name and function of each part ....................... 7 Cables and connectors ........................... 8 How to enroll a fingerprint correctly ...................... 10 Selecting a finger for fingerprint input .................... 10 Fingerprint enroll method ........................ - Page 3 Product Specifications ................. 25 Dimensions ..............................26 FCC compliance information ..............27 Appendices ..................... 28 Escape clause ............................... 28 Copyright notice ............................28...
-
Page 4: Safety Instructions
If installing the product outside where the product is completely exposed, it is recommended to install the product together with the enclosure. Use a separate power supply for the Secure I/O 2, electric lock and BioStation L2 respectively. • If connecting and using the power supply to these devices together, the devices may malfunction. - Page 5 Otherwise, a product failure may occur. BioStation L2 uses a capacitive screen and buttons. If the environment is moist from wet weather or the product surface is smeared with a lot of water, wipe off the product with a dry towel before using it.
-
Page 6: Introduction
(2 pins 1 EA, 3 pins 1 EA, 4 pins 4 EA) 120 Ω resistor Drilling template Quick guide (1 EA) Note • Components may vary according to the installation environment. • For additional content regarding product installation, access the Suprema website (www.suprema.co.kr) and view the installation guide. -

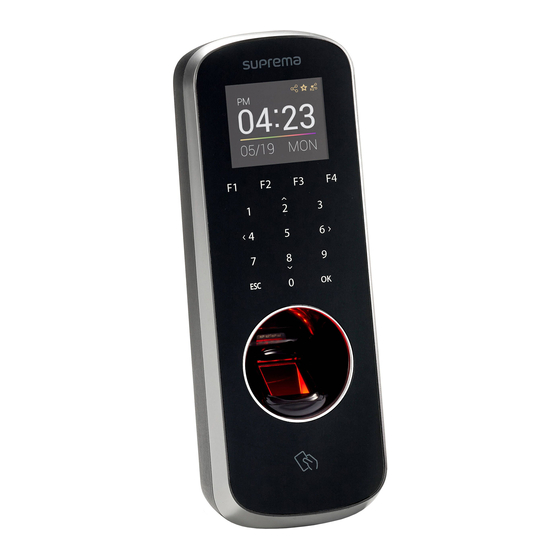

Page 7: Name And Function Of Each Part
Introduction Name and function of each part LCD screen Function button Keypad ESC button OK button Fingerprint authentication unit RF card authentication unit TTL input (4 pins) Ethernet Power supply (2 pins) Relay (3 pins) RS-485 (4 pins) Wiegand input/output (4 pins) Speaker Name Description... -
Page 8: Cables And Connectors
Introduction Cables and connectors Power Name Color PWR +VDC Red (white stripe) PWR GND Black (white stripe) Relay Name Color RLY NO White RLY COM Blue RLY NC Orange RS-485 Name Color 485 TRXP Blue 485 TRXN Yellow 485 GND Black SH GND Gray... - Page 9 Introduction Ethernet Name Color ENET RXN Yellow ENET RXP Green ENET TXN ENET TXP Black...
-
Page 10: How To Enroll A Fingerprint Correctly
When the fingerprint recognition fails BioStation L2 can recognize a fingerprint regardless of a change in season or finger condition. However, the authentication rate may vary according to the external environment or fingerprint input method. If the fingerprint authentication cannot be done smoothly, it is recommended to take the following measures. -
Page 11: Admin Menu
Admin Menu Admin Menu All Menus Press ESC and authenticate with the Admin level credential. Select the desired menu. Note • If the administrator has not been designated, the menu screen will be displayed when you press ESC. -
Page 12: User
User User Registering user information The user information including fingerprints can be registered. Press ESC and authenticate with the Admin level credential. Select USER > Add User, then press Select the desired item, then press and set . When you press OK, the user information will be registered. •... -
Page 13: Modifying User Information
User Modifying user information User Management or Administrator can modify the registered user information. A fingerprint or card can be added, and PIN and level can be modified. Press ESC and authenticate with the Admin level credential. Select USER > Search User, then press Select your search terms. -
Page 14: Authentication
Authentication Authentication Mode Fingerprint Mode You can set the schedule to be used for each authentication method using a fingerprint. Press ESC and authenticate with the Admin level credential. Select AUTHENTICATION > Auth Mode > Fingerprint Mode, then press Select the desired item and set the schedule by pressing •... -
Page 15: Id Mode
Authentication Note • A schedule can be set in BioStar 2. If there is no set schedule, only Not Used and Always can be selected. • For detailed contents regarding setting a schedule, refer to BioStar 2 Administrator's manual. ID Mode You can set the schedule to be used for each authentication method using ID. -
Page 16: Fingerprint
• Template Format: Set the fingerprint template format. SUPREMA is set as the default, and if you change the template format, all fingerprints saved previously cannot be used. Use caution when changing the Template Format. -
Page 17: Server Matching
Authentication Server Matching When you set Server Matching, the user authentication is not carried out in the device, but rather in BioStar. Server Matching can be useful when there is a large amount of user information in the device or you do not wish to publicly expose the device where user credential information is saved. -
Page 18: Display & Sound
Display & Sound Display & Sound You can change the display and sound settings of the device. Press ESC and authenticate with the Admin level credential. Select DISPLAY & SOUND, then press Select the desired item and then change the settings by pressing •... -
Page 19: Device
Device Device Date & Time You can set date and time. Set the date and time accurately in order to collect accurate log data. Press ESC and authenticate with the Admin level credential. Select DEVICE > Date & Time, then press Select the desired item and then change the settings by pressing •... -
Page 20: Memory Info
Device Memory Info You can view the status of memory usage. Press ESC and authenticate with the Admin level credential. Select DEVICE > Device Info, then press View the memory usage status of the device. To return to the previous screen, press ESC. Restart Device You can restart the device. -
Page 21: Network
Network Network Network Settings You can change the network settings of the device. Ethernet Press ESC and authenticate with the Admin level credential. Select NETWORK > TCP/IP, then press Select the desired item and then change the settings by pressing •... -
Page 22: Serial Settings
Network Serial Settings RS-485 Press ESC and authenticate with the Admin level credential. Select NETWORK > RS-485, then press • Mode: Select the RS-485 mode. • Baud Rate: Select the desired baud rate. To save settings, press OK. . -
Page 23: Event Log
Event Log Event Log Search Log You can set a condition and search a log. Press ESC and authenticate with the Admin level credential. Select EVENT LOG.> Search, then press Select the desired item and then change the settings by pressing When you press OK, a log that matches the set condition will be displayed on the screen. -
Page 24: Troubleshooting
I close the door. installation company. • BioStation L2 is equipped with a built-in battery, but if power is not supplied for Suddenly the time has become an extended period of time, the built-in battery may die, causing the time to Time incorrect. -
Page 25: Product Specifications
Image dimension 272 x 320 pixels Image bit depth 8 bits, 256 grayscale Resolution 500 dpi Fingerprint Template SUPREMA / ISO 19794-2 / ANSI 378 Extractor / Matcher MINEX certified and compliant Supported Max. User (1:1) 500,000 Max. User (1:N) 100,000 Capacity Max. -
Page 26: Dimensions
Product Specifications Dimensions (Unit: mm) 171.7... -
Page 27: Fcc Compliance Information
FCC compliance information FCC compliance information THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 28: Appendices
• Do not use a Suprema product in situations related to medical, rescue of human lives, or maintenance of life, as a person may get injured or lose his/her life due to product malfunction. If an accident occurs while a consumer is using the product under the situations... - Page 29 www.supremainc.com www.supremainc.com...
