ITALIANO INDICE Impostazioni generali..........................4 Accensione ..........................4 1.1.1 Accensione dal pannello posteriore........................4 1.1.2 Accensione dal pannello frontale........................4 Spegnimento ..........................4 1.2.1 Spegnimento diretto ............................4 1.2.2 Spegnimento dal menu principale ........................4 Abilitazione telecomando ......................5 Visualizzazioni a monitor ......................5 Modalità...
Page 3
Ricerca delle registrazioni ...................... 18 3.3.1 Canale................................18 3.3.2 Tipo (ricerca per evento)..........................18 3.3.3 Tempo (ricerca per data e ora) ........................18 3.3.4 Scheda nr................................ 18 3.3.5 Ricerca ................................18 Riproduzione di una registrazione..................19 3.4.1 Play ................................. 19 Utilizzo dell’interfaccia Internet Explorer.....................

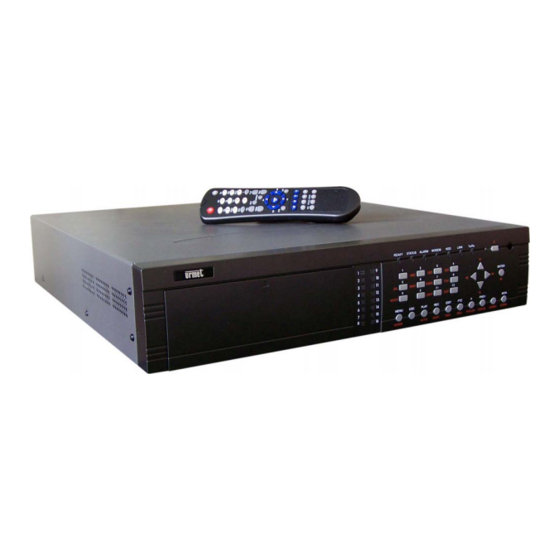

Il presente documento vuole essere una semplice guida rapida che Le permetterà un veloce accesso alle principali funzionalità del modello di Video Registratore Digitale URMET Domus S.p.A. Sch.1093/040S. Per maggiori approfondimenti, fare riferimento al manuale istruzioni presente sul CD a corredo del prodotto.
ABILITAZIONE TELECOMANDO Per poter comandare il dispositivo mediante il telecomando fornito in dotazione occorre procedere alla sua abilitazione. Procedura di abilitazione Premere il tasto “DEV” sul telecomando Immettere l’indirizzo di default per controllare il DVR mediante il telecomando: premere “01” sul telecomando Premere il tasto “ENTER”...
MENU DI PROGRAMMAZIONE La tabella sottostante mostra la struttura del menù le impostazioni e i parametri. MENU IMPOSTAZ. PARAMETRI MENU MENU IMPOSTAZ. PARAMETRI MENU Lingua ID Dispositivo Richiedi password Telecamera Salva schermo Nome - posizione Video Colori Base Adatta Monitor Base OSD - posizione Schermo...
CONFIGURAZIONE DEL DVR Per accedere al menù di configurazione premere il tasto “MENU” sul pannello frontale del DVR. Comparirà la videata come mostrato nella figura seguente. Figura 2: menù principale In questa videata è distinguibile una piccola finestra rettangolare denominata “Active Frame”. Questa può essere spostata da una icona all’altra utilizzando i tasti freccia “▲▼◄►”.
2.1.1 IMPOSTAZIONI BASE MENU SCHERMO 2.1.1.1 Lingua In questa voce di menù è possibile selezionare la lingua utilizzando i tasti “▲▼”. 2.1.1.2 ID dispositivo In questa voce di menù è possibile assegnare un indirizzo al DVR per poterlo controllare con il telecomando. Nel caso in cui ci siano più...
2.1.1.7 Luminosità In questa voce di menù è possibile variare la luminosità del menù OSD. Utilizzare i tasti “▲▼” per l’impostazione. 2.1.1.8 Trasparenza menu In questa voce di menù è possibile variare il livello di trasparenza del menù OSD. Utilizzare i tasti “▲▼” per l’impostazione. È possibile scegliere tra i seguenti valori: “1:1”, “3:1” e “1:3”. Il valore 3:1 indica che è...
Utilizzare i tasti “▲▼” per la selezione del tipo di stream che si desidera registrare. NOTA BENE Per il modello DVR DVS Sch.1093/040S gli 8 canali audio disponibili vengono automaticamente associati agli 8 canali video. Per il modello DVR DVS Sch.1093/041S i 16 canali audio disponibili vengono automaticamente associati ai 16 canali video.
QCIF 176x144 Tabella 1: corrispondenza tra sigla e risoluzione PAL Il modello Urmet DVR DVS Sch.1093/040S permette di selezionare le opzioni di risoluzione: “DCIF”, “4CIF”, “2CIF”, ”CIF”, e “QCIF” su tutti i canali NOTA BENE In questi modelli le prestazioni del Sub Stream (risoluzione e frame-rate) dipendono dai parametri impostati nel menù di registrazione del DVR (cioè...
La voce evidenziata rappresenta la voce selezionata. Utilizzando i tasti freccia “◄►▲▼” è possibile spostare il cursore sulle varie voci del menù. Una volta posizionato il cursore sulla voce desiderata, per modificarla premere il tasto “ENTER” ed utilizzando i tasti “▲▼” è possibile cambiare le opzioni disponibili per la voce del menù...
2.2.1.13 Copia su telecamera Selezionando la voce “Copia su telecamera” è possibile selezionare su quali telecamere si desidera copiare le seguenti impostazioni: • risoluzione • bit rate • frame rate • abilita registrazione - programmare Scegliendo la voce “Tutto” è possibile copiare le impostazioni su tutte le telecamere. Selezionare la voce “Copia” e premere il tasto “ENTER”...
2.3.1.3 Mask In questa voce di menù è possibile impostare il numero della maschera di subnet del dispositivo. Premere il tasto “EDIT” e mediante i tasti numerici 0÷9 immettere il numero della della maschera. Utilizzare i tasti “◄►” per spostare il cursore. Premere “ENTER” per confermare, o “ESC” per annullare. 2.3.1.4 Gateway In questa voce di menù...
MENU UTENTI Descrizione Accedere a questo menù per modificare la password di default, aggiungere (l’amministratore può creare fino ad un massimo di 15 utenti) o rimuovere nuovi utenti definendo i relativi diritti. Posizionare “l’Active Frame” sull’icona “Utenti”, quindi premere il tasto “ENTER”.
Per ragioni di sicurezza il sistema è in grado di discriminare lettere maiuscole e minuscole. FUNZIONI DVR GESTIONE MONITOR PRINCIPALE / AUSILIARIO Il dispositivo Urmet Domus Sch.1093/040S è dotato di due uscite video indipendenti: principale (MAIN) spot-ausiliario (AUX) mediante le quali è possibile gestire contemporaneamente sia il monitor principale (identificato sulla barra di stato dalla lettera “M”) sia quello ausiliario (identificato dalla lettera “A”).
Dalla modalità “LIVE” premere il tasto “REC” posto sul pannello frontale del dispositivo. Comparirà la videata come mostrato nella figura seguente. Figura 14: menù di registrazione per dispositivo Sch.1093/040S La voce evidenziata rappresenta la voce selezionata. Utilizzando i tasti freccia “◄►” è possibile spostare il cursore sulle varie voci del menù.
RICERCA DELLE REGISTRAZIONI Dalla modalità “LIVE” premere il tasto “PLAY” posto sul pannello frontale del dispositivo. Comparirà la videata come mostrato nella figura seguente. Figura 15: menù di riproduzione La voce evidenziata rappresenta la voce selezionata. Utilizzando i tasti freccia “◄►” è possibile spostare il cursore sulle varie voci del menù.
RIPRODUZIONE DI UNA REGISTRAZIONE Dopo aver impostato i parametri di ricerca (tipo di evento, data/ora) ed avviato la ricerca mediante il tasto “CERCA”, selezionare il file, dalla lista box, che si desidera riprodurre e premere il tasto “ENTER” per avviare la riproduzione. Collegando il mouse USB al DVR, nella parte inferiore dello schermo sarà...
DVS (video server) verranno di seguito identificati con il termine dispositivo. I dispositivi URMET Domus sono dotati di Web Client per consentire la connessione automatica via internet mediante Pc remoto. NOTA BENE Qualunque operazione effettuata in locale sul dispositivo (tramite il pannello frontale del DVR – telecomando - mouse) potrebbe causare un rallentamento delle prestazioni del software.
Page 21
Cliccare sulla voce “Siti…”. Apparirà la seguente videata. Aggiungere l’indirizzo IP del dispositivo (visualizzabile premendo il tasto “F2” sul pannello frontale del dispositivo) nel campo “Aggiungi il sito web all’area”. Cliccare sulla voce “Aggiungi”. Apparirà la seguente videata di conferma. NOTA BENE Non selezionare la voce “Richiedi verifica server (https:) per tutti i siti dell’area”.
AVVIO Al lancio della connessione viene visualizzata la seguente finestra di login per l’autenticazione degli utenti abilitati all’utilizzo. Le impostazioni di default prevedono: Nome utente → admin → password 12345 Figura 16: finestra di login Se il nome utente e la password sono corretti si accederà alla schermata principale dell’interfaccia web, in caso contrario apparirà il seguente messaggio di errore: Figura 17: messaggio di errore NOTA BENE...
DESCRIZIONE Area informazioni Interfaccia di visualizzazione sullo stato del DVR e dei canali disponibili Griglia di visualizzazione Modalità di visualizzazione Tasti funzione Interfaccia impostazioni di visualizzazione di ciascun canale video Interfaccia comandi PTZ Barra tasti di gestione / configurazione 4.4.1 AREA INFORMAZIONI In tale sezione vengono riportate le seguenti informazioni: →...
4.4.4 GRIGLIA DI VISUALIZZAZIONE A seconda della modalità di visualizzazione prescelta (mediante i relativi tasti) verrà visualizzata la corrispettiva griglia. Il riquadro rosso (selezionabile con un click mediante il tasto sinistro del mouse) indica la posizione sulla quale verrà visualizzato il flusso video relativo al canale prescelto.
4.4.7 INTERFACCIA COMANDI PTZ ICONA DESCRIZIONE Consentono il posizionamento della Dome collegata. Il tasto centrale “↻” non è abilitato. Tasti non abilitati Consente di richiamare un preset precedentemente memorizzato. Inserire il numero del preset che si desidera richiamare, quindi cliccare sul pulsante ►. Consente la regolazione del livello di zoom della Dome collegata.
CARATTERISTICHE (FORMATO PAL) Specifiche Voce 1093/040S 1093/041S Tipologia di prodotto Videoregistratore digitale triplex con Network Algoritmo di H.264 compressione video PAL (compatibile con telecamere bianco/nero) Standard video H 15625 Hz / V 50 Hz Risoluzione anteprima 704 x 576 immagine Risoluzione di “4CIF”, ”DCIF”...
EVOLUZIONI FUTURE La URMET Domus SpA, nell’ottica di un costante miglioramento della propria gamma, al fine di rispondere a tutte le esigenze di un settore sempre più dinamico ed esigente, ha creato tale sezione complementare alla guida rapida, per presentarLe in anteprima gli aggiornamenti più...
ENGLISH TABLE OF CONTENTS General settings ............................. 30 Switch-on..........................30 1.1.1 Switch-on from rear panel..........................30 1.1.2 Switch-on from front panel ..........................30 Switch-off..........................30 1.2.1 Direct switch-off............................... 30 1.2.2 Switch-off from main menu ..........................30 Remote control enable ......................31 Messages on the monitor .......................
Page 29
3.2.5 Stop all ................................43 Recording search ........................44 3.3.1 Channel................................44 3.3.2 T Rec type(search by event)........................... 44 3.3.3 Time (search by date and time) ........................44 3.3.4 Card No................................44 3.3.5 Search................................44 Playing a recording......................... 45 3.4.1 Play .................................
Dear Customer, Thank you for having purchased this Urmet product. This document is a simple, quick reference guide to help you access the main functions of the URMET Domus S.p.A. Digital Video Recorder Ref. 1093/040S. For more detailed information about the devices, refer to the full instruction manual inside the CD provided with the product.
REMOTE CONTROL ENABLE The remote control must be enabled to control the device. Enabling procedure Press “DEV” on the remote control. Enter the default address for controlling the DVR using the remote control: press “01” on the remote control. Press “ENTER” on the remote control. If successfully enabled, the “STATUS”...
PROGRAMMING MENU Menu structures, settings and parameters are shown in the following table. MENU SETTING PARAMETER MENU MENU SETTING PARAMETER MENU Language Device ID Require password Select camera Screen saver Name - position Video standard Color Basic Enable scaler Basic Date OSD - position Display Brightness...
DVR CONFIGURATION Press “MENU” on the front panel of the DVR to access the configuration menu. The following login window shown in the following figure will appear. Figure 22: main menu This page is characterised by a small rectangular window called “Active Frame”. Use the arrow buttons “▲▼◄►” to move the frame from one icon to another.
2.1.1 DISPLAY MENU BASIC SETTINGS 2.1.1.1 Language Use “▲▼” to select the language in this menu. 2.1.1.2 Device ID This option can be used to assign an address to the DVR for controlling it with a remote control. Define a different address for each device if several DVRs are installed, otherwise the remote control will control all DVRs with the same address at the same time.
2.1.1.7 Brightness This option can be used to vary the OSD menu brightness. Use “▲▼” to select. 2.1.1.8 Menu trasparency This option can be used to vary the OSD menu transparency level. Use “▲▼” to select. Possible selections: “1:1”, “3:1”, “1:3”and “No Trans”. 3:1 indicates that the OSD prevails (by approximately three times) over the previous display;...
Use “▲▼” to select the streaming type to be recorded. IMPORTANT NOTE For DVR DVS Ref.1093/040S (8ch), the 8 audio channels are automatically associated to the 8 video channels. For DVR DVS Ref.1093/041S (16ch), the 16 audio channels are automatically associated to the 16 video channels.
QCIF 176x144 Table 2: correspondence between code and PAL resolution The following resolution options can be selected on Urmet DVR DVS ref.1093/040S: “DCIF”, “4CIF”, “2CIF”, ”CIF”, and “QCIF” on all channels IMPORTANT NOTE In these models the Sub-stream performances (resolution and frame-rate) depend on the parameters set in the DVR Recording menu (i.e.
The selected item is highlighted. Press arrows “◄►” to point the cursor to the various menu items. Point the cursor to the required item and press “ENTER” to edit it. Use buttons “▲▼” to change the available options for the selected menu item.
2.2.1.13 Copy to camera Select “Copy to camera” to select on which cameras to copy the following settings: • resolution • bit rate • frame rate • enable rec - schedule Select “all” to copy the settings on all cameras. Select “Copy” and press “ENTER” to copy the settings. Confirmation of the operation will be required: press “ENTER”...
2.3.1.4 Gateway This option can be used to set the gateway of the device. Press “EDIT” and use number keys 0÷9 to enter the address. Use “◄►” to shift the cursor. Press “ENTER” to confirm or “ESC” to cancel. 2.3.1.5 This option can be used to set the DNS of the device.
USER MENU Description Access this menu to edit the default password, add (the administrator can create up to 15 users) or remove new users and define the respective rights. Position the “Active Frame” on the “User” icon and press “ENTER”. The following window will appear: Figure 30: user menu The selected item is highlighted.
For safety reasons, the password is case-sensitive. DVR FUNCTIONS MAIN/AUXILIARY MONITOR MANAGEMENT The Urmet Domus Ref.1093/040S device is provided with two independent video outputs: MAIN spot-auxiliary (AUX) They can be used to manage both the main monitor (identified on the state bar by the letter “M”) and the auxiliary monitor (identified by the letter “A”).
Press “REC” on the front panel of the device in LIVE mode. The following login window shown in the following figure will appear. Figure 34: recording menu for device Ref.1093/040S The selected item is highlighted. Press arrows “◄►” to point the cursor to the various menu items.
RECORDING SEARCH Press “PLAY” on the front panel of the device in LIVE mode. A password must be entered by default. The following window will appear. Figure 35: playback menu The selected item is highlighted. Press arrows “◄►” to point the cursor to the various menu items. Press “ESC”.
PLAYING A RECORDING After setting the search parameters (event type, date and time) and having start the search by pressing “SEARCH”, select the file to be played from the list box and press “ENTER” to start playback. Connecting the USB mouse :to DVR, the following interface will appear in the lower half of the screen: Audio on/off Mark beginning and end of part of recording to be copied Hide play bar (right-click and select “display”...
USING THE INTERNET EXPLORER INTERFACE The URMET Domus DVR DVS is provided with a Web Client for automatically connecting to a remote PC on the internet. IMPORTANT NOTE Any operation performed locally on the DVR (via the front panel of the DVR or remote control) may slow the software performance down.
Page 47
Click on “Sites…” The following screen will appear. Add the IP address of the device (to display the address, press “F2” on the front panel of the device) in the “Add this website to the zone” field. Click on “Add”. The following confirmation screen will appear.
HOW TO SWITCH THE DEVICE ON The following login window will appear for authenticating authorised users when the connection is established. The default settings are: User → admin Password → 12345 Figure 36: login window The home page of the web interface may be accessed if the user name and password are correct. Otherwise, the following error message will appear.
HOME PAGE AND DESCRIPTION OF THE INTERFACE The following home page will appear after logging in successfully. Figure 38: web interface home page DESCRIPTION Information area Interface for displaying DVR status and available channels Viewing grid Viewing mode Function buttons View setting interface for each video channel PTZ interface Management/configuration button bar...
4.4.2 DVR AND CONNECTED CHANNELS STATUS INTERFACE This section contains the following information: name of the connected device name of the available video channels status of the available video channels (connected – not connected) ICON DESCRIPTION video channel available but not connected video channel available and connected 4.4.3 VIEW BUTTONS...
4.4.5 FUNCTION BUTTONS ICON DESCRIPTION Starts/stops live LIVE connection to all available DVR channels at the same time according to the chosen viewing mode. The “Main Stream” will be used by all channels for connection. This allows to acquire a snapshot of the selected LIVE video channel (red box). The acquired image may be saved by default in the C:\picture\ folder in bitmap format.
4.4.8 MANAGEMENT/CONFIGURATION BUTTONS ICON DESCRIPTION This is used to disconnect the web interface. This is used to access the LIVE interface This is used to access the playback interface. This used to access the system configuration menu. This is used to access the DVR recorded events interface. 4.4.8.1 Logout Click on...
SPECIFICATIONS (PAL FORMAT) Specifications Item 1093/040S 1093/041S Product type Triplex digital video recorder with network Compression H.264 algorithm PAL (compatible with black and white cameras) Video standard H 15625 Hz / V 50 Hz Image preview 704 x 576 resolution Recording resolution ”4CIF”, ”DCIF”, ”2CIF””CIF”...
FUTURE EVOLUTIONS In the perspective of continuous improvement of the URMET Domus SpA product range and to better respond to the multifarious needs of an increasingly dynamic and demanding sector, we have created this complementary quick guide to offer you a preview of the most important updates.
Page 55
DEUTSCH INHALTSVERZEICHNIS ALLGEMEINE EINSTELLUNGEN ......................57 EINSCHALTEN ........................57 7.1.1 EINSCHALTEN ÜBER DIE RÜCKWAND ..................... 57 7.1.2 EINSCHALTEN ÜBER DIE FRONTTAFEL....................57 AUSSCHALTEN ........................57 7.2.1 DIREKTES AUSSCHALTEN ......................... 57 7.2.2 AUSSCHALTEN ÜBER DAS HAUPTMENÜ....................57 AKTIVIERUNG DER FERNBEDIENUNG ................58 ANZEIGEN AUF DEM MONITOR..................
Page 56
9.2.5 Stop Alle................................. 70 SUCHE DER AUFZEICHNUNGEN..................71 9.3.1 Kanal ................................71 9.3.2 RecTyp (Suche nach Ereignis) ........................71 9.3.3 Zeit (Suche nach Datum und Uhrzeit) ......................71 9.3.4 Karten-Nr............................... 71 9.3.5 Suchen................................71 WIEDERGABE EINER AUFZEICHNUNG ................72 9.4.1 Wiedergabe..............................
Dieses Dokument ist eine Kurzanleitung, die eine schnelle Installation und Inbetriebnahme der Digitalen Video Recorder (DVR)Modell DVR 1093/040S und 1093/041S erlaubt. Sie beschreibt die Nutzung der Hauptfunktionen. Weiterführende, detaillierte Informationen über die Geräte entnehmen Sie bitte der vollständigen Installations- und...
AKTIVIERUNG DER FERNBEDIENUNG Um das Gerät über die in der Lieferung enthaltene Fernbedienung steuern zu können, muss diese aktiviert werden. Aktivierungsvorgang Die Taste “DEV” auf der Fernsteuerung drücken Die Standardadresse zum Bedienen des DVR über die Fernbedienung eingeben: drücken Sie “01” auf der Fernbedienung Die Taste “ENTER”...
PROGRAMMIERMENÜ Die unten stehende Tabelle zeigt den Aufbau des Menüs, die Einstellungen und die Parameter. MENÜ EINSTELL. MENÜPARAMETER MENÜ EINSTELL. PARAMETER MENU Sprache Geräte ID Benötige Passwort Auswahl Kamera Bildschirmschoner Name - Position Video Standard Grund- Grund- Farbe Teilung Ein funktion funktion Datum OSD - Position...
KONFIGURATION DES DVR Um Zugriff auf das Konfigurationsmenü zu erhalten, die Taste “MENU” auf der Fronttafel des DVR betätigen. Es erscheint die Ansicht wie in der folgenden Abbildung dargestellt. Abb. 42: Menü Übersicht In dieser Ansicht ist ein kleines rechteckiges Fenster mit dem Namen “Active Frame” erkennbar. Dieses kann von einem Symbol zum anderen verschoben werden, indem die Pfeiltasten “▲▼◄►”...
8.1.1 GRUNDEINSTELLUNGEN DES MENÜS DISPLAY 8.1.1.1 SPRACHE Unter diesem Menüpunkt kann die Sprache ausgewählt werden, indem die Tasten “▲▼” verwendet werden. 8.1.1.2 GERÄTE ID Unter diesem Menüpunkt kann dem DVR eine Adresse zugewiesen werden, um ihn über die Fernbedienung steuern zu können. Sollten mehrere DVR vorhanden sein, muss für jedes Gerät eine andere Adresse definiert werden, andernfalls steuert die Fernsteuerung gleichzeitig alle DVR mit derselben Adresse.
8.1.1.6 Teilung Ein Diese Funktion erlaubt die Anpassung des Videoausgangssignals des DVR an den jeweils angeschlossenen Monitor der genutzt wird. Bei Aktivierung der Funktion schaltet der DVR automatisch die Auflösung von 704x576 auf 640x576 für PAL Video Systeme und von 704x480 auf 640x480 für NTSC Video Systeme um. Diese Funktion ist hilfreich bei Nutzung einiger traditionellen Röhrenmonitore (CRT).
Verwenden Sie die Tasten “▲▼” zur Auswahl des Stream Typs. BEACHTEN Für das Modell DVR DVS Typ 1093/040S (8ch) sind die 8 Audiokanäle automatisch den 8 Videokanälen zugeordnet. Für das Modell DVR DVS Typ 1093/041S (8ch) sind die 16 Audiokanäle automatisch den 16 Videokanälen zugeordnet.
8.2.1.6 Auflösung Unter diesem Menüpunkt kann der Auflösungstyp eingegeben werden, der für Aufzeichnung auf der ausgewählten Kamera verwendet werden soll. Im Allgemeinen sind die Geräte von Urmet der Serie DVR DVS in der Lage, je nach Modell die folgenden Auflösungen bei der Aufzeichnung zu unterstützen: “4CIF”, “DCIF”, “2CIF”, ”CIF”, und “QCIF”. Verwenden Sie die Tasten “▲▼” zur Auswahl des Auflösungstyps.
8.2.1.10 Kalender / Zeitplan Durch Auswahl des Menüpunkts “Kalender” und Drücken der Taste “ENTER” gelangt man zum hier unten gezeigten Menü der Programmierung. Abb. 47: Menü zum Programmieren der Aufzeichnung Das markierte Stichwort wurde ausgewählt. Durch Verwendung der Pfeiltasten “◄►” kann der Cursor auf den verschiedenen Menüpunkten verschoben werden. it den Pfeiltasten “▲▼”...
Alarm In diesem Modus wird die Aufzeichnung gestartet, sobald der Sensor in den Alarmzustand versetzt wird. Bewegung | Alarm In diesem Modus wird die Aufzeichnung gestartet, sobald der Sensor in den Alarmzustand versetzt wird oder Motion Bewegungen erfasst. Bewegung & Alarm In diesem Modus wird die Aufzeichnung gestartet, sobald der Sensor in den Alarmzustand versetzt wird und Motion Bewegungen erfasst.
Den Menüpunkt “Bestätigen” auswählen und die Taste “ENTER” drücken, um die vorgenommenen Änderungen wirksam zu machen. Den Menüpunkt “Abbruch” auswählen und die Taste “ENTER” drücken, um die vorgenommenen Änderungen zu löschen. Um einen Schritt zurückzukehren die Taste “ESC” drücken. Um das Konfigurationsmenü zu verlassen, mehrmals die Taste “ESC” drücken, bis das Konfigurationsfenster geschlossen wird. 8.3.1 GRUNDEINSTELLUNGEN DES MENÜS NETZWERK 8.3.1.1...
Passwort Unter diesem Menüpunkt kann das Kennwort für den Berechtigungsvorgang PPPoE einggeben werden. Das Kennwort kann aus höchstens 14 Zeichen bestehen. Überprüfen Unter diesem Menüpunkt muss das Kennwort für den Berechtigungsvorgang PPPoE erneut eingegeben werden. MENÜ BENUTZER Beschreibung Begeben Sie sich in dieses Menü, um das Standard-Kennwort zu ändern, neue Benutzer hinzuzufügen und zu entfernen und deren jeweiligen Rechte zu definieren.
Aus Sicherheitsgründen ist das System in der, Lage Groß- und Kleinbuchstaben zu unterscheiden. DVR FUNKTIONEN HAUPT-/ HILSMONITOR MANAGEMENT Die Urmet Domus Artikel 1093/040S und 1093/041S sind mit zwei voneinander unabhängigen Videoausgängen ausgestattet. Hauptmonitor (MAIN) Hilfsmonitor/Spotmonitor(AUX) Beide, der Hauptmonitor (identifiziert wird dieser durch den Buchstaben “M”) und der Hilfsmonitor (identifiziert durch den Buchstaben “A”), können dementsprechend verwaltet werden.
MANUELLE AUFNAHME Aus dem Modus „LIVE“ die Taste “REC” auf der Fronttafel des Geräts betätigen. Es erscheint die Ansicht wie in der folgenden Abbildung dargestellt. Abb. 53: Menü manuelle Aufnahme Typ 1093/041S Das markierte Stichwort wurde ausgewählt. Durch Verwendung der Pfeiltasten “◄►” kann der Cursor auf den verschiedenen Menüpunkten verschoben werden. Um das Menü...
SUCHE DER AUFZEICHNUNGEN Aus dem Modus „LIVE“ die Taste “PLAY” auf der Fronttafel des Geräts betätigen. Nach der Eingabe erscheint die in der folgenden Abbildung gezeigte Ansicht. Abb. 54: Wiedergabemenü Das markierte Stichwort wurde ausgewählt. Durch Verwendung der Pfeiltasten “◄►” kann der Cursor auf den verschiedenen Menüpunkten verschoben werden. Um das Menü...
Suchparametern gestartet. Die Wiedergabe stoppt, sobald das Ende der letzten Wiedergabe auf der letzten Seite der Boxliste erreicht wird. 10 VERWENDUNG DER SCHNITTSTELLE INTERNET-EXPLORER Das Gerät DVR DVS URMET Domus ist mit Web Client ausgestattet, um die automatische Verbindung über Internet mittels Fern- PC zu ermöglichen. BEACHTEN Jeder lokal auf dem DVR ausgeführte Vorgang (über die Fronttafel des DVR –...
10.1 MINDESTVORAUSSETZUNGEN FÜR DIE INSTALLATION DER SOFTWARE → Prozessor Pentium 4; 3GHz → Speicher 512 MB → Videokarte MMX 128 MB; 128 bit → Betriebssystem Win 2000 Pro; Win XP Pro - SP2; Win VISTA → Internet-Browser I.E. 6.0 , I.E 7.0 oder höher 10.2 KONFIGURATION FÜR SCHUTZ UND SICHERHEIT Vor der Verbindung an den Fern-PC muss die Schutzkonfiguration anhand des folgenden Vorgangs erfolgen: Den Browser Internet Explorer durch Doppelklick auf das Symbol...
Page 74
Anklicken des Feldes “Sites” Es erscheint folgende Ansicht. Es erscheint die folgende Ansicht. Die IP-Adresse des Geräts (kann durch Betätigen der Taste “F2” auf der Fronttafel des Geräts eingeblendet werden) im Feld “Diese Website zur Zone…….” hinzufügen. Anklicken von “Hinzufügen”. Es erscheint die folgende Ansicht zur Bestätigung.
10.3 START Beim Start der Verbindung wird das folgende Login-Fenster für die Authentifizierung der für die Benutzung der Software aktivierten Benutzer eingeblendet. Die werkseitigen Einstellungen sehen vor: Benutzername → admin Passwort → 12345 Abb. 55: Login-Fenster Sind der Benutzername und das Kennwort korrekt, erhalten Sie Zugriff auf die Hauptansicht der Web-Schnittstelle, andernfalls erscheint die folgende Fehlermeldung: Abb.
10.4 HAUPTFENSTER UND BESCHREIBUNG DER SCHNITTSTELLE War der Login-Vorgang erfolgreich, erscheint das folgende Hauptfenster: Abb. 57: Hauptansicht der Web-Schnittstelle BESCHREIBUNG Informationsbereich Schnittstelle der Anzeige hinsichtlich des Status des DVR und der verfügbaren Kanäle Anzeigeraster Anzeigemodus Funktionstasten Schnittstelle der Einstellungen der Anzeige jedes Videokanals Schnittstelle der PTZ-Steuerungen Steuer-/Konfigurationstastenleiste 10.4.1...
10.4.2 SCHNITTSTELLE DES STATUS DES DVR UND DER ANGESCHLOSSENENEN KANÄLE In diesem Abschnitt werden die folgenden Informationen erteilt: Name des Geräts, mit dem die Verbindung besteht Name der verfügbaren Videokanäle Status der verfügbaren Videokanäle (angeschlossen – nicht angeschlossen) SYMBOL BESCHREIBUNG Videokanal verfügbar aber nicht angeschlossen Videokanal verfügbar und angeschlossen 10.4.3...
10.4.5 FUNKTIONSTASTEN SYMBOL BESCHREIBUNG Startet / stoppt gleichzeitig die Verbindung LIVE auf allen verfügbaren Kanälen des DVR auf Basis des ausgewählten Anzeigemodus. Der “Main Stream” wird bei der Verbindung für alle Kanäle genutzt. Gestattet die unmittelbare Erfassung des ausgewählten Videokanals LIVE (rotes Quadrat). Das erfasste Bild wird nach Standard im Ordner C:\picture\ im Format bmp gespeichert.
10.4.7 SCHNITTSTELLE DER PTZ-STEUERUNGEN SYMBOL BESCHREIBUNG Gestattet die Positionierung der angeschlossenen Dome. Die mittlere Taste “・” ist nicht aktiviert. Tasten nicht aktiviert Gestattet das Aufrufen eines zuvor gespeicherten Presets. Die Nummer des aufzurufenden Presets eingeben und dann auf die Taste ► klicken. Gestattet die Regelung der Zoomstufe der angeschlossenen Dome.
11 EIGENSCHAFTEN (FORMAT PAL) Technische Daten Menüpunkt 1093/040S 1093/041S Produkttypologie Digitaler Triplex-Videorecorder mit Netzwerk Komprimierungs- H.264 algorythmus Video PAL (kompatibel mit Schwarz-Weiß-Kameras) Video-Standard H 15625 Hz / V 50 Hz Auflösung 704 x 576 Bildvorschau Aufzeichnungs- ”4CIF”, ”DCIF”, ”2CIF””CIF” and “QCIF” für alle Kanäle auflösung...
176x144 12 ZUKÜNFTIGE ENTWICKLUNGEN Die URMET Domus SpA hat in Hinblick auf eine kontinuierliche Verbesserung ihres Produktangebots und um den Ansprüchen eines immer dynamischeren und anspruchsvolleren Sektor zu genügen, diesen ergänzenden Abschnitt zur Schnellanleitung verfasst, um Ihnen im Voraus die wichtigsten Aktualisierungen zu präsentieren. Zu diesem Zweck behalten wir uns das Recht auf Verbesserungen ästhetischen/leistungsbezogenen Charakters an den Produkten vor.
Page 84
