i. Check for any fuel leaks throughout the fuel
system. Do not attempt to start the engine if a
fuel leak is suspected. Any detected leak must be
repaired by a suitable qualified technician.
j. Observe all national and/or local regulations
about the storage and use of petroleum
products. All local bye laws should be observed.

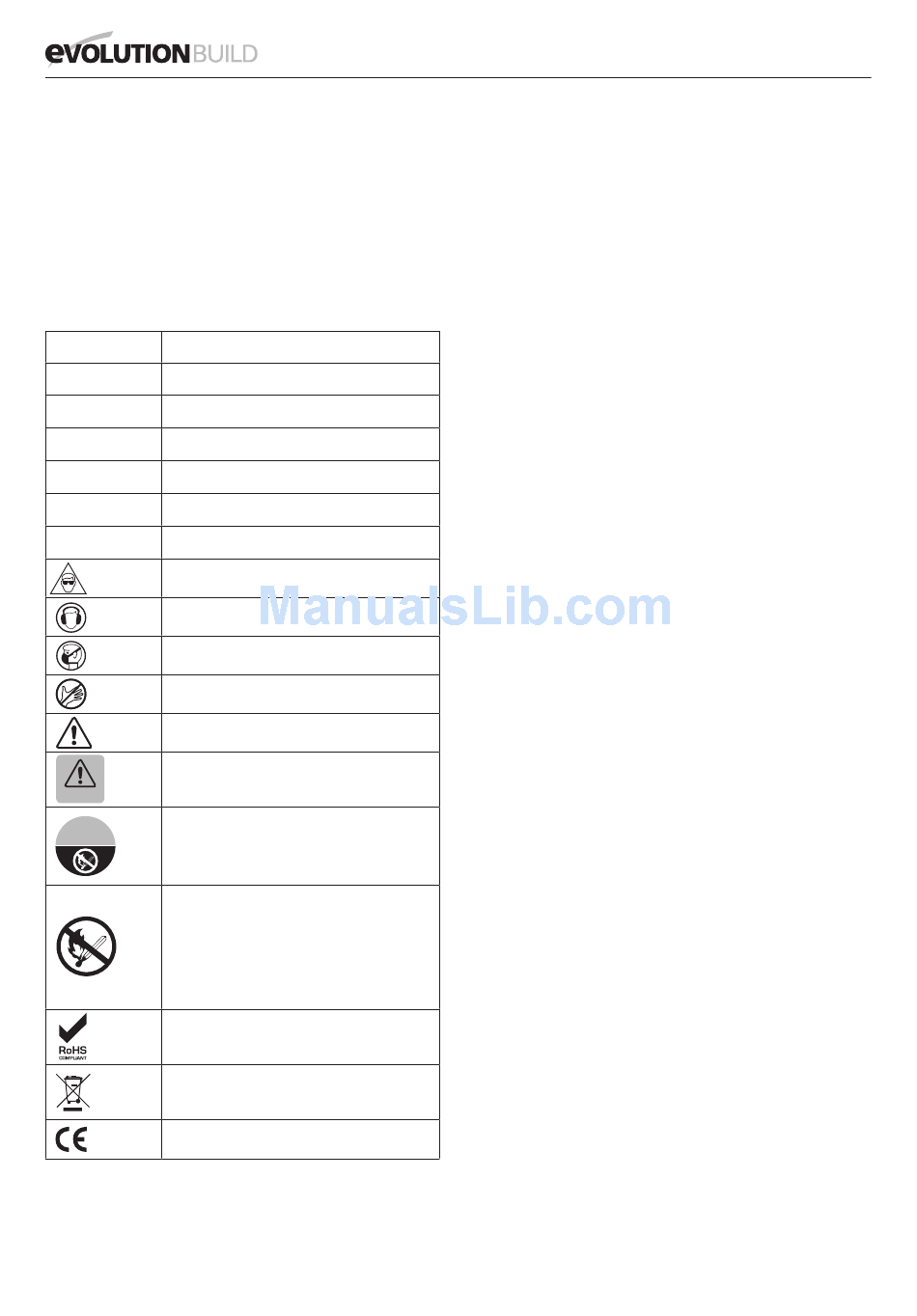

SYMBOLS AND LABELS
Symbol Description
V Volts
A Amperes
Hz Hertz
Min Speed
-1
~ Alternating Current
n No Load Speed
o
Wear Safety Goggles
Wear Ear Protection
Wear Dust Protection
Do Not Touch
Warning
Caution:
Hot Exhaust Do Not Touch
CAUtioN
Hot SURfACe. do Not toUCH.
Caution: This is a four stroke
UNLeAded
PetRoL oNLy!
engine. Fill with petrol only.
HigHLy fLAmmAbLe.
Do not fill with Diesel oil.
Allow the motor to cool before
opening the fuel cap. The vapour
is extremely flammable and
may ignite on contact with a hot
surface or flames
Restriction of Hazardous
Substances Directive
Waste electrical and
electronic equipment
CE certification
8
®
www.evolutionbuild.com

SPECIFICATION

Engine Specification - EVO200
Engine Brand:
------------------------------------------------------------------------------
Engine Type:
------------------------------------------------------------------------------
Engine Displacement:
------------------------------------------------------------------------------
Engine Power:
------------------------------------------------------------------------------
Spark Plug Replacement:
------------------------------------------------------------------------------
Spark Plug Gap:
------------------------------------------------------------------------------
Air Filter:
------------------------------------------------------------------------------
Fuel Type:
------------------------------------------------------------------------------
Speed: 3150min
------------------------------------------------------------------------------
Fuel Tank Capacity:
------------------------------------------------------------------------------
Lubricating Oil Capacity:
------------------------------------------------------------------------------
Starter:
------------------------------------------------------------------------------
Transmission:
------------------------------------------------------------------------------
Oil Warning:
------------------------------------------------------------------------------
Weight (Without Accessory):
-----------------------------------------------------------------------
Wheels:
------------------------------------------------------------------------------
Brake:
------------------------------------------------------------------------------
Frame: External tubular steel (1") frame
Deployable Accessory Frame
------------------------------------------------------------------------------
Handle:
EVOLUTION
4-Stroke (Single Cylinder)
200cc
6.5hp
SINO F7TC
NGK BP6ES
CHAMPION N9YC
0.8mm
Washable air filter element
Standard Unleaded Petrol
(Factory set governed)
-1
(10W 40 Automotive Oil)
Recoil
EVO-SYSTEM Technology
Oil Low Sensor
29.1kg
200mm
Ø
Manual Foot Brake
Locking the Wheels
Fold-away
3.1 L
0.6 L
