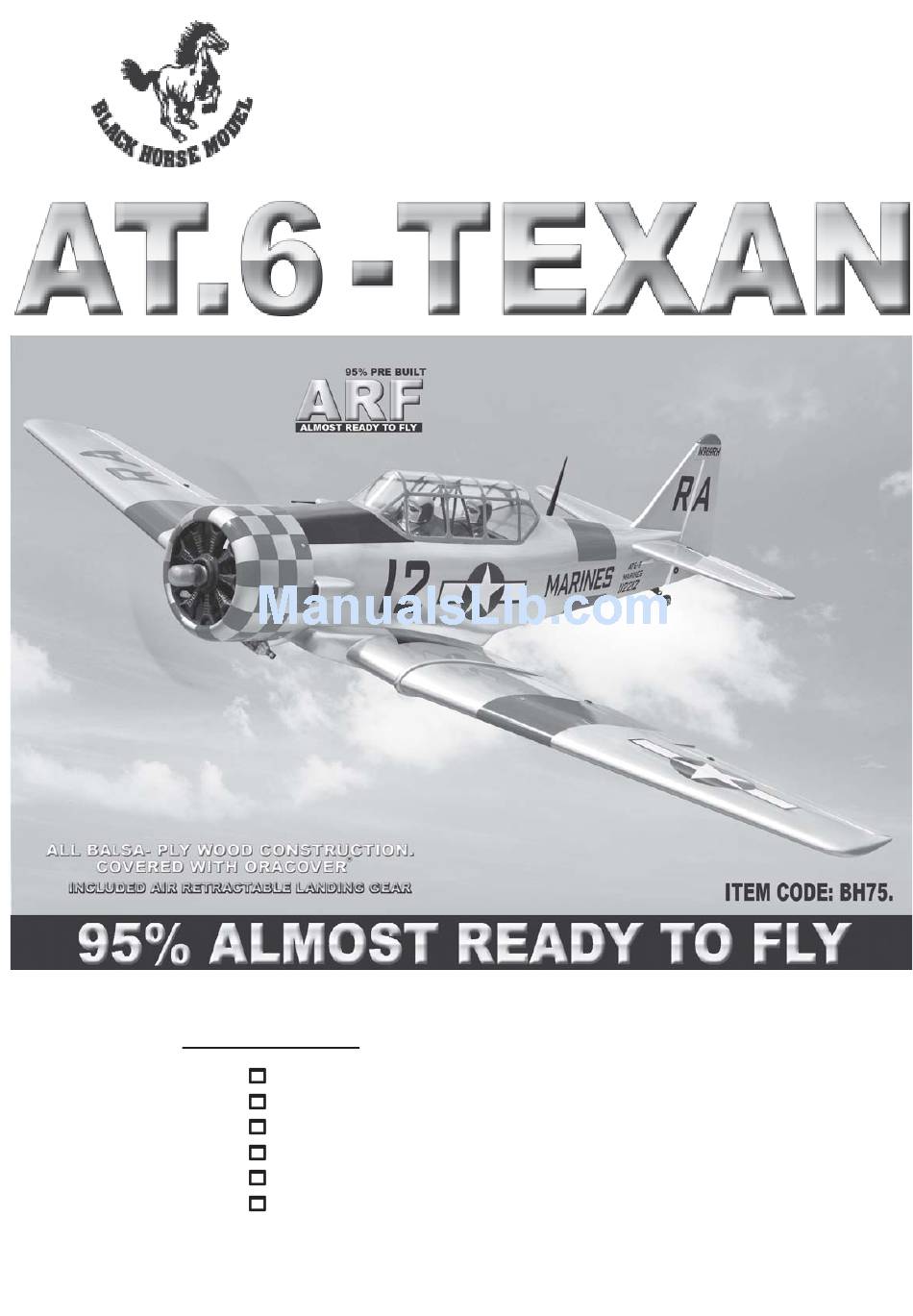

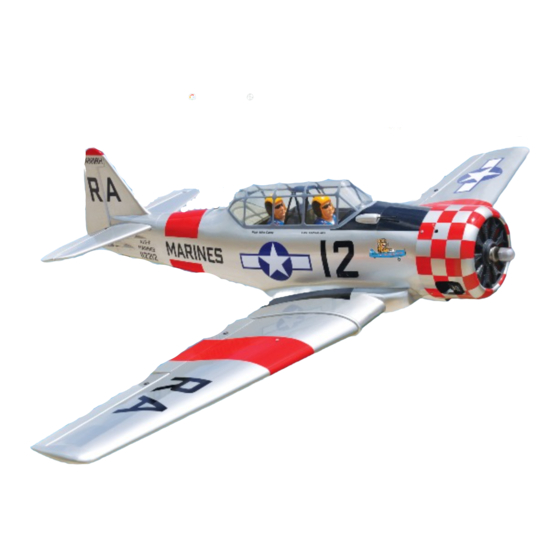

Instruction Manual book
SPECIFICATION
Wingspan :
Length
Weight
Radio
Servo
Engine
1,830 mm
:
1,250 mm
:
3.8 kg
:
06 channels.
:
08 servos.
:
61
2 stroke.
91
4 stroke.
72.05 in.
49.21 in.
8.36 Lbs.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT.6-TEXAN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for arf AT.6-TEXAN

Summary of Contents for arf AT.6-TEXAN

  • Page 1 Instruction Manual book SPECIFICATION Wingspan : 1,830 mm 72.05 in. Length 1,250 mm 49.21 in. Weight 3.8 kg 8.36 Lbs. Radio 06 channels. Servo 08 servos. Engine 2 stroke. 4 stroke. Made in Vietnam.
  • Page 2 FUSELAGE ASSEMBLY aligned properly before gluing! This will assure (1) Fuselage. proper assembly. ARF is hand AT.6 TEXAN made from natural materials, every plane is unique and minor adjustments may have to WING ASSEMBLY be made.

  • Page 3: Safety Precaution

    AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 Caution: this model is not a toy! SAFETY PRECAUTION. If you are a beginner to this type of powered + This is not a toy model, please ask an experienced model flyer + Be sure that no other flyers are using your for help and support.
  • Page 4 AT.6-TEXAN Instruction Manual ITEM CODE: BH75. C/A glue INSTALLING THE AILERON - FLAP SERVO CONTROL HORN. INSTALLING THE AILERON SERVO C/A glue Aileron Flap Top side C/A glue Aileron Flap Bottom side C/A glue Aileron...
  • Page 5 AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 INSTALLING THE AILERON SERVO . 1. Install the rubber grommets and brass eyelets onto the aileron servo. C/A glue C/A glue Aileron 2. Using a modeling knife, remove the cov- ering servo tray.
  • Page 6 AT.6-TEXAN Instruction Manual ITEM CODE: BH75. 3. Drill 1,5mm pilot holes through the block of wood for each of the four mounting screws provided with the servo. Install servo into ai- Secure leron servo tray as same as picture below.

  • Page 7: Installing The Aileron Linkages

    AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 Aileron control horn Aileron Remove covering Control horn of the aileron Repeat the procedure for the other wing half. INSTALLING THE AILERON Install aileron control horn as same LINKAGES. as picture below. Installing the aileron linkages as pictures below.
  • Page 8 AT.6-TEXAN Instruction Manual ITEM CODE: BH75. INSTALLING THE FLAP CONTROL HORN. INSTALLING THE FLAP SERVO . Nilon control clasp. M3 lock nut 3 x 40mm Flap Bottom side Remove covering Thread Flap Electric wire 2x10mm.
  • Page 9 AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 Bottom of left wing. Aileron Flap Bottom of right wing. Repeat the procedure for the other wing half. INSTALLING AIR RETRACTABLE LANDING GEAR. Bottom side Control horn of the flap Repeat the procedure for the other wing half.
  • Page 10 AT.6-TEXAN Instruction Manual ITEM CODE: BH75. Secure Mark point 3 x 15mm Secure Secure...
  • Page 11 AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 Bottom side Top side Secure Valve control valve one way 3 way connector...
  • Page 12 AT.6-TEXAN Instruction Manual ITEM CODE: BH75.
  • Page 13 AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 Air tank Air supply Valve one way Right main gear wing Left main gear wing Vavle control control valve Secure Secure...

  • Page 14: Wing Attachment

    AT.6-TEXAN Instruction Manual ITEM CODE: BH75. Left side Top side Bottom side WING ATTACHMENT. Locate the aluminium wing dihedral brace. Right side Top right side...
  • Page 15 AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily. If not, use 220 grit sand around the edges and ends of the brace until it fits prop- erly.

  • Page 16: Installing The Engine Mount

    AT.6-TEXAN Instruction Manual ITEM CODE: BH75. INSTALLING THE ENGINE MOUNT. See pictures below: 4 x 30mm 4 x 30mm FUEL TANK. INSTALLING THE STOPPER ASSEMBLY 1) The stopper has been pre-assembled at the factory. 2) Using a modeling knife, cut one length...
  • Page 17 AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 8) Feed three lines through the fuel tank compartment and through the pre-drilled hole in the firewall. Pull the lines out from behind the engine, while guiding the fuel tank into place. Push the fuel tank as far forward as possible, the front of the tank should just about touch the back of the firewall.

  • Page 18: Installing The Engine

    AT.6-TEXAN Instruction Manual ITEM CODE: BH75. Drill a hole 4mm diameter INSTALLING THE ENGINE. Locate the long piece of wire used for the throttle pushrod. One end of the wire has been pre-bend in to a “Z” bend at the factory. This “Z”...
  • Page 19 AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 2) While keeping the back edge of the cowl flush with the marks, align the front of the cowl with the crankshaft of the engine. The front of the cowl should be positioned so the crankshaft is in nearly the middle of the cowl opening.
  • Page 20 AT.6-TEXAN Instruction Manual ITEM CODE: BH75. Left side Connector. Servo arm. After installing the adjustable metal con- Right side nector apply a small drop of thin C/A to the bottom nut. This will prevent the con- nector from loosening during flight.

  • Page 21: Horizontal Stabilizer

    AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 HORIZONTAL STABILIZER. See pictures below: Throttle pushrod Top side ELEVATOR INSTALLATION. SERVO INSTALLATION. 1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray.
  • Page 22 AT.6-TEXAN Instruction Manual ITEM CODE: BH75. C/A glue C/A glue Mark point Bottom side 4. Remove the stabilizer. Using the lines 1. Draw a center line onto the horizontal you just drew as a guide, carefully remove the stabilizer. Then slide the horizontal into the covering from between them using a modeling fuselage.

  • Page 23: Elevator Control Horn Installation

    AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 Check to mark sure the wing and stabi- lizer are paralell. If they are not, lightly sand the opening in the fuselage for the stabilizer C/A glue until the stabilizer is paralell to the wing.

  • Page 24: Elevator Pushrod Installation

    AT.6-TEXAN Instruction Manual ITEM CODE: BH75. Elevator Elevator control horn control horn Bottom side ELEVATOR PUSHROD INSTALLATION. Pushrod install as same as method of pushrod wing. See pictures below: R e m o v e covering M2 lock nut Elevator...
  • Page 25 AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 Secure C/A glue Bend and cut after E l e v a t o r E l e v a t o r pushrod pushrod Bottom side...

  • Page 26: Vertical Installation

    AT.6-TEXAN Instruction Manual ITEM CODE: BH75. Secure Elevator servo Elevator pushrod C/A glue VERTICAL INSTALLATION. Rudder servo install as same as method of elevator servo. See picture below: C/A glue...
  • Page 27 AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 4. Now, remove the rudder and using a modeling knife, carefully cut just inside the marked lines and remove the film of the rud- der. Just as you did with the horizontal stabi- lizer, make sure you only press hard enough to cut the film, not the balsa rudder.

  • Page 28: Rudder Control Horn Installa- Tion

    AT.6-TEXAN Instruction Manual ITEM CODE: BH75. Epoxy glue C/A glue Epoxy glue C/A glue RUDDER CONTROL HORN INSTALLA- TION. Epoxy glue Rudder control horn install as same as the way of aileron control horn. Please see pic- tures below. 6. Using a modeling knife cut away the covering from the end of fuselage for the rud- 3mm x 40mm.
  • Page 29 AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 Aileron control horn Remove covering...

  • Page 30: Rudder Pushrod Installation

    AT.6-TEXAN Instruction Manual ITEM CODE: BH75. RUDDER PUSHROD INSTALLATION. Remove covering C/A glue...

  • Page 31: Mounting The Tail Wheel Bracket

    AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 Mark point C/A glue Elevator servo 3. Secure the tail wheel bracket in place using three 3mm x 12mm wood screws. Be careful not to overtighten the screws. Throttle servo Rudder servo Secure MOUNTING THE TAIL WHEEL BRACKET.

  • Page 32: Installing The Switch

    AT.6-TEXAN Instruction Manual ITEM CODE: BH75. INSTALLING THE SWITCH. INSTALLING THE AIR TANK. 1) Cut out the switch hole using a modeling knife. Use a 2mm drill bit and drill out the two mounting holes through the fuselage side. 2) Secure the switch in place using the two machine screws provided with the radio system.
  • Page 33 AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 battery See picture wing attach to fuselage. Wing bolt. Remove covering Installing the fuselage hatch as same as pic- ture below. Insert and secure...
  • Page 34 AT.6-TEXAN Instruction Manual ITEM CODE: BH75. C/A glue C/A glue C/A glue...
  • Page 35 AT.6-TEXAN - INSTRUCTION MANUAL ITEM CODE: BH75 Mark point BALANCING. 1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash. THE CENTER OF GRAVITY IS LOCATED 77MM BACK FROM THE LEADING EDGE OF THE WING.

  • Page 36: Pre-Flight Check

    AT.6-TEXAN Instruction Manual ITEM CODE: BH75. Lift the model. If the tail drops when you lift, the model is “tail heavy” and you must add weigh* to the nose. If the nose drops, it is “nose heavy” and you must add weight* to the tail to Aileron Control balance.
