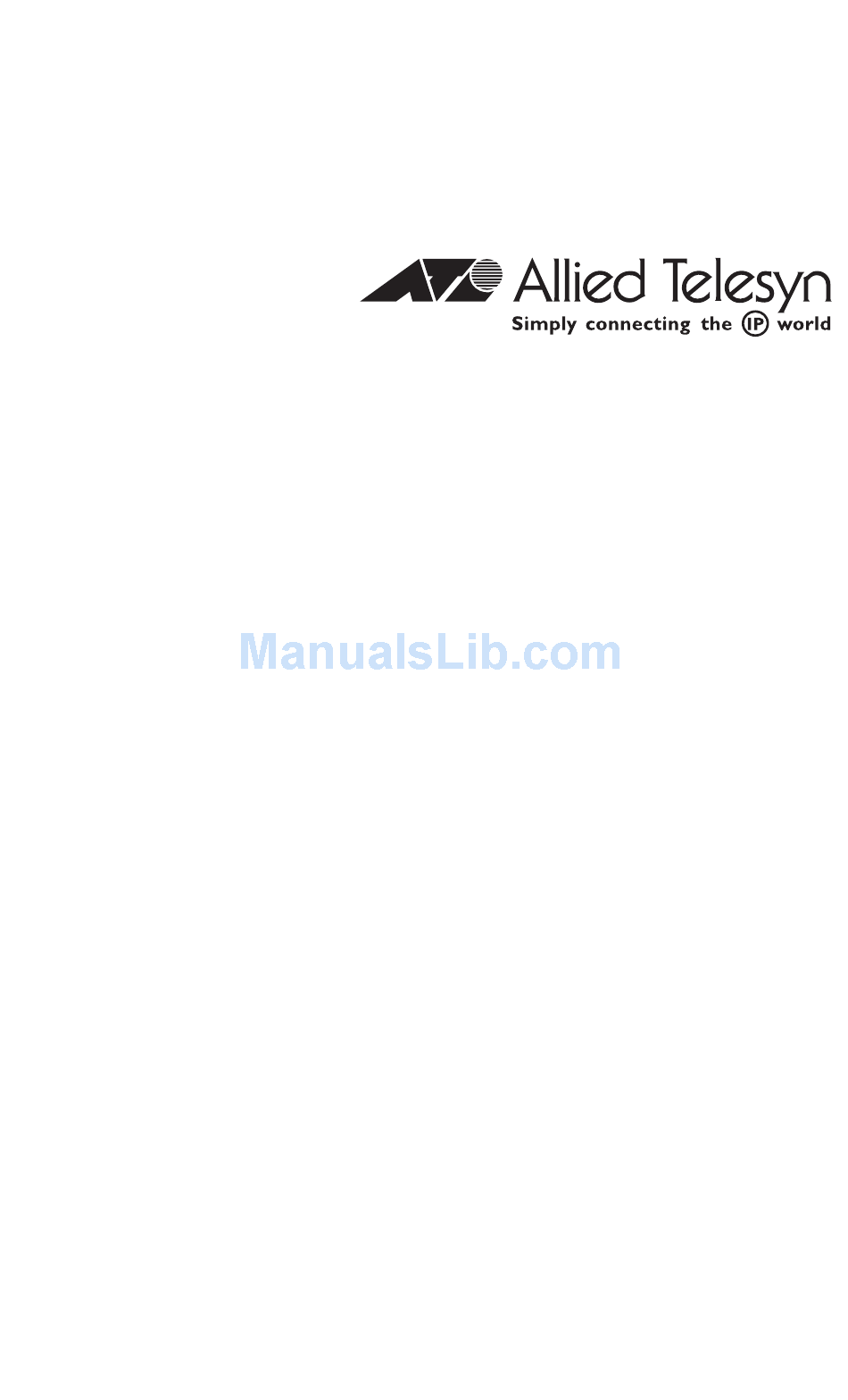

Page 1: Installation Guide
AT-FS201 AT-FS202 AT-FS202SC/FS1 AT-FS202SC/FS2 AT-FS202SC/FS3 AT-FS202SC/FS4 Fast Ethernet Switches Installation Guide PN 613-10761-00 Rev C... - Page 2 Allied Telesyn International Corp. has been advised of, known, or should have known, the possibility of...
-
Page 3: Safety Warnings
At time of installation, the Fiber Optic Lasers comply with FDA Radiation Performance Standard 21CFR Subchapter J, applicable at date of manufacture. This is a “CLASS 1 LED PRODUCT” (AT-FS201, AT-FS202 models) Important: Appendix B contains translated safety statements for installing this equipment. - Page 4 Safety Warnings Important: L'annexe B contient les instructions de sécurité relatives à l'installation de cet équipement. Lorsque vous voyez le symbole , reportez-vous à l'annexe B pour consulter la traduction de ces instructions dans votre langue. Tärkeää: Liite B sisältää tämän laitteen asentamiseen liittyvät käännetyt turvaohjeet. Kun näet -symbolin, katso käännettyä...
-
Page 5: Table Of Contents
Table of Contents Safety Warnings ....................iii Welcome to Allied Telesyn ................. vii Where to Find Web-based Guides ..............vii Document Conventions ..................vii Contacting Allied Telesyn Technical Support..........viii Online Support ..................viii Telephone and Fax Support..............viii Technical Support E-mail Addresses ............ix Returning Products ................... - Page 6 Table of Contents Chapter 3 Troubleshooting ................... 15 Appendix A Technical Specifications ................17 Physical ......................17 Temperature ..................... 17 Electrical Rating ....................17 Agency Certifications..................17 Transmitter ....................... 18 Fiber Optic Port Specifications ................ 18 Pinout Assignments..................20 Appendix B Electrical Safety and Installation Requirements .........
-
Page 7: Welcome To Allied Telesyn
AT-FS202SC/FSx Series Fast Ethernet Switches. Where to Find Web-based Guides The Allied Telesyn web site at www.alliedtelesyn.com provides you with an easy way to access the most recent documentation, software, and technical information for all of our products. For product guides, select “Support &... -
Page 8: Contacting Allied Telesyn Technical Support
Welcome to Allied Telesyn Contacting Allied Telesyn Technical Support You can contact Allied Telesyn technical support online or by telephone, fax, or e-mail. Online Support You can request technical support online by filling out the Technical Enquiry Form or by accessing the Knowledge Base. You can use the Knowledge Base to submit questions to our technical support staff and review answers to previously asked questions. -
Page 9: Technical Support E-Mail Addresses
Authorization (RMA) number. A product sent to Allied Telesyn without a RMA number will be returned to the sender at the sender’s expense. To obtain an RMA number, contact Allied Telesyn’s Technical Support at one of the following locations: North America... -
Page 10: For Sales Or Corporate Information
Welcome to Allied Telesyn For Sales or Corporate Information You can contact Allied Telesyn for sales or corporate information at the location listed below: Allied Teleyn International Corp. 19800 North Creek Parkway, Suite 200 Bothell, WA 98011 Tel: 1 (425) 487-8880... -
Page 11: Chapter 1 Description
Chapter 1 Description The AT-FS20x and AT-FS202SC/FSx Series Fast Ethernet Switches include the following models: AT-FS201 AT-FS202SC/FS2 AT-FS202 AT-FS202SC/FS3 AT-FS202SC/FS1 AT-FS202SC/FS4 The AT-FS20x and AT-FS202SC/FSx Series Switches are designed to extend the distance of your network by converting Fast Ethernet data between twisted pair cabling and either multimode or single-mode fiber optic cabling. - Page 12 Description Figure 1 illustrates the front panel of an AT-FS20x Series Switch. 10Base-T/ 100Base-FX 100Base-TX LNK/ LNK/ AUTO FD/COL 100M PORT 1 PORT 2 AT-FS202 FAST ETHERNET SWITCH IEEE 802.3 /802.3U Figure 1 AT-FS20x Series Front Panel (AT-FS202 Model) Figure 2 illustrates a front panel of an AT-FS202SC/FSx Series Switch. SINGLE MODE CLASS 1 10Base-T/...
-
Page 13: Features
100Base-FX 10/100Base-TX Model Maximum Maximum Connector Operating Connector Operating Distance Distance AT-FS201 2 km (1.2 mi) RJ-45 100 m (328 ft) AT-FS202 2 km (1.2 mi) RJ-45 100 m (328 ft) AT-FS202SC/FS1 15 km (9.3 mi) RJ-45 100 m (328 ft) AT-FS202SC/FS2 40 km (24.8 mi) -
Page 14: Status Leds
Auto-negotiation on the twisted pair port is disabled. External AC/DC Power Adapter The power adapter supplies 12V DC to the switch. Allied Telesyn supplies an approved safety compliant AC power adapter for the 100 and 240V AC versions with an unregulated output of 12V DC. -
Page 15: Twisted Pair Port
AT-FS20x and AT-FS202SC/FSx Series Installation Guide Twisted Pair Port The AT-FS20x and AT-FS202SC/FSx Series Switches have one 10/ 100Base-TX twisted pair port. The twisted pair port features a RJ-45 connector. Port Speed The twisted pair port is compliant with the 10Base-T and 10Base-TX standards and is capable of either 10 Mbps or 100 Mbps operation. -
Page 16: Fiber Optic Port
Description To connect two 10 Mbps or 100 Mbps network devices together that have dissimilar port wiring configurations, such as MDI to MDI-X, you would usually use a straight-through twisted pair cable. To connect two network devices that have the same wiring configuration, such as MDI to MDI, you would usually use a crossover cable. -
Page 17: Dip Switches
AT-FS20x and AT-FS202SC/FSx Series Installation Guide DIP Switches The DIP switches are used to manually configure the operating characteristics of the ports. These characteristics include the port speed, duplex mode, and auto-negotiation. On the 100Base-FX fiber optic port, you can manually set the duplex mode to either half- or full-duplex. -
Page 18: Network Topologies
Description Network Topologies Figure 4 illustrates a topology using one AT-FS201 switch to interconnect two small networks of stackable hubs. Network 1 has an AT-FH812u with an AT-FH807u switching module connected to the 100Base-FX port on the AT-FS201. Network 2 has an AT-3624TR hub connected to the 10/100Base-TX port on the AT-FS201. -
Page 19: Chapter 2 Installing The Switch
Verifying the Package Contents Make sure the following items are included in your package. If any item is missing or damaged, contact your Allied Telesyn sales representative for assistance. One AT-FS20x or AT-FS202SC/FSx Series Switch Four protective feet (for desktop use only) -
Page 20: Planning The Installation
Table 4 100Base-FX Fiber Optic Cabling Specifications (Full-duplex) Maximum Fiber Optic Maximum Operating Model Allowable Loss Cable Distance Budget AT-FS201 50/125 or 2 km (1.2 mi) 13 dB at 1310 nm 62.5/125 micron multimode AT-FS202 50/125 or 2 km (1.2 mi) 13 dB at 1310 nm 62.5/125 micron... - Page 21 AT-FS20x and AT-FS202SC/FSx Series Installation Guide Table 4 100Base-FX Fiber Optic Cabling Specifications (Full-duplex) - continued Maximum Fiber Optic Maximum Operating Model Allowable Loss Cable Distance Budget AT-FS202SC/FS1 50/125 or 62.5/ 2 km (1.2 mi) 13 dB at 1310 nm 125 multimode 9/125 micron 15 km (9.3 mi)
-
Page 22: Selecting A Site
Installing the Switch Table 5 100Base-FX Fiber Optic Ports (Half-duplex) - continued Number of Media Maximum Operating Connected Devices Converters Distance Two Media Converters Switch to switch 332 m (1,089 ft) Inline Workstation to switch 322 m (1, 089 ft) Switch to Class I repeater 97 m (318 ft) Switch to Class II repeater... - Page 23 AT-FS20x and AT-FS202SC/FSx Series Installation Guide Configure the DIP switches. Refer to Figure 3 on page 2 for the location of the DIP switches and Table 6 for the possible settings. Table 6 DIP Switch Settings Switch Port Setting Position Description Number Speed (Mbps) Up The twisted pair port is operating at 10...
-
Page 24: Warranty Registration
Installing the Switch Place the switch on a secure, level surface, leaving ample space around the unit for ventilation. Plug the AC/DC power adapter into an appropriate AC power outlet and insert the power plug into the DC receptacle located on the back panel. This step does not apply if you are installing the switch in an AT-MCR12 chassis. -
Page 25: Chapter 3 Troubleshooting
Chapter 3 Troubleshooting Follow the guidelines below to test and troubleshoot the installation in the event a problem occurs. Note Whenever the speed and/or duplex mode are changed during or after power ON, power OFF then power back ON the switch to load the new configuration. - Page 26 If you are still experiencing problems after testing and troubleshooting the installation, contact Allied Telesyn Technical Support for assistance. Refer to “Contacting Allied Telesyn Technical Support” on page viii or visit our web site at www.alliedtelesyn.com for support information.
-
Page 27: Technical Specifications
Maximum Current: 5 mA Power Consumption: Agency Certifications Safety Conforms to all standards normally supported by Allied Telesyn products including safety standards UL 1950, CSA 22.2 No. 950, TUV EN60950, EN60825 CE Compliant Standard CE Compliant IEEE 802.3, IEEE 802.3u... -
Page 28: Transmitter
Table 7 through Table 10 lists the specifications for the fiber optic port. Table 7 Fiber Optic Transmitter Fiber Launch Power (dBm) Fiber Optic Optical Model Type Diameter Frequency Max. Avg. Min. (microns) AT-FS201 & 50/125 1310 nm -14.0 -20.3 -22.5 AT-FS202 62.5/125 1310 nm -14.0 -16.8 -19.0 AT-FS202SC/FS1 9/125 1310 nm -8.0... - Page 29 AT-FS20x and AT-FS202SC/FSx Series Installation Guide Table 8 Fiber Optic Receiver Fiber Receiver Power (dBm) Fiber Optic Optical Model Type Diameter Frequency Min. Avg. Saturation (microns) AT-FS201 & 50/125 1310 nm -31.8 -34.5 -14.5 AT-FS202 62.5/125 1310 nm -31.8 -34.5 -14.0 AT-FS202SC/FS1 9/125 1310 nm -31.0...
-
Page 30: Pinout Assignments
Table 10 Fiber Optic Loss Specification (Benchmark) Fiber Optic Optical Typical Loss Worst Case Fiber Type Bandwidth Diameter Frequency Factor Loss Factor 50/125 1310 nm 1.00 dB/km 1.50 dB/km 400 Mhz-km microns 62.5/125 1310 nm 1.00 dB/km 1.50 dB/km 500 Mhz-km microns 9/125 1310 nm... -
Page 31: Electrical Safety And Installation Requirements
Appendix B Electrical Safety and Installation Requirements Important: This appendix contains multiple-language translations for the safety statements in this guide. Wichtig: Dieser Anhang enthält Übersetzungen der in diesem Handbuch enthaltenen Sicherheitshinweise in mehreren Sprachen. Vigtigt: Dette tillæg indeholder oversættelser i flere sprog af sikkerhedsadvarslerne i denne håndbog. - Page 32 Warning Do not stare into the Laser beam. At time of installation, the Fiber Optic Lasers comply with FDA Radiation Performance Standard 21CFR Subchapter J, applicable at date of manufacture. This is a “CLASS 1 LED PRODUCT” (AT-FS201, AT-FS202, AT-FS203 models) Safety Lightning Danger Danger: DO NOT WORK on equipment or CABLES during periods of LIGHTNING ACTIVITY.
- Page 33 AT-FS20x and AT-FS202SC/FSx Series Installation Guide Normen: Dieses Produkt erfüllt die Anforderungen der nachfolgenden Normen. Hochfrequenzstörung EN55022 Klasse A Warnung: Bei Verwendung zu Hause kann dieses Produkt Funkstörungen hervorrufen. In diesem Fall müßte der Anwender angemessene Gegenmaßnahmen ergreifen. Störsicherheit EN55024 Achtung: Für dieses Produkt sind abgeschirmte Kabel erforderlich, damit den Richtlinien für Emission und Interferenzschutz entsprochen wird.
- Page 34 Sikkerhed Fare Under Uvejr Fare: UNDLAD at arbejde på udstyr eller KABLER i perioder med LYNAKTIVITET. VENTILATIONSÅBNINGERNE MÅ IKKE BLOKERES Strømforsyningen til apparatet må udelukkende tages fra tilpasningstransformatoren. Europe - EU Brug kun TÜV godkendt vekselstrømstransformator på 12 V jævnstrøm, 500 mA. Betjeningstemperatur Dette apparat er konstrueret til en omgivende temperatur på...
- Page 35 AT-FS20x and AT-FS202SC/FSx Series Installation Guide Normes: ce produit est conforme aux normes de suivantes. Emission d'interférences radioélectriques EN55022 Classe Mise En Garde: dans un environnement domestique, ce produit peut provoquer des interférences radioélectriques. Auquel cas, l'utilisateur devra prendre les mesures adéquates.
- Page 36 Tähtipisteeseen (hub) syötettävän virran pitää tulla ainoastaan sovittimesta. Europe - EU Käytä TÜV-lisenssillä valmistettua verkkosovitinta, jonka tasajännitteen nimellisarvot ovat DC 12 V, 500 mA (milliampeeria). Käyttölämpötila Tämä tuote on suunniteltu ympäröivän ilman maksimilämpötilalle 40° C. Kaikki Maat: Asenna tuote paikallisten ja kansallisten sähköturvallisuusmääräysten mukaisesti.
- Page 37 AT-FS20x and AT-FS202SC/FSx Series Installation Guide Sikkerhetsnormer: Dette produktet tilfredsstiller følgende sikkerhetsnormer. RFI stråling EN55022 Klasse A Advarsel: Hvis dette produktet benyttes til privat bruk, kan produktet forårsake radioforstyrrelse. Hvis dette skjer, må brukeren ta de nødvendige forholdsregler. Immunitet EN55024 Advarsel: Dette produktet må...
- Page 38 Europe - EU Use um adaptador de corrente alternada com saída DC de 12V e 500mA em conformidade com as especificações da TÜV. Temperatura De Funcionamento Este produto foi projetado para uma temperatura ambiente máxima de 40 graus centígrados. Todos Os Países: Instale o produto de acordo com as normas nacionais e locais para instalações elétricas.
- Page 39 AT-FS20x and AT-FS202SC/FSx Series Installation Guide Standarder: Denna produkt uppfyller följande standarder. Radiostörning EN55022 Klass A Varning: Denna produkt kan ge upphov till radiostörningar i hemmet, vilket kan tvinga användaren till att vidtaga erforderliga åtgärder. Immunitet EN55024 Varning! Denna produkt kräver skärmade kablar för att uppfylla standardkraven för emission och immunitet.
-
Page 41: Technical Support Fax Order
______________________________________________________________________ Detailed description (Please use separate sheet) Please also fax printouts of relevant files such as batch files and configuration files. When completed, fax this sheet to the appropriate Allied Telesyn office. Fax numbers can be found on page viii.
