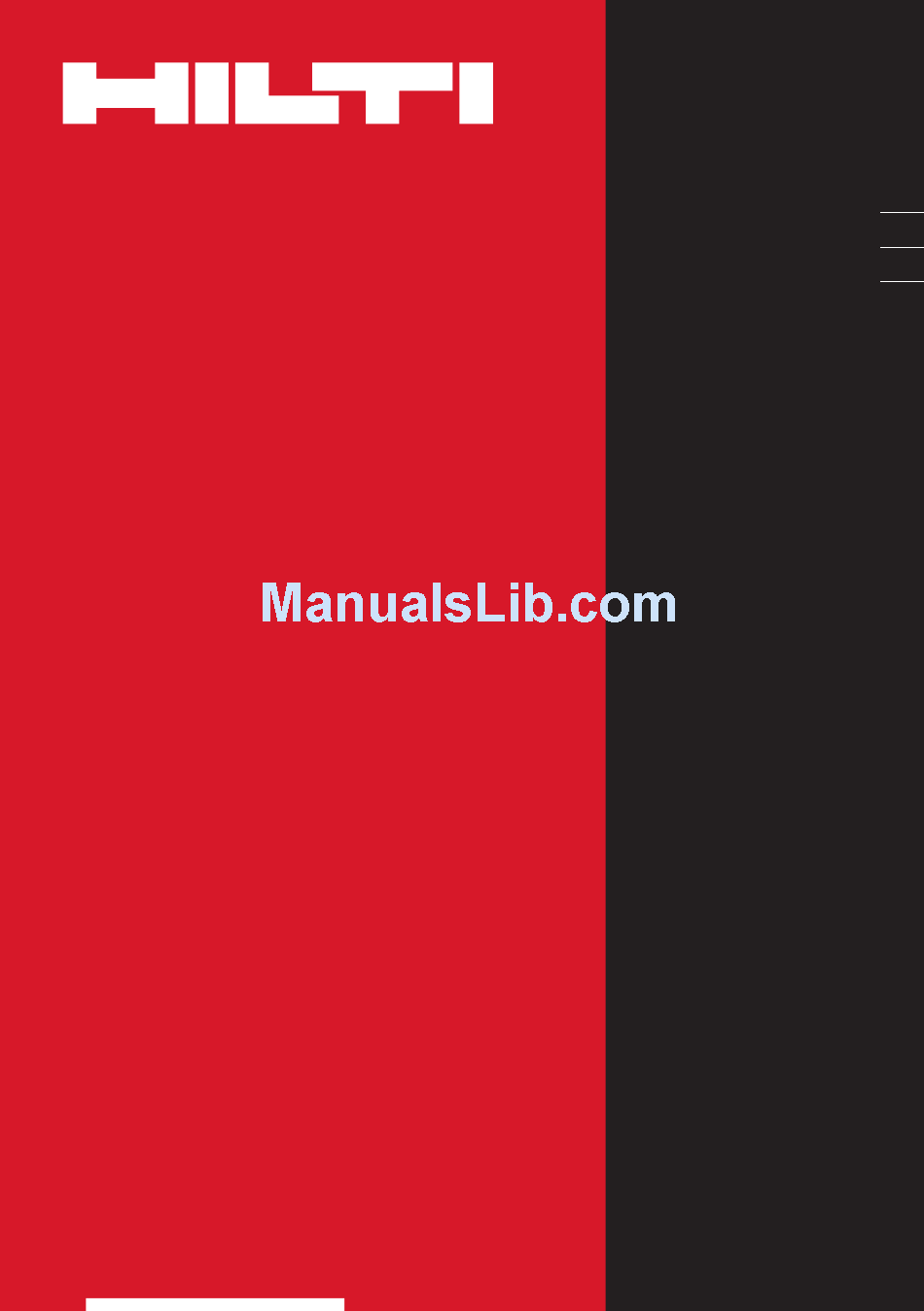

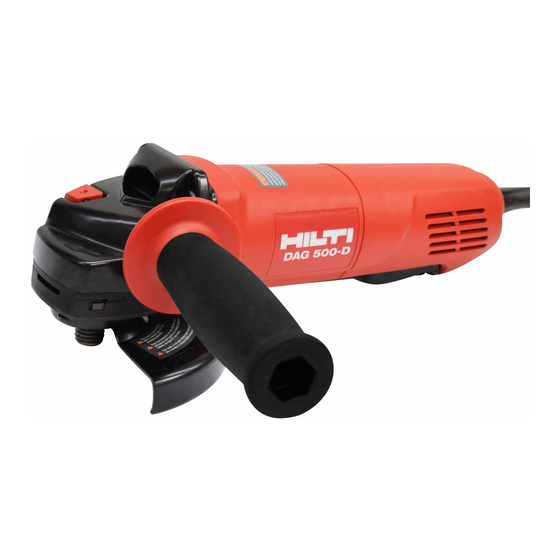

- Page 1 DAG 500-D Operating instructions Mode d’emploi Manual de instrucciones Printed: 09.12.2013 | Doc-Nr: PUB / 5164435 / 000 / 00...
- Page 2 This Product is Certified Ce produit est homologué Producto homologado por Este produto está registrado Printed: 09.12.2013 | Doc-Nr: PUB / 5164435 / 000 / 00...
- Page 3 Printed: 09.12.2013 | Doc-Nr: PUB / 5164435 / 000 / 00...
- Page 4 Printed: 09.12.2013 | Doc-Nr: PUB / 5164435 / 000 / 00...
- Page 5 Printed: 09.12.2013 | Doc-Nr: PUB / 5164435 / 000 / 00...
-
Page 6: Table Of Contents
In these operating instructions, the designation “the Always keep these operating instructions to- power tool” always refers to the DAG 500-D angle grinder. gether with the power tool. Operating controls and components 1 Ensure that the operating instructions are... -
Page 7: Description
80 m/sec. The power tool may be used only for dry cutting or grinding. When grinding stone, a vacuum cleaner equipped with a stone dust filter, e.g. a suitable Hilti vacuum cleaner, must be used. - Page 8 It is recommended that a dust removal system consisting of matched components, i.e. dust removal hood and a suitable Hilti vacuum cleaner, are used for grinding mineral materials, such as concrete or stone. These serve to protect the operator and increase the life of the power tool and disc used.
-
Page 9: Consumables
It is recommended that a dust removal system consisting of matched components, i.e. dust removal hood and a suitable Hilti vacuum cleaner, are used for cutting and slitting mineral materials, such as concrete or stone. These serve to protect the operator and increase the life of the power tool and disc used. -
Page 10: Technical Data
Item Equipment AC‑D AG-D AF-D AN-D DC‑D DG‑CW 3CS/3SS/4CS/4SS DG‑EX 125/5" sur- face guard DC‑EX 125/5"-C compact guard (in combination with DC‑EX 125/5"M cutting guard for mineral materials DC‑EX SL cutting adapter (in combi- nation with F) Side handle DC BG 125 hoop handle (optional for Clamping nut (not for use with... -
Page 11: Safety Instructions
5 Safety instructions The safety rules in section 5.1 contain all general safety the influence of drugs, alcohol or medication. A rules for power tools which, in accordance with the moment of inattention while operating power tools applicable standards, must be listed in the operating may result in serious personal injury. - Page 12 g) Use the power tool, accessories and tool bits etc. capable of stopping small abrasive or workpiece fragments. The eye protection must be capable in accordance with these instructions taking into account the working conditions and the work to of stopping flying debris generated by various be performed.
- Page 13 a) Maintain a firm grip on the power tool and po- loading and susceptibility to twisting or binding of sition your body and arm to allow you to resist the wheel in the cut and the possibility of kickback or kickback forces.
- Page 14 Check the power tool’s supply cord at regular damage, it must be checked at a Hilti Service intervals and have it replaced by a qualified spe- Center. cialist if found to be damaged. If the power tool’s...
-
Page 15: Before Use
hat, ear protection, protective gloves and breathing 5.7.5 Personal protective equipment protection while the power tool is in use. The user and any other persons in the vicinity must wear ANSI Z87.1-approved eye protection, a hard 6 Before use Fit the guard onto the drive spindle collar so that the two triangular marks on the guard and on the power tool in alignment. -
Page 16: Operation
NOTE 6.4 Fitting and removing accessories (e.g. discs, brushes) with integrated thread Diamond discs must be replaced when the cutting or grinding performance drops significantly. This generally Screw the accessory onto the drive spindle. is the case when the segments reach a height of less CAUTION Do not press the spindle lockbutton than ¹⁄₁₆". -
Page 17: Care And Maintenance
Have The outer casing of the power tool is made from impact- the power tool repaired by Hilti Service. resistant plastic. Sections of the grip are made from a synthetic rubber material. -
Page 18: Troubleshooting
10 Disposal Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling. - Page 19 Fax:+423 / 234 29 65 www.hilti.com 1 609 92A 0JE Hilti = registered trademark of Hilti Corp., Schaan W 3200 | 1213 | 00-Pos. 3 | 1 Printed in Germany © 2013 Right of technical and programme changes reserved S. E. & O 382623 / A2 Printed: 09.12.2013 | Doc-Nr: PUB / 5164435 / 000 / 00...
