Printed: 15.11.2013 | Doc-Nr: PUB / 5161758 / 000 / 00
DAG 100-S
Operating instructions
ja
en
ko
zh
cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAG 100-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hilti DAG 100-S

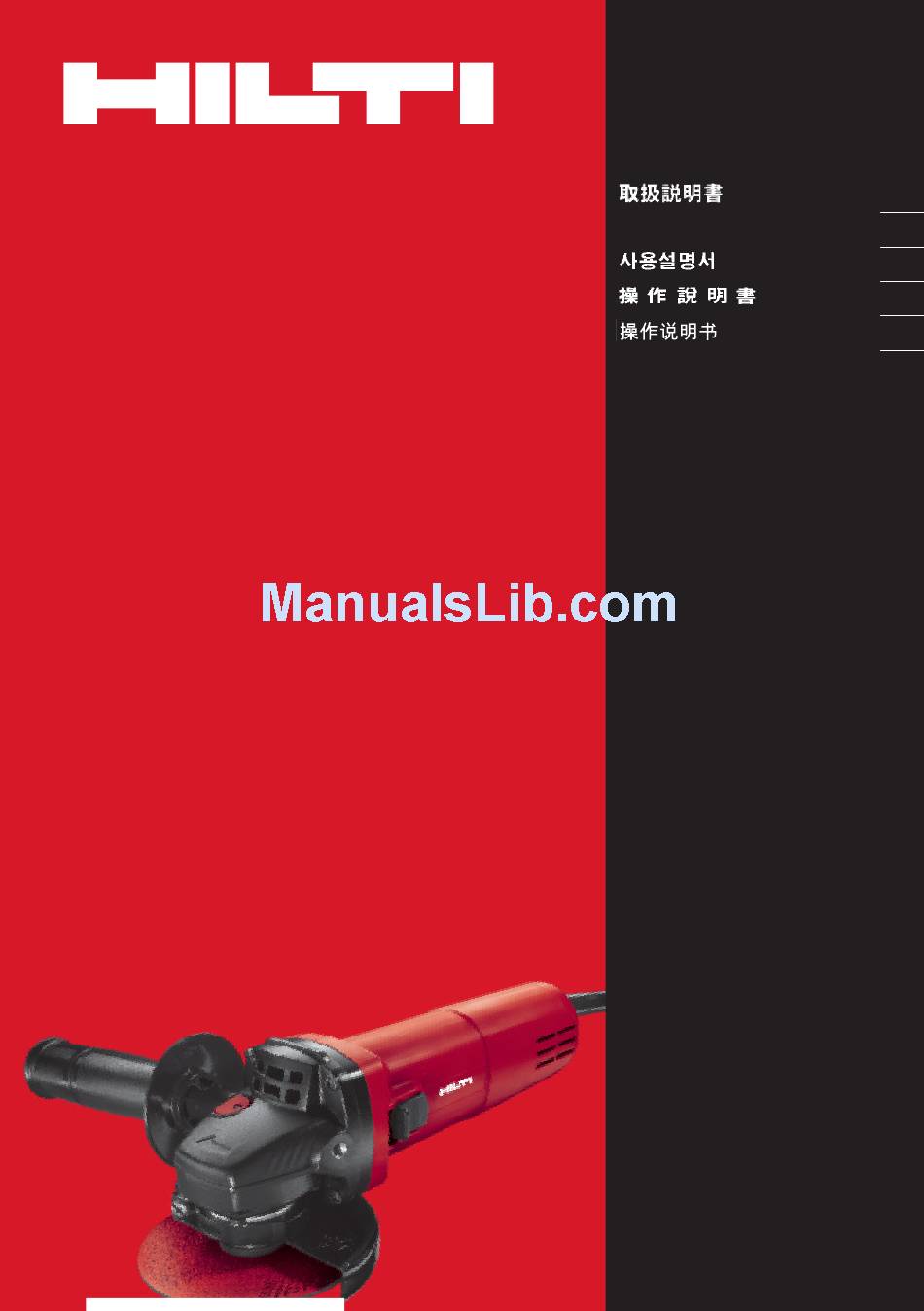

  • Page 1 DAG 100-S Operating instructions Printed: 15.11.2013 | Doc-Nr: PUB / 5161758 / 000 / 00...
  • Page 2 Printed: 15.11.2013 | Doc-Nr: PUB / 5161758 / 000 / 00...
  • Page 3 Printed: 15.11.2013 | Doc-Nr: PUB / 5161758 / 000 / 00...
  • Page 4: Table Of Contents

    In these operating instructions, the designation “power Always keep these operating instructions to- tool” always refers to the DAG 100-S angle grinder. gether with the power tool. Operating controls and parts 1 Ensure that the operating instructions are...
  • Page 5: Description

    Cutting or grinding materials containing asbestos is not permissible. Nationally applicable industrial safety regulations must be observed. To avoid the risk of injury, use only genuine Hilti accessories and insert tools. Observe the information printed in the operating instructions concerning operation, care and maintenance.
  • Page 6 The power tool is designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any special hazards that may be encountered. The power tool and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed.
  • Page 7: Consumables

    3 Consumables Discs with a diameter of max. 100 mm, designed for a speed of 11000/min and a peripheral speed of 80 m/sec, and with a maximum thickness of 6.4 mm (abrasive grinding discs) or 2.5 mm (abrasive cutting discs). Discs Application Designation...
  • Page 8 c) Keep children and bystanders away while operat- are connected and properly used. Use of dust ing a power tool. Distractions can cause you to lose collection can reduce dust-related hazards. control. 5.1.4 Power tool use and care 5.1.2 Electrical safety a) Do not force the power tool.
  • Page 9 turer. Just because the accessory can be attached m) Do not run the power tool while carrying it at your to your power tool, it does not assure safe operation. side. Accidental contact with the spinning accessory d) The rated speed of the accessory must be at could snag your clothing, pulling the accessory into least equal to the maximum speed marked on the your body.
  • Page 10 Hilti for wood dust the power tool motionless until the wheel comes and/or mineral dust together with this tool. Ensure to a complete stop.
  • Page 11: Before Use

    After disc breakage, or if the power tool is frequently for work on conductive materials dropped, falls or suffers other mechanical should be checked at regular intervals at a Hilti damage, it must be checked at a Hilti Service Service Center. Under unfavorable circumstances, Center.
  • Page 12 Screw on the clamping nut and tighten it. 6.2 Guard CAUTION Do not press the spindle lockbutton CAUTION before the drive spindle has stopped rotating. Adjust the position of the guard to suit the require- Press the spindle lockbutton and hold it in this ments of the work being done.
  • Page 13: Operation

    7 Operation CAUTION The insert tool may get hot during use. Wear protective gloves when changing insert tools. WARNING DANGER Reduce the load on the power tool by avoiding tilt- Wear ear protectors. Exposure to noise can cause hear- ing the disc in the kerf when cutting. The disc may ing loss.
  • Page 14: Care And Maintenance

    10 Disposal Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling.
  • Page 15: Manufacturer's Warranty - Tools

    11 Manufacturer’s warranty - tools Hilti warrants that the tool supplied is free of defects in Additional claims are excluded, unless stringent na- material and workmanship. This warranty is valid so long tional rules prohibit such exclusion. In particular, Hilti...
  • Page 16 Fax:+423 / 234 29 65 www.hilti.com DAG 100-S-1 884924A931 Hilti = registered trademark of Hilti Corp., Schaan W 3491 | 1113 | 00-Pos. 8 | 1 Printed in China © 2013 Right of technical and programme changes reserved S. E. & O 231092 / A2 Printed: 15.11.2013 | Doc-Nr: PUB / 5161758 / 000 / 00...

This manual is also suitable for:

Dag 115-s
