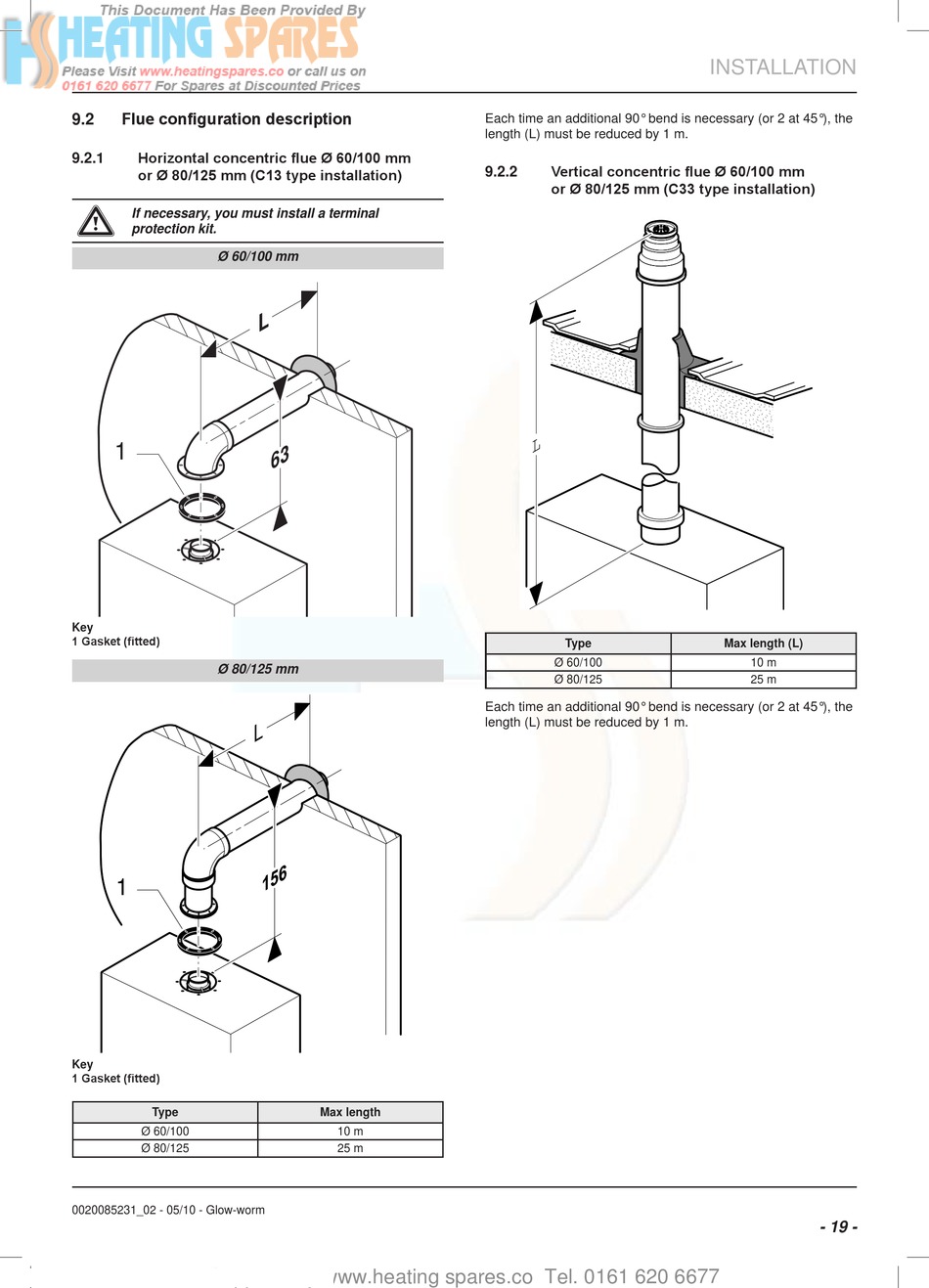

Flue configuration description
9.2
Horizontal concentric flue Ø 60/100 mm
9.2.1
or Ø 80/125 mm (C13 type installation)
a
If necessary, you must install a terminal
protection kit.
Ø 60/100 mm
1
Key
1 Gasket (fitted)
Ø 80/125 mm
1
Key
1 Gasket (fitted)
Type
Ø 60/100
Ø 80/125
0020085231_02 - 05/10 - Glow-worm
Supplied By www.heating spares.co Tel. 0161 620 6677
L
6 3
L
Max length
10 m
25 m
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
Vertical concentric flue Ø 60/100 mm
9.2.2
or Ø 80/125 mm (C33 type installation)
L
Type
Ø 60/100
Ø 80/125
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
INSTALLATION
Max length (L)
10 m
25 m
- 19 -
