Hydraulic Block - Glow-worm Ultracom 2 24cxi Installation And Servicing

MAINTENANCE
19.4

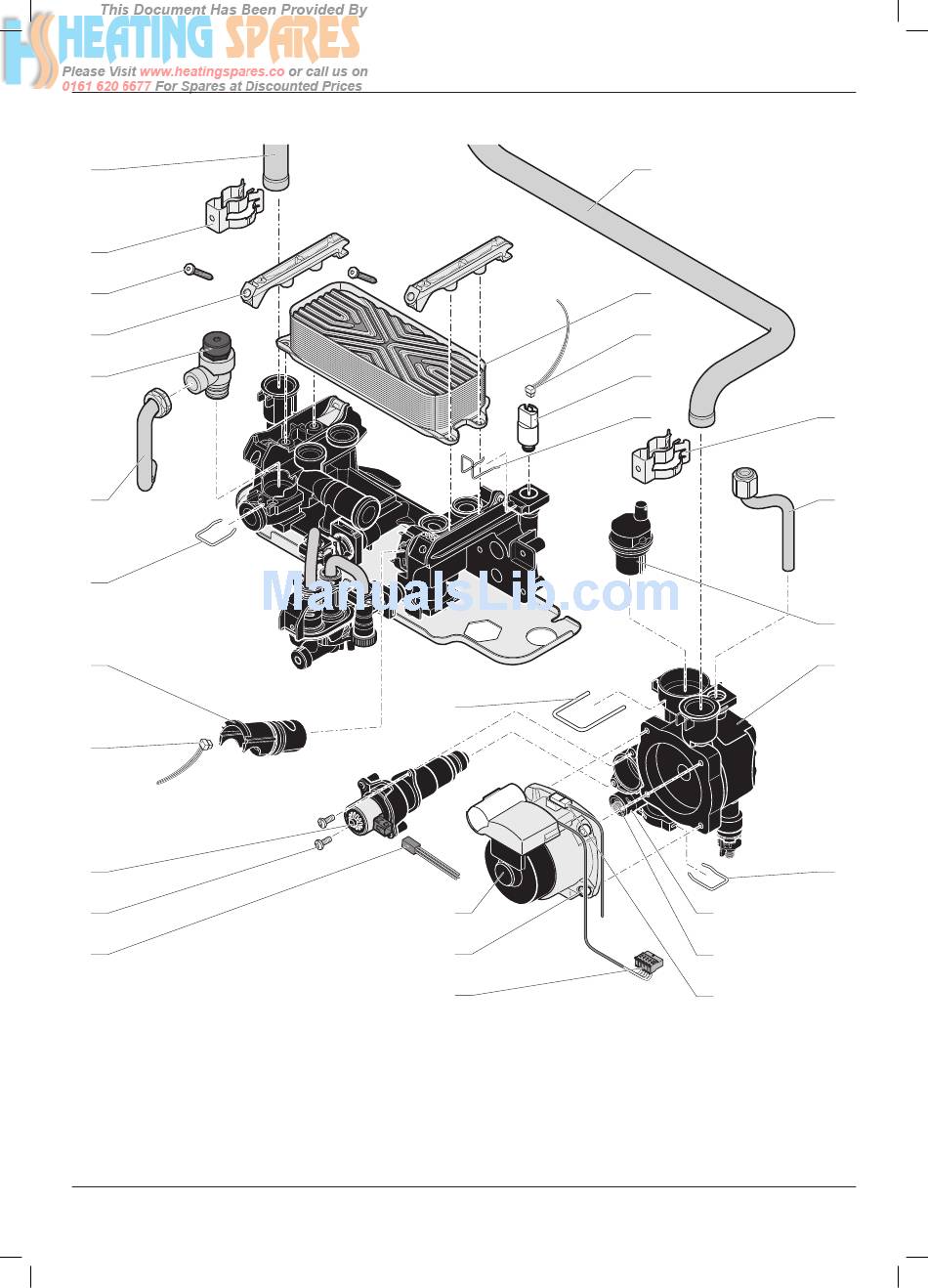

Hydraulic block

12
11
10
9
8
7
6
5
4
3
2
1
Key
1 Three-way valve electrical plug
2 Three-way valve retaining screws
3 Three-way valve
4 Flow sensor electrical plug
5 Flow sensor
6 Safety Discharge Valve retaining clip
7 Safety Discharge Valve discharge pipe
8 Safety Discharge Valve
9 Plate-to-plate heat exchanger retaining
arm
- 48 -
Supplied By www.heating spares.co Tel. 0161 620 6677
29
28
27
26
10 Plate-to-plate heat exchanger retaining
screws
11 Heating flow pipe retaining clip
12 Heating flow pipe
13 Heating return pipe
14 Plate-to-plate heat exchanger
15 Low water pressure sensor connector
16 Low water pressure sensor
17 Low water pressure sensor retaining
clip
18 Heating return pipe retaining clip
13
14
15
16
17
23
24
25
19 Expansion vessel pipe
20 Automatic air vent
21 Pump housing
22 Pump housing retaining clip
23 bypass retaining clip
24 Bypass screw
25 Pump head earth lead
26 Pump head connector
27 Pump head retaining screws
28 Pump head
29 Automatic air vent retaining clip
0020085231_02 - 05/10 - Glow-worm
18
19
20
21
22
