INSTALLATION

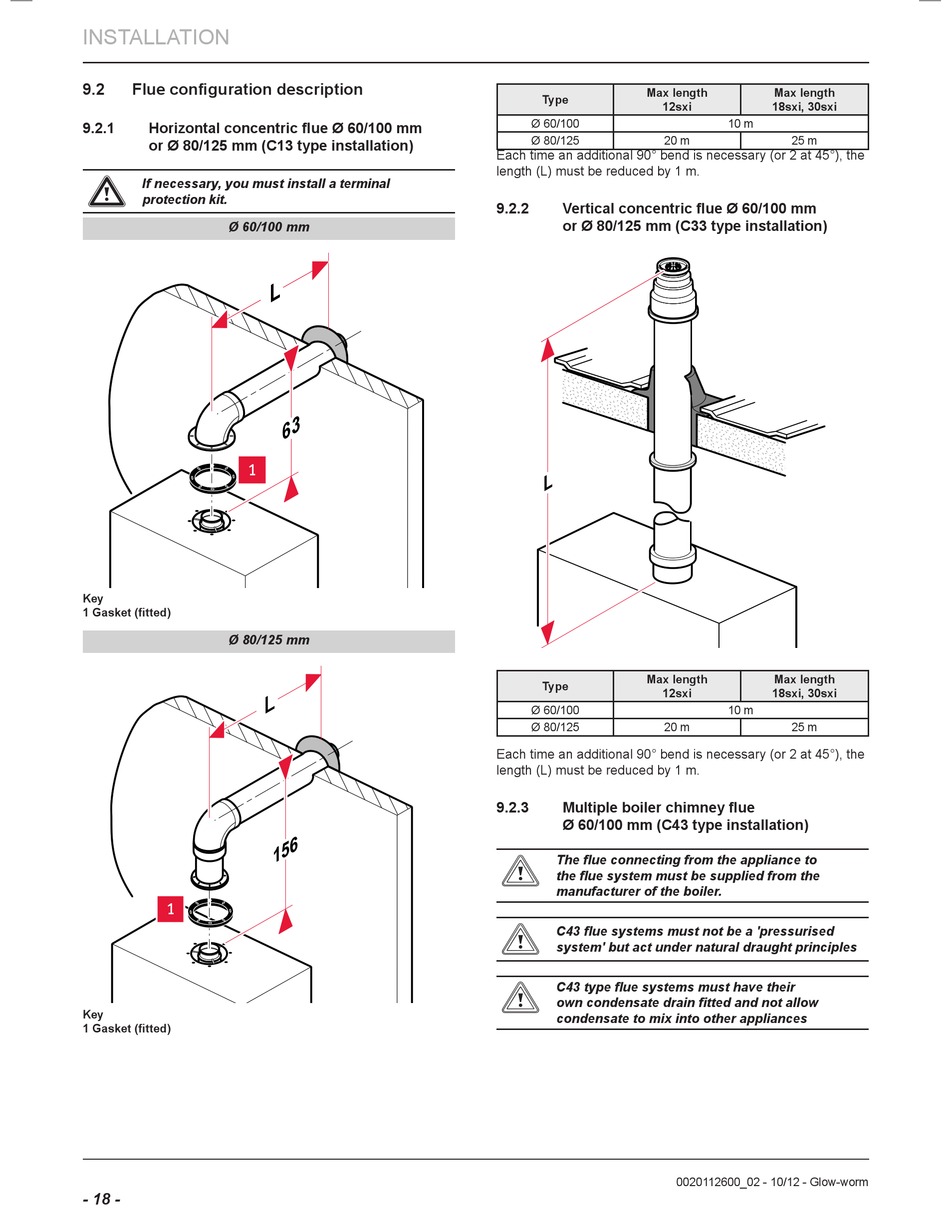

9.2

flue configuration description

9.2.1 Horizontal concentric flue Ø 60/100 mm
or Ø 80/125 mm (C13 type installation)
If necessary, you must install a terminal
a
protection kit.
Ø 60/100 mm
Key
1 Gasket (fitted)
Ø 80/125 mm
1
Key
1 Gasket (fitted)
- 18 -
L
6 3
1
L
Max length
Type
Ø 60/100
Ø 80/125
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
9.2.2 Vertical concentric flue Ø 60/100 mm
or Ø 80/125 mm (C33 type installation)
L
Max length
Type
Ø 60/100
Ø 80/125
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
9.2.3 Multiple boiler chimney flue
Ø 60/100 mm (C43 type installation)
The flue connecting from the appliance to
b
the flue system must be supplied from the
manufacturer of the boiler.
C43 flue systems must not be a 'pressurised
b
system' but act under natural draught principles
C43 type flue systems must have their
b
own condensate drain fitted and not allow
condensate to mix into other appliances
Max length
12sxi 18sxi, 30sxi
10 m
20 m 25 m
Max length
12sxi 18sxi, 30sxi
10 m
20 m 25 m
